COOLER MASTER HAF 500 Mid Tower Cabinet (Black)

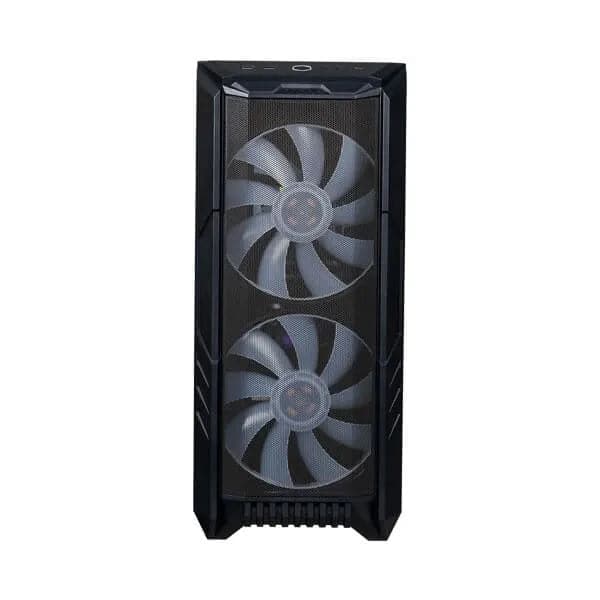

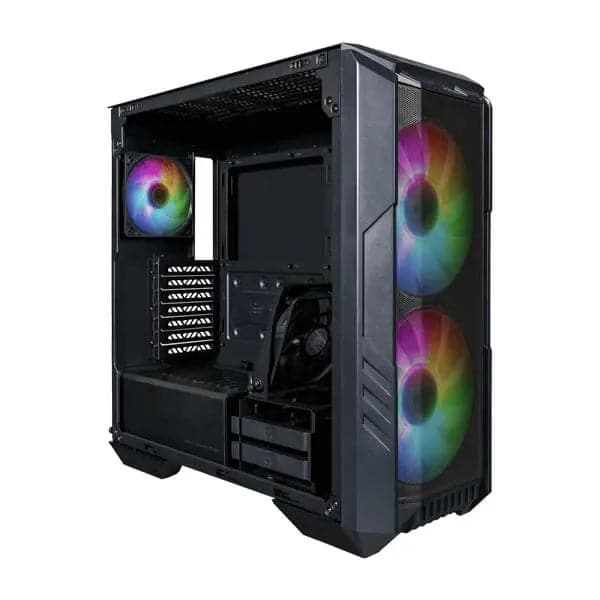

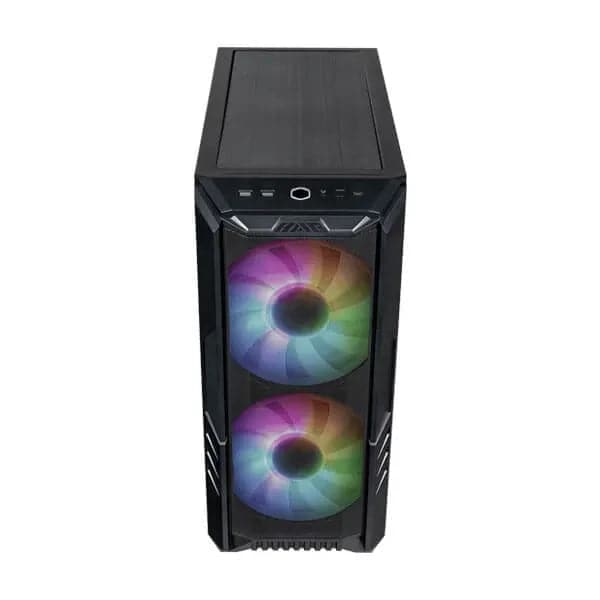

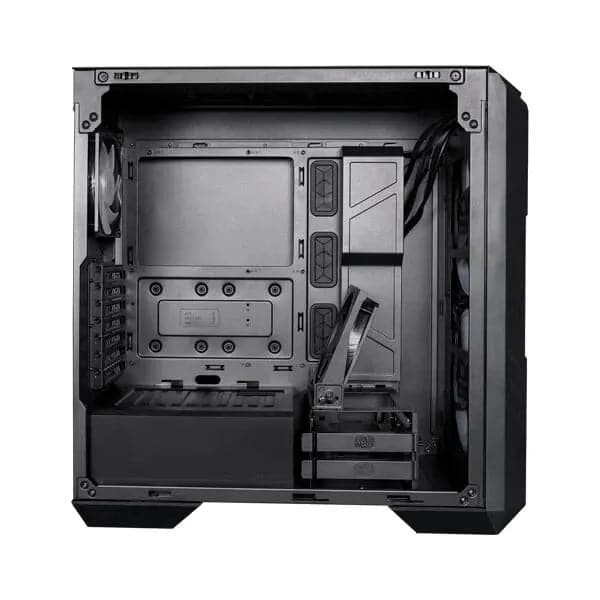

The Cooler Master HAF 500 Mid Tower Cabinet in Black revives the acclaimed High Air Flow (HAF) series with a chassis engineered from the ground up for thermal performance and builder convenience. Its large mesh front panel maximises intake surface area, channelling a steady stream of cool air directly over your components. Two pre-installed 200mm ARGB fans at the front move substantial air volumes at low rotational speeds, reducing acoustic output while sustaining effective cooling across the entire interior. A 120mm SickleFlow PWM ARGB fan handles rear exhaust, and a fourth 120mm SickleFlow PWM fan is mounted internally on the HDD cage bracket for directed GPU airflow — and that bracket is rotatable to suit different GPU lengths and orientations. Builders working with high-end liquid cooling setups will appreciate the dual 360mm radiator support on both the top and front panels simultaneously, accommodating everything from compact 120mm units up to full 360mm loops. The tempered glass left side panel attaches via a tool-free pin system for quick access; an optional screw can be added for extra security. The top panel is fully removable, simplifying fan and radiator installation in tight spots. Motherboard compatibility spans Mini-ITX, Micro-ATX, ATX, SSI CEB, and E-ATX (up to 12 x 14.1 inches, with a note that larger boards may affect cable management space). Seven expansion slots, a 410mm graphics card clearance, and 167mm CPU cooler clearance ensure compatibility with current full-length GPUs and tall tower coolers. The front I/O panel includes two USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2 Type-C port, a combined audio jack, and a built-in ARGB hub for centralised lighting control. Verified Specifications: - Model / Product Code: HAF 500 / H500-KGNN-S00 - Form Factor: Mid Tower - Dimensions (incl. protrusions): 516 x 224 x 510 mm (L x W x H) - Motherboard Support: Mini-ITX, Micro-ATX, ATX, SSI CEB, E-ATX (up to 12"x14.1") - Pre-installed Fans: 2 x 200mm ARGB (front), 1 x 120mm SickleFlow PWM ARGB (rear), 1 x 120mm SickleFlow PWM (internal) - Fan Support: Top 3x120/2x140/2x200mm; Front 3x120/2x140/2x200mm; Rear 1x120mm; HDD cage top 1x120mm - Radiator Support: Top up to 360mm; Front up to 360mm; Rear 120mm - GPU Clearance: 410mm | CPU Cooler Clearance: 167mm | PSU Clearance: 180mm - Drive Bays: 2x 3.5"/2.5" combo + 2x 2.5" SSD - Expansion Slots: 7 - I/O: 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type-C, 1x audio jack, ARGB hub - Cable Routing Space (behind MB tray): 30mm - Dust Filters: Top and Bottom - PSU Support: Bottom-mount ATX - Materials: Steel, mesh, plastic exterior; tempered glass + steel left side panel - Net Weight: 9.5 kg | Gross Weight: 11.2 kg - Warranty: 2 Years
