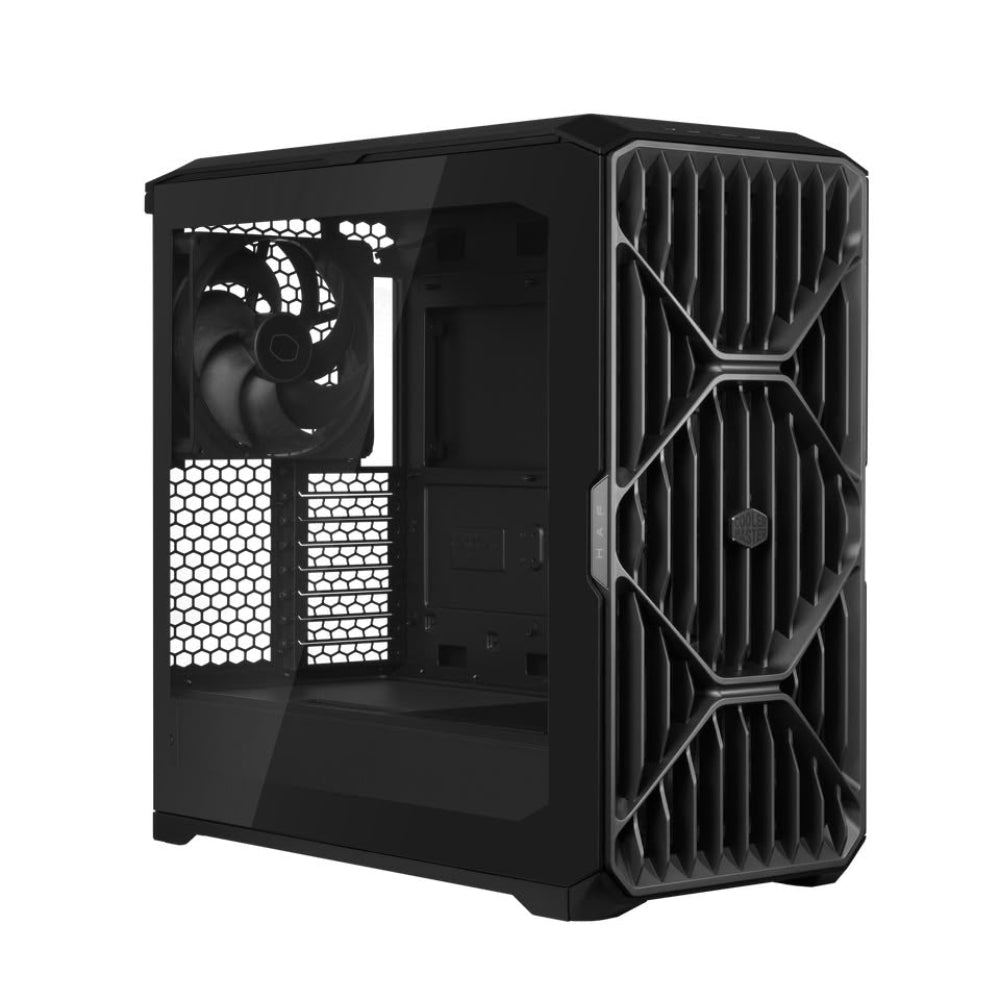

Cooler Master HAF II 500 E-ATX Mid Tower PC Cabinet (Black)

The Cooler Master HAF II 500 is a mid tower PC cabinet engineered around a balanced, low-resistance airflow architecture that keeps component temperatures in check without driving up system noise. Two pre-installed Mighty40 F220 220 mm front intake fans and one Mighty40 V180 180 mm rear exhaust fan form the core cooling trio, maximising volumetric airflow at lower RPMs so the system stays quieter under load. Large front and rear ventilation openings reduce chassis-induced airflow interference, letting the installed fans operate closer to their rated potential. The Split-Level Cable Management layout redistributes internal routing space to accommodate the oversized 180 mm rear exhaust fan while controlling overall chassis depth. The sliding cable cover conceals cables inside a centralised routing chamber and includes shark-gill-inspired vents to assist memory cooling. Cable straps and zoned routing channels further simplify builds and preserve unobstructed airflow lanes throughout. The MasterRail multi-purpose mounting system provides adjustable sliding rails that support multiple fan and radiator sizes across the front, top, and rear positions—and is designed to accept future compatible accessories and third-party devices that share common mounting patterns. The Dual-Mode GPU Holder can clamp a single graphics card for transport stability or support two cards simultaneously. An airflow divider below directs intake air from the lower front fan toward the GPU while still cooling nearby storage and PCIe devices. Motherboard compatibility spans Mini-ITX through E-ATX (up to 310 mm wide) on an ATX-compatible standoff pattern. The left side panel is tempered glass; the right side panel is SGCC steel. An integrated fan hub offers 6 PWM and 6 ARGB ports with a combined 54 W total power capacity. The front I/O includes one USB 3.2 Gen 2×2 Type-C port, two USB 3.2 Gen 1 Type-A ports, and a 3.5 mm headset jack. Verified Specifications: - Model: HAF II 500 - Dimensions (L × W × H, incl. protrusions): 557 × 262 × 548 mm - Volume (incl. protrusions): 79.98 L - Chassis Material: SGCC (0.7–0.8 mm) - Side Panel: Tempered Glass (left), SGCC (right) - Motherboard Support: Mini-ITX, Mini-DTX, Micro-ATX, ATX, CEB, E-ATX (up to 310 mm wide) - CPU Cooler Clearance: 221 mm (Intel) / 220 mm (AMD) - GPU Length Clearance: 430 mm (with Mighty40 F220 fans installed) - GPU Thickness: 72 mm/card (2-GPU config); 40 mm/card (4-GPU config) - PSU Clearance: 150 mm (N-S orientation) / 210 mm (E-W orientation) - Pre-installed Fans: 2 × Mighty40 F220 (front), 1 × Mighty40 V180 (rear) - Fan Hub: 6 × PWM, 6 × ARGB, 54 W total capacity - Drive Bays (PSU ≤ 150 mm): 3 × 3.5", 6 × 2.5" - Expansion Slots: 8 - Dust Filters: Top, Front, Bottom (PSU) - I/O: 1 × USB 3.2 Gen 2×2 Type-C, 2 × USB 3.2 Gen 1 Type-A, 3.5 mm headset jack - Case Warranty: 2 years; Fan Warranty: 5 years
