Cooler Master Hyper 212 Spectrum V3 ARGB CPU Air Cooler
MPN RR-S4NA-17PA-R1 · Brand COOLER MASTER
The Cooler Master Hyper 212 Spectrum V3 ARGB CPU Air Cooler features a 120mm PWM ARGB fan, four nickel-plated heat pipes, and broad Intel LGA 1700/1200 and AMD AM5/AM4 socket support in a compact 152mm form factor
Inclusive of GST · GST invoice available
Overview
The Cooler Master Hyper 212 Spectrum V3 ARGB CPU Air Cooler (model RR-S4NA-17PA-R1) is a single-tower air cooler designed for builders who want reliable thermal performance alongside addressable RGB lighting, without exceeding a compact 152 mm height. That slim profile keeps the cooler compatible with a wide range of PC chassis that impose clearance restrictions, while still delivering meaningful airflow through its 120 mm Spectrum ARGB fan. At the heart of the design are four nickel-plated copper heat pipes arranged using Direct Contact Technology, which places the heat pipes flush against the CPU integrated heat spreader to maximise the contact surface and accelerate heat transfer into the aluminium fin stack. The silver nickel-plated finish on the heat pipes adds corrosion resistance and a premium visual appearance. The included 120 mm Spectrum ARGB fan spins between 650 and 1,750 RPM (±10%) via a 4-pin PWM connector, delivering up to 71.93 CFM of airflow and a maximum static pressure of 1.86 mmH₂O, while keeping noise at or below 31.4 dB(A) under full load. The fan carries ARGB certification for compatibility with Asus Aura Sync, ASRock Polychrome Sync, GIGABYTE RGB Fusion, and MSI Mystic Light ecosystems through its 3-pin ARGB header. If no ARGB controller or compatible header is available, the fan automatically defaults to a spectrum lighting cycle — no software required. Note that an ARGB controller is not included. Socket compatibility spans both current and legacy platforms: Intel LGA 1700, 1200, 1151, 1150, 1155, and 1156, as well as AMD AM5 and AM4. Redesigned installation brackets simplify mounting on the latest supported platforms. Verified Specifications: • Product Number: RR-S4NA-17PA-R1 • Cooler Dimensions (L × W × H): 124 × 73 × 152 mm • Fan Size: 120 × 120 × 25 mm • Fan Speed: 650–1,750 RPM ±10% • Max Airflow: 122.2 m³/h (71.93 CFM) • Max Static Pressure: 1.86 mmH₂O • Max Noise Level: 31.4 dB(A) • Bearing Type: Rifle • MTTF: >160,000 hours • Power Connector: 4-Pin PWM • Rated Voltage: 12 VDC • Rated Current: 0.26 A / Safety Current: 0.37 A • Power Consumption: 3.12 W • Heat Sink Material: Aluminium fins with 4 nickel-plated heat pipes • Lighting: 3-pin ARGB (auto-detection) • Warranty: 2 Years

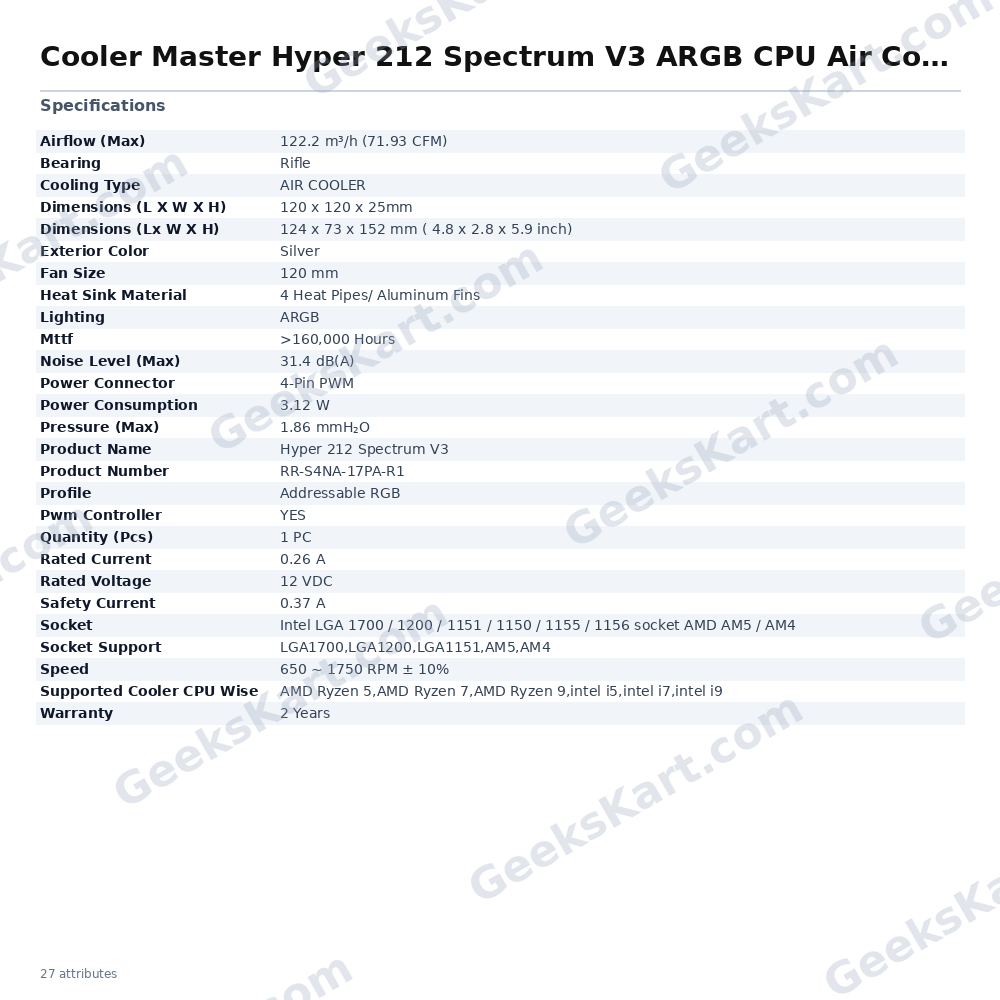

Datasheet
| Warranty | 2 Years |
|---|---|
| Socket | AM4, LGA1150, LGA1151, LGA1155, LGA1200, LGA1700 |
| Power Consumption | 3.12 W |
| Mttf | >160,000 Hours |
| Speed | 650 ~ 1750 RPM ± 10% |
| Bearing | Rifle |
| Profile | Addressable RGB |
| Fan Size | 120 mm |
| Lighting | ARGB |
| Cooling Type | AIR COOLER |
| Product Name | Hyper 212 Spectrum V3 |
| Airflow (Max) | 122.2 m³/h (71.93 CFM) |
| Rated Current | 0.26 A |
| Rated Voltage | 12 VDC |
| Exterior Color | Silver |
| Pwm Controller | YES |
| Pressure (Max) | 1.86 mmH₂O |
| Product Number | RR-S4NA-17PA-R1 |
| Quantity (Pcs) | 1 PC |
| Safety Current | 0.37 A |
| Socket Support | LGA1700,LGA1200,LGA1151,AM5,AM4 |
| Power Connector | 4-Pin PWM |
| Noise Level (Max) | 31.4 dB(A) |
| Heat Sink Material | 4 Heat Pipes/ Aluminum Fins |
| Dimensions (Lx W X H) | 124 x 73 x 152 mm ( 4.8 x 2.8 x 5.9 inch) |
| Dimensions (L X W X H) | 120 x 120 x 25mm |
| Supported Cooler CPU Wise | AMD Ryzen 5,AMD Ryzen 7,AMD Ryzen 9,intel i5,intel i7,intel i9 |
