COOLER MASTER Master Liquid 360 Atmos ARGB 360mm CPU Liquid Cooler (White)
MPN COOLER-MASTER-ML360-ATMOS-ARGB-WHITE · Brand Cooler Master
The Cooler Master MasterLiquid 360 Atmos ARGB (White) is a 360mm AIO liquid cooler featuring a refined dual-chamber pump, three ARGB SickleFlow Edge 120mm fans, broad Intel and AMD socket support, and a 5-year warranty
Inclusive of GST · GST invoice available
Overview
The Cooler Master MasterLiquid 360 Atmos ARGB is a 360mm all-in-one CPU liquid cooler finished in white, carrying model number MLX-D36M-A25PZ-RW. It is designed for builders who want quiet, efficient thermal management paired with full ARGB lighting customisation and a degree of environmental consideration in the materials used. At the heart of the cooler is Cooler Master's patented dual-chamber pump design, refined for this generation to increase water pressure and direct coolant flow toward the CPU hot-spot more effectively. The pump runs at a maximum noise level of just 12 dBA and draws only 3.84 W at 12 VDC, keeping its contribution to system noise and power draw minimal. Its rated MTTF exceeds 210,000 hours, pointing to long-term reliability. Three pre-installed SickleFlow Edge 120mm fans handle airflow across the aluminium radiator. Each fan uses a Loop Dynamic Bearing and spins between 690 and 2,500 RPM (±10%), delivering up to 70.7 CFM of airflow and up to 3.61 mmH₂O of static pressure at a maximum noise level of 27.2 dBA. Fan MTTF is rated above 160,000 hours. All three fans connect via 4-pin PWM headers and feature ARGB Gen 2 lighting, fully controllable through Cooler Master's MasterCTRL software. The pump top cover is manufactured from recycled plastic and accepts user-designed 3D-printed inserts, enabling personalisation without additional cost. Cooler Master also states that 35% of the cooler's metal materials are recyclable and that packaging has been reduced by approximately 30% compared to previous generations. Compatibility covers a wide range of Intel and AMD platforms: LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, AM5, and AM4. Tube clips are included in the box to secure routing and reinforce the cooler setup. Verified Specifications: • Model: MLX-D36M-A25PZ-RW | Series: MasterLiquid | Colour: White • Radiator: Aluminium, 394 × 119 × 27.2 mm, 360mm class • Pump: 84.9 × 81 × 53.15 mm | 12 VDC | 3.84 W | ≤12 dBA | MTTF >210,000 hrs | 4-pin connector • Fans (×3): SickleFlow Edge 120 × 120 × 25 mm | 690–2,500 RPM ±10% | 70.7 CFM max | 27.2 dBA max | 3.61 mmH₂O max | Loop Dynamic Bearing | MTTF >160,000 hrs | 4-pin PWM | 12 VDC | 0.2 A rated • Lighting: ARGB Gen 2 • Socket support: LGA1700 / 1200 / 1151 / 1150 / 1155 / 1156, AM5 / AM4 • Warranty: 5 years

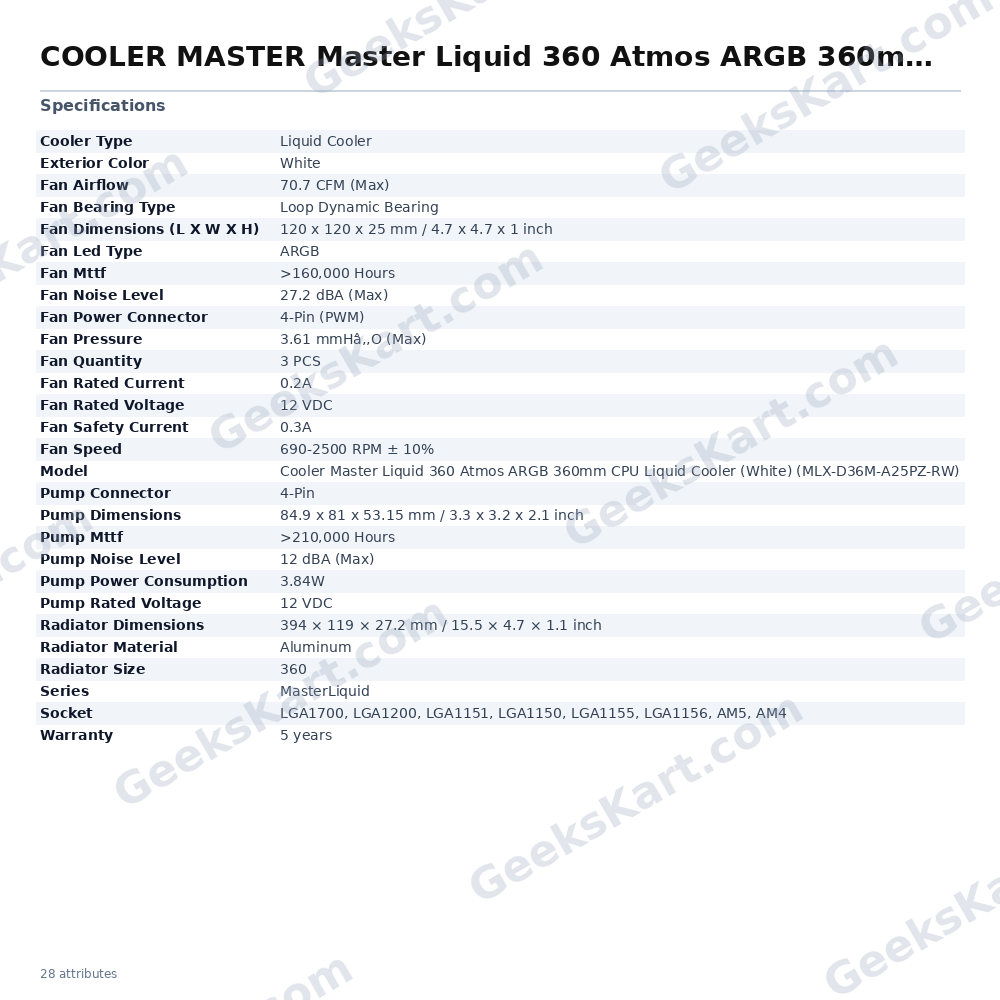

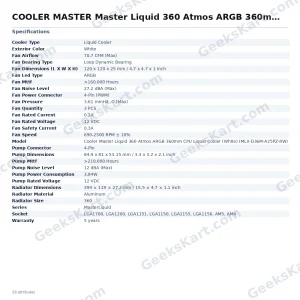

Datasheet
| Warranty | 5 Years |
|---|---|
| Socket | AM4, AM5, LGA1150, LGA1151, LGA1155, LGA1156, LGA1200, LGA1700 |
| Model | Cooler Master Liquid 360 Atmos ARGB 360mm CPU Liquid Cooler (White) (MLX-D36M-A25PZ-RW) |
| Series | MasterLiquid |
| Fan Mttf | >160,000 Hours |
| Fan Speed | 690-2500 RPM ± 10% |
| Pump Mttf | >210,000 Hours |
| Cooler Type | Liquid Cooler |
| Fan Airflow | 70.7 CFM (Max) |
| Fan Led Type | ARGB |
| Fan Pressure | 3.61 mmHâ‚‚O (Max) |
| Fan Quantity | 3 PCS |
| Radiator Size | 360 |
| Exterior Color | White |
| Pump Connector | 4-Pin |
| Fan Noise Level | 27.2 dBA (Max) |
| Pump Dimensions | 84.9 x 81 x 53.15 mm / 3.3 x 3.2 x 2.1 inch |
| Fan Bearing Type | Loop Dynamic Bearing |
| Pump Noise Level | 12 dBA (Max) |
| Fan Rated Current | 0.2A |
| Fan Rated Voltage | 12 VDC |
| Radiator Material | Aluminum |
| Fan Safety Current | 0.3A |
| Pump Rated Voltage | 12 VDC |
| Fan Power Connector | 4-Pin (PWM) |
| Radiator Dimensions | 394 × 119 × 27.2 mm / 15.5 × 4.7 × 1.1 inch |
| Pump Power Consumption | 3.84W |
| Fan Dimensions (L X W X H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
