COOLER MASTER Master Liquid Atmos II Pixel 360mm ARGB CPU Liquid Cooler ( Black ) ( With LCD Display ) [ Atmos 2 Pixel ]

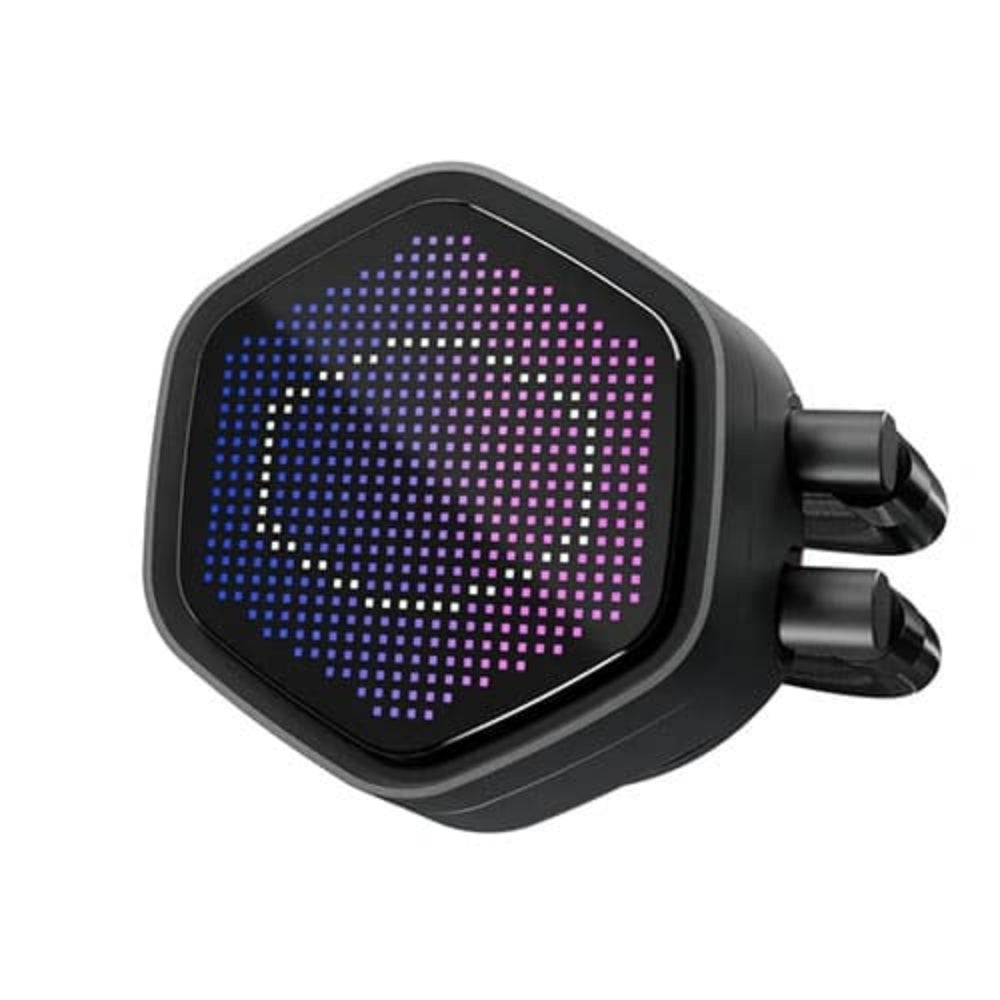

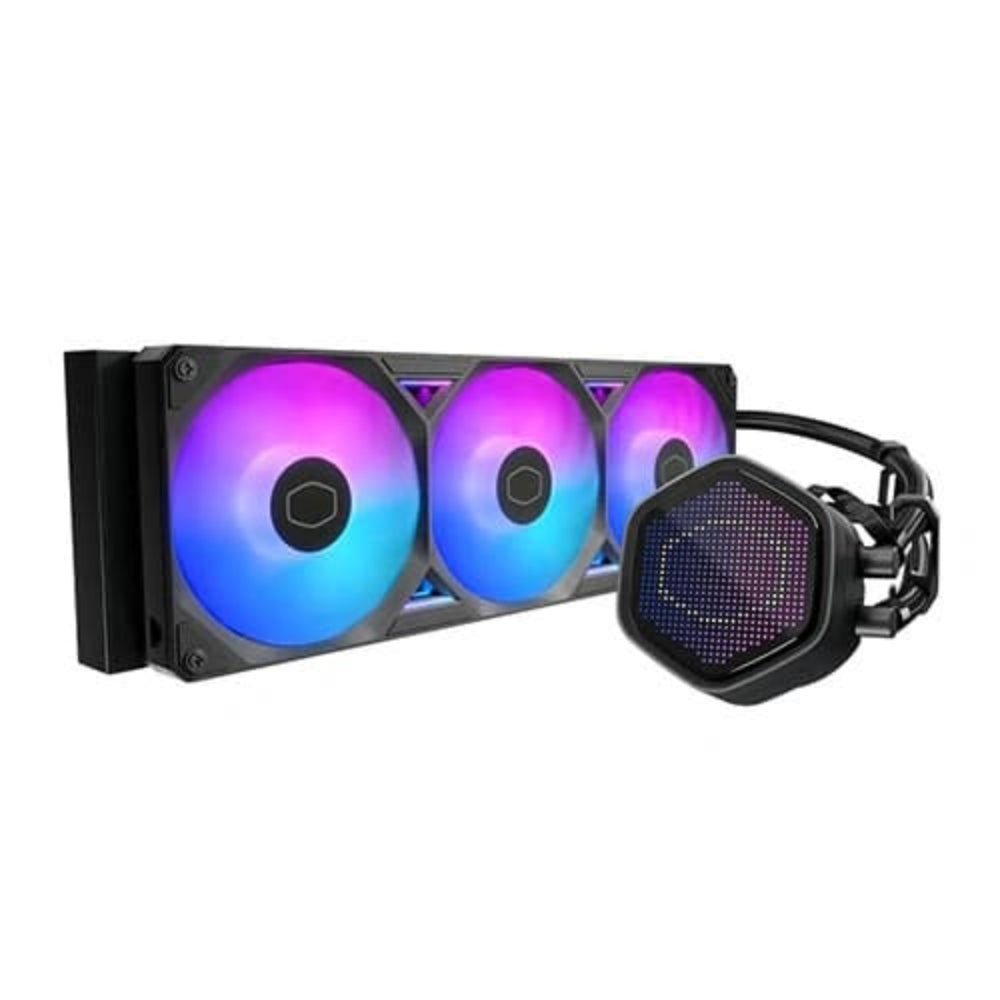

The Cooler Master MasterLiquid Atmos II Pixel is a 360mm all-in-one CPU liquid cooler engineered for enthusiast builders who want high thermal performance alongside distinctive aesthetics. At the heart of the cooler is a patented dual-chamber pump design that increases water pressure and optimises coolant flow directly to the CPU hot spot, helping manage heat on demanding processors from Intel's Core Ultra and i9 lines as well as AMD's Ryzen 9 series. The pump housing is constructed from PPS (polyphenylene sulfide) reinforced with fiberglass, a material combination chosen for industrial-grade strength and heat resistance. According to Cooler Master, the housing passes stress tests at 70 °C for 3,000 hours and at 120 °C for 12 hours, supporting a published MTTF figure of over 210,000 hours. The ultra-low-profile pump head measures 92.5 × 87 × 38.5 mm, making installation viable across a wide range of cases. Three pre-installed 120 mm SickleFlow Edge ARGB fans are mounted to the aluminium radiator (394 × 119.2 × 27 mm). Equipped with Loop Dynamic Bearings, these fans deliver a combined airflow of 322.8 m³/h (190 CFM) at a static pressure of 3.61 mmH2O, with a maximum noise output of 38.5 dB(A). Fans connect via a 7-pin PWM + ARGB header and run on 12 VDC at up to 0.5 A rated current. Distinguishing the Atmos II Pixel variant is the 85 × 79.2 × 16 mm Pixel LED panel, which offers a 28 × 26 pixel (556-pixel) display. The display orientation is software-adjustable via Cooler Master's MasterCTRL application and connects to the motherboard through a USB Type-C to 9-pin header. The panel operates at 5 VDC, consuming 2 W. The cooler ships with offset mounting brackets specifically designed for LGA 1851, which Cooler Master states can dissipate an additional 4 °C by precisely targeting that platform's CPU hot spot. A quick-mount kit covers all listed sockets without requiring additional hardware. Verified Specifications: - Model / Product Code: MLX-D36M-A25SZ-P1 - Radiator: Aluminium, 394 × 119.2 × 27 mm, 360 mm class - Tube Length: 400 mm - Pump Speed: 3,400 ± 300 RPM | Noise: ≤25 dBA | Power: 3.84 W @ 12 VDC - Pump Connector: 3-Pin ARGB + 4-Pin PWM | MTTF: >210,000 hrs - Fan (×3): 120 mm, Loop Dynamic Bearing, 7-Pin PWM + ARGB, 12 VDC, 0.5 A rated - Fan Airflow: 322.8 m³/h (190 CFM) | Static Pressure: 3.61 mmH2O | Noise: 38.5 dB(A) - Pixel LED: 85 × 79.2 × 16 mm, 28 × 26 px (556 px), 5 VDC, 2 W, USB Type-C to 9-pin - Socket Support: Intel LGA 1851 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150; AMD AM5 / AM4 - Lighting: Addressable Gen 2 RGB (ARGB) - Warranty: 6 Years
