COOLER MASTER MasterCase H500P Mesh ARGB EATX Mid Tower Cabinet (Black)

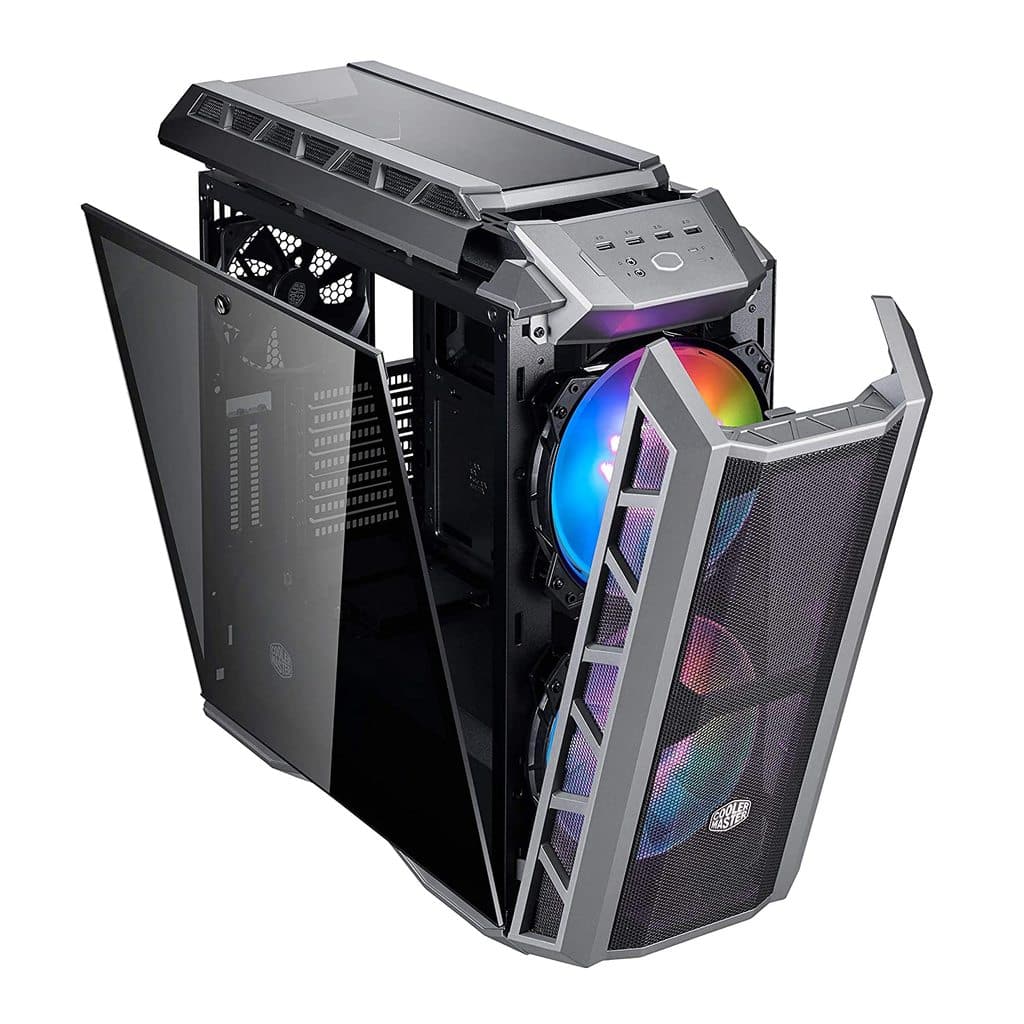

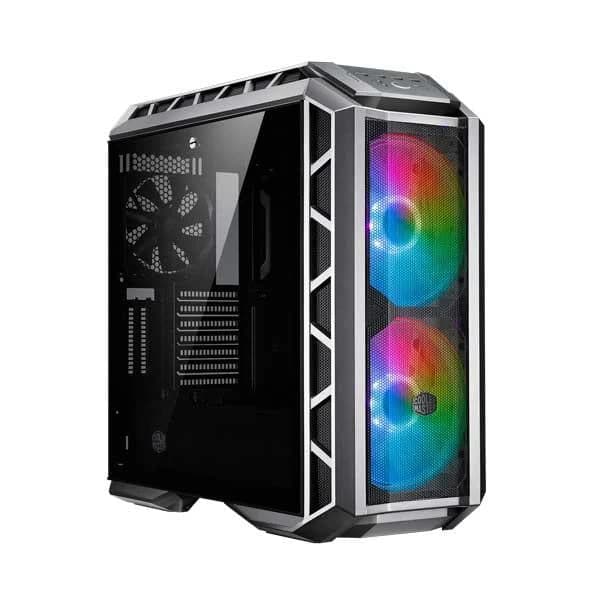

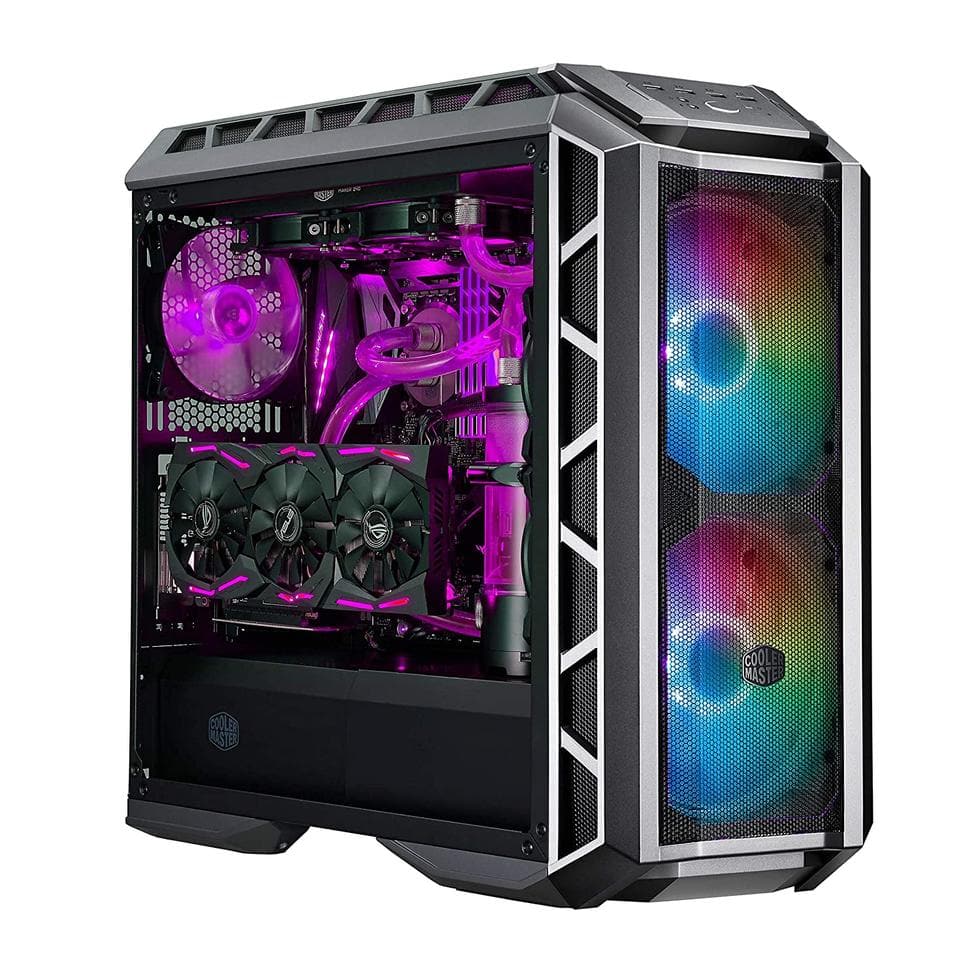

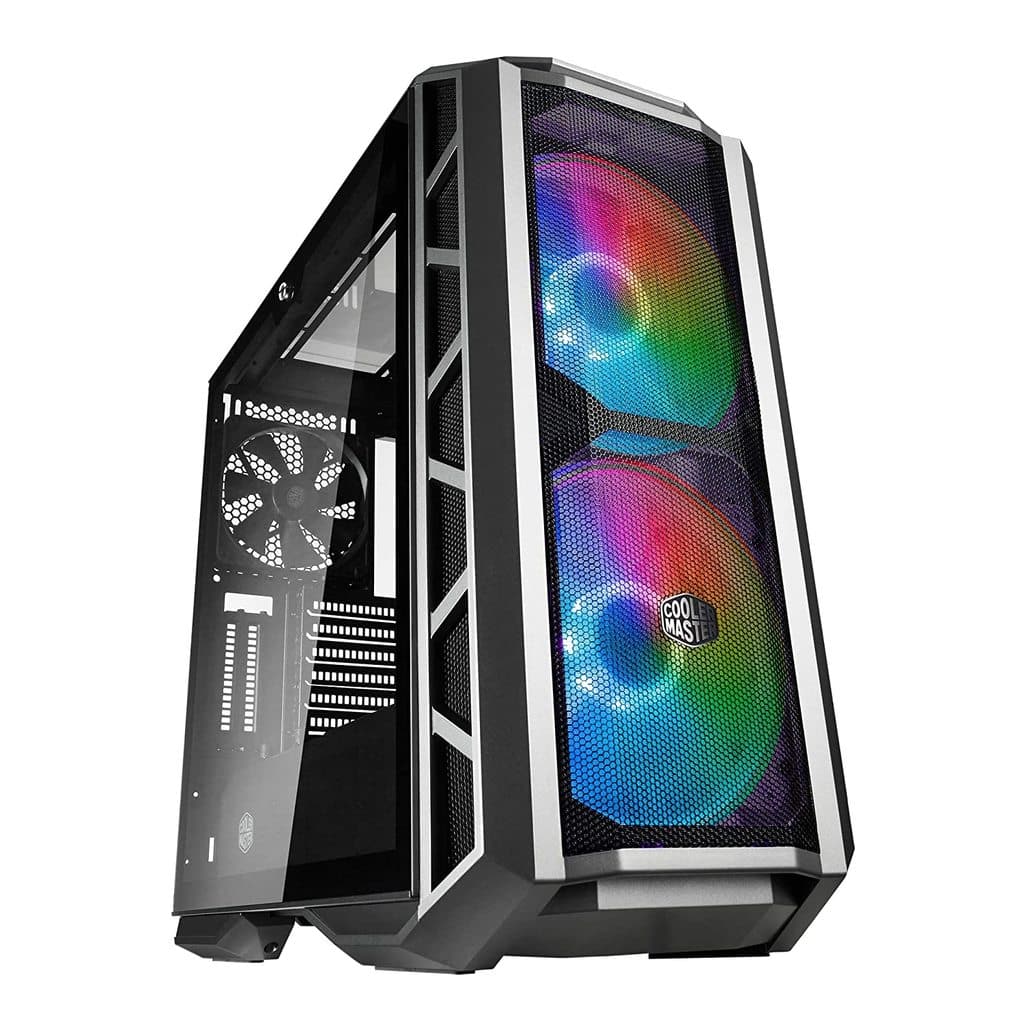

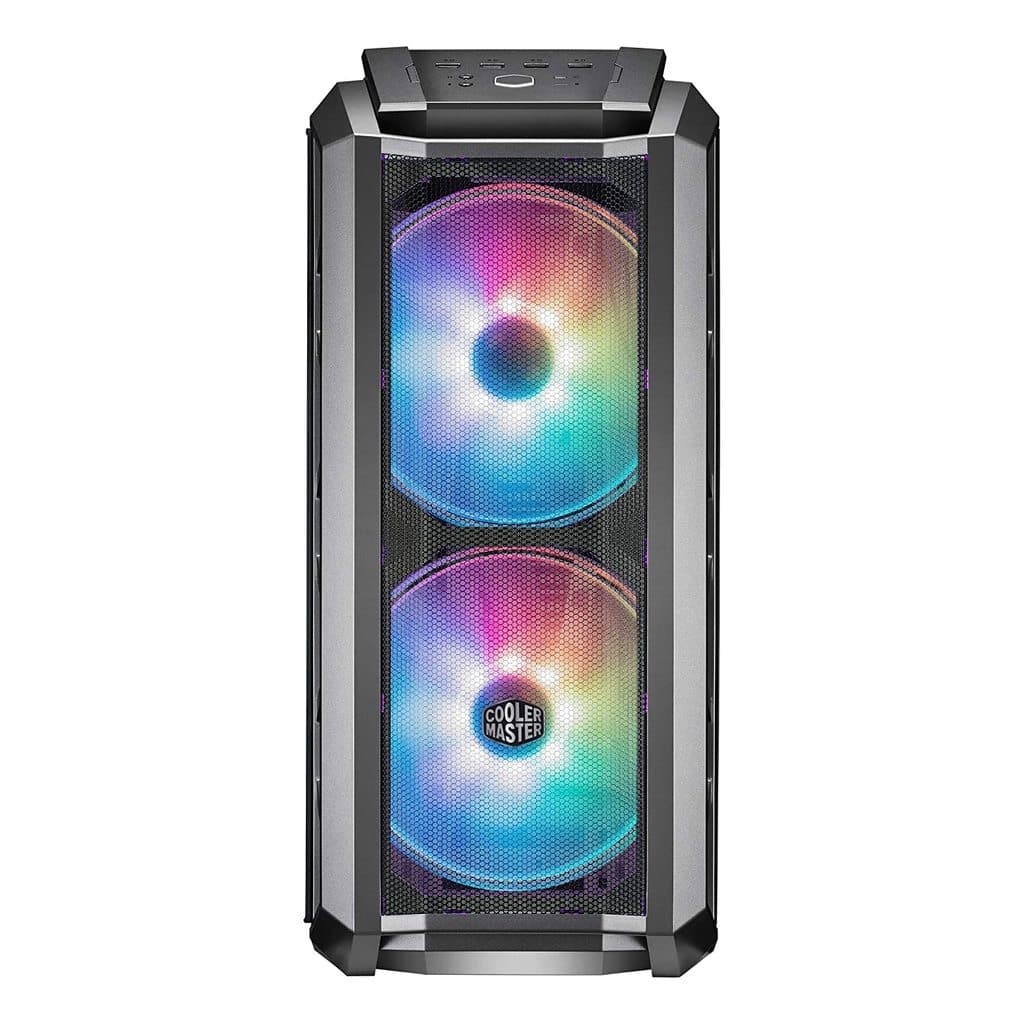

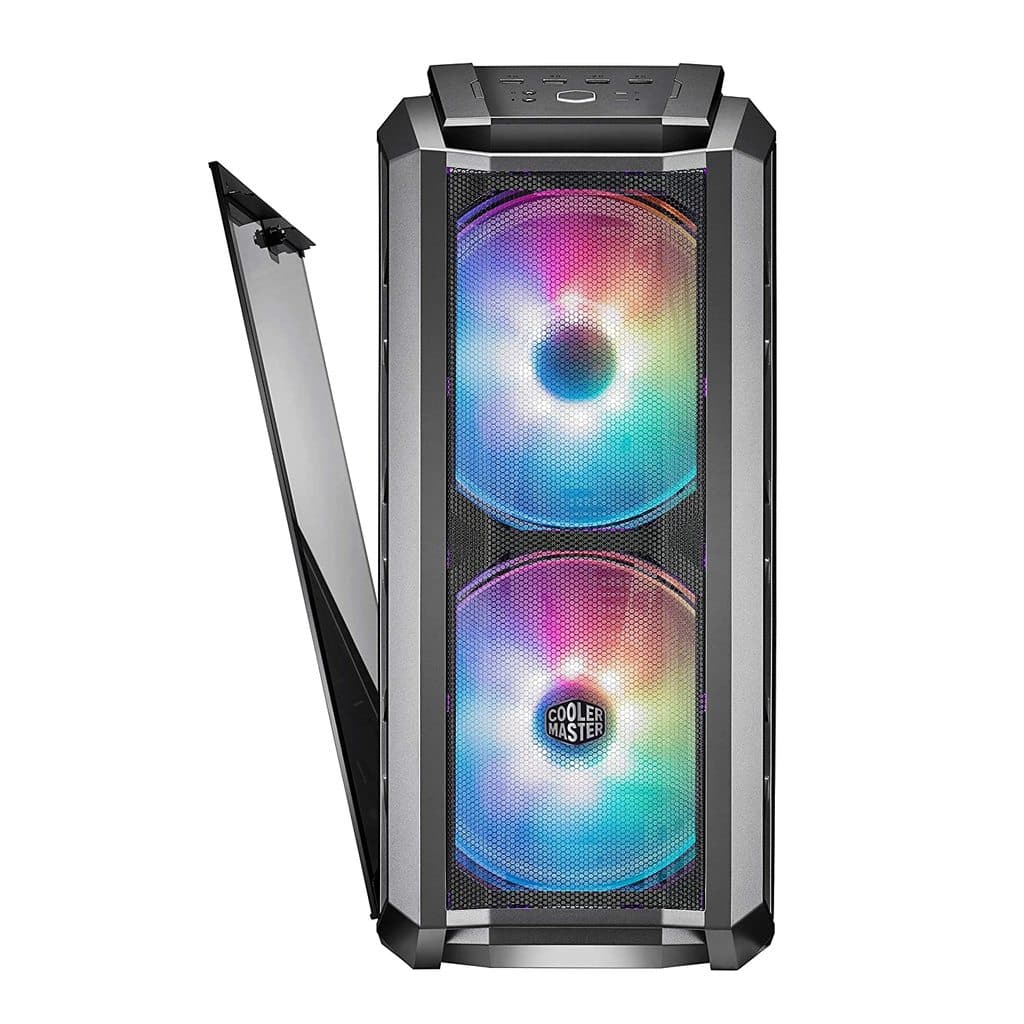

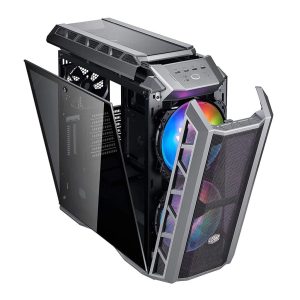

The Cooler Master MasterCase H500P Mesh ARGB is a mid-tower PC cabinet engineered for builders who demand strong airflow, expansive hardware clearance, and addressable RGB aesthetics in a single package. Constructed from steel, plastic, tempered glass, and mesh, the chassis balances structural rigidity with visual appeal. At the heart of its thermal design is a full-coverage dual-layer mesh front panel. The outer layer filters incoming dust while the inner steel mesh reinforces the structure, together providing an unrestricted intake pathway for the two pre-installed 200mm ARGB fans positioned at the front. A single 140mm fan running at 1200 RPM comes pre-installed at the rear for exhaust. This three-fan configuration out of the box means most builders can begin with a capable airflow setup without purchasing additional fans immediately. The ARGB lighting system is managed either through the included standalone ARGB controller or via a compatible motherboard’s software using the included 2-to-3 splitter cable. The controller ships with 14 preset lighting modes and supports an optional external button — Cooler Master recommends using the system reset button — so you can cycle presets without opening the side panel. Board compatibility spans Mini-ITX, Micro-ATX, ATX, and E-ATX (up to 12 × 10.7 inches, though E-ATX installations limit some cable management features). Graphics card clearance reaches 412 mm (16.2 inches), CPU cooler height clearance is 190 mm, and the bottom-mounted ATX PSU bay accommodates units up to 220 mm in depth. Storage options include two combo 2.5-inch/3.5-inch bays and up to four 2.5-inch SSD mounts. The expansion slot count is 7+2 with vertical GPU installation support. For liquid-cooling enthusiasts, the case supports 360 mm, 280 mm, 240 mm, 140 mm, and 120 mm radiators at both the front and top, and up to 140 mm at the rear. Dust filters are fitted at the top, front, and bottom to reduce maintenance intervals. The I/O panel offers two USB 3.2 Gen 1 (formerly USB 3.0) ports, two USB 2.0 ports, a 3.5 mm headphone jack, and a 3.5 mm microphone jack. Key Verified Specifications: – Model: MCM-H500P-MGNN-S11 – Form Factor: Mid Tower – Motherboard Support: Mini-ITX / Micro-ATX / ATX / E-ATX (up to 12″ × 10.7″) – Pre-installed Fans: 2× 200mm ARGB (front), 1× 140mm 1200 RPM (rear) – Fan Support: Front & Top — 3× 120/140mm or 2× 200mm; Rear — 1× 120/140mm – Radiator Support: Front & Top — up to 360mm; Rear — up to 140mm – GPU Clearance: 412 mm / 16.2 in – CPU Cooler Clearance: 190 mm – PSU Clearance: 220 mm (bottom mount, ATX) – Expansion Slots: 7+2 (vertical GPU supported) – Drive Bays: 2× combo 2.5″/3.5″, up to 4× 2.5″ SSD – I/O: 2× USB 3.2 Gen 1, 2× USB 2.0, 3.5mm audio + mic – Dust Filters: Top, Front, Bottom – Dimensions: 544 × 242 × 542 mm (21.4 × 9.5 × 21.3 in) – Weight: 11.3 kg – Colour: Gun Metal Grey – Warranty: 2 Years
