COOLER MASTER MasterCase H500P Mesh EATX Mid Tower Cabinet (White)
MPN CM-H500P-WHITE · Brand Cooler Master
Features of COOLER MASTER MasterCase H500P Mesh EATX Mid Tower Cabinet (White) Two 200mm RGB fans behind a Mesh Front Panel Covers for Clean Building Vertical Graphics Card Mount Light Grey Tinted Tempered Glass Side Panel Liquid Cooling Ready RGB Controler and 1 to 3 Splitter Cable for RGB LED Fans TWO 200MM RGB FANS BEHIND A MESH FRONT PANEL Optimized airflow is guaranteed with a complete mesh front panel, providing plenty of air intake for the two pre-installed 200mm RGB fans. Use RGB lightin
Inclusive of GST · GST invoice available
Overview
Features of COOLER MASTER MasterCase H500P Mesh EATX Mid Tower Cabinet (White)
Two 200mm RGB fans behind a Mesh Front Panel
Covers for Clean Building
Vertical Graphics Card Mount
Light Grey Tinted Tempered Glass Side Panel
Liquid Cooling Ready
RGB Controler and 1 to 3 Splitter Cable for RGB LED Fans

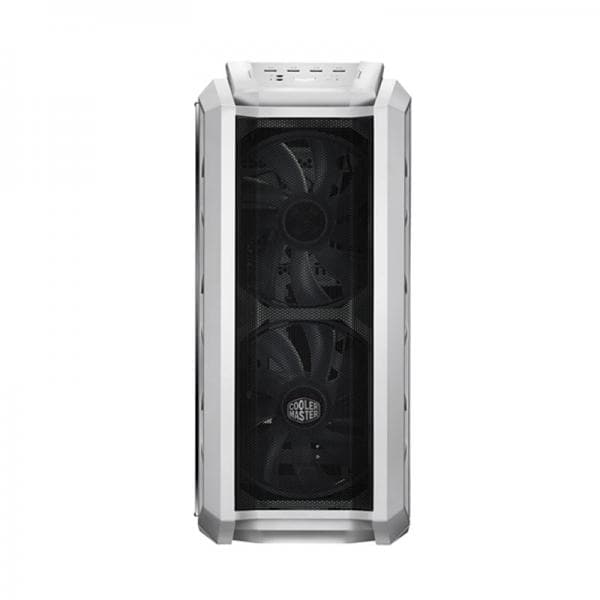

TWO 200MM RGB FANS BEHIND A MESH FRONT PANEL
Optimized airflow is guaranteed with a complete mesh front panel, providing plenty of air intake for the two pre-installed 200mm RGB fans. Use RGB lighting to create a captivating build in your preferred color theme.

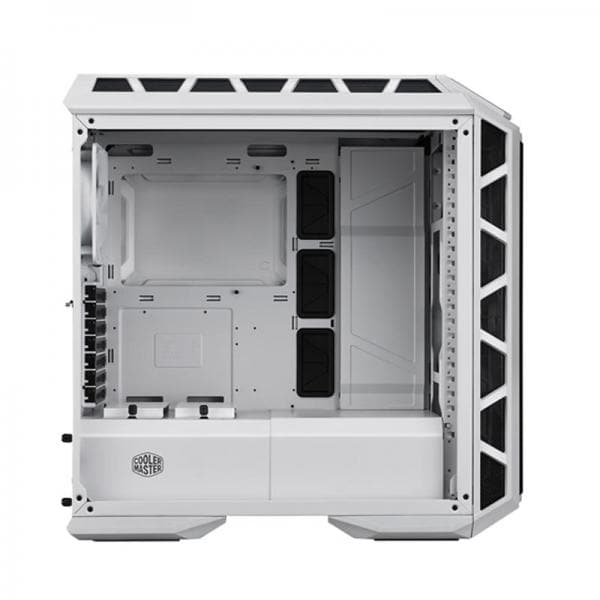

COVERS FOR CLEAN BUILDING
A PSU shroud, the CPU cut out cover and additional cable covers take clean cable management to the next level. Assemble clean builds like a pro!
- Cable Management Cover
- CPU Cut Out Cover
- PSU Shroud
- Clean Cable Routing

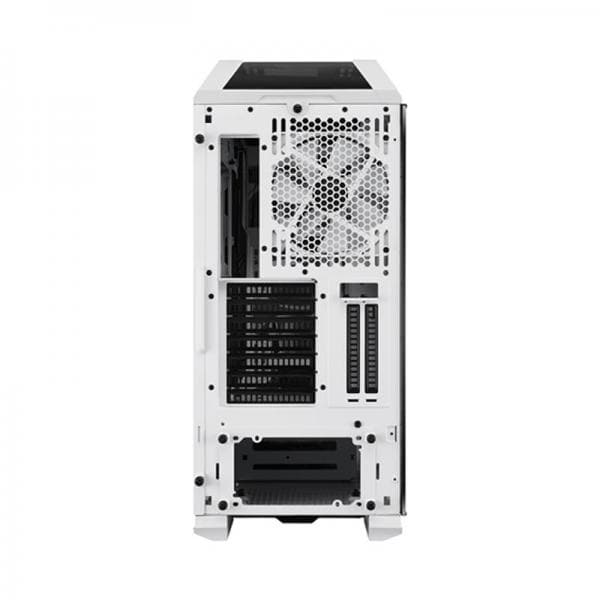

SHOW OFF YOUR GRAPHICS CARD
Two additional PCI slots at the rear enable you to show off one graphics card in the vertical position.
* Additional Riser Cable needed to use your graphic card vertically.

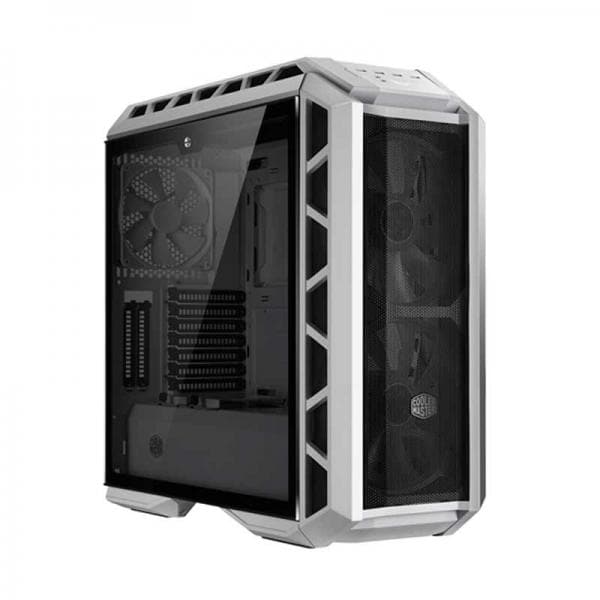

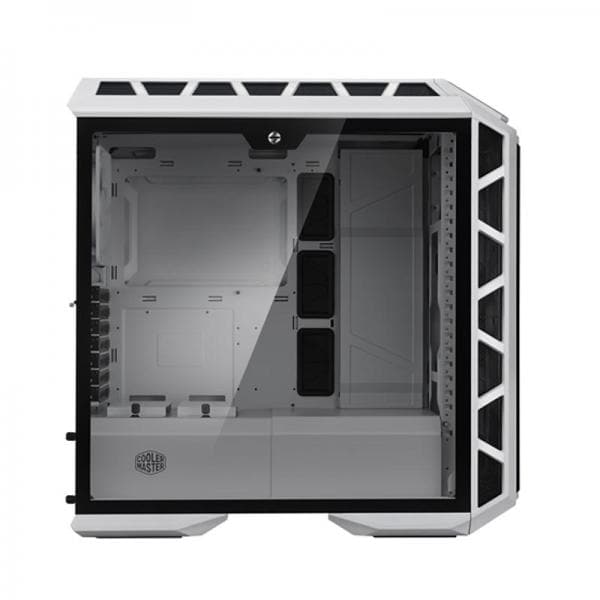

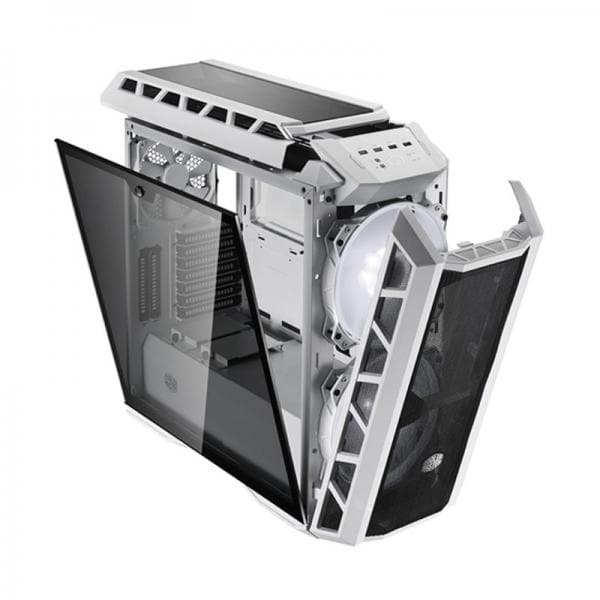

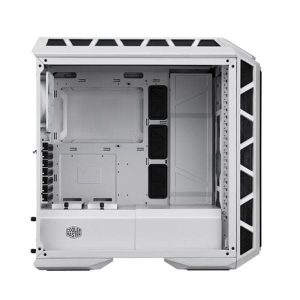

CLEAR VIEW INSIDE
The COOLER MASTER MasterCase H500P Mesh White computer cpu case has a light grey tinted tempered glass side panel and plastic top cover, making it ideal for showcasing your build with (RGB) lighting.
LIQUID COOLING READY
The MasterCase H500P Mesh White EATX Cabinet accommodates up to a 360mm radiator on the top and front.
AIRFLOW OPTIMIZATION
This Cooler Master is optimized for better airflow through its front mesh.
Specifications of COOLER MASTER MasterCase H500P Mesh EATX Mid Tower Cabinet (White)
| Product Name | MasterCase H500P Mesh | |
| Model Number | MCM-H500P-MGNN-S10 | |
| Available Color | Gun Metal | |
| Materials | Outlook: Plastic, Steel Mesh
Body: Steel Side panel: Tempered Glass, Steel |
|
| Dimensions (LxWxH) | 544 x 242 x 542mm / 21.4 x 9.5 x 21.3 inch | |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (support upto 12" x 10.7") | |
| Expansion Slots | 7 2 (Support vertical graphics card installation) | |
| Drive Bays | 5.25" | 0 |
| 2.5" / 3.5" | 2 | |
| 2.5" SSD | 2 (Drive Bay support up to 5) | |
| I/O Port | USB 3.0 x 2
USB 2.0 x 2 Audio In & Out (supports HD Audio) |
|
| Pre-installed Fan(s) | Front | 200 x 25mm RGB fan x 2, 800RPM |
| Rear | 140 x 25mm fan x 1, 1200RPM | |
| Fan Support | Top | 120/140mm fan x 3 or 200mm fan x 2 |
| Front | 120/140mm fan x 3 or 200mm fan x 2 | |
| Rear | 120/140mm fan x 1 | |
| Liquid Cooling Support | Top | 120mm, 140mm, 240mm, 280mm, 360mm
(maximum thickness clearance 55mm) |
| Front | 120mm, 140mm, 240mm, 280mm, 360mm | |
| Rear | 120mm, 140mm | |
| Clearance | CPU Cooler | 190mm / 7.5 inch |
| GPU | 412mm / 16.2 inch | |
| Power Supply Support | Bottom mount, ATX PS2 | |
| Warranty | 2 Years | |
| Note | ***Features, Price and Specifications are subject to change
without notice. |
|
Datasheet
| Warranty | 2 Years |
|---|---|
| GPU | 412mm / 16.2 inch |
| Rear | 120mm, 140mm |
| Front | 120mm, 140mm, 240mm, 280mm, 360mm |
| 2.5" SSD | 2 (Drive Bay support up to 5) |
| I/O Port | USB 3.0 x 2 USB 2.0 x 2 Audio In & Out (supports HD Audio) |
| Clearance | CPU Cooler |
| Materials | Outlook: Plastic, Steel Mesh Body: Steel Side panel: Tempered Glass, Steel |
| Drive Bays | 5.25" |
| 2.5" / 3.5" | 2 |
| Fan Support | Top |
| Model | MCM-H500P-MGNN-S10 |
| Product Name | MasterCase H500P Mesh |
| Available Color | Gun Metal |
| Expansion Slots | 7 2 (Support vertical graphics card installation) |
| Dimensions (Lxwxh) | 544 x 242 x 542mm / 21.4 x 9.5 x 21.3 inch |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (support upto 12" x 10.7") |
| Power Supply Support | Bottom mount, ATX PS2 |
| Pre-Installed Fan(S) | Front |
| Liquid Cooling Support | Top |
