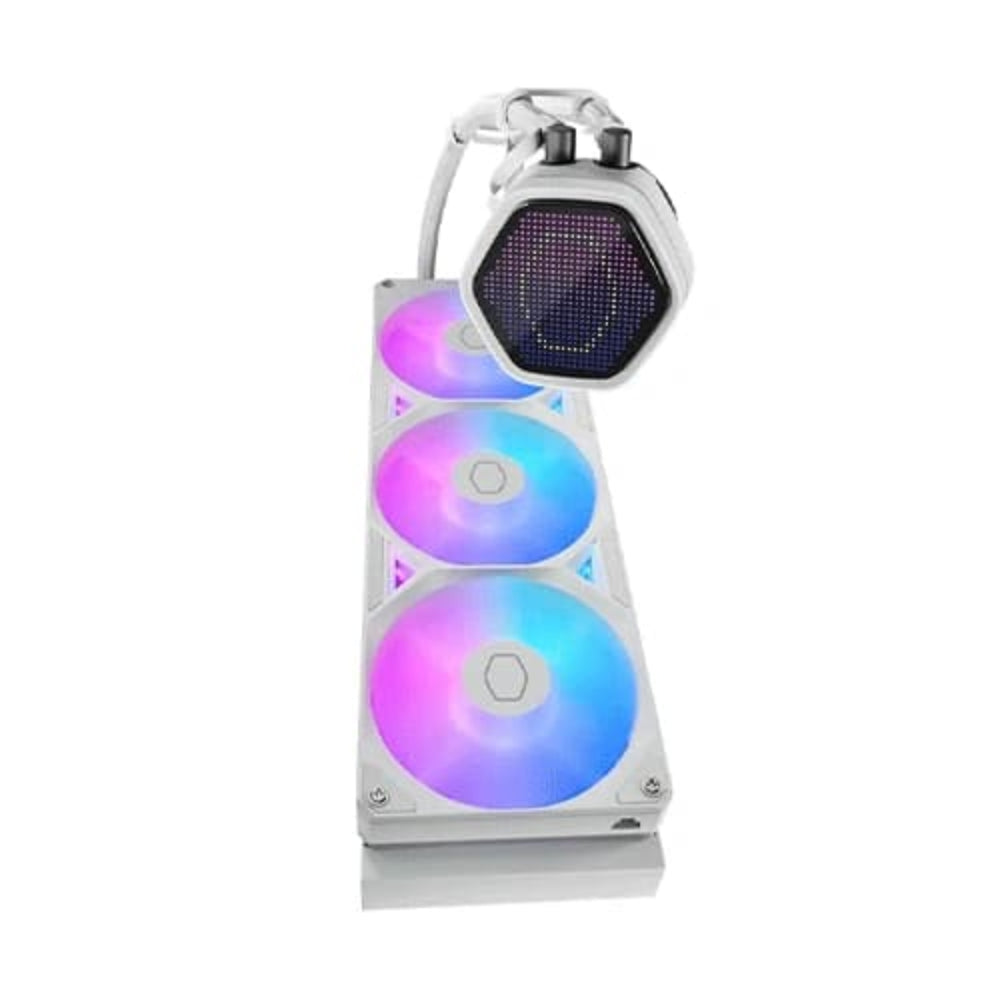

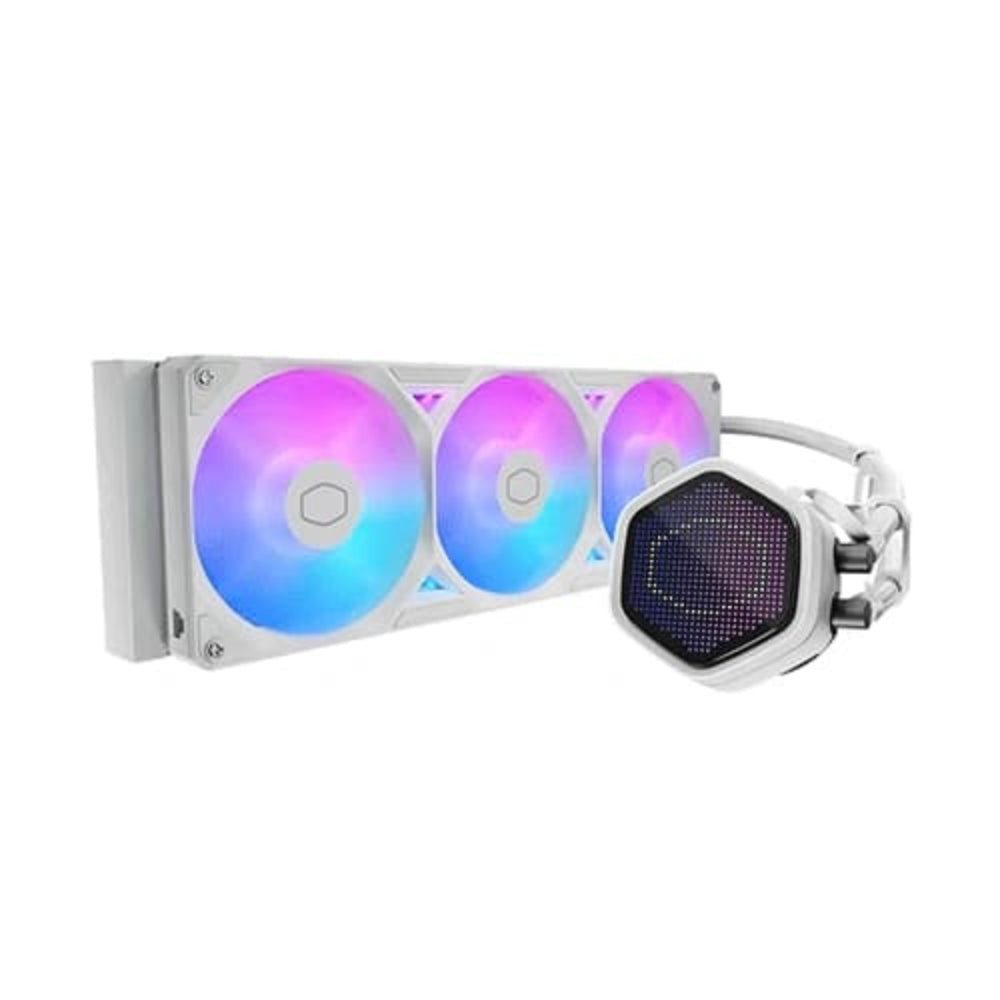

COOLER MASTER MasterLiquid Atmos II Pixel LED 360mm ARGB CPU Liquid Cooler ( White )

The Cooler Master MasterLiquid Atmos II Pixel LED 360mm ARGB AIO CPU Liquid Cooler in White (Model: MLX-D36M-A25SZ-PW) brings together a distinctive Pixel LED display panel, high-airflow SickleFlow Edge ARGB fans, and a refined dual-chamber pump design to deliver robust thermal management for modern Intel and AMD platforms. At the heart of this cooler is a patented dual-chamber pump that increases water pressure and directs coolant flow precisely to the CPU hot spot. The pump housing is constructed from PPS and fiberglass, materials chosen for their industrial-grade strength and heat resistance. Cooler Master subjects this housing to testing at 70°C for 3,000 hours and 120°C for 12 hours to validate durability under demanding conditions. The pump operates at up to 3,400 ±300 RPM, draws just 3.84 W, and achieves a noise ceiling of 25 dBA, with a rated mean time to failure exceeding 210,000 hours. Three pre-installed 120 mm SickleFlow Edge ARGB fans span the 360 mm aluminum radiator (394 × 119.2 × 27 mm). Together they deliver a combined airflow of 322.8 m³/h (190 CFM) at a static pressure of 3.61 mmH₂O. Fan noise reaches a maximum of 38.5 dB(A), and Loop Dynamic Bearings are used to keep vibration low over the long term. Each fan connects via a 7-pin PWM + ARGB header. The Pixel LED panel (85 × 79.2 × 16 mm) features a 28 × 26 pixel (556-pixel) screen whose orientation is software-adjustable through Cooler Master's MasterCTRL utility, connecting to the motherboard via a USB Type-C to 9-pin header. The ultra-low-profile pump head (92.5 × 87 × 38.5 mm) fits a wide range of case sizes without compromising airflow. Installation is streamlined through a quick-mount kit compatible with Intel LGA1700, LGA1851, LGA1200, LGA1156, LGA1155, LGA1151, and LGA1150 sockets, as well as AMD AM5 and AM4. Offset mounting brackets for LGA1851 are included and positioned to shift cooling coverage toward the platform's CPU hot spot, yielding a measured 4°C improvement at the die center according to Cooler Master's own testing data. Verified Specifications: • Model: MLX-D36M-A25SZ-PW • Radiator: Aluminum, 394 × 119.2 × 27 mm, 360 mm class • Tube length: 400 mm • Pump speed: 3,400 ±300 RPM | Pump noise: 25 dBA max | MTTF: >210,000 hrs • Pump power: 3.84 W | Connector: 3-Pin ARGB + 4-Pin PWM | Voltage: 12 VDC • Fan (×3): 120 mm, Loop Dynamic Bearing, 322.8 m³/h / 190 CFM, 3.61 mmH₂O, 38.5 dB(A) max • Fan connector: 7-Pin PWM + ARGB | Voltage: 12 VDC | Rated current: 0.5 A • Pixel LED: 28 × 26 px (556 px), USB Type-C to 9-pin MB header, 5 VDC, 2 W • Socket support: LGA1700, LGA1851, LGA1200, LGA1156/55/51/50, AM5, AM4 • Warranty: 6 Years
