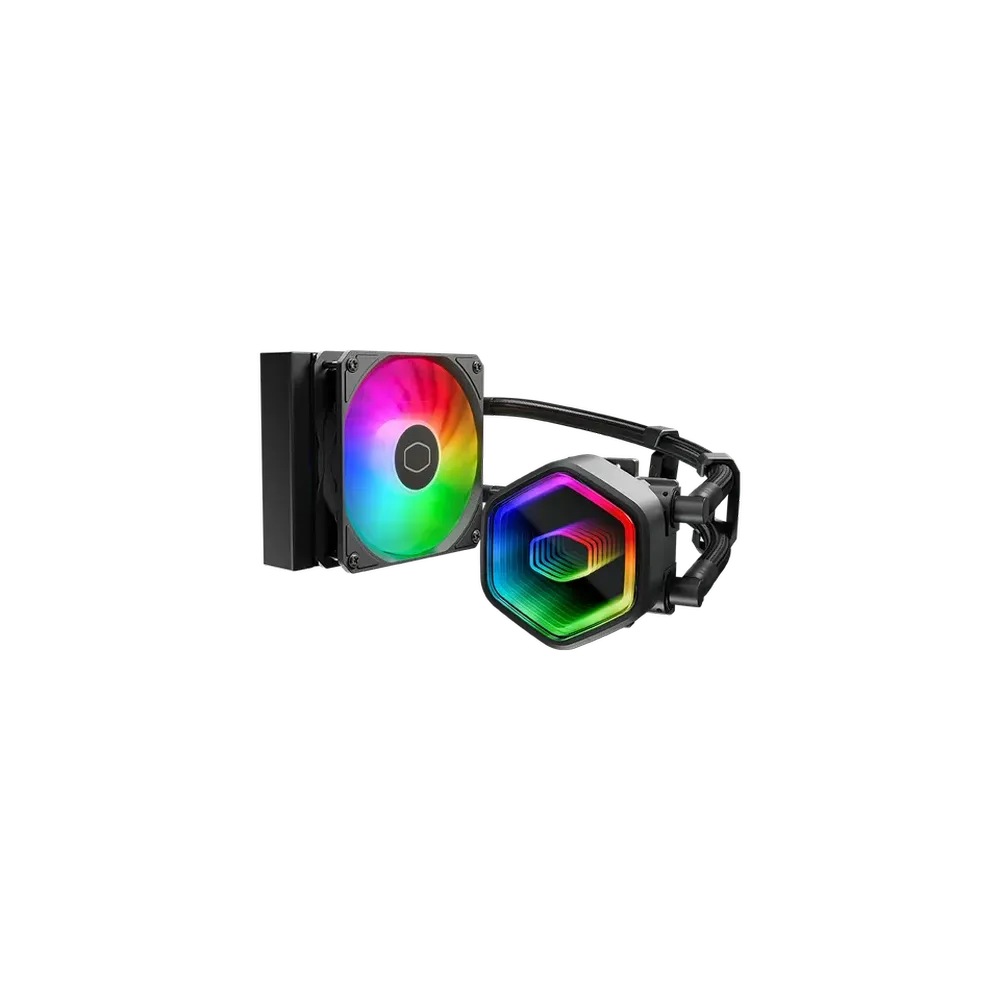

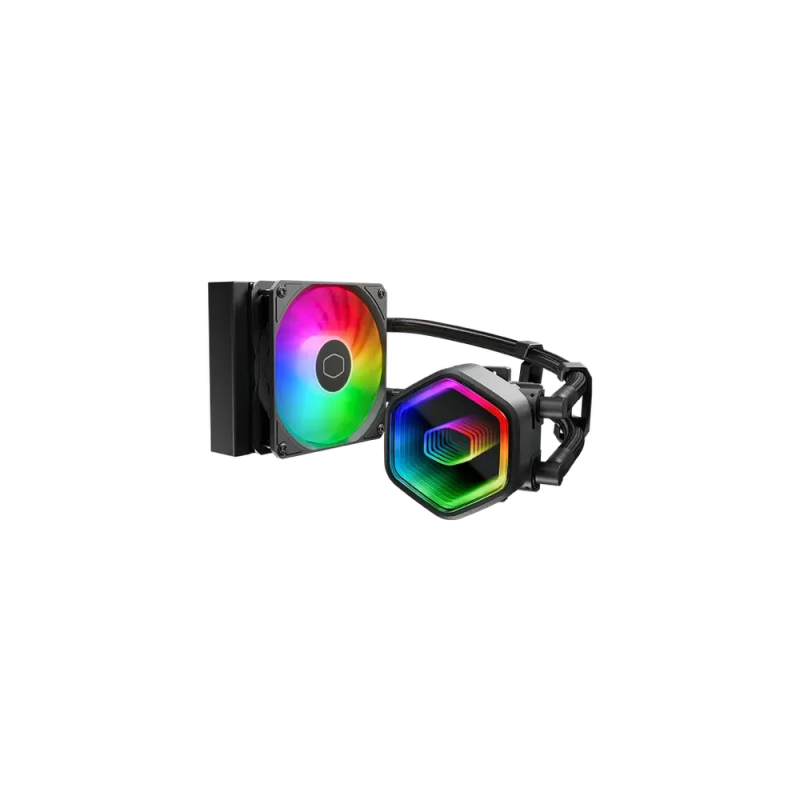

COOLER MASTER MasterLiquid Core ll Series 120 ARGB 120mm CPU Liquid Cooler( Black )
MPN COOLERMASTER-MASTERLIQUID-CORE-LL-SERIES-12-4662b1 · Brand Cooler Master
Feature of COOLER MASTER MasterLiquid Core ll Series 120 ARGB 120mm CPU Liquid Cooler( Black ) Innovative design Dual chamber pump Optimum tubing length Revamped fans Updated CPU compatibility Easy installation Included Cryo-Fuze thermal paste MasterLiquid Core II Series Building upon the success of the MasterLiquid series, Cooler Master presents the newly redesigned Cooler master MasterLiquid Core ll Series 120. Features such as a refined G9R dual chamber pump for silent performance and update
Inclusive of GST · GST invoice available
Overview
Feature of COOLER MASTER MasterLiquid Core ll Series 120 ARGB 120mm CPU Liquid Cooler( Black )
Innovative design
Dual chamber pump
Optimum tubing length
Revamped fans
Updated CPU compatibility
Easy installation
Included Cryo-Fuze thermal paste
MasterLiquid Core II Series
Building upon the success of the MasterLiquid series, Cooler Master presents the newly redesigned Cooler master MasterLiquid Core ll Series 120. Features such as a refined G9R dual chamber pump for silent performance and updated CPU compatibility for total build flexibility make the Core II a next level liquid cooler. With an infinity mirror design on the pump cover, overhauled and enhanced fans, and optimized tubes for easy installation, the Core II is the epitome of powerfully elegant design. Take the cooling power of your setup into the modern era with the MasterLiquid Core II Series.
Innovative Design
An infinity mirror pump cover gives the pump a stellar aesthetics
Dual Chamber Pump
Upgraded design resulting in a compact cooler with superior performance
Revamped fans
The brand-new fan blades and revamped aesthetics deliver outstanding performance and a fresh look
Optimum Tubing Length
400 mm long tubing enables effortless mounting of the cooler in any orientation
UPDATED CPU COMPATIBILITY
The Core II is compatible with all of the latest AMD and Intel CPUs
SUPPORT LGA 1851 RL-ILM SOCKET DESIGN

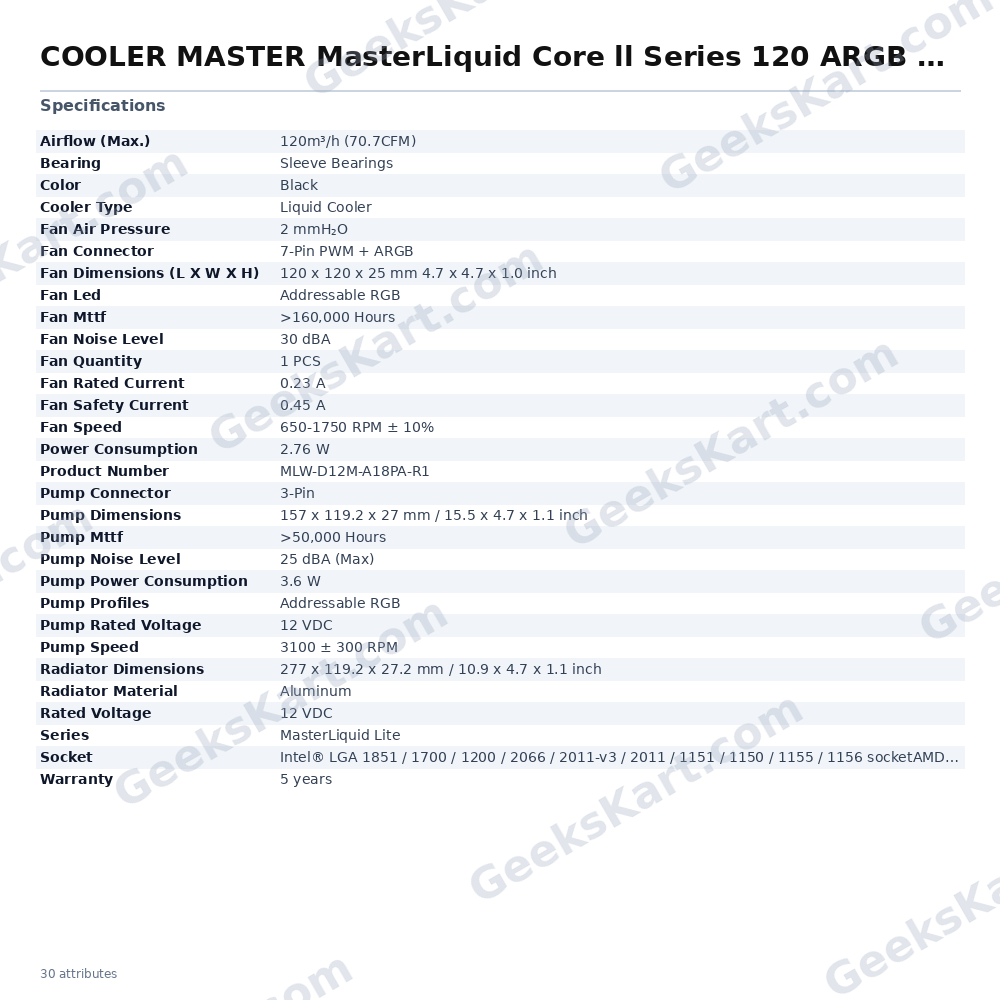

Specifications of COOLER MASTER MasterLiquid Core ll Series 120 ARGB 120mm CPU Liquid Cooler( Black )
| Product Number | MLW-D12M-A18PA-R1 |
| Color | Black |
| CPU Socket | Intel® LGA 1851 / 1700 / 1200 / 2066 / 2011-v3 / 2011 / 1151 / 1150 / 1155 / 1156 socket AMD® AM5 / AM4 socket |
| Radiator Material | Aluminum |
| Radiator Dimensions | 277 x 119.2 x 27.2 mm / 10.9 x 4.7 x 1.1 inch |
| Pump Dimensions | 157 x 119.2 x 27 mm / 15.5 x 4.7 x 1.1 inch |
| Pump MTTF | >50,000 Hours |
| Pump Noise Level | 25 dBA (Max) |
| Pump Profiles | Addressable RGB |
| Pump Speed | 3100 ± 300 RPM |
| Pump Connector | 3-Pin |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 3.6 W |
| Fan Dimensions (L x W x H) | 120 x 120 x 25 mm 4.7 x 4.7 x 1.0 inch |
| Fan Quantity | 1 PCS |
| Fan LED | Addressable RGB |
| Fan Speed | 650-1750 RPM ± 10% |
| Airflow (max.) | 120m³/h (70.7CFM) |
| Fan Noise Level | 30 dBA |
| Fan Air Pressure | 2 mmH₂O |
| Bearing | Sleeve Bearings |
| Fan MTTF | >160,000 Hours |
| Fan Connector | 7-Pin PWM + ARGB |
| Rated Voltage | 12 VDC |
| Fan Rated Current | 0.23 A |
| Fan Safety Current | 0.45 A |
| Power Consumption | 2.76 W |
| Warranty | 5 years |
| Cooler Type | Liquid Cooler |
| Series | MasterLiquid Lite |
Datasheet
| Warranty | 5 Years |
|---|---|
| color | Black |
| Socket | LGA1150, LGA1151, LGA1155, LGA1200, LGA1700, LGA1851, LGA2011, LGA2066 |
| Power Consumption | 2.76 W |
| Series | MasterLiquid Lite |
| Bearing | Sleeve Bearings |
| Fan Led | Addressable RGB |
| Fan Mttf | >160,000 Hours |
| Fan Speed | 650-1750 RPM ± 10% |
| Pump Mttf | >50,000 Hours |
| Pump Speed | 3100 ± 300 RPM |
| Cooler Type | Liquid Cooler |
| Fan Quantity | 1 PCS |
| Fan Connector | 7-Pin PWM + ARGB |
| Pump Profiles | Addressable RGB |
| Rated Voltage | 12 VDC |
| Airflow (Max.) | 120m³/h (70.7CFM) |
| Product Number | MLW-D12M-A18PA-R1 |
| Pump Connector | 3-Pin |
| Fan Noise Level | 30 dBA |
| Pump Dimensions | 157 x 119.2 x 27 mm / 15.5 x 4.7 x 1.1 inch |
| Fan Air Pressure | 2 mmH₂O |
| Pump Noise Level | 25 dBA (Max) |
| Fan Rated Current | 0.23 A |
| Radiator Material | Aluminum |
| Fan Safety Current | 0.45 A |
| Pump Rated Voltage | 12 VDC |
| Radiator Dimensions | 277 x 119.2 x 27.2 mm / 10.9 x 4.7 x 1.1 inch |
| Pump Power Consumption | 3.6 W |
| Fan Dimensions (L X W X H) | 120 x 120 x 25 mm 4.7 x 4.7 x 1.0 inch |
