Cooler Master MasterLiquid ML360 Core II ARGB 360mm CPU Liquid Cooler ( Black ) [ ML360 Core 2 ]
MPN COOLERMASTER-MASTERLIQUID-CORE-2-SERIES-360-97b416 · Brand Cooler Master

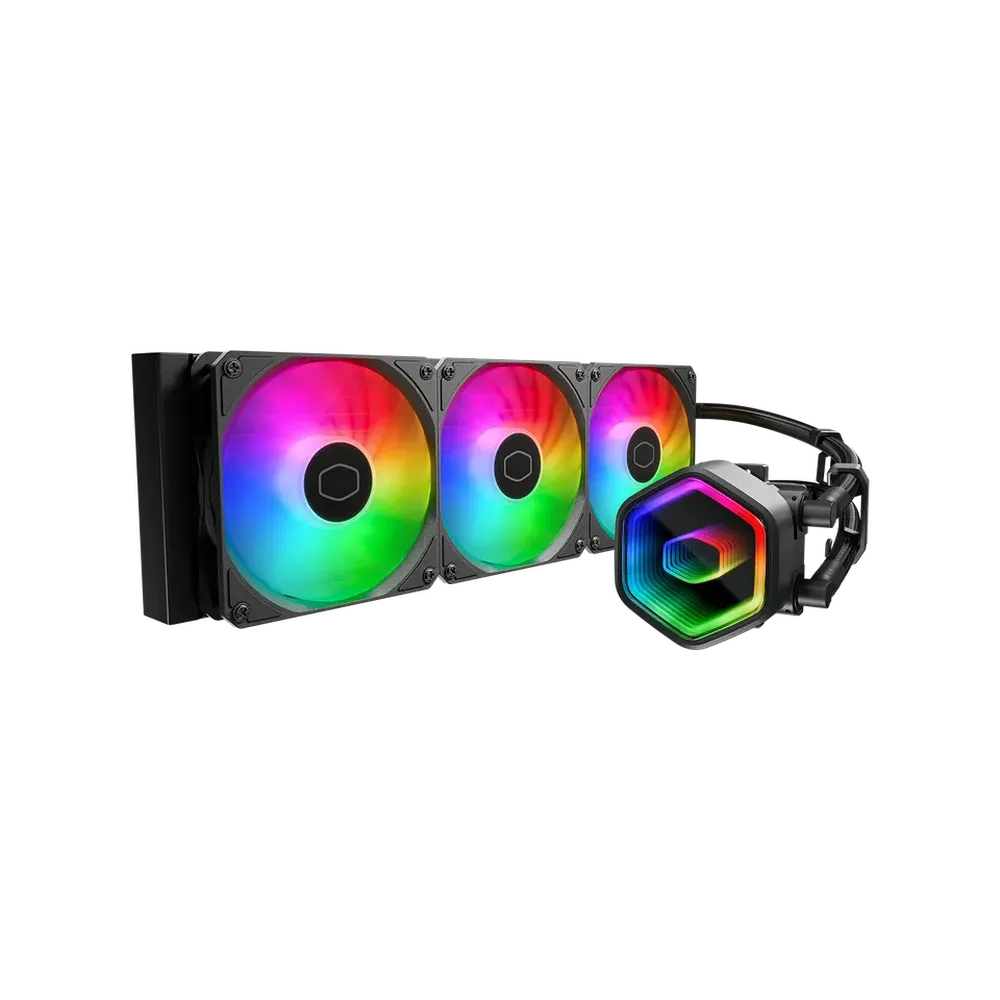

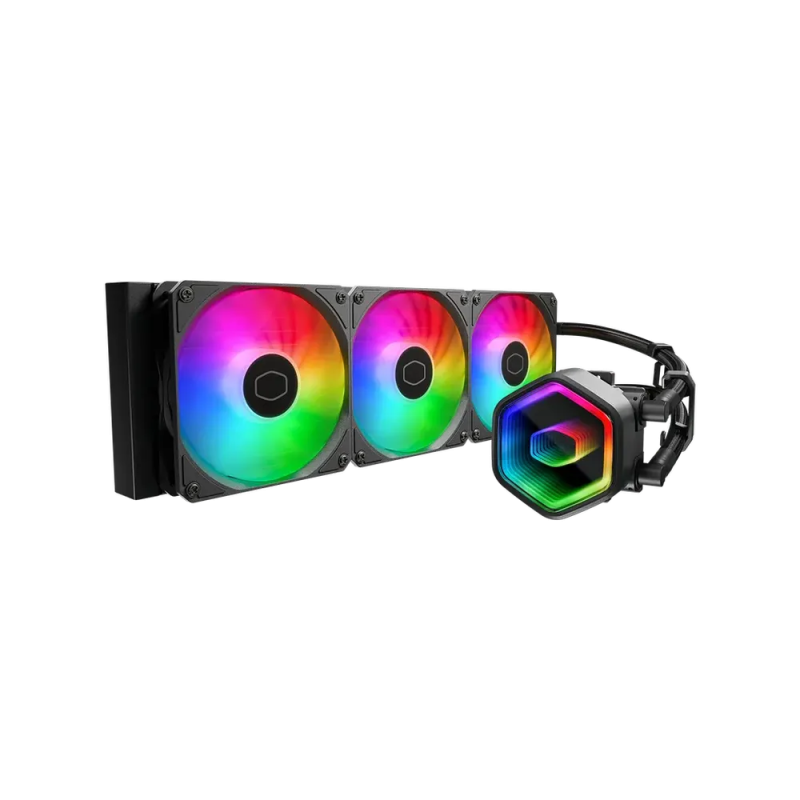

The Cooler Master MasterLiquid ML360 Core II ARGB is a 360mm AIO liquid cooler featuring a dual-chamber G9R pump, three 120mm ARGB fans, 400mm tubes, and broad socket support including Intel LGA 1851 and AMD AM5
Inclusive of GST · GST invoice available
Overview
The Cooler Master MasterLiquid ML360 Core II ARGB is a 360mm all-in-one CPU liquid cooler designed for builders who want capable thermal performance alongside vivid addressable RGB lighting. At the heart of the cooler sits a refined G9R dual-chamber pump that separates intake and output flow paths to promote smoother coolant circulation while keeping pump noise to a rated maximum of 25 dBA. The pump head features an infinity mirror design that creates a depth-of-field lighting effect when paired with any ARGB-compatible motherboard header or Cooler Master software. Three 120mm ARGB fans are included, each measuring 120 × 120 × 25 mm. They operate across a speed range of 650–1750 RPM (±10%) and move up to 120 m³/h (70.7 CFM) of air at a maximum noise level of 30 dBA. Each fan uses sleeve bearings with a rated mean time to failure exceeding 160,000 hours. Fan connectivity is handled by a 7-pin PWM + ARGB combined connector, simplifying cable routing inside the chassis. The aluminum radiator measures 394 × 119.2 × 27.2 mm, and 400 mm tubes are provided to support flexible mounting orientations — top, front, or side — without stressing the fittings. Cooler Master's Cryo-Fuze thermal compound is pre-included to make installation straightforward. Socket compatibility covers a wide range of modern and legacy platforms: Intel LGA 1851, 1700, 1200, 2066, 2011-v3, 2011, 1151, 1150, 1155, and 1156, plus AMD AM5 and AM4. LGA 1851 support uses an RL-ILM reinforced mounting design. The unit carries a 5-year warranty and a pump MTTF rating exceeding 50,000 hours. Key Specifications: • Part Number: MLW-D36M-A18PA-R1 • Color: Black • Radiator Dimensions: 394 × 119.2 × 27.2 mm | Radiator Material: Aluminum • Pump Dimensions: 83 × 76.2 × 52.3 mm | Pump Speed: 3100 ±300 RPM | Pump Noise: 25 dBA (Max) | Pump Power: 3.6 W | Pump MTTF: >50,000 Hours • Fan Dimensions: 120 × 120 × 25 mm (×3) | Fan Speed: 650–1750 RPM ±10% | Fan Airflow: 120 m³/h (70.7 CFM) | Fan Noise: 30 dBA | Fan Bearing: Sleeve | Fan MTTF: >160,000 Hours | Fan Connector: 7-Pin PWM + ARGB • Tubing Length: 400 mm | Rated Voltage: 12 VDC | Fan Power: 2.76 W • Warranty: 5 Years • Compatible Sockets: Intel LGA 1851 / 1700 / 1200 / 2066 / 2011-v3 / 2011 / 1151 / 1150 / 1155 / 1156 | AMD AM5 / AM4
Datasheet
| Warranty | 5 Years |
|---|---|
| color | Black |
| Socket | LGA1150, LGA1151, LGA1155, LGA1200, LGA1700, LGA1851, LGA2011, LGA2066 |
| Power Consumption | 2.76 W |
| Series | MasterLiquid Lite |
| Bearing | Sleeve Bearings |
| Fan Led | Addressable RGB |
| Fan Mttf | >160,000 Hours |
| Fan Speed | 650-1750 RPM ± 10% |
| Pump Mttf | >50,000 Hours |
| Pump Speed | 3100 ± 300 RPM |
| Cooler Type | Liquid Cooler |
| Fan Quantity | 3 PCS |
| Fan Connector | 7-Pin PWM + ARGB |
| Pump Profiles | Addressable RGB |
| Rated Voltage | 12 VDC |
| Airflow (Max.) | 120m³/h (70.7CFM) |
| Product Number | MLW-D36M-A18PA-R1 |
| Pump Connector | 3-Pin |
| Fan Noise Level | 30 dBA |
| Pump Dimensions | 83 x 76.2 x 52.3 mm / 3.3 x 3 x 2.1 inch |
| Fan Air Pressure | 2 mmH₂O |
| Pump Noise Level | 25 dBA (Max) |
| Fan Rated Current | 0.23 A |
| Radiator Material | Aluminum |
| Fan Safety Current | 0.45 A |
| Pump Rated Voltage | 12 VDC |
| Radiator Dimensions | 394 x 119.2 x 27.2 mm / 15.5 x 4.7 x 1.1 inch |
| Pump Power Consumption | 3.6 W |
| Fan Dimensions (L X W X H) | 120 x 120 x 25 mm 4.7 x 4.7 x 1.0 inch |
