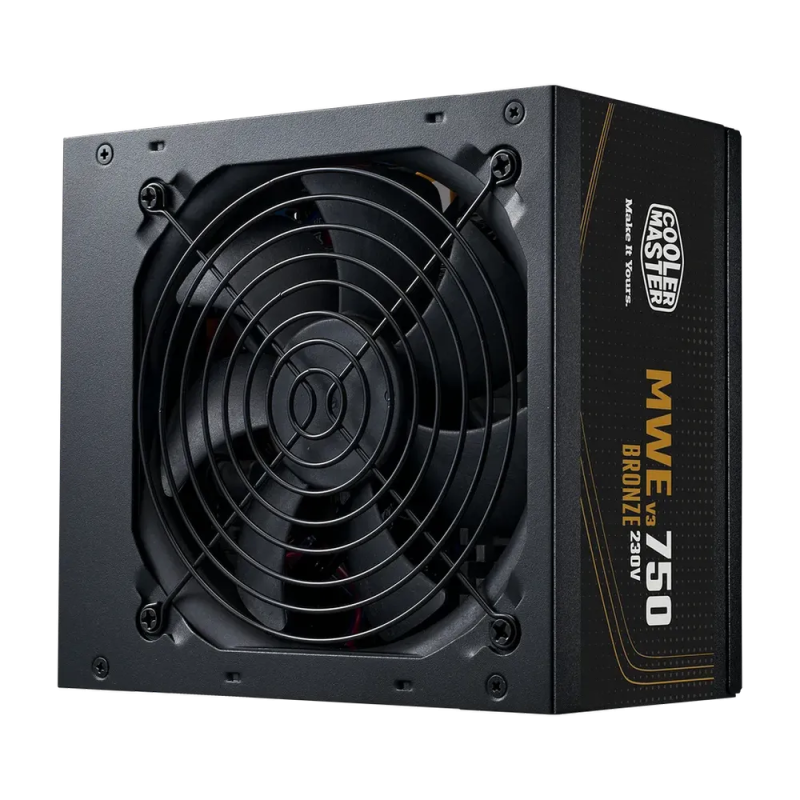

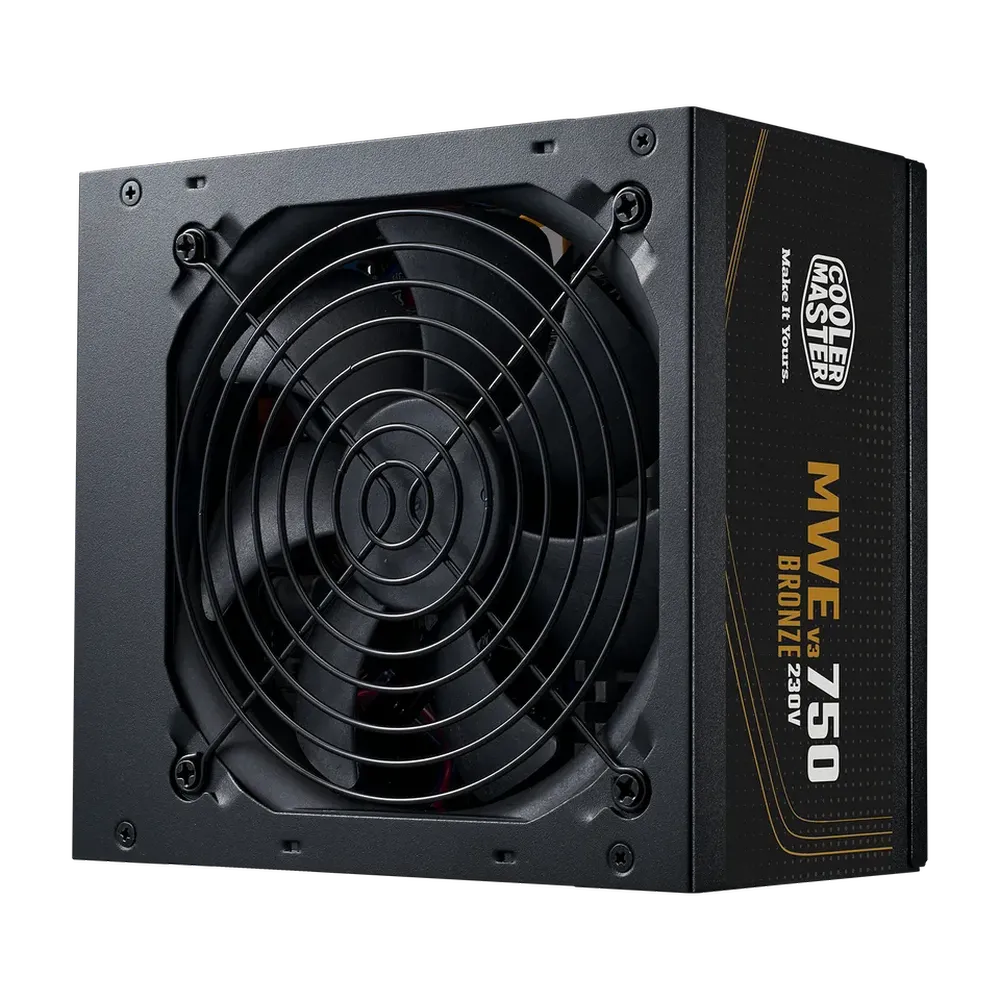

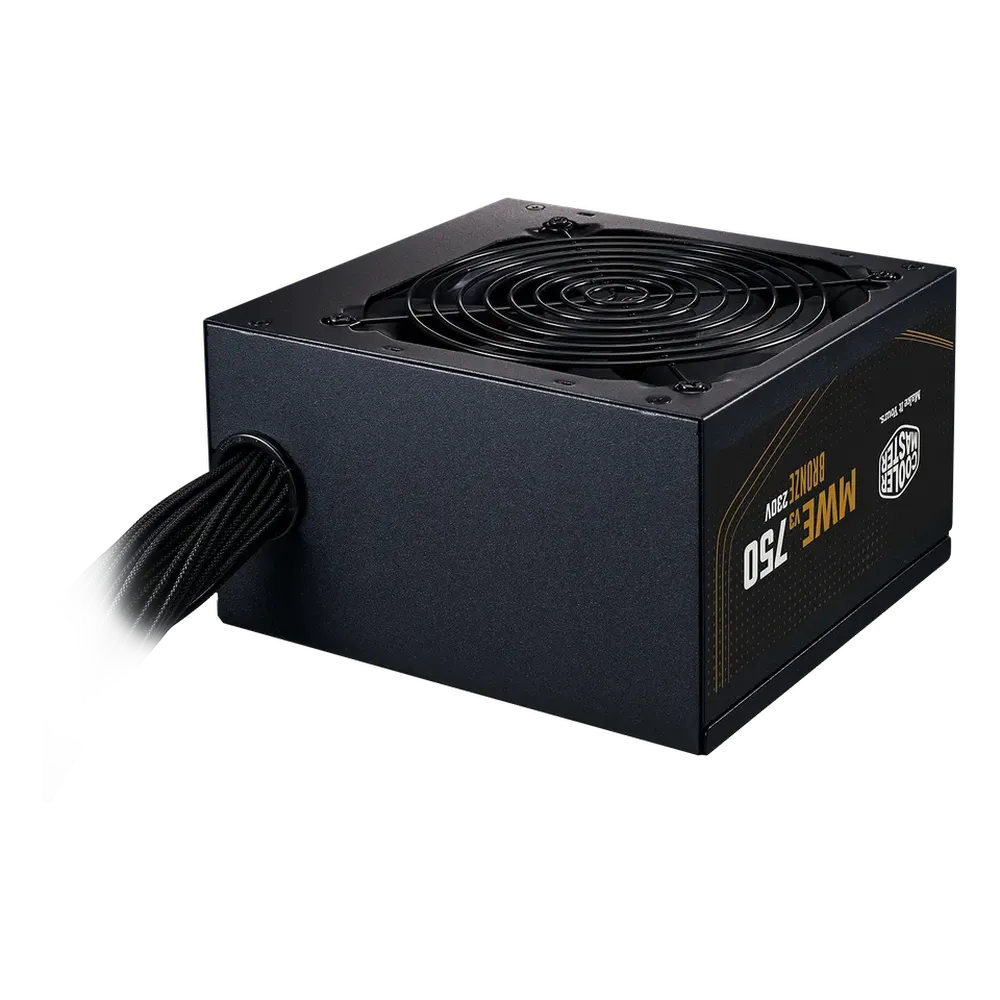

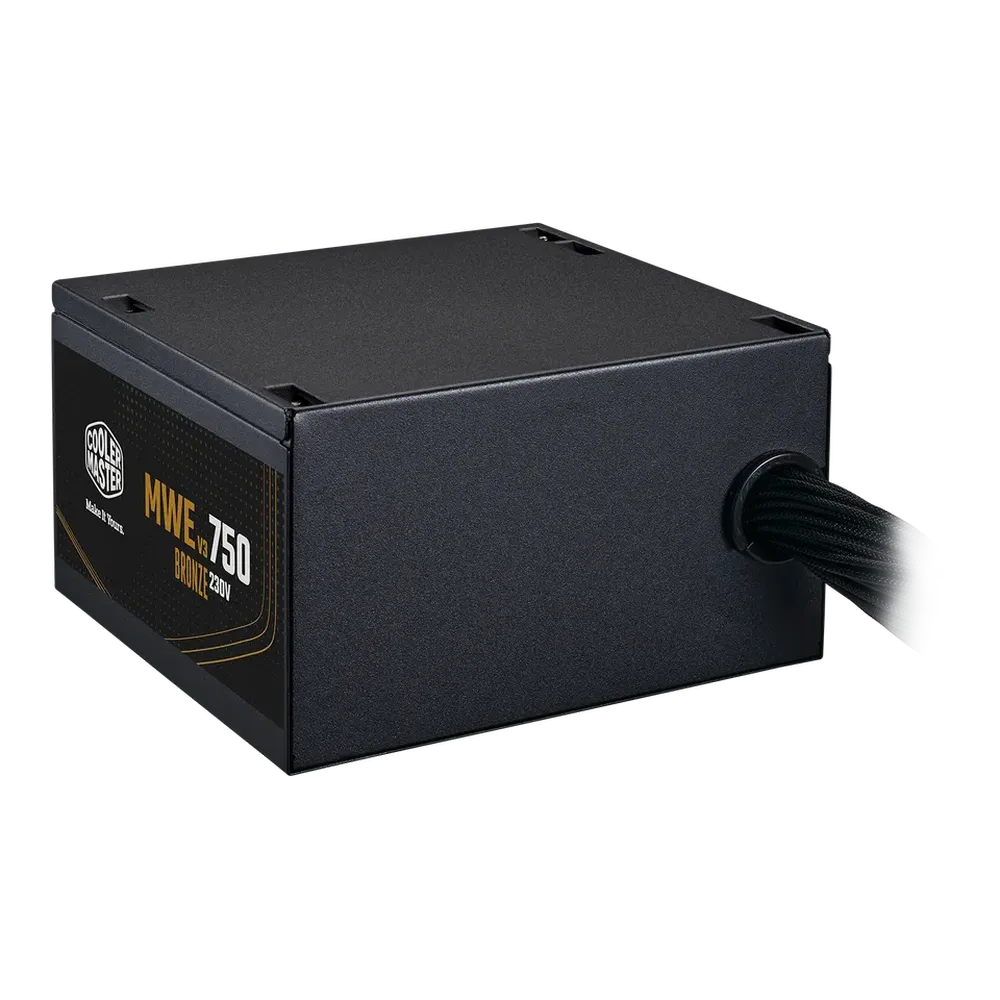

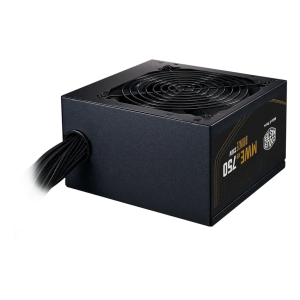

Features of COOLER MASTER MWE 750W V3 80+ Bronze 3.1 Non Modular Power Supply
Introducing the Cooler Master Power Supply the evolutionary next step in Cooler Master power and the ATX 3.1 upgrade to our MWE Bronze V2 750W Power Supply. With features such as 80 Plus Bronze efficiency, a DC-to-DC + LLC circuit design, and a quiet HDB fan cooling, the V3 provides valuable performance in multiple dimensions. Several changes and additions improve the overall user experience. Together, these design choices deliver an advanced PSU that is highly efficient and reliable. With an embossed cable, exceptional temperature resilience and a 5-year warranty, the MWE Bronze V3 will evolve your machine.

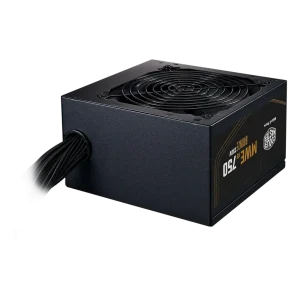

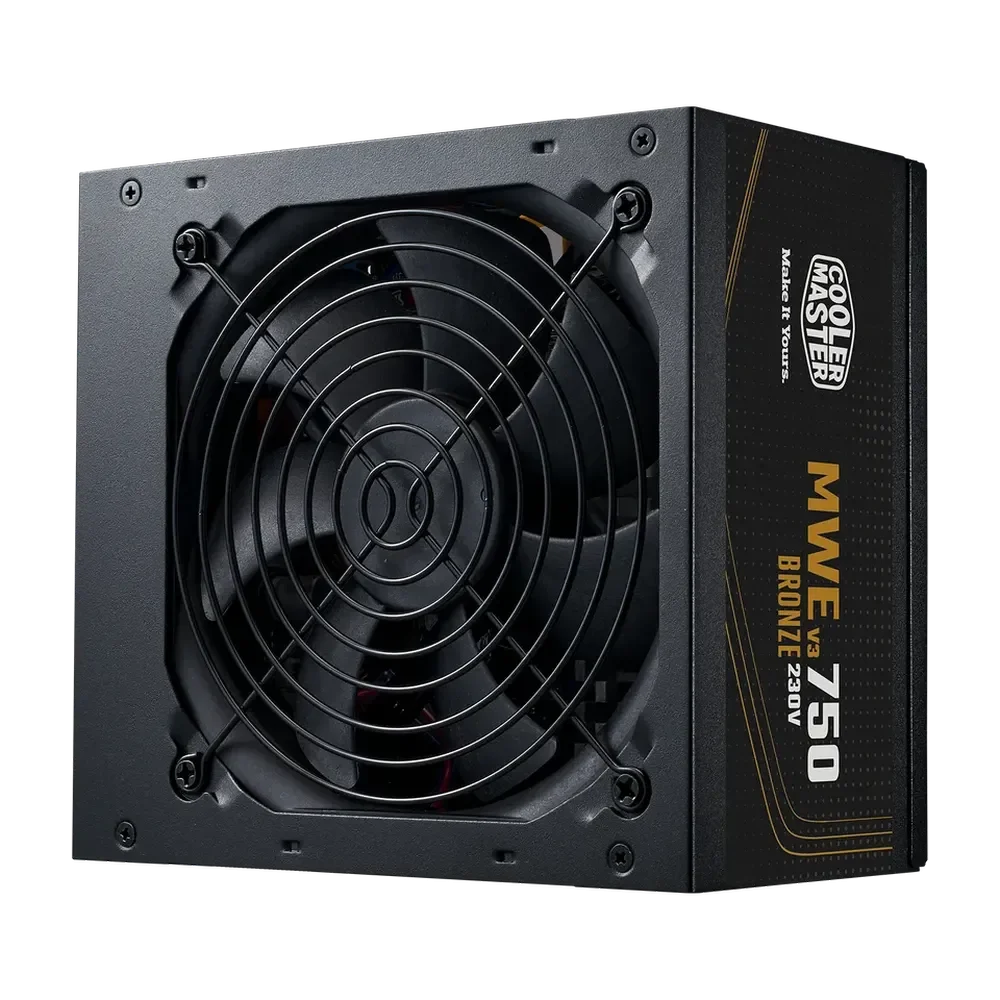

Quiet HDB fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
80 Plus Bronze efficiency certification
This unit is certified to achieve more than 88% efficiency at typical loads in a 230V test.
High temperature resilience
A 40°C maximum operating temperature allows for pushing your machine to the limits with overclocking and other high-intensity applications.
Embossed cable
An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.
ATX 3.1 support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
Single +12V rail
All power comes from a single +12V source, ensuring consistent output through all connected cables.
DC-to-DC technology
The DC-DC circuit design offers reliable, stable output to all connected components.
2 EPS Connectors
Two 4-pin EPS connectors are included for universal compatibility with current- gen motherboards.
5-year warranty
This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.
Get the best 80 Plus Bronze cpu power supply price from us today!
Specifications of COOLER MASTER MWE 750W V3 80+ Bronze 3.1 Non Modular Power Supply

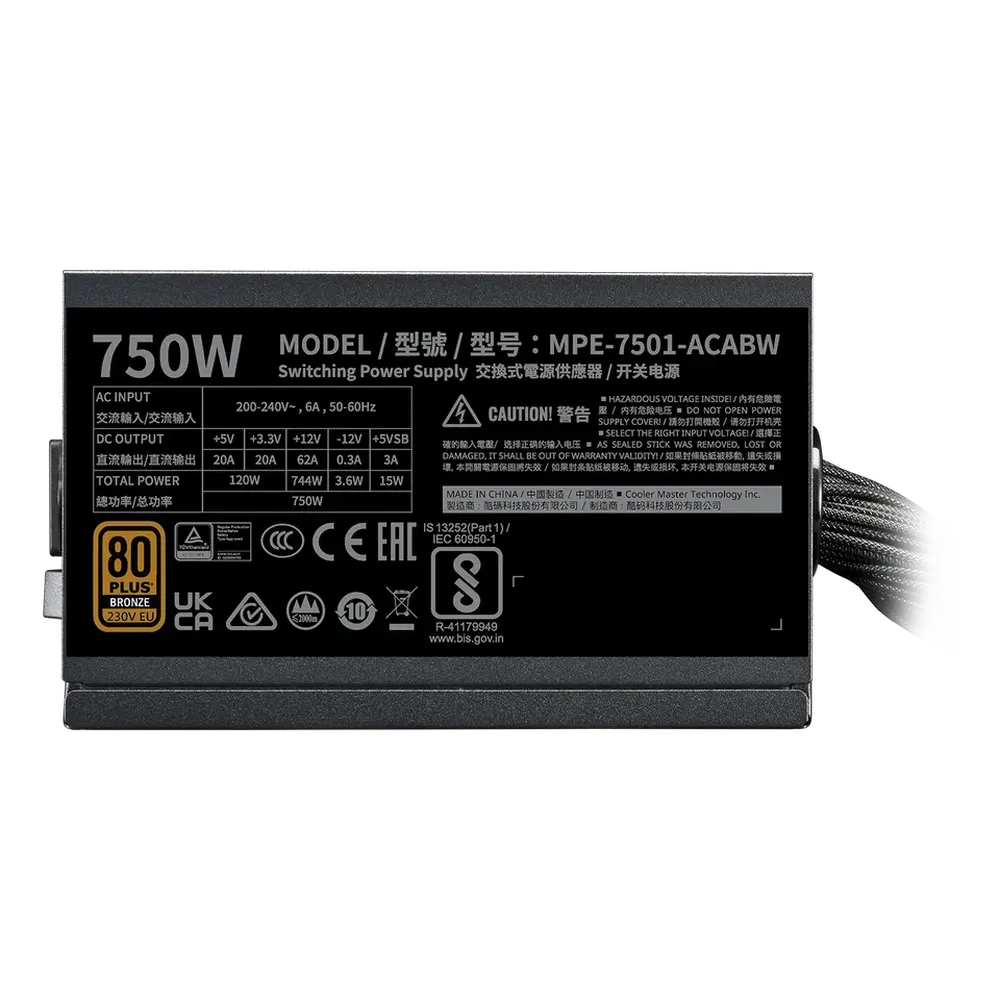

| Product Name / Product Code | MWE Bronze 750 V3 230V ( MPE-7501-ACABW-3BIN ) |
| Item Code | MPE-7501-ACABW-3B |
| ATX Version | ATX 12V Ver. 3.1 |

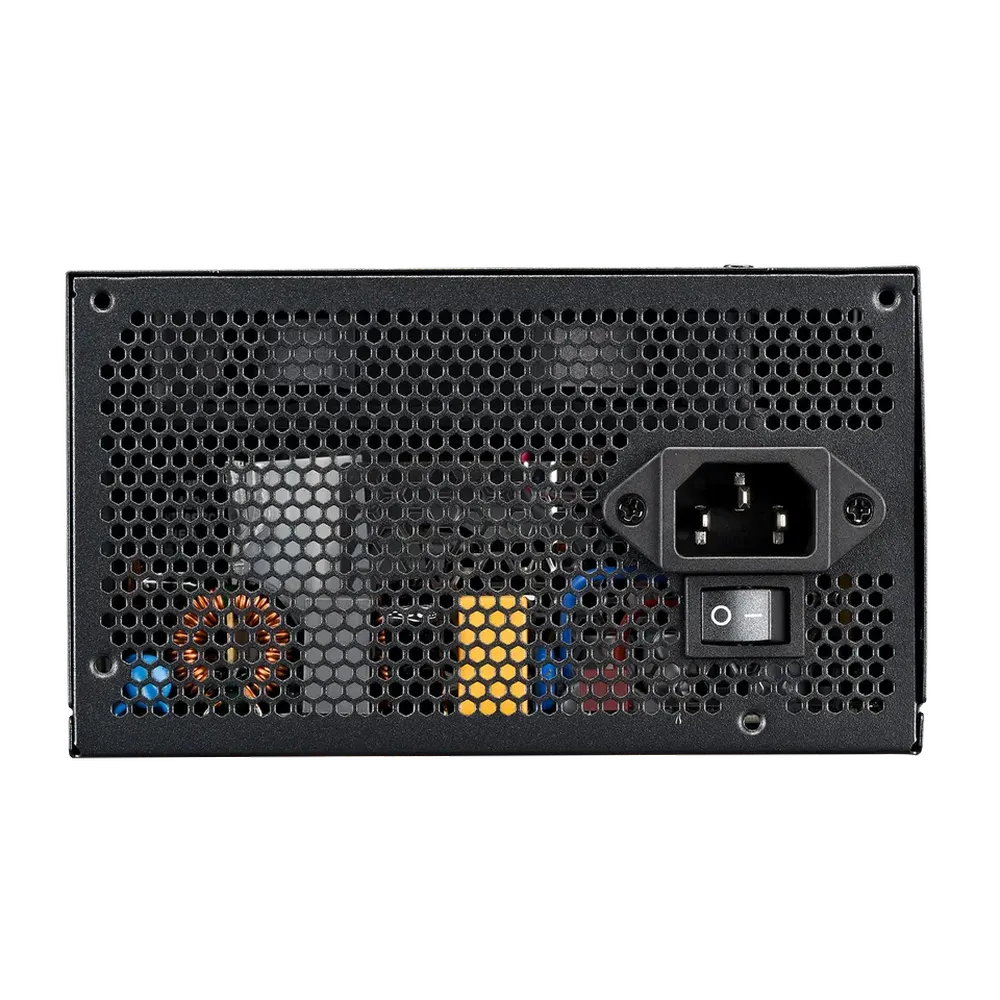

| PFC | Active PFC |
| Input Voltage | 200 – 240V |
| Input Current | 6A |
| Input Frequency | 50 – 60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86mm |
| Fan Size | 120 mm |
| Fan Bearing | HDB |
| Efficiency | ≥ 88% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Bronze |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0 ~ 40℃ |
| Power Good Signal | 100 – 150ms |
| Hold Up Time | ≥ 16ms |
| MTBF | >100,000 hours @ 25℃ ambient |
| Protections | UVP / OVP / OPP / OTP / SCP |
| Regulatory | TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, |
| KC (based on region’s request.) | |
| Net Weight | 1.75 kg / 3.8581 lb |
| Gross Weight | 2.15 kg / 4.7421 lb |
| Package Dimensions | 245 x 190 x 110mm (9.65 x 7.48 x 4.33″) |
| Carton Dimensions | 570 x 260 x 215mm (22.44 x 10.24 x 8.46″) |
| Unit / Carton | 5 pcs |
| Carton / Pallet | 32 pcs |
