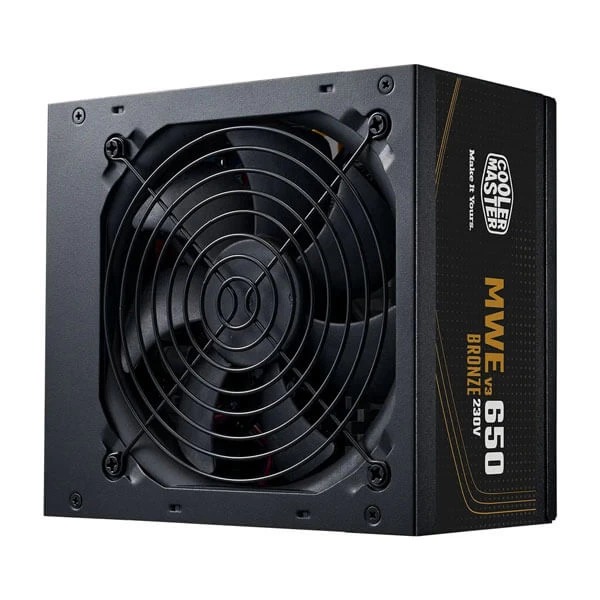

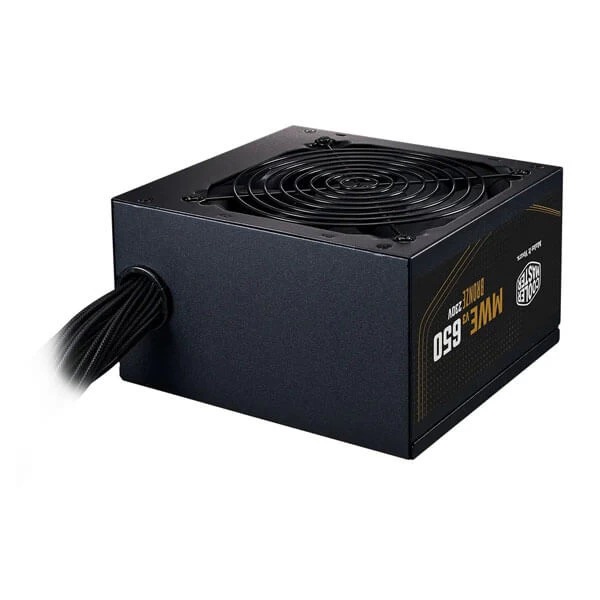

Cooler Master MWE Bronze 650 V3 ATX 3.1 80 Plus Bronze SMPS

The Cooler Master MWE Bronze 650 V3 is a 650-watt ATX power supply designed to meet the demands of modern desktop builds, including systems equipped with current-generation discrete graphics cards. Built to the ATX 12V Version 3.1 standard, it can handle transient peak loads up to 1.5 times its rated maximum wattage, ensuring stable performance during sudden GPU power spikes without tripping protection circuits. Efficiency sits at over 88% at typical load, meeting the 80 Plus Bronze (EU 230V) certification threshold. This means less energy is wasted as heat, keeping operating temperatures lower and reducing long-term electricity costs compared to uncertified units. The unit runs on Active PFC, which improves the power factor from the mains supply and is compatible with the 200–240V input voltage range at 50–60Hz, making it suitable for the Indian market and other 230V regions. Cooling is handled by a 120mm fan using a Hydrodynamic Bearing (HDB), a design that reduces friction and wear for quieter operation and a longer service life compared to standard sleeve-bearing fans. The unit is rated to operate at ambient temperatures up to 40°C, providing headroom in warm or poorly ventilated enclosures. The cable set is non-modular with an embossed texture for easier handling and improved grip during installation. Connectivity includes one ATX 24-pin connector, two EPS 8-pin/4+4-pin CPU power connectors, four PCIe 6+2-pin connectors for GPU power, six SATA connectors, and three 4-pin peripheral connectors — sufficient for most mid-range ATX builds. Protection features cover under-voltage (UVP), over-voltage (OVP), over-power (OPP), over-temperature (OTP), and short-circuit (SCP) events. The unit carries certifications including TÜV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS 2.0, and BIS, with additional regional certifications available on request. Cooler Master backs the MWE Bronze 650 V3 with a 5-year warranty. Verified Specifications: - Model: MPE-6501-ACABW-3BIN - Wattage: 650W - ATX Version: ATX 12V Ver. 3.1 - Efficiency: >88% at typical load (80 Plus Bronze EU 230V) - PFC: Active PFC - Input Voltage: 200–240V / 5A / 50–60Hz - Fan: 120mm HDB bearing - Operating Temperature: 0–40°C - MTBF: >100,000 hours - Hold-Up Time: >16ms - Modular: Non-modular - Dimensions (L×W×H): 140 × 150 × 86 mm - Connectors: 1× ATX 24-pin, 2× EPS 8-pin/4+4-pin, 4× PCIe 6+2-pin, 6× SATA, 3× 4-pin peripheral - Protections: UVP, OVP, OPP, OTP, SCP - Warranty: 5 years - GTIN: 4719512136293 - Color: Black
