COOLER MASTER NR200P ITX Mid Tower Cabinet (White)

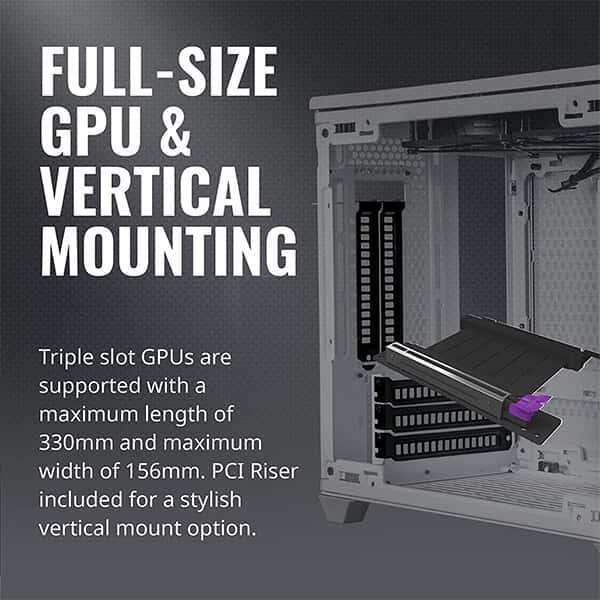

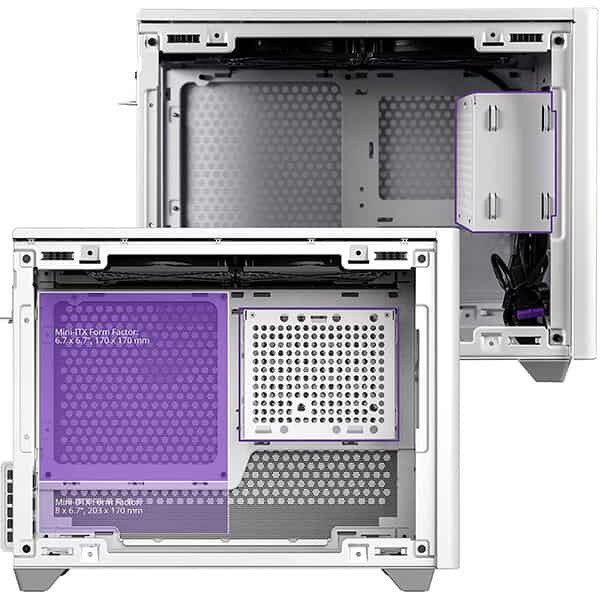

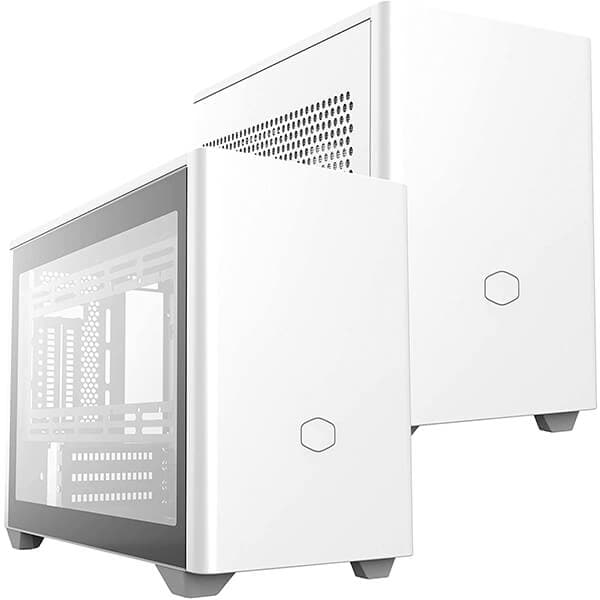

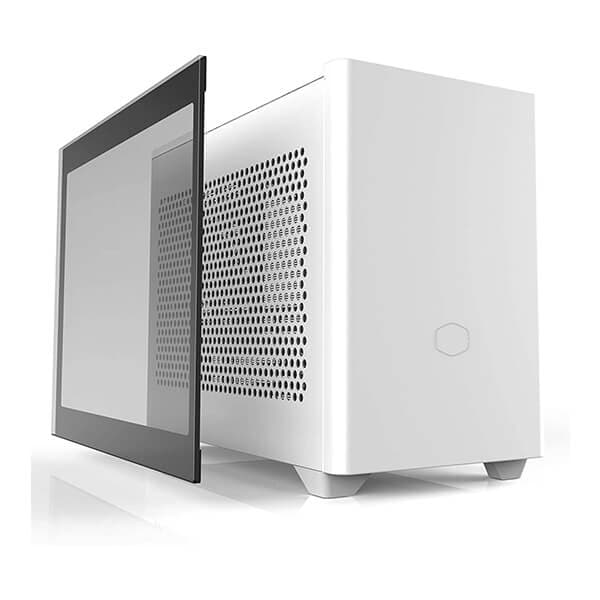

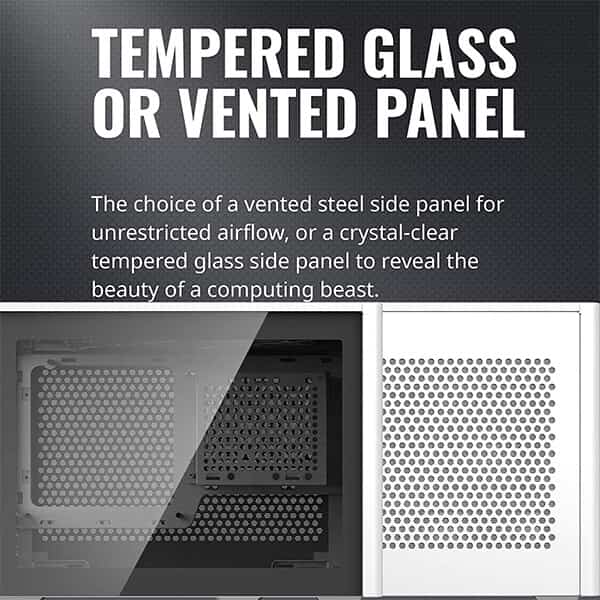

The Cooler Master NR200P (model MCB-NR200P-WGNN-S00) is a Mini-ITX small form factor chassis from the MasterBox Series, finished in white powder-coated SGCC steel. At just 18.25 litres in volume (excluding protrusions), it packs an impressive set of features into a chassis measuring 376 × 185 × 292 mm (including protrusions) or 360 × 185 × 274 mm excluding them. Two side panel options ship in the box: a vented steel panel for maximum airflow and a crystal-clear tempered glass panel that puts your build on display. Both panels are secured with removable pins for completely tool-free access. Beyond the side panels, every frame part of the NR200P can be fully dismantled for 360-degree interior access. The chassis supports Mini-ITX and Mini-DTX motherboards up to a maximum size of 244 × 226 mm. Power supply support is limited to SFX and SFX-L form factors, with up to 130 mm of PSU clearance. Graphics card clearance is generous for an ITX enclosure: up to 330 mm in length, 156 mm in height, and 60 mm (triple slot) in width, with a PCIe 3.0 x16 riser cable included in the box for vertical GPU mounting. Cooling headroom is equally capable. Up to seven fans can be installed across the top (2× 120 mm), rear (1× 92 mm), bottom (2× 120 mm), and side (2× 120/140 mm) positions. Two 120 mm SickleFlow PWM fans (650–1800 RPM) come pre-installed in the top position. Radiator support reaches up to 280 mm on the side panel and 240 mm on the bottom, while a 92 mm radiator fits at the rear. CPU cooler clearance is 155 mm with the vented steel side panel, 153 mm with the tempered glass panel, and 76 mm when the GPU is in vertical position. Dust filters cover all four sides — top, bottom, left, and right. Storage options include up to two 3.5-inch drives, up to three 2.5-inch drives, and one combo 2.5/3.5-inch bay. The front I/O provides two USB 3.2 Gen 1 Type-A ports and a 3.5 mm headset jack combining audio and microphone. Cooler Master includes a 3D-printable feet design programme so end users can personalise the case feet in any filament colour. Note: The included riser cable is PCIe 3.0 only. When pairing with a PCIe 4.0 motherboard, select PCIe 3.0 mode in BIOS before installation. Bottom radiator mounting is recommended for custom liquid cooling loops only; slim fans are advised in the bottom position when using a GPU wider than 2.5 PCI slots. Verified Specifications: • Model: MCB-NR200P-WGNN-S00 • Form Factor: Mini-ITX / Mini-DTX • Dimensions: 376 × 185 × 292 mm (incl. protrusions); 360 × 185 × 274 mm (excl. protrusions) • Volume: 18.25 L (excl. protrusions) • Materials: SGCC Steel, Plastic, Mesh, Tempered Glass • Pre-installed Fans: 2× 120 mm SickleFlow PWM (650–1800 RPM, top) • Max GPU Length: 330 mm | Max GPU Height: 156 mm | Max GPU Width: 60 mm (triple slot) • CPU Cooler Clearance: 155 mm (vented panel) / 153 mm (glass panel) / 76 mm (vertical GPU) • PSU Support: SFX, SFX-L (max 130 mm) • Radiator Support: Side up to 280 mm; Bottom up to 240 mm; Rear 92 mm • I/O: 2× USB 3.2 Gen 1 Type-A, 1× 3.5 mm Headset Jack • Expansion Slots: 3 • Weight: 5.1 kg • Warranty: 2 Years
