COOLER MASTER NR200P MAX ITX Mini Tower Cabinet (Black)

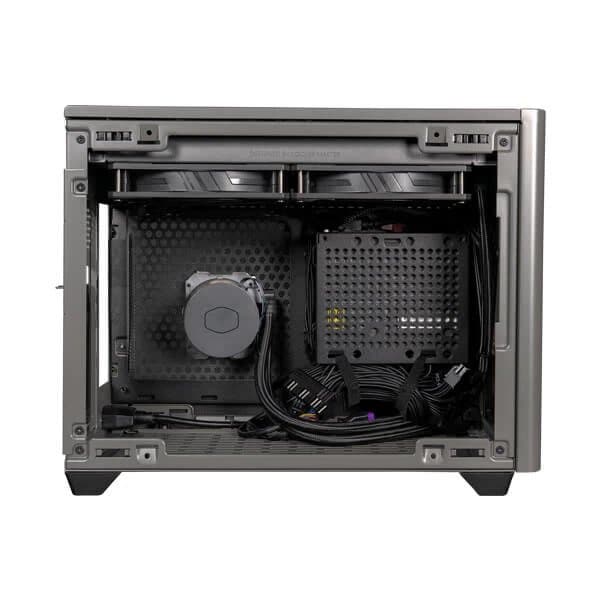

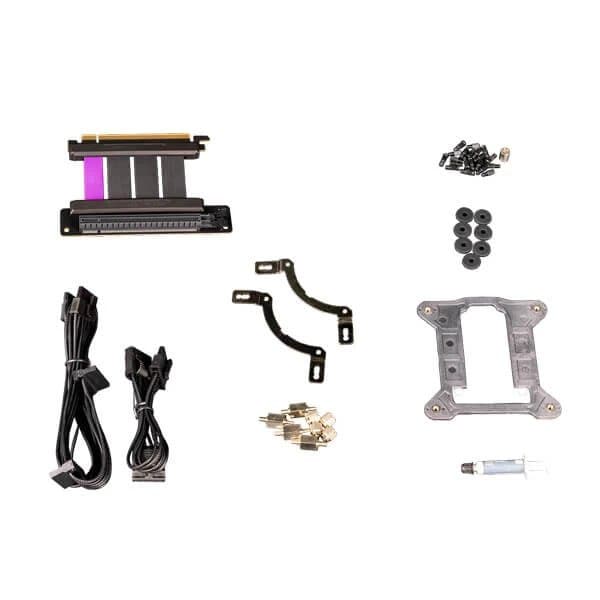

The Cooler Master NR200P MAX is a Mini-ITX small-form-factor (SFF) chassis that ships as a complete, ready-to-build platform. Unlike a bare case, it arrives with two key components already installed and pre-routed: a Cooler Master V850 SFX Gold 850W fully modular power supply and a 280mm AIO liquid cooler featuring a Gen 3 dual-chamber pump/CPU block paired with two 140mm SickleFlow PWM fans. This out-of-the-box approach eliminates the most frustrating parts of SFF building — cable routing and cooler fitment — so you can focus on installing a motherboard and GPU. The chassis supports only Mini-ITX motherboards (up to 170 × 180 mm), keeping the overall volume to just 18.30 litres (377 × 185 × 292 mm including protrusions). Despite its compact footprint, it accommodates triple-slot graphics cards up to 336 mm long, 160 mm tall, and 75 mm wide, mounted vertically via the included patented quick-install GPU panel and a MasterAccessory PCIe Gen 4 x16 riser cable (50 mm). Four 6+2-pin PCIe power cables are included for demanding GPUs. Two left-side panel options are provided in the box: an edge-to-edge tempered glass panel for aesthetics and a ventilated steel panel for maximum airflow. Dust filtration covers all four panel positions — bottom, left, right, and top — to protect components over the long term. The top panel supports up to a 280mm radiator or two 120/140mm fans, giving builders flexibility if they choose an alternative cooling configuration. Storage options include up to three 2.5-inch SSD bays, up to two 3.5-inch HDD bays (configuration-dependent), and one 3.5/2.5-inch combo bay. The front I/O panel provides two USB 3.2 Gen 1 (Type-A) ports and a 3.5 mm combo headset jack. All exterior panels and the frame itself can be removed for unrestricted component access. CPU socket compatibility for the included AIO spans AMD AM4 and Intel LGA1700 (all mounting brackets included). The PSU clearance is 130 mm and the air-cooler height limit is 67 mm — important to note if users opt for an aftermarket air cooler instead. Key Verified Specifications: – Form Factor: Mini-ITX (Max. 170 × 180 mm) – Volume: 18.30 L (377 × 185 × 292 mm incl. protrusions) – Included PSU: Cooler Master V850 SFX Gold, 850 W, 80 Plus Gold – Included Cooling: 280mm radiator, 2× 140mm SickleFlow PWM fans, Gen 3 CM pump/CPU block – GPU Clearance: 336 mm (L) × 160 mm (H) × 75 mm (W / triple-slot) – Expansion Slots: 3 – Drive Bays: Up to 3× 2.5″ SSD, up to 2× 3.5″ HDD, 1× 3.5″/2.5″ combo – I/O: 2× USB 3.2 Gen 1, 1× 3.5 mm headset jack – Riser Cable: PCIe Gen 4 x16 — 50 mm (included) – PSU Support: SFX / SFX-L – Exterior Materials: SGCC Steel, Mesh, ABS Plastic – Dust Filters: Bottom, Left, Right, Top – Warranty: 2 Years
