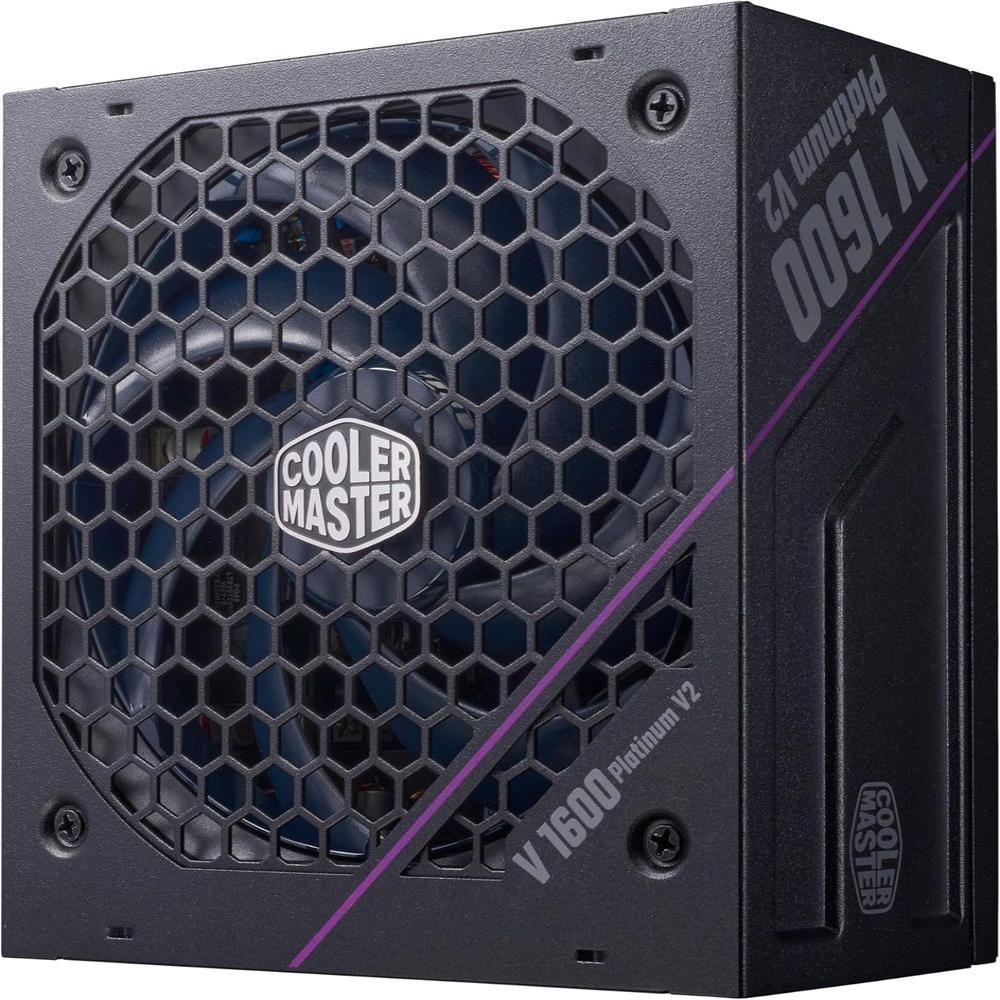

COOLER MASTER V 1600W V2 80+ Platinum Fully Modular ATX 3.1 Power Supply

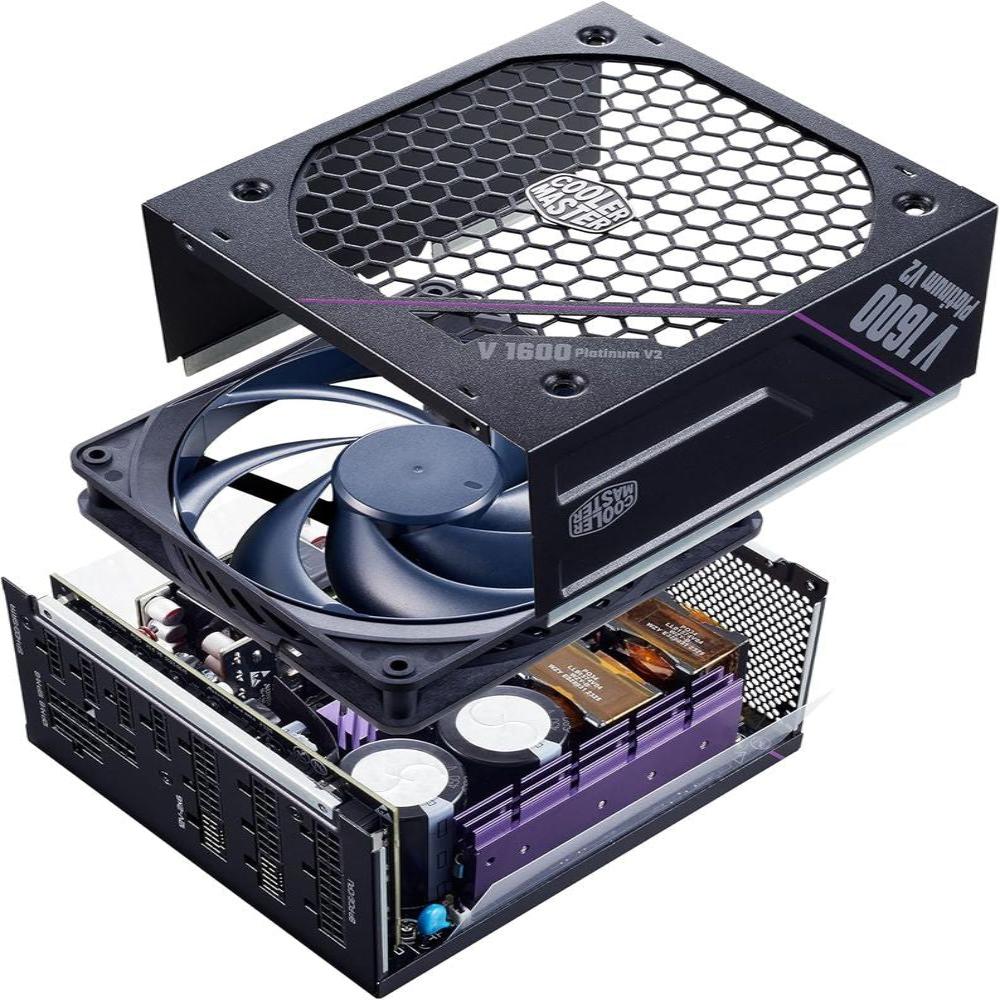

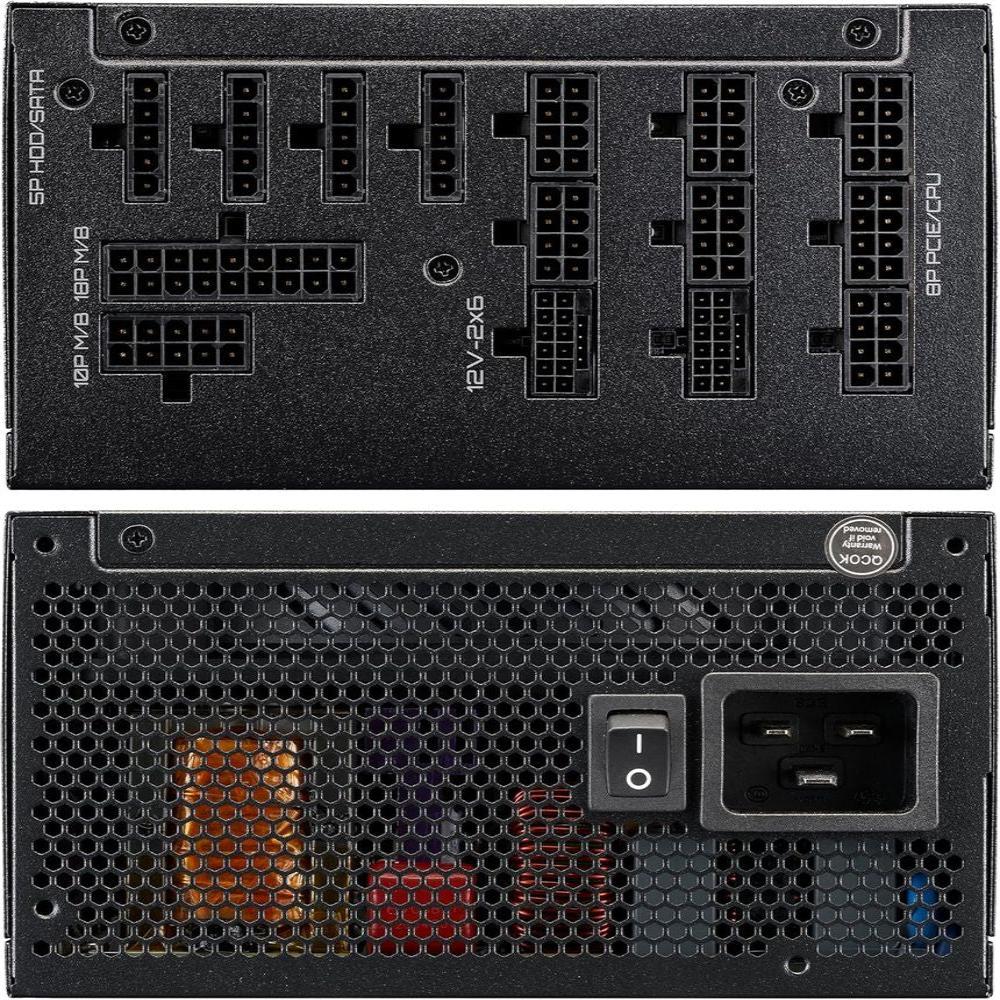

The Cooler Master V Platinum 1600W V2 is a high-capacity, fully modular ATX 3.1 power supply designed for demanding PC builds, including dual high-end GPU configurations. Rated at 1600 watts of continuous output, it carries an 80 Plus Platinum certification, delivering at least 92% efficiency at typical loads — reducing wasted heat and keeping electricity costs lower compared to lower-rated units. At the heart of its cooling system sits the proprietary 135mm Mobius fan, which uses a loop dynamic bearing (LDB) with an oil-reflow ring blade design. This bearing style provides stable, consistent rotation and reduced acoustic output. The unit defaults to zero-RPM mode at light and moderate loads, operating in complete silence until thermals call for active cooling. Once active, smart thermal control adjusts fan speed automatically, reaching up to 2400 RPM (±10%) under peak load. The V Platinum 1600 V2 supports ATX 12V Ver. 3.1 and includes two 90-degree 12V-2x6 (12+4 pin PCIe 5.1) cables with 650mm lengths, enabling dual 40-series GPU connectivity and each capable of delivering up to 600W per connector for a combined 1200W via those connectors alone. Additional PCIe connectivity is provided by five 6+2 pin PCIe cables. The fully modular cabling system allows unused cables to be removed entirely, improving chassis airflow and simplifying cable management. Thermal performance is enhanced by anodic-coated heatsinks, which concentrate airflow and improve heat dissipation compared to traditional designs. A conformal coating on internal components provides protection against dust, moisture, and insects — a meaningful durability benefit in varied environments. An interleaved PFC design reduces power loss and electromagnetic interference. Japanese capacitors are used throughout to minimize ripple noise and improve long-term reliability. The unit's MTBF rating exceeds 100,000 hours, and it is backed by a 12-year limited manufacturer warranty from date of purchase. Protections include over-power (OPP), over-voltage (OVP), over-temperature (OTP), over-current (OCP), short-circuit (SCP), under-voltage (UVP), and surge and inrush protection. The unit is ErP 2014 Lot 3 compliant and holds certifications including cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS 2.0, BIS, and KC (region-dependent). Verified Specifications: • Model: V Platinum 1600 V2 (MPZ-G002-AFAP-BIN) • Wattage: 1600W • ATX Version: ATX 12V Ver. 3.1 • Efficiency: ≥92% at typical load | 80 Plus Platinum • Input Voltage: 100–240V AC | 50–60Hz • Fan: 135mm Mobius LDB fan | Max 2400 ±10% RPM | Zero-RPM mode • Dimensions (L×W×H): 160 × 150 × 86mm • Operating Temperature: 0–50°C • MTBF: >100,000 hours • Hold Up Time: ≥16ms • Power Good Signal: 100–150ms • Connectors: 1× ATX 24-pin, 1× EPS 4+4-pin, 1× EPS 8-pin, 2× 12V-2x6 (650mm), 5× PCIe 6+2-pin (550mm), 16× SATA, 4× Peripheral 4-pin • Warranty: 12 years limited
