Cooler Master V Platinum 1600 Watt V2 ATX 3.1 Fully Modular SMPS

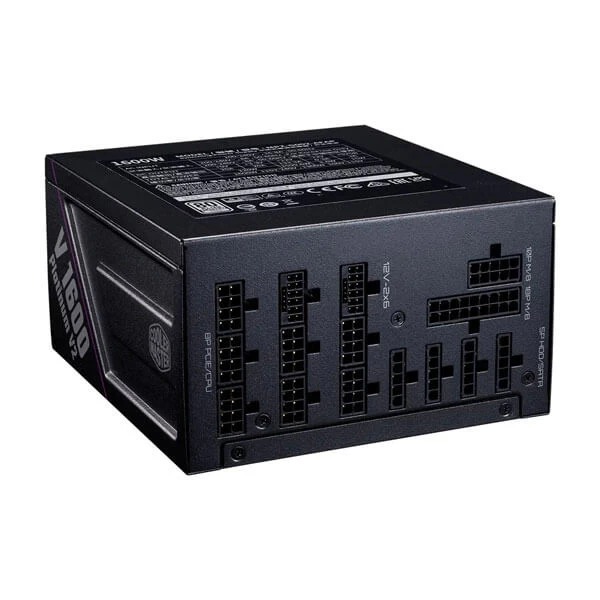

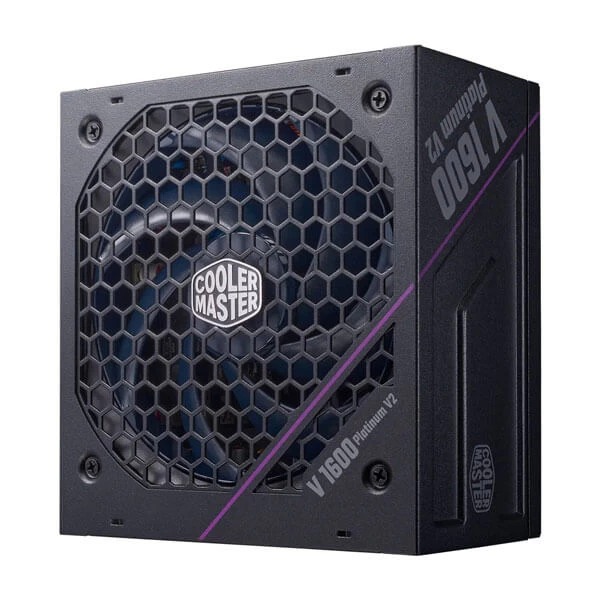

The Cooler Master V Platinum 1600 V2 is a high-capacity, fully modular power supply designed for enthusiast and workstation builds that demand both clean power delivery and long-term reliability. Rated at 1600 watts and compliant with the ATX 12V Ver. 3.1 standard, this unit is built to handle the transient power spikes associated with current-generation discrete graphics cards. At the heart of its thermal management is a 135 mm Mobius fan using an LDB (loop dynamic bearing) design, which operates in a zero-RPM mode at low to moderate loads and scales to a maximum of 2400 RPM under thermal demand. Smart thermal control automatically adjusts fan speed based on internal operating temperature, ensuring near-silent operation during everyday tasks. The V Platinum 1600 V2 carries an 80 Plus Platinum certification, meaning it delivers at least 92% efficiency at typical load — reducing wasted heat and keeping electricity costs lower compared to Bronze or Gold-rated alternatives. Anodic-coated heat sinks further enhance component longevity by keeping average temperatures lower than conventional designs. Two 12V-2x6 (90-degree, 12+4 pin PCIe 5.1) cables are included, enabling dual 40-series or similarly demanding GPU configurations without adapters. Five additional PCIe 6+2 pin connectors offer flexibility for multi-GPU or accessory power needs. The fully modular cabling system means only the cables you need are connected, reducing clutter and improving airflow inside the chassis. A conformal coating protects internal components against dust, moisture, and insects, while high-quality Japanese capacitors minimise ripple noise. The interleaved PFC design reduces power loss and electromagnetic interference. Protection coverage includes OPP, OVP, OTP, OCP, SCP, UVP, and surge and inrush protection. Verified Specifications: - Model: V Platinum 1600 V2 | SKU: MPZ-G002-AFAP-BIN - Wattage: 1600 W - ATX Version: ATX 12V Ver. 3.1 - Efficiency: ≥92% at typical load | 80 Plus Platinum - Fan: 135 mm LDB Mobius fan, up to 2400±10% RPM, zero-RPM mode - PFC: Active PFC | Input: 100–240 V, 50–60 Hz - Dimensions (L×W×H): 160 × 150 × 86 mm - MTBF: >100,000 hours - Hold-up time: ≥16 ms | Operating temp: 0–50°C - Connectors: ATX 24-pin ×1, EPS 4+4-pin ×1, EPS 8-pin ×1, 12V-2x6 ×2, PCIe 6+2-pin ×5, SATA ×16, Peripheral 4-pin ×4 - Warranty: 12 years limited - Certifications: cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS 2.0/BIS, KC - GTIN: 4719512140963
