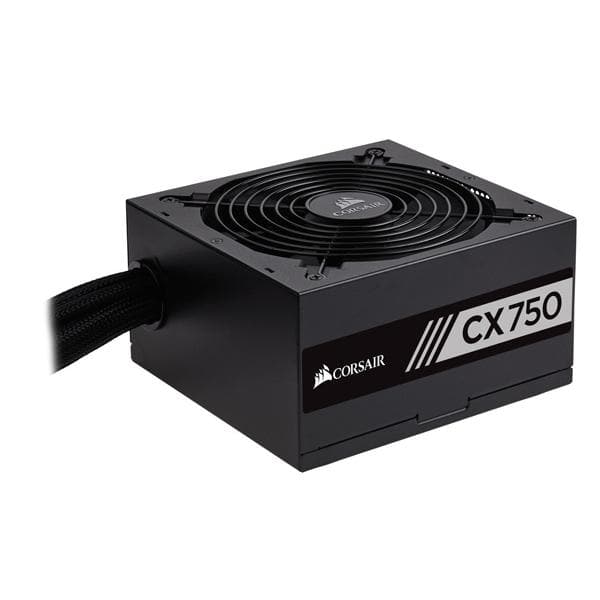

CORSAIR CX750 750W 80 + Bronze Non Modular ATX 2.0 Power Supply

The Corsair CX750 is a 750-watt non-modular ATX power supply carrying an 80 Plus Bronze efficiency rating. Built around a dedicated single 12V rail architecture, it is designed to deliver stable, compatible power to a wide range of modern PC components including multi-core processors and discrete graphics cards. The unit operates over a universal AC input range of 90 V to 264 V, removing the need for a manual voltage selector switch and making it suitable for use in different regions. Thermal management is handled by a 120 mm sleeve-bearing fan that uses thermally controlled speed adjustment — running quietly at low to moderate loads and ramping up only when the power supply is under sustained heavy demand. The CX750 carries no fanless mode, so active cooling is always present during operation. All cables are fully sleeved to aid routing and airflow, and the fixed-cable harness includes connectors for a broad set of system configurations. Multiple protection circuits are built in, covering over-voltage, over-power, under-voltage, and short-circuit conditions to help safeguard connected components. The supply complies with the ErP Lot 6 European Union standard for low standby power consumption and holds safety certifications including UL, CUL, CE, CB, FCC Class B, TÜV, CCC, and C-Tick. Corsair backs this unit with a 3-year warranty. Verified Specifications: – Model: CP-9020123-UK – Rated output power: 750 W – 80 Plus certification: Bronze (up to 88% efficiency at typical load) – Rail configuration: Single 12V rail – Fan: 120 mm, sleeve bearing, thermally controlled – Fanless mode: No – Modular: No (non-modular, fixed cables) – Sleeved cables: Yes – ATX connector: 1 x 24-pin – EPS connector: 1 – PCIe connectors: 4 – SATA connectors: 6 – 4-pin peripheral connectors: 4 – Floppy connector: 1 – Dimensions: 150 mm (W) x 86 mm (H) x 160 mm (L) – Continuous output rated temperature: 30°C – MTBF: 100,000 hours – Warranty: 3 years – Safety approvals: UL, CUL, CE, CB, FCC Class B, TÜV, CCC, C-Tick – ErP Lot 6 compliant: Yes
