CORSAIR Frame 5000D RS ARGB EATX Mid Tower Cabinet ( Black )

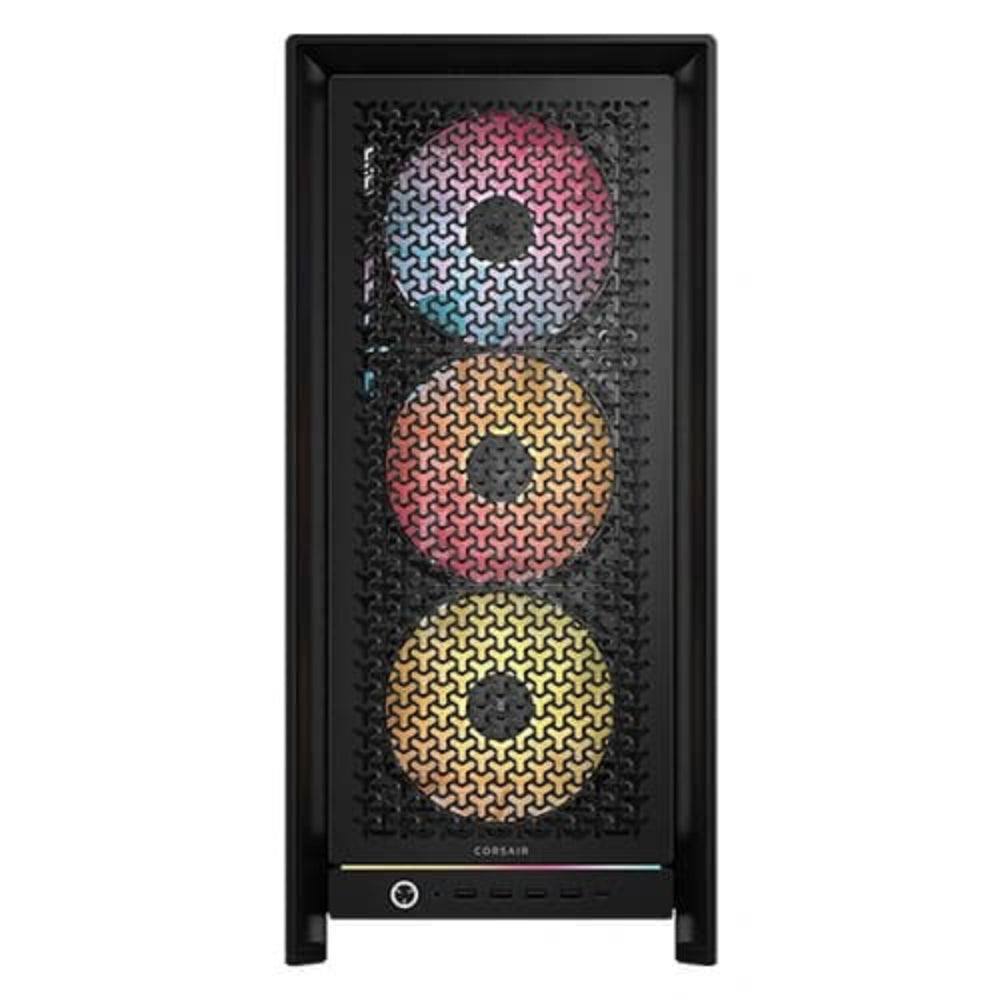

The CORSAIR Frame 5000D RS ARGB is a feature-packed EATX mid-tower cabinet engineered for builders who demand maximum airflow, modular flexibility, and clean aesthetics in a single package. At its core is the FRAME Modular Case System, which allows you to swap out key components — including the motherboard tray, I/O panel, front intake panel, and PSU shroud — so the chassis can evolve alongside your build rather than becoming obsolete. Airflow is a primary design priority. The steel front panel uses a 3D Y-Pattern perforation layout that minimises obstruction while directing a steady stream of cool air into the interior. The InfiniRail fan mounting system accommodates up to 120mm, 140mm, or 200mm fans simultaneously across multiple positions, providing exceptional configuration flexibility. Four RS140 ARGB PWM fans are included out of the box and connect via daisy-chain, requiring only a single 4-pin PWM connector and one +5V ARGB header on your motherboard — no dedicated controller needed. The Frame 5000D is built with modern, large-format graphics cards in mind. It supports GPUs up to 450mm in length, and every unit ships with a GPU anti-sag stabilisation arm to protect both the card and the PCIe slot. Rotatable PCI expansion slots also enable vertical GPU mounting when paired with a riser cable (sold separately). The chassis is designed slightly wider and longer than typical mid-tower cases to ensure compatibility with high-end cooling solutions and oversized components. Cooling headroom is substantial: the top position accepts radiators up to 420mm, while the front and side positions support up to 360mm radiators. The internal side panel near the motherboard tray can serve as a cable management cover or be removed entirely to mount additional fans for greater cooling potential. Reverse-connector motherboard compatibility has been validated with ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth platforms. The RapidRoute 2.0 pegboard-style motherboard tray provides custom-position cable tie-down points, and the package includes six cinching straps and two wire loom pairs. A dedicated mounting pocket and cable routing support for an iCUE LINK System Hub (sold separately) are also built in. Verified Specifications: • Product Code: CC-9011309-WW • Form Factor: E-ATX, ATX, Micro-ATX, Mini-ITX • Cabinet Size: Mid-Tower • Material: Steel, Tempered Glass • Colour: Black • Pre-installed Fans: 4 × RS140 ARGB PWM • Max Fan Support: 9 • Radiator Support: 420mm (top), 360mm / 280mm / 240mm / 140mm / 120mm (front/side) • Max GPU Length: 450mm • Max CPU Cooler Height: 175mm • Max PSU Length: 250mm • Expansion Slots: 8 (rotatable for vertical GPU) • Storage: Up to 2 × 3.5" HDD + 6 × 2.5" SSD • Front I/O: 4 × USB 3.2 Gen 1 Type-A, 1 × USB 3.2 Gen 2 Type-C, Headphone, Microphone • Dust Filters: Front, Bottom, Right Side, Left Side • Warranty: 2 Years
