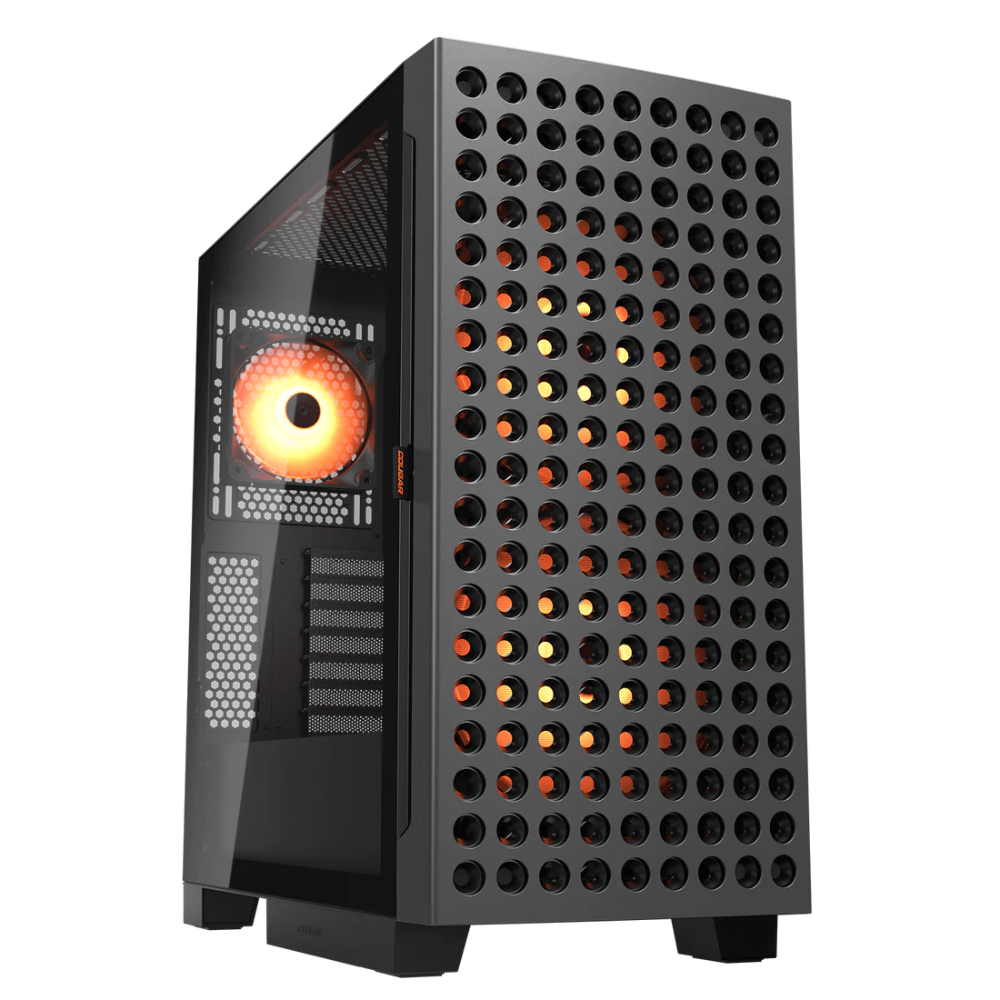

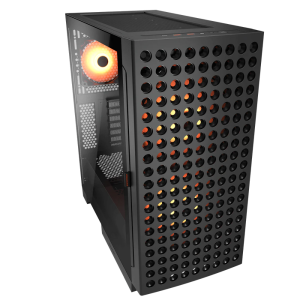

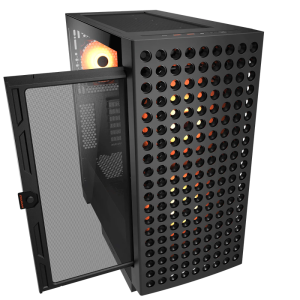

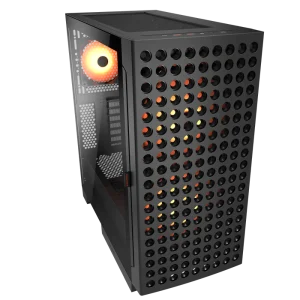

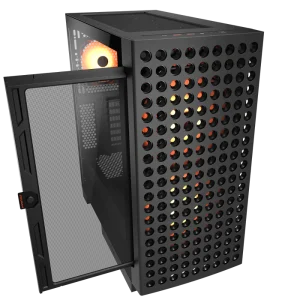

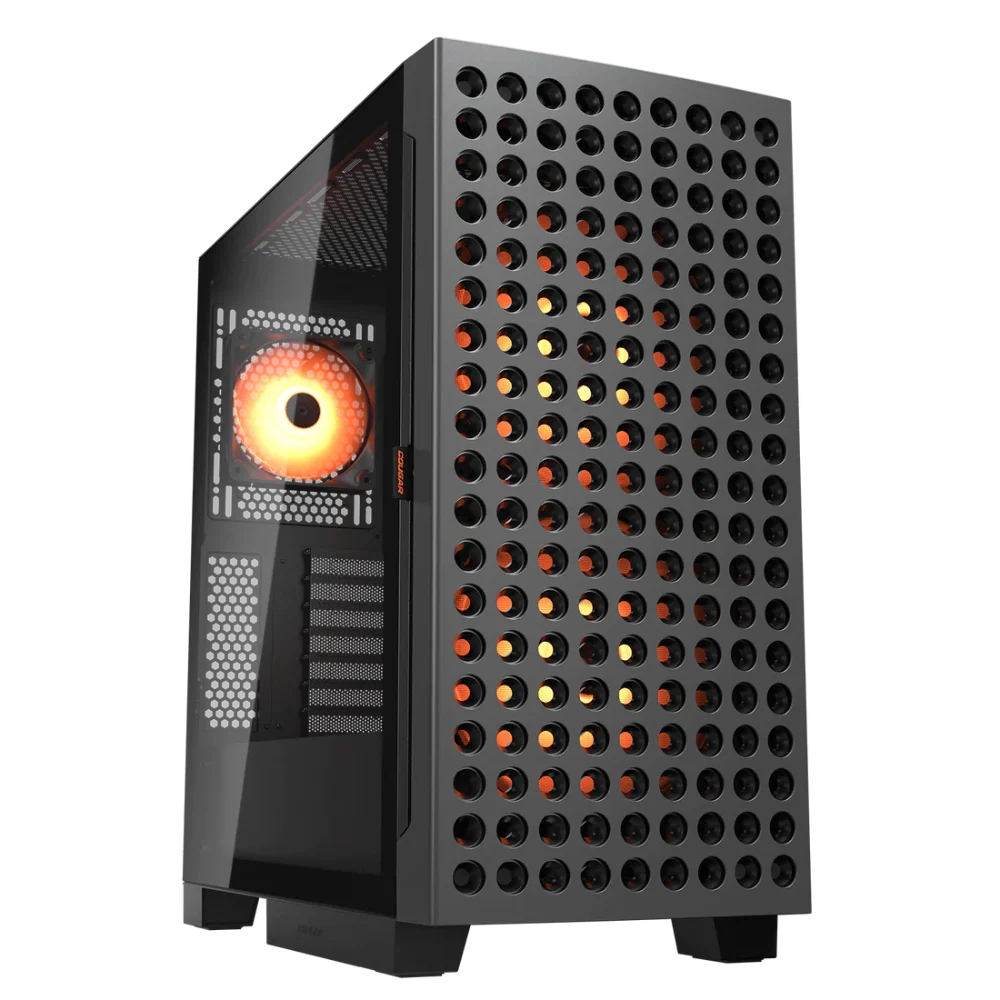

COUGAR Airface ECO RGB ATX Mid Tower Cabinet ( Black )
MPN COUGAR-AIRFACE-ECO-RGB-BLACK · Brand Cougar · Mid Tower
Features of COUGAR Airface ECO RGB ATX Mid Tower Cabinet ( Black ) The Airface ECO RGB is designed with a focus on eco-efficiency. Coned vents taper inwards from a wide opening, leveraging thermodynamic principles to make the most out of the airflow funneled through the front panel. Supplemented by dual 180mm PWM fans, maximizing cooling at no additional energy cost reduces both environmental impact and ecological footprint. Features such as the quick-slide dust filter, removable top panel and d
Inclusive of GST · GST invoice available
Overview
Features of COUGAR Airface ECO RGB ATX Mid Tower Cabinet ( Black )
The Airface ECO RGB is designed with a focus on eco-efficiency. Coned vents taper inwards from a wide opening, leveraging thermodynamic principles to make the most out of the airflow funneled through the front panel. Supplemented by dual 180mm PWM fans, maximizing cooling at no additional energy cost reduces both environmental impact and ecological footprint.
Features such as the quick-slide dust filter, removable top panel and detachable front bracket have been ported to the Airface ECO RGB from the Duoface Pro based on their proven strength. Constructive feedback has led to upgrades, including increased cable routing and new vertical GPU space for unobstructed cooling. Additionally, a modular front I/O allows for versatile placement options so that all your ports and buttons are easily accessed regardless of the case’s orientation.
- Coned vents leverage thermodynamic principles to maximize cooling efficiency.
- Preinstalled 2 x front 180mm PWM cooling fans.
- Innovative quick-slide dust filter.
- Removable top panel and detachable front bracket facilitates effortless assembly.
- Modular front I/O allows versatile placement.
- Upgraded new vertical GPU space improves cooling.
- Increased cable routing.

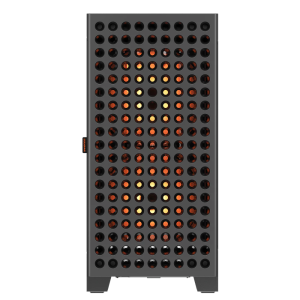

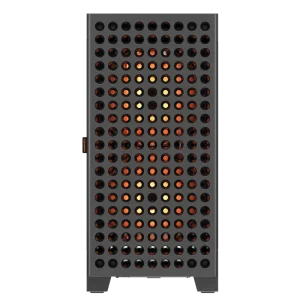

Thermodynamic Cooling
By tapering inwards from a wide opening, coned vents channel air more efficiently into the case. This smart design maintains a lower internal temperature at a reduced energy cost, pushing more air for less power.
Preinstalled Front 180mm PWM Cooling Fans
Two powerful 180mm PWM front cooling fans keep your system cool under heavy loads. These fans are preinstalled to provide optimal airflow right out of the box, with speeds that modulate according to your system’s needs. The Airface ECO RGB also comes with a preinstalled 120mm rear exhaust fan.
Full Protection from Dust
Filters on the three ventilated sides – front, top, bottom – effectively prevent dust from entering, keeping your components clean. The front quick slide dust filter pulls out without removing the front panel, making maintenance a breeze, and the addition of a rubber tag augments the ease of use by providing a better grip on the filter. The top side filter attaches magnetically while the bottom filter slides out for easy removal.
Easiest. Assembly. Ever.
The removable top panel simplifies access to the interior of your case, giving you extra space to make assembling your rig a breeze.
Modular Front I/O
Upgraded GPU Space
The Airface ECO RGB accommodates a maximum GPU length of 390mm, which can be set up both horizontally or vertically. Responding to user feedback, vertical GPU space has been upgraded for the Airface ECO RGB: this improvement provides more room for unobstructed airflow around the GPU.
Increased Cable Routing
Efficient cable management is crucial for both aesthetics and maintenance. Increased cable routing options allows you to keep your cables neatly organized and out of the way.
Versatile Motherboard Compatibility
The Airface ECO RGB is compatible with Mini-ITX, Micro-ATX, ATX, CEB, and E-ATX motherboards, offering flexibility for various build configurations.

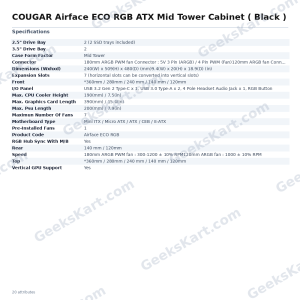

Specifications of COUGAR Airface ECO RGB ATX Mid Tower Cabinet ( Black )
| Product Code | Airface ECO RGB |
| Case Form Factor | Mid Tower |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB / E-ATX |
| Dimensions (WxHxD) | 240(W) x 509(H) x 480(D) (mm) 9.4(W) x 20(H) x 18.9(D) (in) |
| I/O Panel | USB 3.2 Gen 2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button |
| 3.5" Drive Bay | 2 |
| 2.5" Drive Bay | 2 (2 SSD trays included) |
| Expansion Slots | 7 (horizontal slots can be converted into vertical slots) |
| Vertical GPU Support | Yes |
| Cooling Fan Support | |
| Front | 120mm x 3 / 140mm x 2 / 180mm x 2 |
| Top | 120mm x 3 / 140mm x 2 |
| Rear | 120mm x 1 / 140mm x 1 |
| Pre-installed Fans | 1 |
| Front | 180mm ARGB PWM fan x 2 |
| Rear | 120mm ARGB fan x 1 |
| Speed | 180mm ARGB PWM fan: 300-1200 ± 10% RPM 120mm ARGB fan: 1000 ± 10% RPM |
| Connector | 180mm ARGB PWM fan Connector: 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) 120mm ARGB fan Connector: 5V 3 Pin (ARGB) / 3 Pin (Fan) |
| Maximun Number of Fans | 7 |
| Water Cooling Support | |
| Front | *360mm / 280mm / 240 mm / 140 mm / 120mm |
| Top | *360mm / 280mm / 240 mm / 140 mm / 120mm |
| Rear | 140 mm / 120mm |
| RGB Hub Sync with M/B | Yes |
| Max. Graphics Card Length | 390(mm) / 15.4(in) |
| Max. CPU Cooler Height | 190(mm) / 7.5(in) |
| Max. PSU Length | 200(mm) / 7.9(in) |

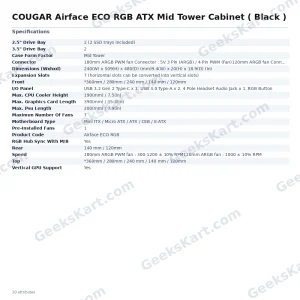

Datasheet
| Top | *360mm / 280mm / 240 mm / 140 mm / 120mm |
|---|---|
| Rear | 140 mm / 120mm |
| Front | *360mm / 280mm / 240 mm / 140 mm / 120mm |
| Speed | 180mm ARGB PWM fan : 300-1200 ± 10% RPM120mm ARGB fan : 1000 ± 10% RPM |
| Connector | 180mm ARGB PWM fan Connector : 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)120mm ARGB fan Connector : 5V 3 Pin (ARGB) / 3 Pin (Fan) |
| I/O Panel | USB 3.2 Gen 2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button |
| Product Code | Airface ECO RGB |
| 2.5" Drive Bay | 2 (2 SSD trays included) |
| 3.5" Drive Bay | 2 |
| Expansion Slots | 7 (horizontal slots can be converted into vertical slots) |
| Max. Psu Length | 200(mm) / 7.9(in) |
| Case Form Factor | Mid Tower |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB / E-ATX |
| Dimensions (Wxhxd) | 240(W) x 509(H) x 480(D) (mm)9.4(W) x 20(H) x 18.9(D) (in) |
| Pre-Installed Fans | 1 |
| Vertical GPU Support | Yes |
| RGB Hub Sync With M/B | Yes |
| Max. CPU Cooler Height | 190(mm) / 7.5(in) |
| Maximun Number Of Fans | 7 |
| Max. Graphics Card Length | 390(mm) / 15.4(in) |
