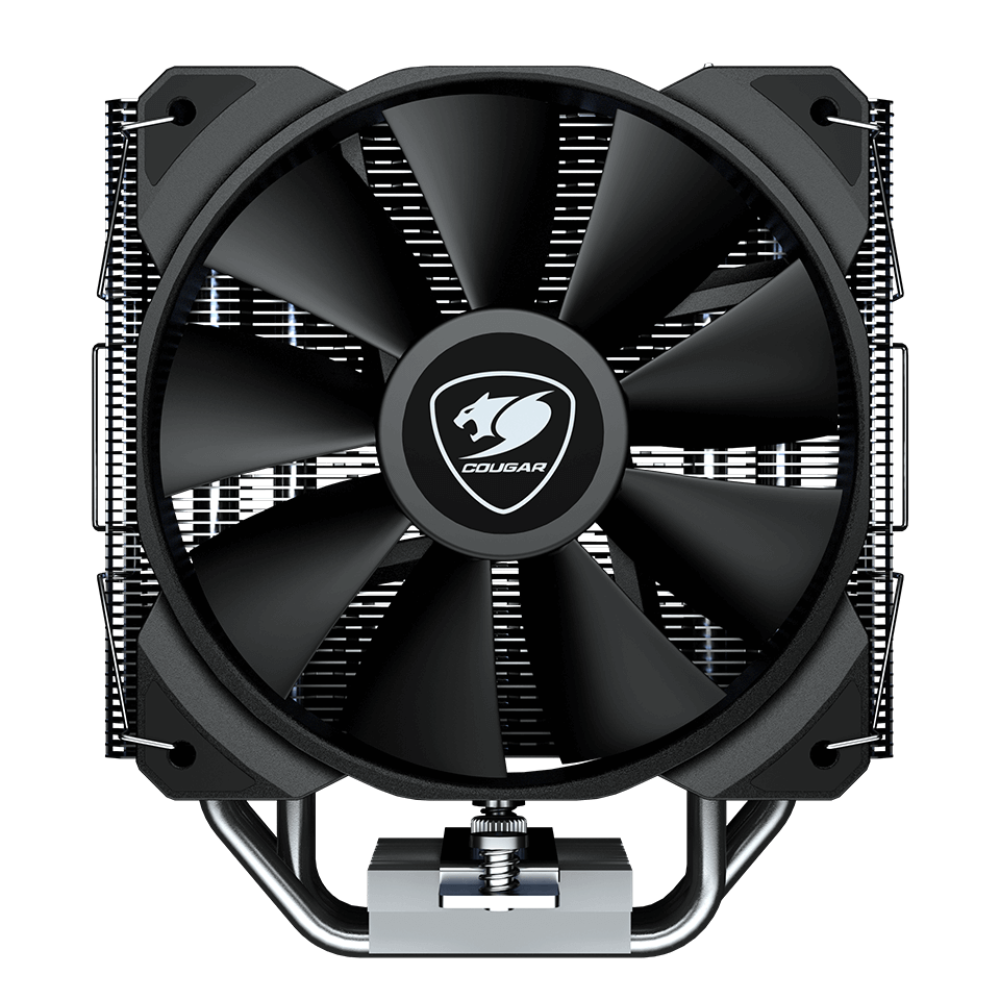

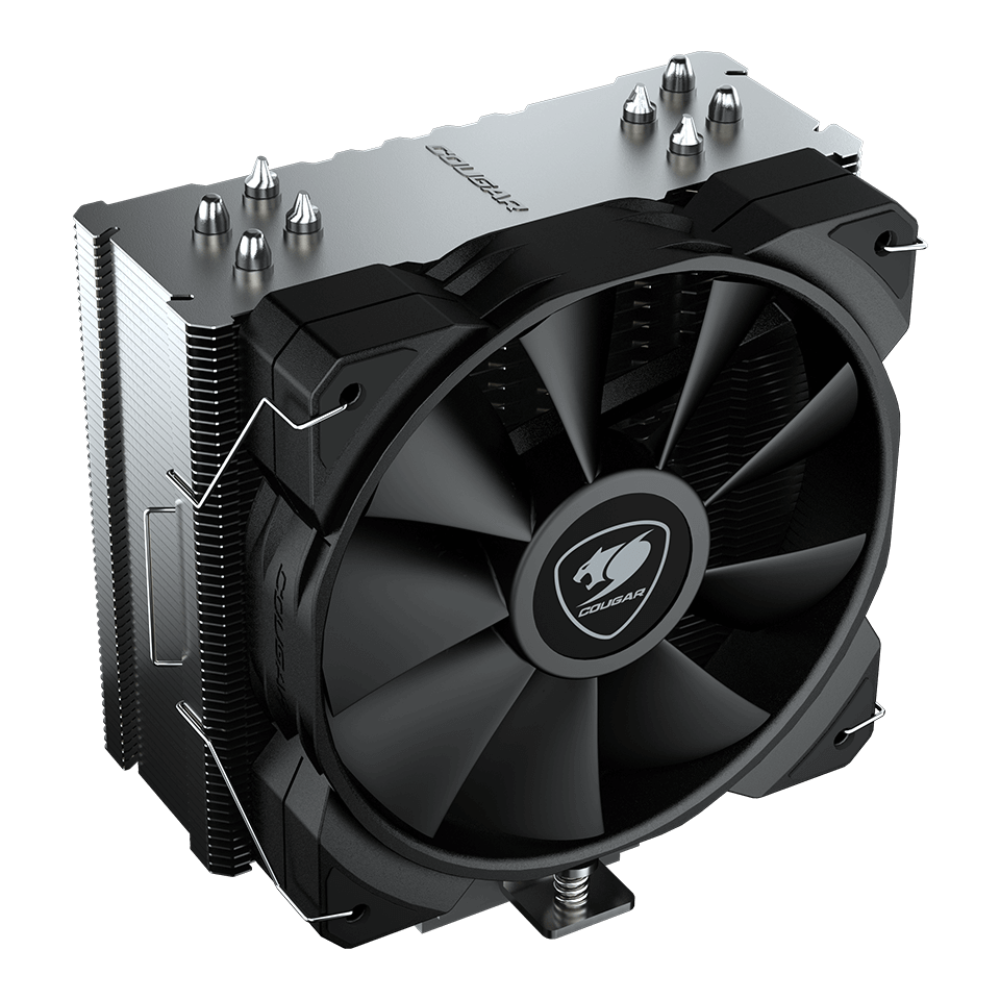

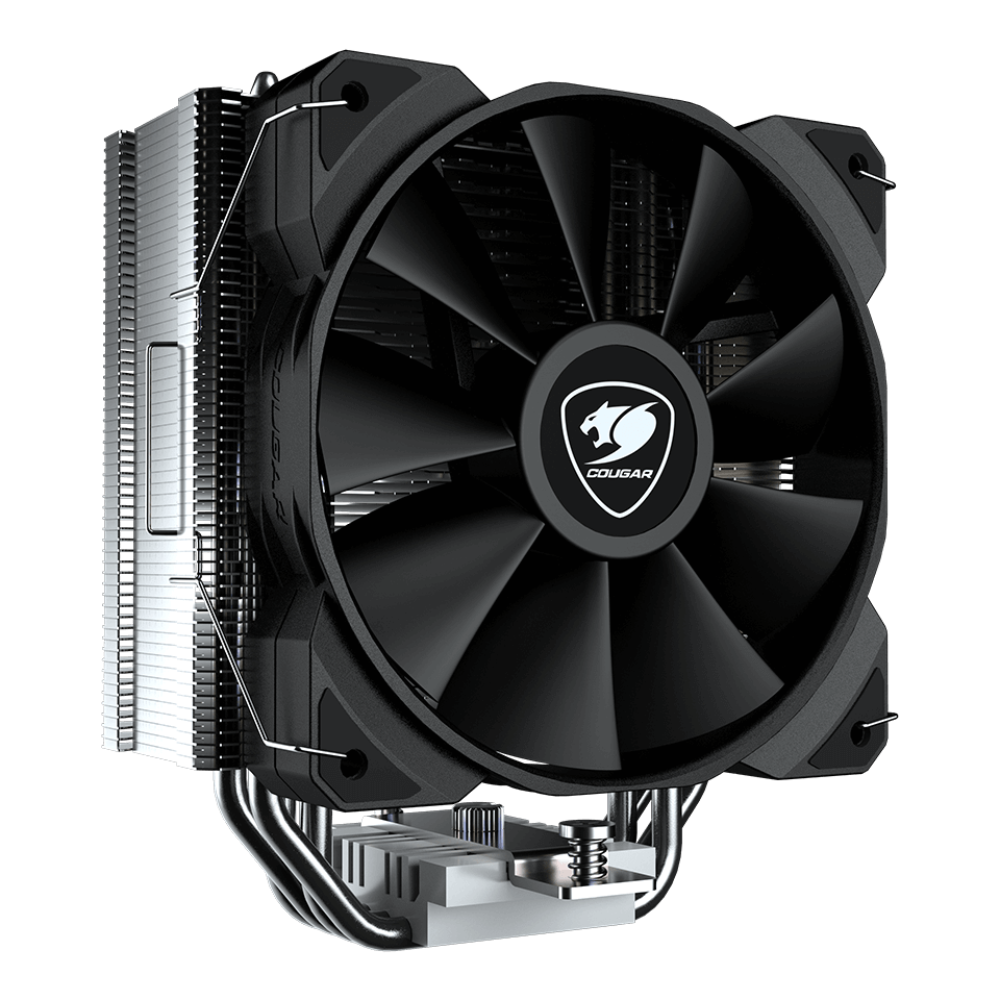

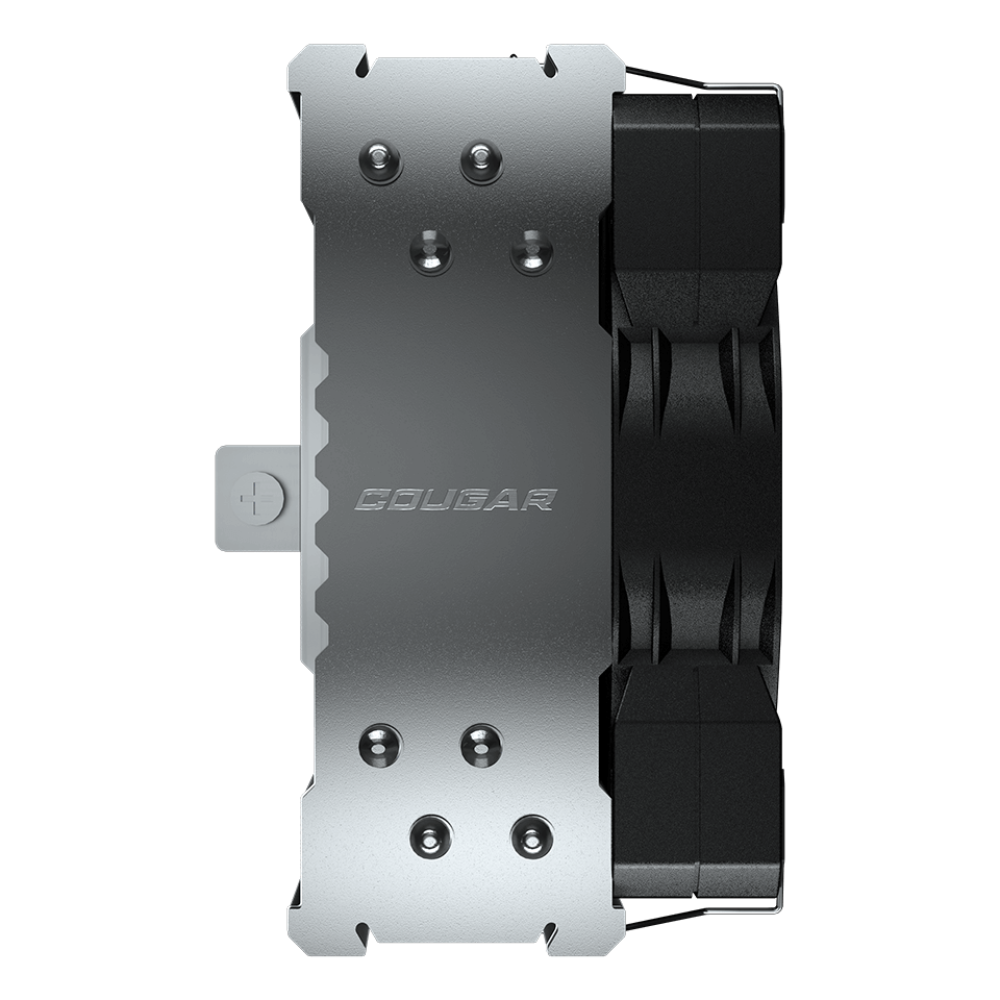

COUGAR Forza 50 Essential 120mm Single Tower CPU Air Cooler ( Black )
MPN COUGAR-FORZA-50-ESSENTIAL-120MM-SINGLE-TOWE-3aedf0 · Brand Cougar
Features of COUGAR Forza 50 Essential 120mm Single Tower CPU Air Cooler ( Black ) FORZA 50 ESSENTIAL Single Tower Air Cooler As a CPU tower cooler for entry-level CPUs, Forza 50 Essential is paired with a high-performance fan, providing users with perfect heat dissipation. Forza 50 Essential is absolutely suitable for general users. * Support the latest AMD AM5 and Intel LGA1851 CPU sockets. Extremely Hyper Fan With 2000 RPM(max) Forza 50 Essential is equipped with a high-performance fan. The fa
Inclusive of GST · GST invoice available
Overview
Features of COUGAR Forza 50 Essential 120mm Single Tower CPU Air Cooler ( Black )

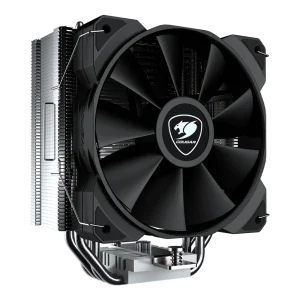

FORZA 50 ESSENTIAL
Single Tower Air Cooler
* Support the latest AMD AM5 and Intel LGA1851 CPU sockets.
Extremely Hyper Fan With 2000 RPM(max)
Forza 50 Essential is equipped with a high-performance fan. The fan speed is capable of reaching up to 2000 rpm, it provides high airflow & high static pressure to achieve an optimum balance between ultra-silent operation and extremely cooling. Making it the perfect partner with the Forza 50 Essential that delivers outstanding performance.
Vacuum Tunnel Design

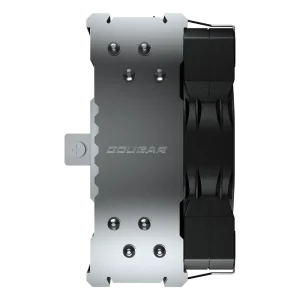

HDT Technology With 4 Heat Pipes
With HDT technology (HEAT PIPE DIRECT TOUCH) and four heat pipes of 6mm diameter, Forza 50 Essential can provide excellent heat dissipation capacity, enough for entry-level users.
Excellent Compatibility

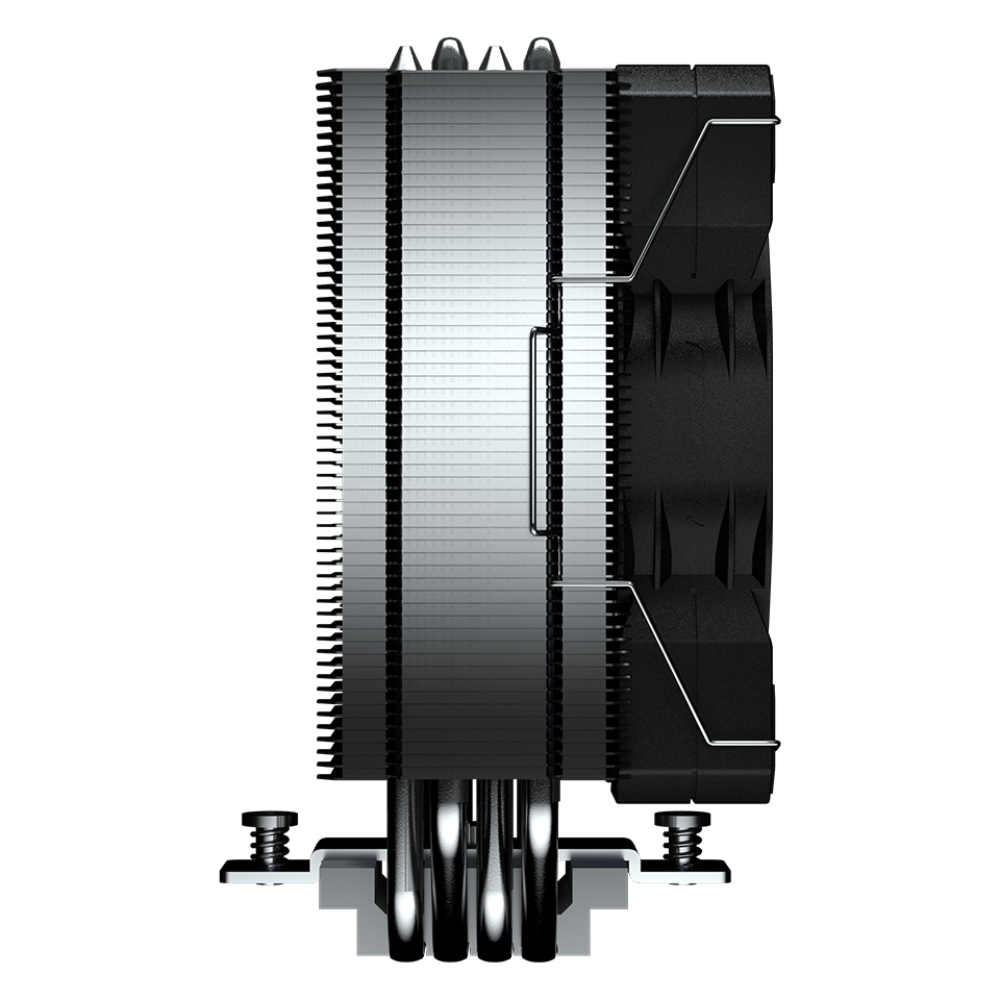

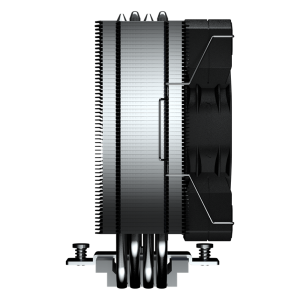

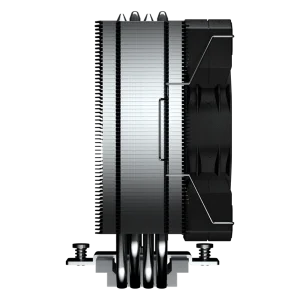

Only 155mm Height
Forza 50 Essential can be installed in most tower chassis that support ATX motherboards with a height of only 155mm making Forza 50 Essential an excellent choice for those who love PC DIY.
Dual Fan Acceptable
Forza 50 Essential comes with an additional set of fan clips that allows for a second 120 mm fan of any brand to increase the heat dissipation efficiency of the Forza 50 Essential.
* To maximize the performance, we recommend a second COUGAR MHP 120 fan (sold separately)
User-friendly Installation
To improve the overall installation experience, Forza 50 Essential comes with an INTEL/AMD bracket set, that can be easily installed in only a few simple steps. A screwdriver is also included in the package for users to use directly without any prerequisite.
Specifications of COUGAR Forza 50 Essential 120mm Single Tower CPU Air Cooler ( Black )
| Product Number (P/N) | 3MFZE50.0001 |
| Model Number (M/N) | CGR-FZAE50 |
| Product Name | FORZA 50 ESSENTIAL |
| CPU Socket | Intel: LGA 1851 / 1700 / 1200 / 2066 / 2011 / 115X / 1366 AMD: AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1 |
| Heatsink | |
| CPU touched base | Copper with HDT technology |
| Heat pipe diameter | 6 mm |
| Heat pipe number | 4 units |
| Heat pipe finish | Copper with nickel plated |
| Craftsmanship | Zipper fin |
| Dimension (WxDxH) | 50 x 135 x 155mm |
| Weight | 576 g |
| Weight Incl. Fan | 772 g |
| Fans | |
| Fan Model | NHP120 |
| Dimensions (WxDxH) | 120 x 120 x 25 mm |
| Fan Speed | 600-2000 RPM±200RPM |
| Air Flow | 82.48 CFM / 143.53 m3/h (± 10%) |
| Air Pressure | 4.24 mm H2O±10% |
| Acoustic Noise | 34.5 dB(A) (Max.) |
| Rated Voltage | 12 VDC |
| Rated Current | 0.28 A |
| Power Consumption | 3.36 W ± 10% |
| Bearing Type | Hydraulic Bearing |
| Cable Length | 200 mm |
| Connector & Control | 4 Pin PWM |
| EAN CODE | 4710483775031 |
| UPC CODE | 192554005393 |
| Individual Size W/O Packaging Weight (N.Weight) | 774 (g) |
| Individual Packaging Weight (G.Weight) | 1075 (g) |
| Individual Size W/O Packaging (LxWxH) | 135 x 75 x 155 (mm) |
| Individual Packaging Size (LxWxH) | 128 x 160 x 180 (mm) |

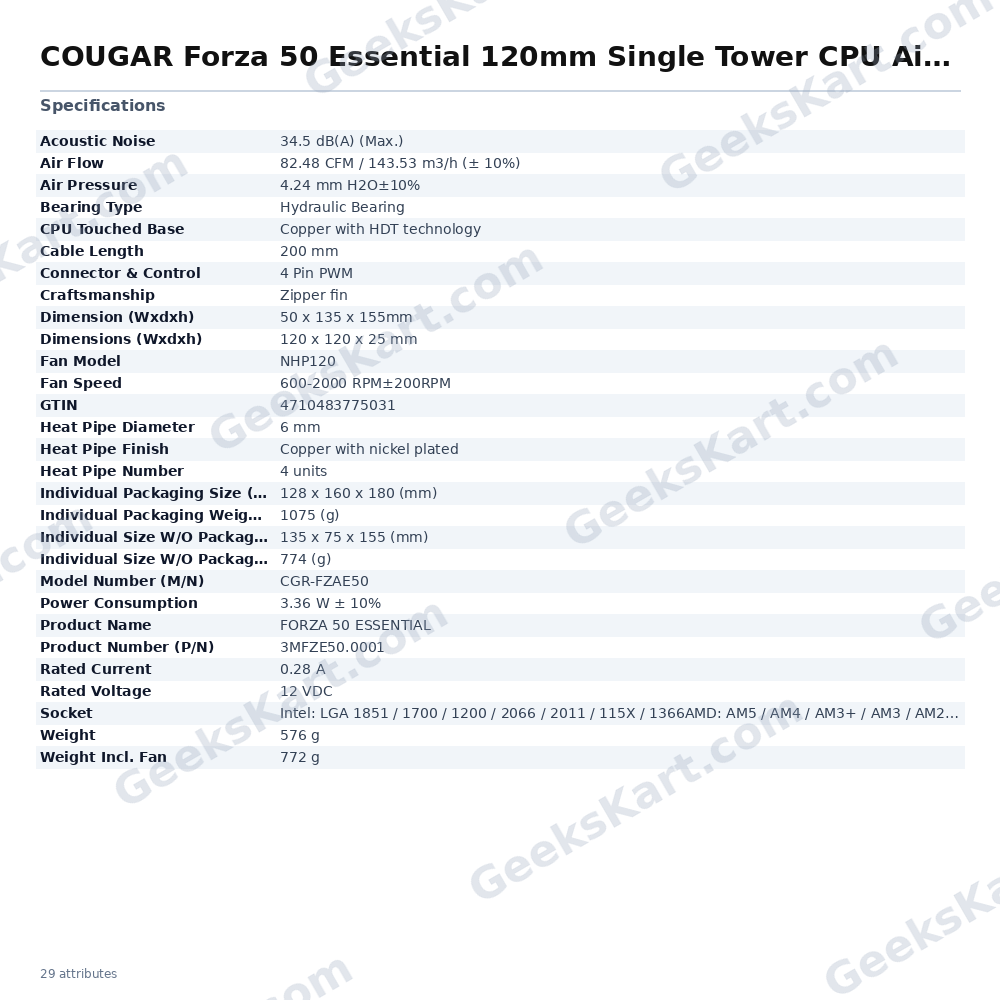

Datasheet
| Socket | AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, LGA1200, LGA1700, LGA1851, LGA2011, LGA2066 |
|---|---|
| Power Consumption | 3.36 W ± 10% |
| Weight | 576 g |
| Air Flow | 82.48 CFM / 143.53 m3/h (± 10%) |
| Fan Model | NHP120 |
| Fan Speed | 600-2000 RPM±200RPM |
| Air Pressure | 4.24 mm H2O±10% |
| Bearing Type | Hydraulic Bearing |
| Cable Length | 200 mm |
| Product Name | FORZA 50 ESSENTIAL |
| Craftsmanship | Zipper fin |
| Rated Current | 0.28 A |
| Rated Voltage | 12 VDC |
| Acoustic Noise | 34.5 dB(A) (Max.) |
| CPU Touched Base | Copper with HDT technology |
| Heat Pipe Finish | Copper with nickel plated |
| Heat Pipe Number | 4 units |
| Weight Incl. Fan | 772 g |
| Dimension (Wxdxh) | 50 x 135 x 155mm |
| Dimensions (Wxdxh) | 120 x 120 x 25 mm |
| Heat Pipe Diameter | 6 mm |
| Model Number (M/N) | CGR-FZAE50 |
| Connector & Control | 4 Pin PWM |
| Product Number (P/N) | 3MFZE50.0001 |
| Individual Packaging Size (Lxwxh) | 128 x 160 x 180 (mm) |
| Individual Size W/O Packaging (Lxwxh) | 135 x 75 x 155 (mm) |
| Individual Packaging Weight (G.Weight) | 1075 (g) |
| Individual Size W/O Packaging Weight (N.Weight) | 774 (g) |
