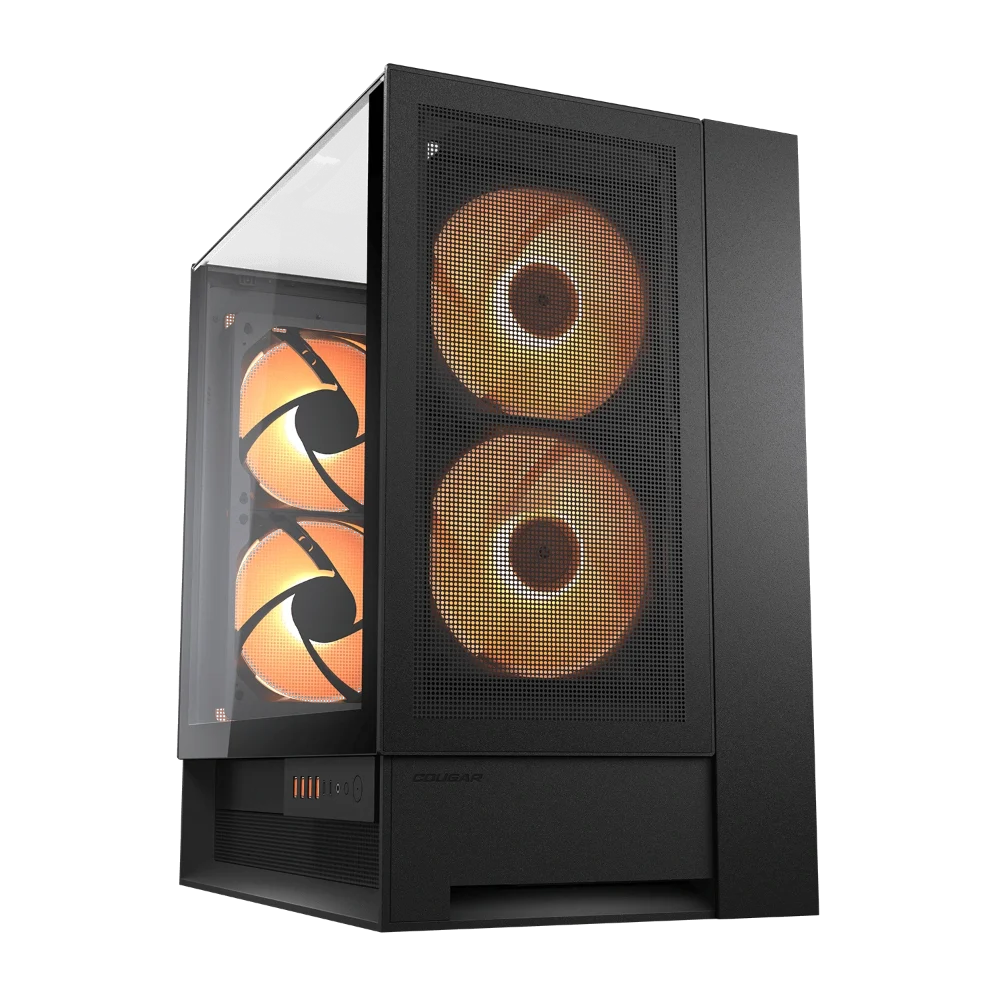

COUGAR OmnyX ARGB ATX Mid Tower Cabinet ( Black )
MPN COUGAR-OMNYX-ARGB-ATX-MID-TOWER-CABINET-BLACK · Brand Cougar · Mid Tower
Features of COUGAR OmnyX ARGB ATX Mid Tower Cabinet ( Black ) Your Build. Your Vision. Any Side You Like. The OmnyX gives you the power to play, create and perform with unprecedented flexibility. Experience true freedom of orientation and maximum airflow with COUGAR’s revolutionary Omnidirectional Dynamic Flow System. Take a side, and showcase your masterpiece. Omnidirectional Dynamic Flow System (ODF) The Omnidirectional Dynamic Flow System, is a groundbreaking new PC chassis structure develop
Inclusive of GST · GST invoice available
Overview
Features of COUGAR OmnyX ARGB ATX Mid Tower Cabinet ( Black )
The OmnyX gives you the power to play, create and perform with unprecedented flexibility. Experience true freedom of orientation and maximum airflow with COUGAR’s revolutionary Omnidirectional Dynamic Flow System.
Take a side, and showcase your masterpiece.
Omnidirectional Dynamic Flow System (ODF)
The ODF System’s symmetrical layout facilitates the ability to flow seamlessly between different orientations, maintaining the full functionality of position-dependent features.
Take A Side

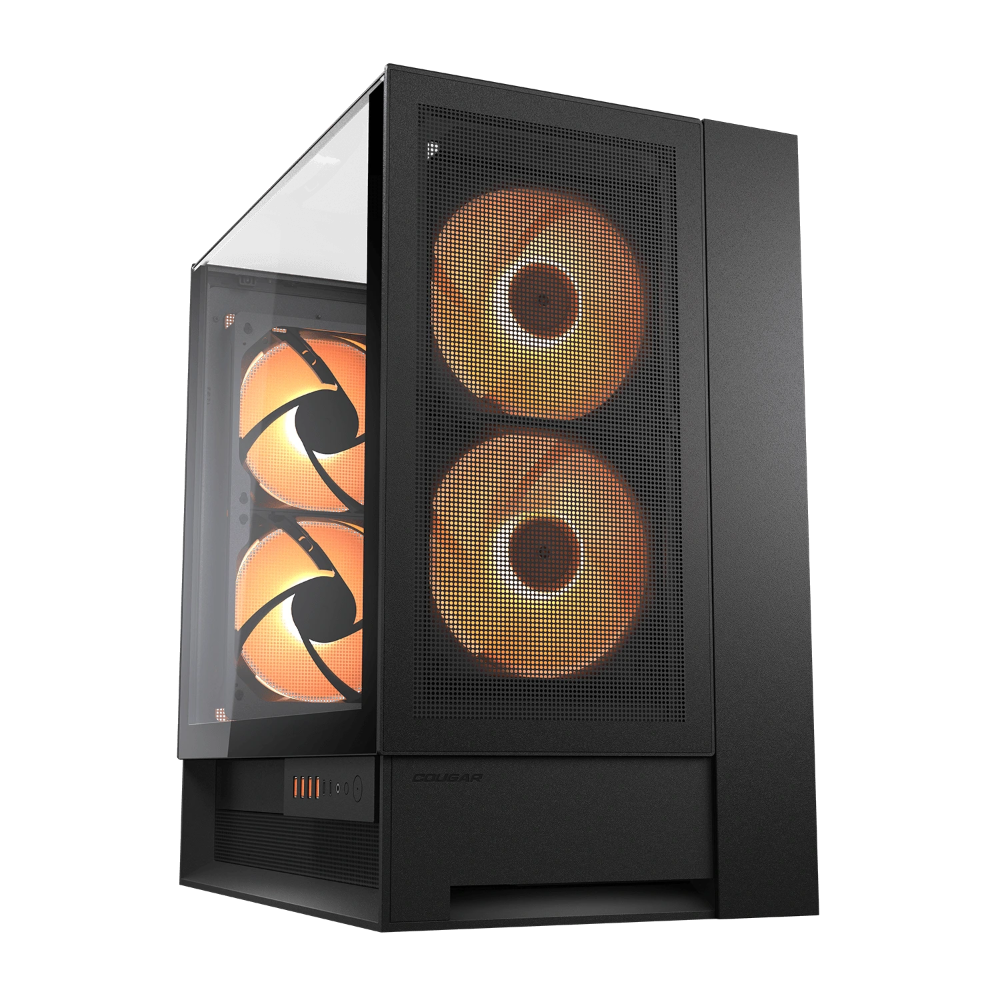

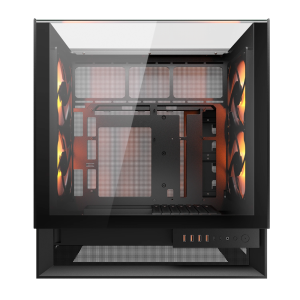

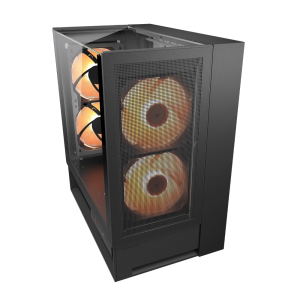

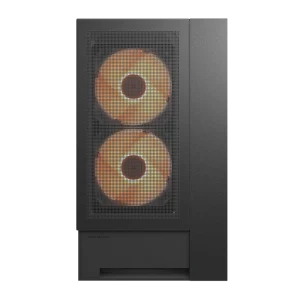

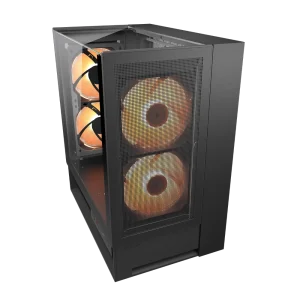

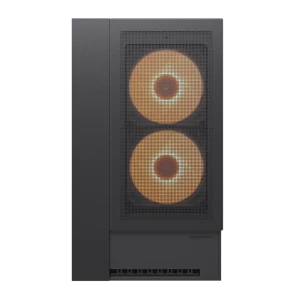

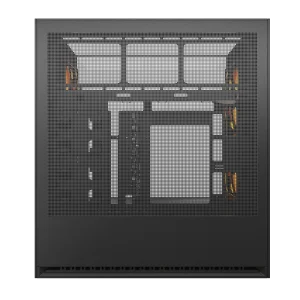

A perfectly symmetrical design makes for complete freedom of orientation. With dual transparent glass panels putting your build on display from any angle, the OmnyX looks stunning whether it’s placed on the right, left, or center.
Bigger Fans. Jetstream Cooling.
Game Over for Cable Clutter

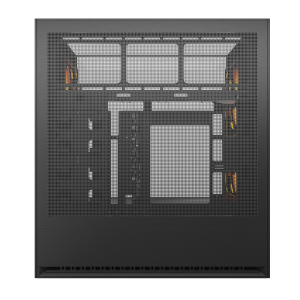

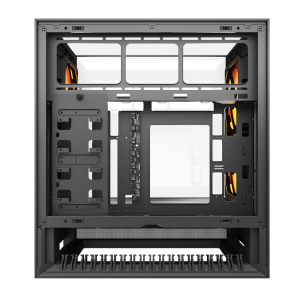

The ultimate zero-visibility cable management solution: all cabling is routed through the integrated base compartment, frontloading an ultra-clean interior from the start at setup.
Ambidextrous IO Module
An ingenious sliding rail system lets you position the IO module with full functionality on either the left or right side of the OmnyX. This smart design frees up additional connector space, expanding the conventional port array to 4x USB 3.0 Type-A and 2x USB 3.2 Gen 2 Type-C.
Bracketless Vertical GPU Mounting
The OmnyX accommodates a maximum GPU length of 380mm which can be vertically mounted without a bracket, maximizing surface exposure area to airflow for superior cooling. This also naturally aligns the GPU with gravity for inherent stability, mitigating the risk of damage to premium hardware from accidental displacement.
The Future of Motherboard Compatibility
Quick Release Mechanism
Streamlined Installation
Create Without Limit
Personalize your build with a near-endless choice of customizable covers.
Light. Speed.
The OmnyX features an integrated universal fan hub that enables seamless coordination of PWM fan speed and lighting. This allows you to control the RGB lighting without needing additional software, or motherboard software synchronization.
Specifications of COUGAR OmnyX ARGB ATX Mid Tower Cabinet ( Black )
| Product Number (P/N) | 382WA30.0001 |
| Model No | CGR-2WA3B-RGB |
| Product Name | OmnyX / OmnyX (White) |
| Case Form Factor | Mid Tower |
| Motherboard Type | Mini ITX / Micro ATX / ATX |
| Dimensions (WxHxD) | 300(W) x 520(H) x 470(D) (mm) 11.8(W) x 20.5(H) x 18.5(D) (in) |
| I/O Panel | USB 3.2 Gen 2 Type-C x 2, USB 3.0 Type-A x 4, 4 Pole Headset Audio Jack x 1, RGB Button |
| 3.5" Drive Bay | 2 |
| 2.5" Drive Bay | 2 |
| Expansion Slots | 7 (horizontal slots can be converted into vertical slots) |
| Cooling Fan Support | |
| Front | *120mm x 2 / *140mm x 2 / 160mm x 2 |
| M/B Side | 120mm x 3 |
| Rear | *120mm x 2 / *140mm x 2 / 160mm x 2 |
| Pre-installed Fans | |

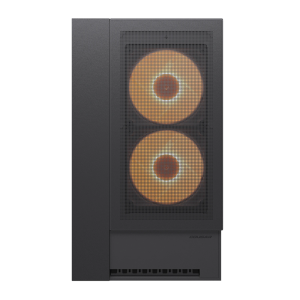

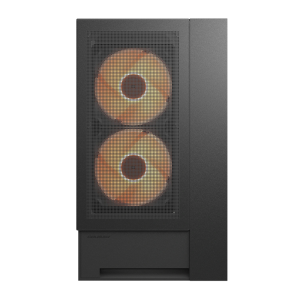

| Front | 160mm ARGB PWM fan x 2 (Forward Blade) |
| Rear | 160mm ARGB PWM fan x 2 (Reverse Blade) |
| Speed | 300-1200 ± 10% RPM |
| Connector | 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) |
| Maximun Number of Fans | 7 |
| Water Cooling Support | |
| Front | *280mm / *240 mm / *140 mm / *120mm |
| M/B Side | 360mm / 240mm |
| Rear | *280mm / *240 mm / *140 mm / *120mm |
| RGB Hub Sync with M/B | Yes |
| Max. Graphics Card Length | 380(mm) / 15(in) |
| Max. CPU Cooler Height | 170(mm) / 6.7(in) |
| Max. PSU Length | 200(mm) / 7.9(in) |
| EAN CODE | 4710483779442 |
| UPC CODE | 192554009179 |

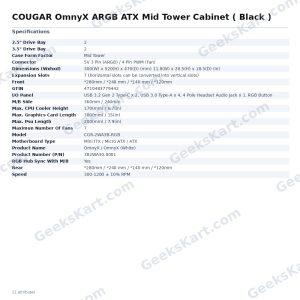

Datasheet
| Rear | *280mm / *240 mm / *140 mm / *120mm |
|---|---|
| Front | *280mm / *240 mm / *140 mm / *120mm |
| Speed | 300-1200 ± 10% RPM |
| M/B Side | 360mm / 240mm |
| Model | CGR-2WA3B-RGB |
| Connector | 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) |
| I/O Panel | USB 3.2 Gen 2 Type-C x 2, USB 3.0 Type-A x 4, 4 Pole Headset Audio Jack x 1, RGB Button |
| Product Name | OmnyX / OmnyX (White) |
| 2.5" Drive Bay | 2 |
| 3.5" Drive Bay | 2 |
| Expansion Slots | 7 (horizontal slots can be converted into vertical slots) |
| Max. Psu Length | 200(mm) / 7.9(in) |
| Case Form Factor | Mid Tower |
| Motherboard Type | Mini ITX / Micro ATX / ATX |
| Dimensions (Wxhxd) | 300(W) x 520(H) x 470(D) (mm) 11.8(W) x 20.5(H) x 18.5(D) (in) |
| Product Number (P/N) | 382WA30.0001 |
| RGB Hub Sync With M/B | Yes |
| Max. CPU Cooler Height | 170(mm) / 6.7(in) |
| Maximun Number Of Fans | 7 |
| Max. Graphics Card Length | 380(mm) / 15(in) |
