DAWG Y 804 ARGB ATX Mid Tower Cabinet ( Black )
MPN DAWG-Y-804-ARGB-BLACK · Brand DAWG · ATX, mATX, Mini-ITX

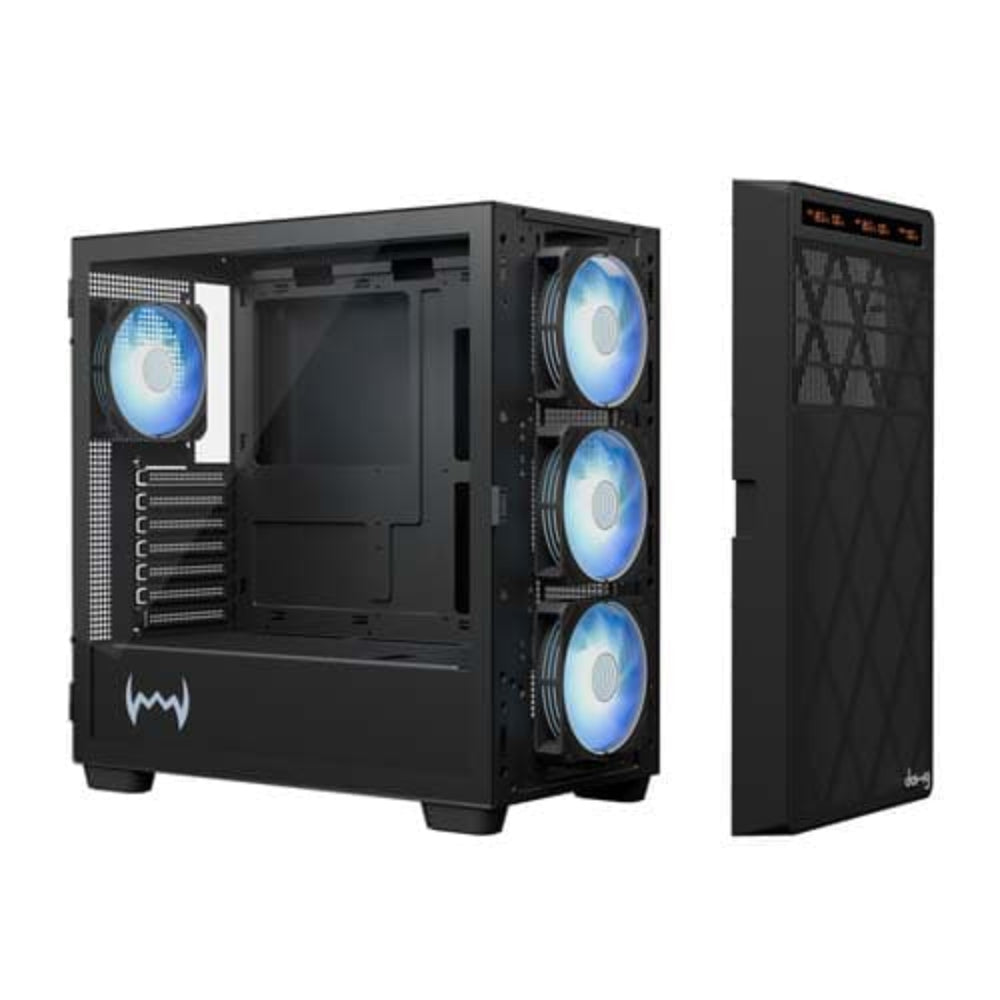

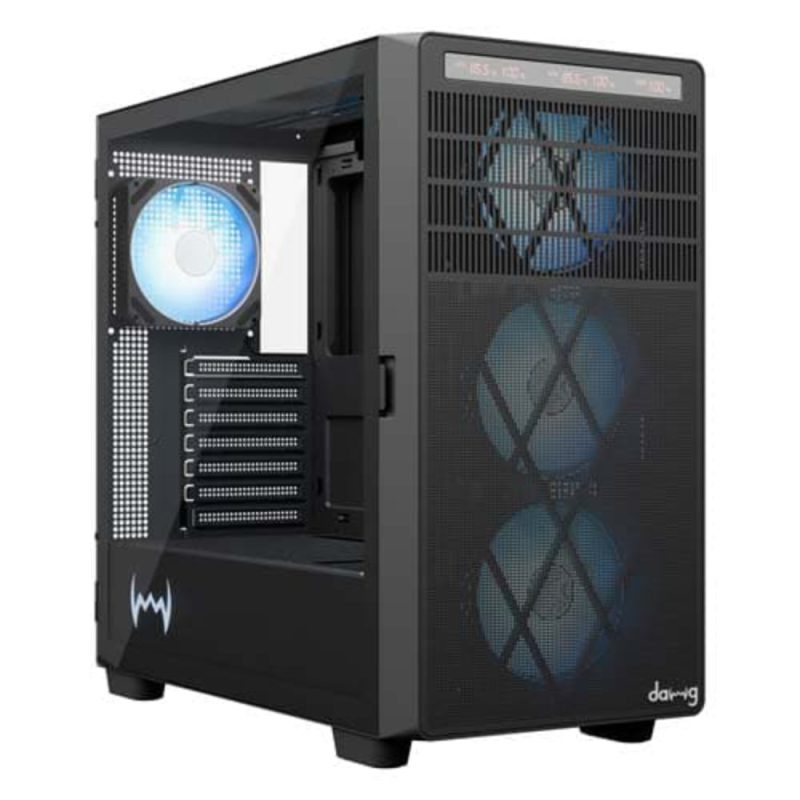

The DAWG Y 804 ARGB ATX Mid Tower Cabinet (Black) features four pre-installed ARGB infinity-mirror fans, a side-hinged tempered glass panel, support for up to 360 mm radiators, and 395 mm GPU clearance — built for ATX, Micro-ATX, and Mini-ITX systems
Inclusive of GST · GST invoice available
Overview
The DAWG Y 804 ARGB ATX Mid Tower Cabinet in Black is a steel-and-tempered-glass chassis built to support ATX, Micro-ATX, and Mini-ITX motherboards. It ships with four pre-installed ARGB fans featuring a centre infinity-mirror effect and inner-glow illumination, giving the build an eye-catching depth without requiring aftermarket fans out of the box. An LED control switch lets you cycle lighting modes directly from the front panel. The side-hinged tempered glass panel swings open on a hinge rather than sliding, making it significantly easier to access internal components during assembly or maintenance. Magnetic dust filters fitted at both the top and bottom openings help keep the interior clean without requiring tools to remove or re-seat them. Cooling flexibility is a standout attribute. The front intake supports up to three 120 mm or three 140 mm fans (optional), and can house a 360 mm all-in-one liquid cooler. The top panel similarly accepts up to a 360 mm radiator or three 120 mm fans, making it suitable for high-thermal-output systems. The rear accommodates a single 120 mm or 140 mm fan plus a 120 mm AIO. Additional optional fan positions on the bottom and side panels bring the maximum fan count to twelve. Front I/O includes a USB Type-C port, two USB 3.0 ports, a 3.5 mm headphone jack, and a dedicated microphone port — connections that remain relevant across modern desktop motherboards. Storage options cover two 3.5-inch HDD bays and one 2.5-inch SSD bay. With a maximum GPU clearance of 395 mm, the case is well-suited to current full-length discrete graphics cards. CPU cooler height clearance is 185 mm, accommodating most tower-style air coolers. The bottom-mounted PSU compartment accepts power supplies up to 200 mm in length. Seven PCIe expansion slots support multi-GPU or high-card-count configurations. The cabinet measures 23 × 47 × 45.6 cm (W × D × H) and weighs 6.2 kg, placing it in the mid-weight range for its class. Verified Specifications: • Form Factor: Mid Tower • Supported Motherboards: ATX, Micro-ATX, Mini-ITX • Material: Steel, Tempered Glass • Pre-Installed Fans: 4 × ARGB (centre infinity mirror) • Max Fan Support: 12 • Radiator Support: Front/Top up to 360 mm; Rear 120 mm • Max CPU Cooler Height: 185 mm • Max GPU Length: 395 mm • Max PSU Length: 200 mm • Drive Bays: 2 × 3.5-inch HDD, 1 × 2.5-inch SSD • Expansion Slots: 7 • Front I/O: USB Type-C, USB 3.0 × 2, Headphone, Mic • Dust Filters: Top (magnetic), Bottom (magnetic) • Dimensions (W × D × H): 23 × 47 × 45.6 cm • Weight: 6.2 kg • Warranty: 1 Year • Colour: Black

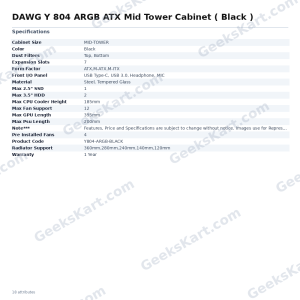

Datasheet
| Warranty | 1 Year |
|---|---|
| Form Factor | ATX, mATX, Mini-ITX |
| color | Black |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Material | Steel, Tempered Glass |
| Cabinet Size | MID-TOWER |
| Dust Filters | Top, Bottom |
| Max 2.5" SSD | 1 |
| Max 3.5" HDD | 2 |
| Product Code | Y804-ARGB-BLACK |
| Max GPU Length | 395mm |
| Max Psu Length | 200mm |
| Expansion Slots | 7 |
| Front I/O Panel | USB Type-C, USB 3.0, Headphone, MIC |
| Max Fan Support | 12 |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| Pre Installed Fans | 4 |
| Max CPU Cooler Height | 185mm |
