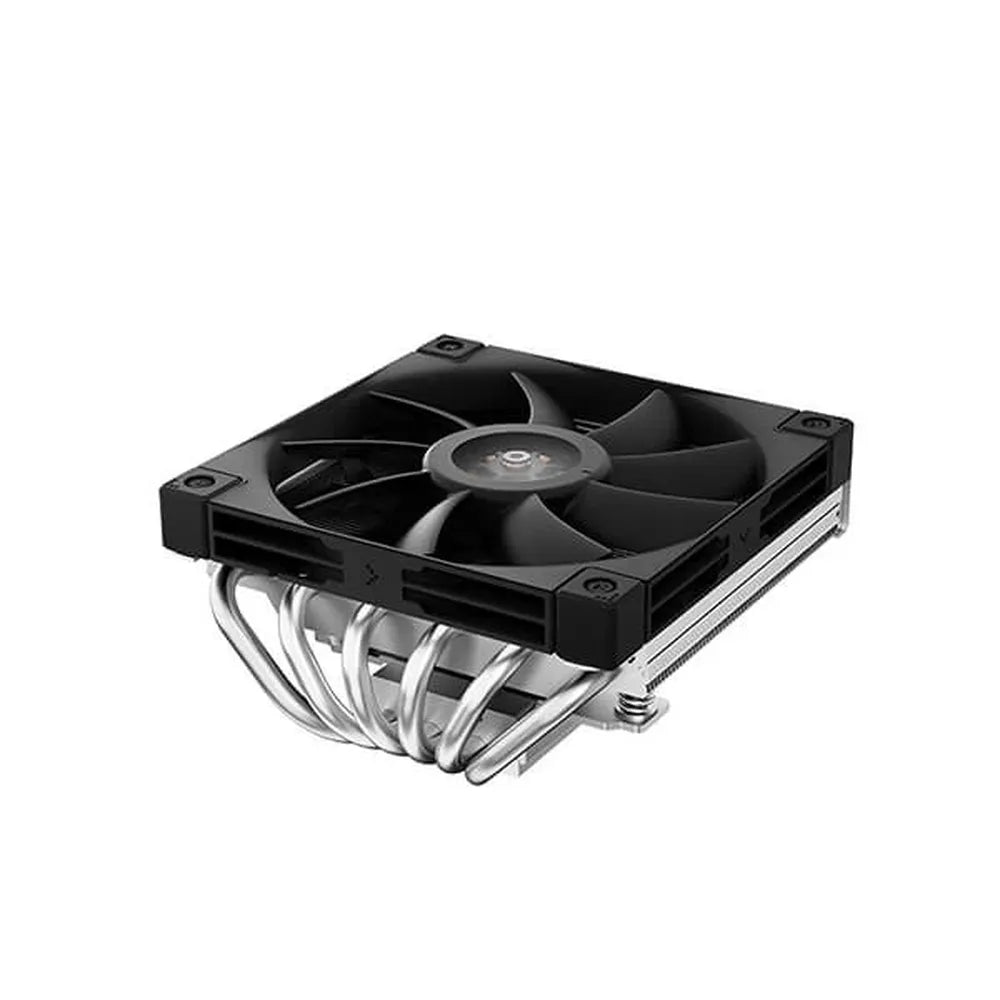

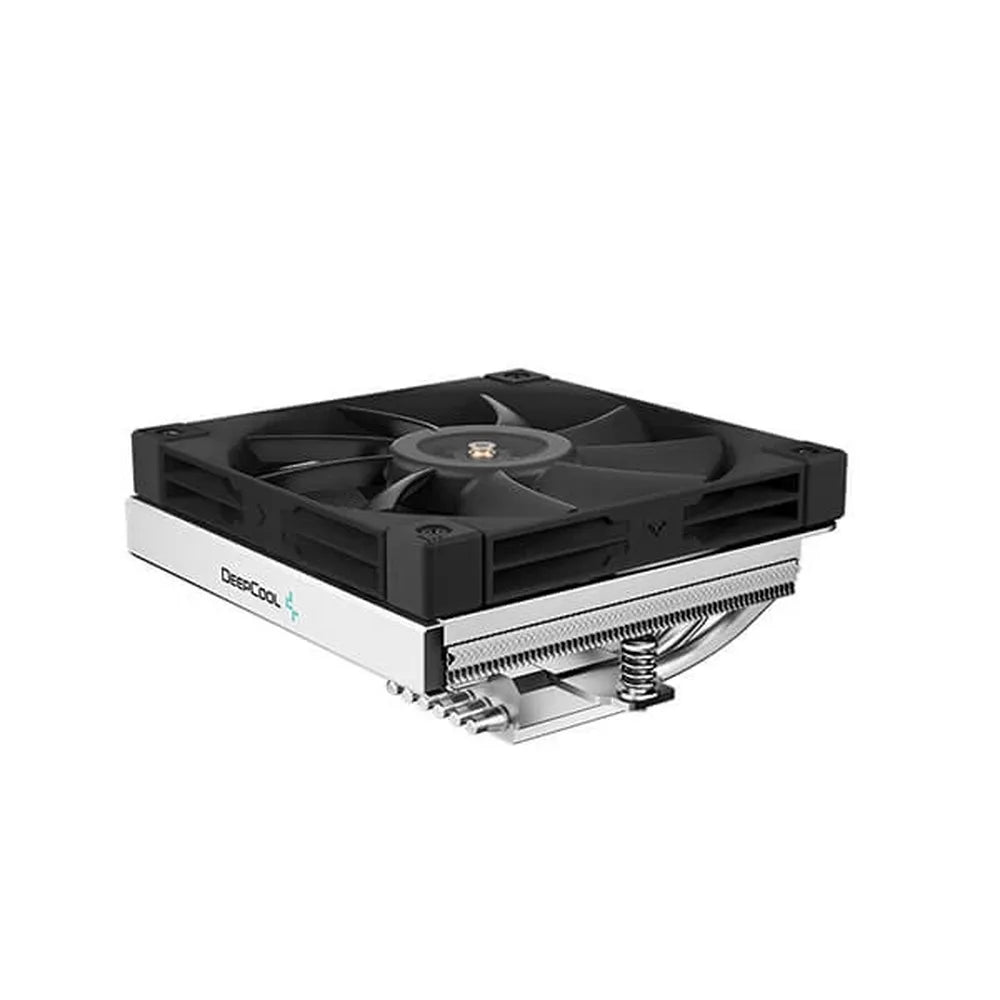

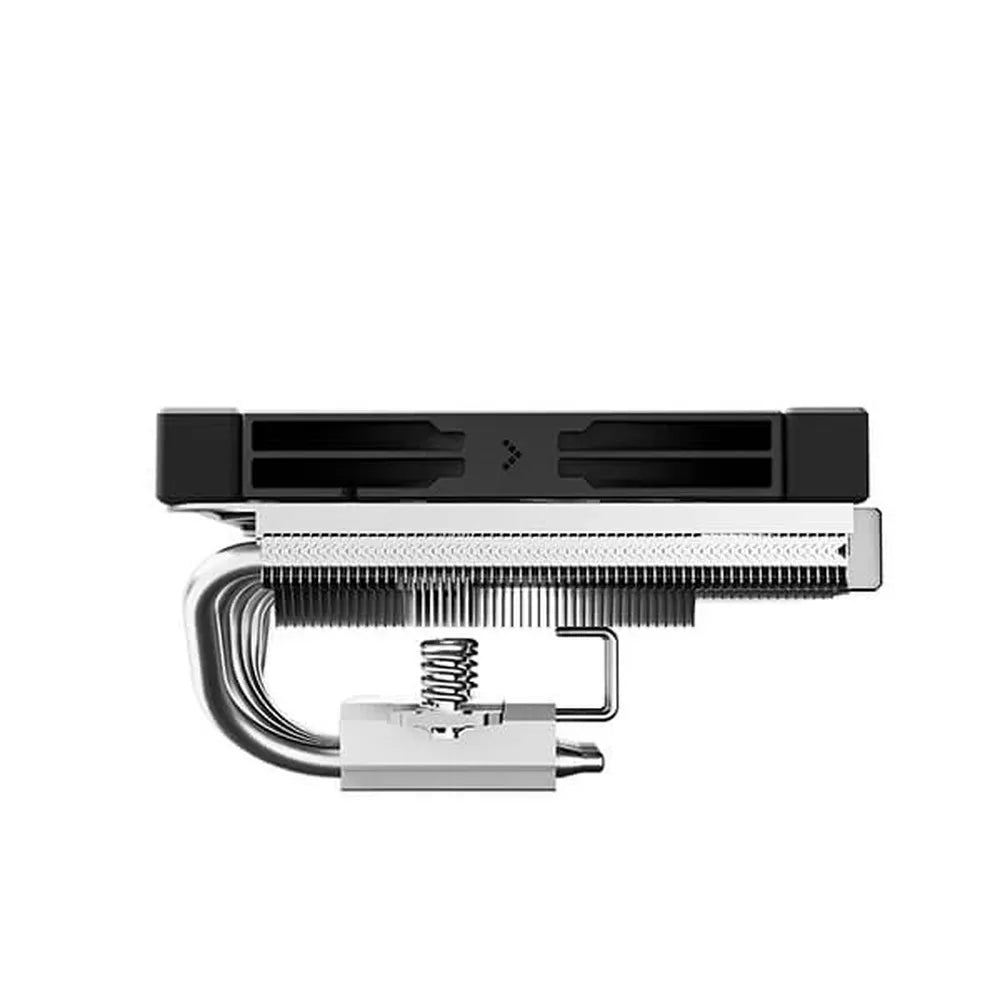

DEEPCOOL AN600 120mm Single Tower CPU Air Cooler

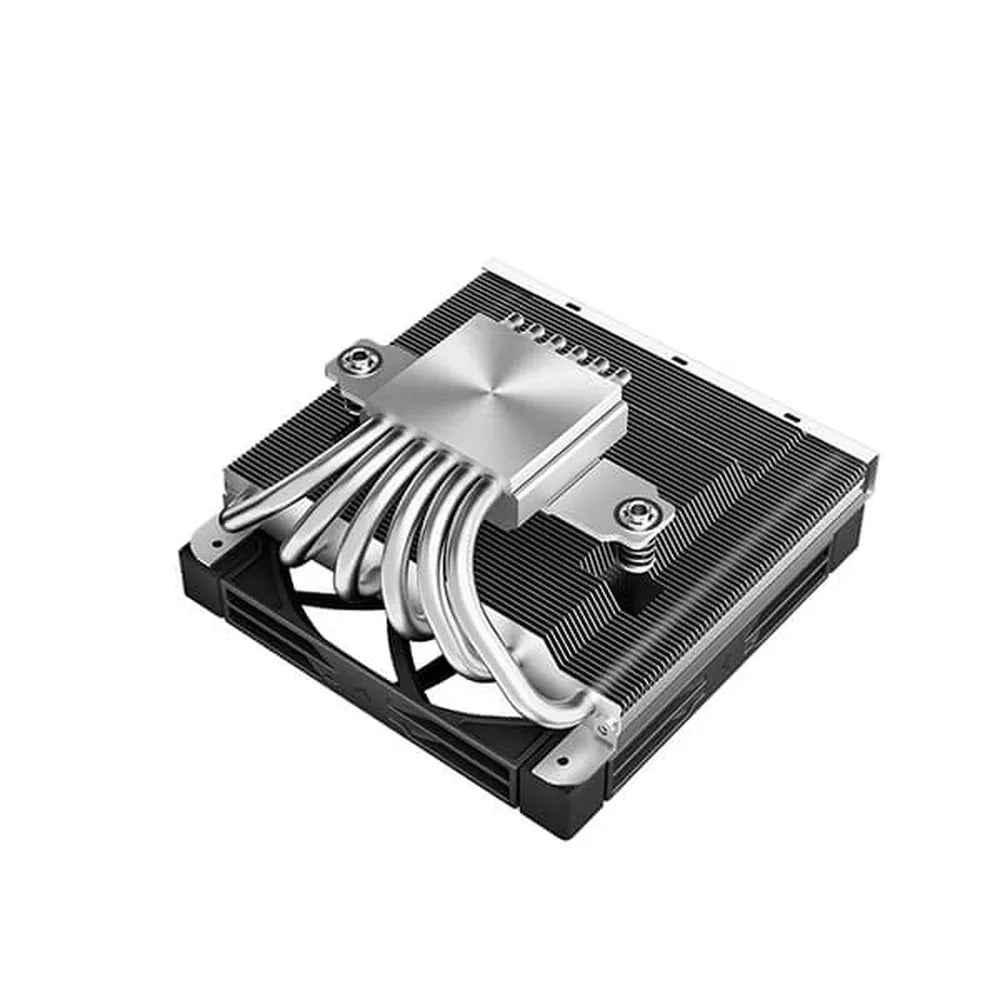

The Deepcool AN600 is a compact, low-profile single-tower CPU air cooler designed for small form-factor and ITX builds where vertical clearance is at a premium. Standing just 67 mm tall, it manages to deliver up to 180 W of cooling capacity — a remarkable thermal budget for a cooler of this size — making it a practical option for mid-range and enthusiast CPUs in space-constrained chassis. At the core of the AN600's thermal solution are six 6 mm copper heatpipes arranged in direct contact with a raised copper coldplate. Heat is rapidly distributed across 62 aluminium fins, and a slim 120×120×15 mm fluid dynamic bearing (FDB) fan draws air down through the stack and outward over adjacent components. The top-down airflow orientation is intentional: it directs airflow across the RAM slots and VRM area, actively cooling memory modules up to 40 mm tall — a meaningful benefit for builds using tall heat-spreader kits. The FDB fan operates across a wide 500–1850 RPM range via a 4-pin PWM connector, generating up to 61.56 CFM of airflow at a static pressure of 1.97 mmAq, with noise capped at ≤24.4 dB(A). A bundled low-speed adapter (LSP) cable reduces maximum speed to 500–1250 RPM, cutting airflow to 41.51 CFM and noise to ≤20 dB(A) for near-silent operation in low-load scenarios. The fan draws just 3.24 W at 12 V, keeping its own power footprint minimal. Installation is aided by an all-metal backplate that evenly distributes mounting pressure behind the CPU socket, reducing motherboard flex. Socket compatibility spans Intel LGA1700, LGA1200, LGA1151, LGA1150, and LGA1155, as well as AMD AM5 and AM4 — covering the mainstream desktop platforms in active use. White LEDs add a subtle aesthetic accent without requiring additional RGB headers. Specifications: • Model: AN600 | P/N: R-AN600-BKNNMN-G • Product Dimensions: 122×120×67 mm (L×W×H) • Heatsink Dimensions: 121×120×52 mm (L×W×H) • Net Weight: 628 g • Heatpipes: ×6 mm × 6 pcs • Fan Dimensions: 120×120×15 mm • Fan Speed: 500–1850 RPM ±10% | With LSP: 500–1250 RPM ±10% • Fan Airflow: 61.56 CFM | With LSP: 41.51 CFM • Fan Air Pressure: 1.97 mmAq | With LSP: 1.19 mmAq • Fan Noise: ≤24.4 dB(A) | With LSP: ≤20 dB(A) • Fan Connector: 4-pin PWM | Bearing: Fluid Dynamic Bearing • Fan Rated Voltage/Current/Power: 12 VDC / 0.27 A / 3.24 W • LED Type: White LED • Socket Support: Intel LGA1700/1200/1151/1150/1155 | AMD AM5/AM4 • Warranty: 3 Years
