DEEPCOOL AS500 Plus ARGB 140mm Single Tower CPU Air Cooler (White)
MPN DEEPCOOL-AS500-PLUS-WH · Brand Deepcool
Features of Deepcool AS500 Plus ARGB CPU Air Cooler (White) The DeepCool AS500 PLUS WH single tower CPU cooler boasts a five heat pipe, all white design with two 140mm PWM fans for great performance in a slim profile. ELEVATED COOLING PERFORMANCE Optimize heat exchange through a solid copper base with optimal surface contact that runs five 6mm heat pipes in a single tower with high fin density SIZED JUST RIGHT Designed for maximum RAM height compatibility in a slim (48mm) profile. All white desi
Inclusive of GST · GST invoice available
Overview
Features of Deepcool AS500 Plus ARGB CPU Air Cooler (White)

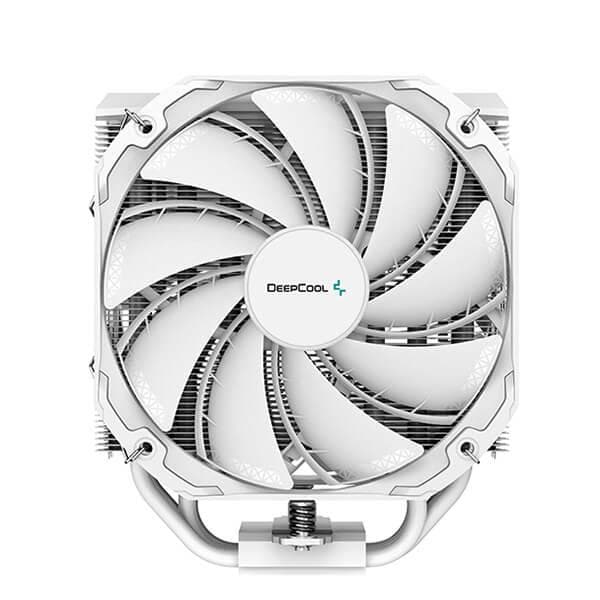

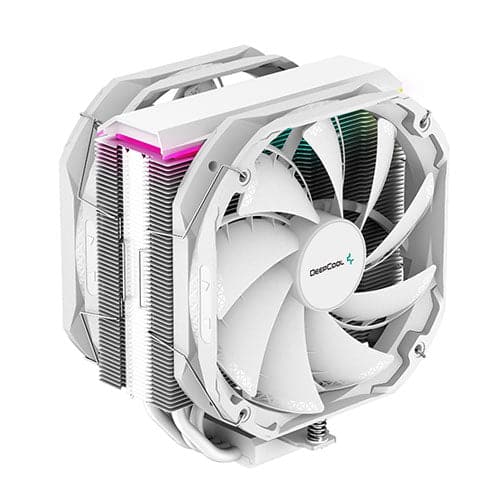

The DeepCool AS500 PLUS WH single tower CPU cooler boasts a five heat pipe, all white design with two 140mm PWM fans for great performance in a slim profile.
ELEVATED COOLING PERFORMANCE
Optimize heat exchange through a solid copper base with optimal surface contact that runs five 6mm heat pipes in a single tower with high fin density
SIZED JUST RIGHT

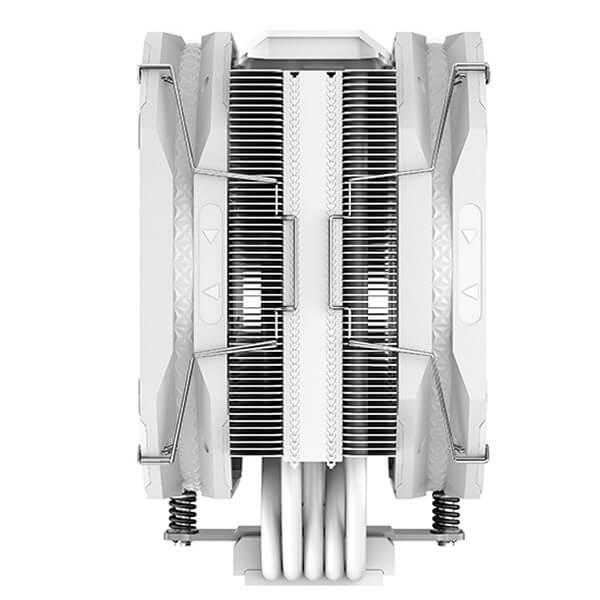

Designed for maximum RAM height compatibility in a slim (48mm) profile. All white design
CONTROL YOUR TEMPS

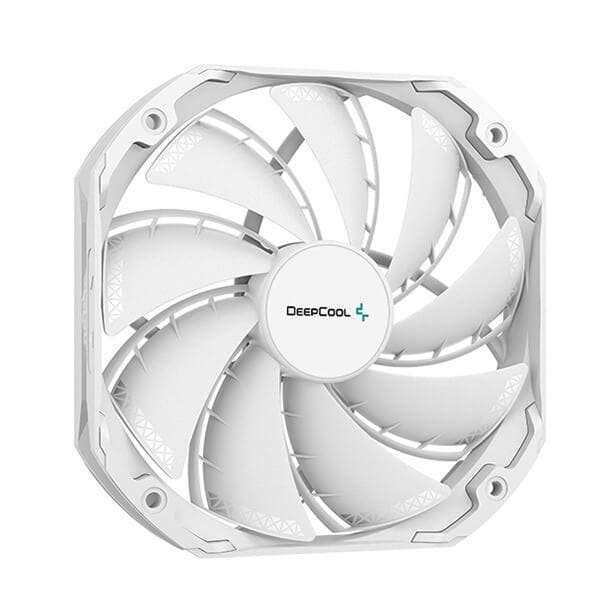

The high-performance 140mm PWM fans provide precise control between extreme cooling or low-noise operation with long-life durability.500~1200 RPM±10%Wide Speed Range70.81 CFM Ultra Airflow
A-RGB LED CONTROLLER
An included wired controller allows for a quick and easy way to adjust lighting effects without installing additional software. Appropriate A-RGB connector cables for motherboard control are also provided.
Specifications of Deepcool AS500 Plus ARGB CPU Air Cooler (White)
| Socket Compatibility | Intel - LGA2066/2011-v3/2011/1200/1151/1150/1155
AMD - AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 |
| Poduct Dimensions | 142×102×164 mm |
| Heatsink Dimensions | 140×49×159 mm |
| Net Weight | 1198 g |
| Heatpipe | Ø6 mm×5 pcs |
| Fan Dimensions | 140×140×25 mm |
| Fan Speed | 500~1200 RPM±10% |
| Fan Airflow | 70.81 CFM |
| Fan Air Pressure | 1.14 mmAq |
| Fan Noise | ≤29.2dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.11 A |
| Fan Power Consumption | 1.32 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 1.4 W |
| Warranty | 1 Year |
| Note |
*** Features, Price, Specifications are subject to change without notice
|
Datasheet
| Warranty | 1 Year |
|---|---|
| Heatpipe | Ø6 mm×5 pcs |
| Led Type | Addressable RGB LED |
| Fan Noise | ≤29.2dB(A) |
| Fan Speed | 500~1200 RPM±10% |
| Net Weight | 1198 g |
| Fan Airflow | 70.81 CFM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Connector | 4-pin PWM |
| Led Connector | 3-pin(+5V-D-G) |
| Fan Dimensions | 140×140×25 mm |
| Fan Air Pressure | 1.14 mmAq |
| Fan Rated Current | 0.11 A |
| Fan Rated Voltage | 12 VDC |
| Led Rated Voltage | 5 VDC |
| Poduct Dimensions | 142×102×164 mm |
| Heatsink Dimensions | 140×49×159 mm |
| Socket Compatibility | Intel – LGA2066/2011-v3/2011/1200/1151/1150/1155 AMD – AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 |
| Fan Power Consumption | 1.32 W |
| Led Power Consumption | 1.4 W |
