DEEPCOOL CG580 4F ARGB ATX Mid Tower Cabinet (Black)

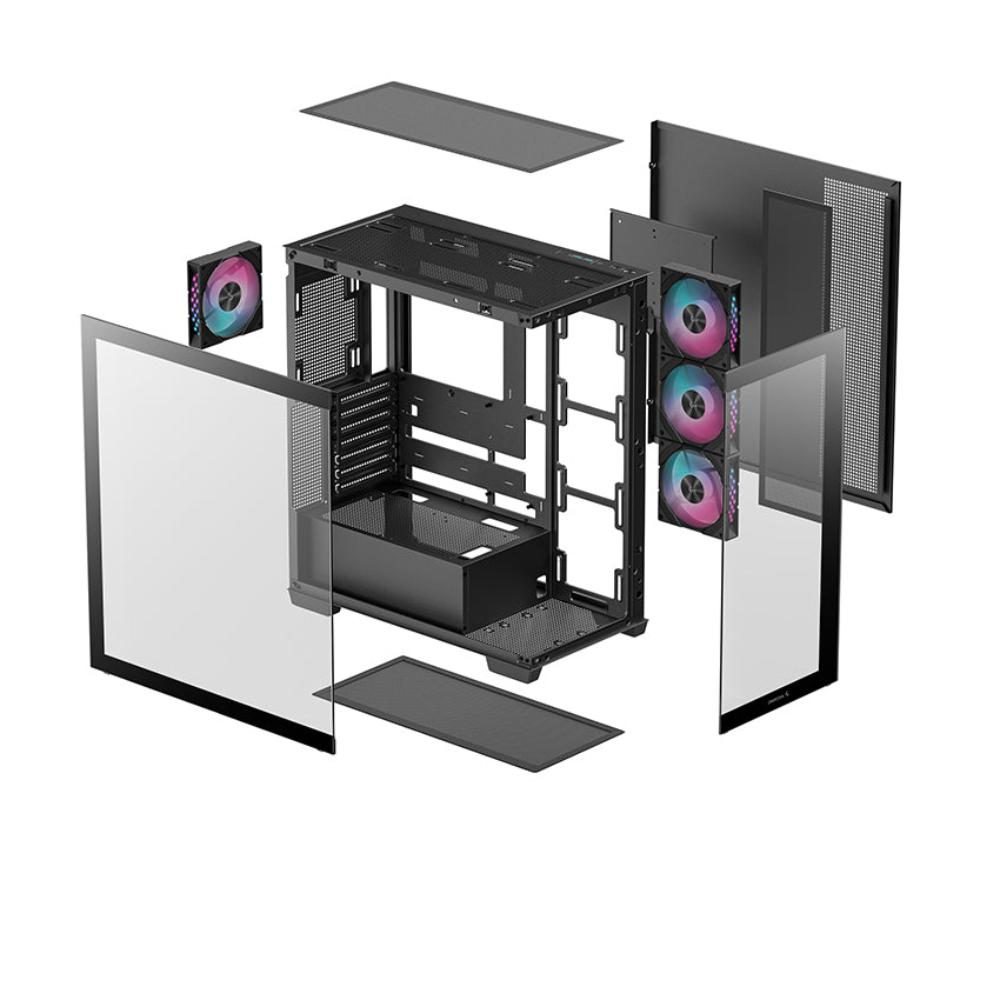

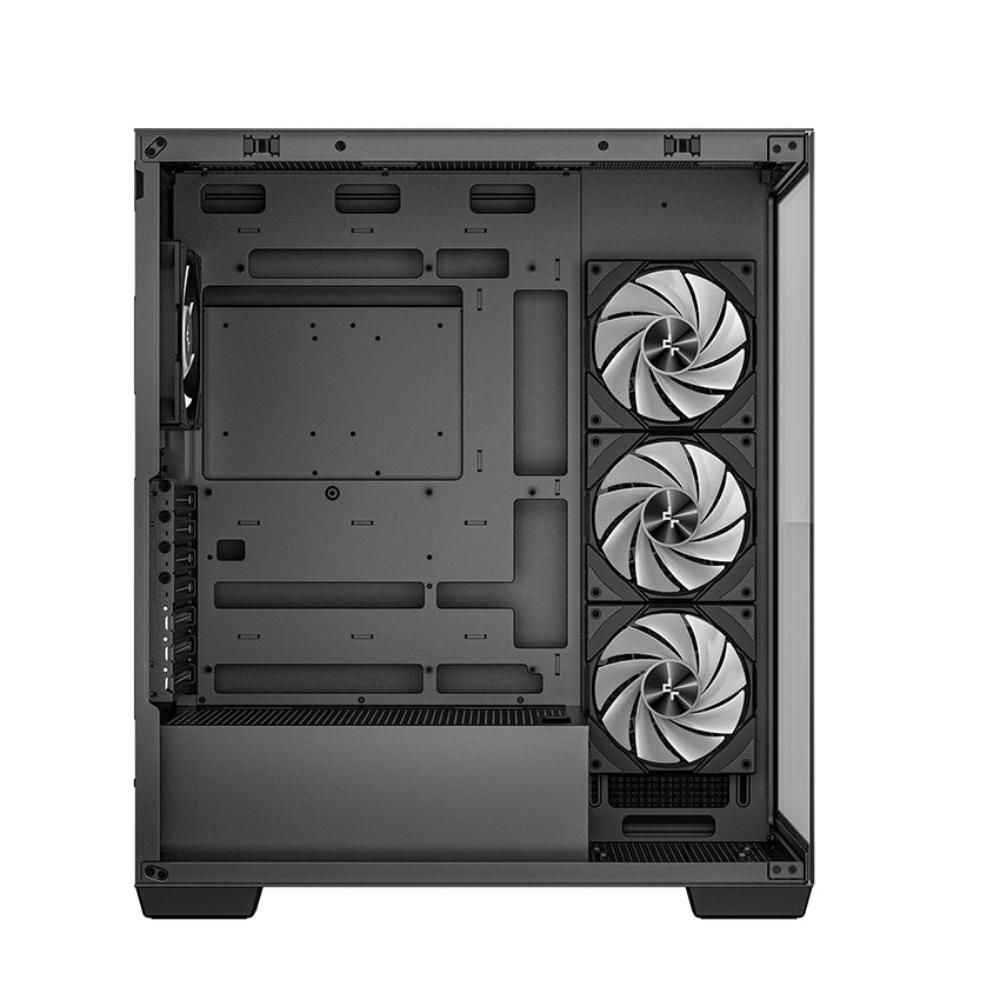

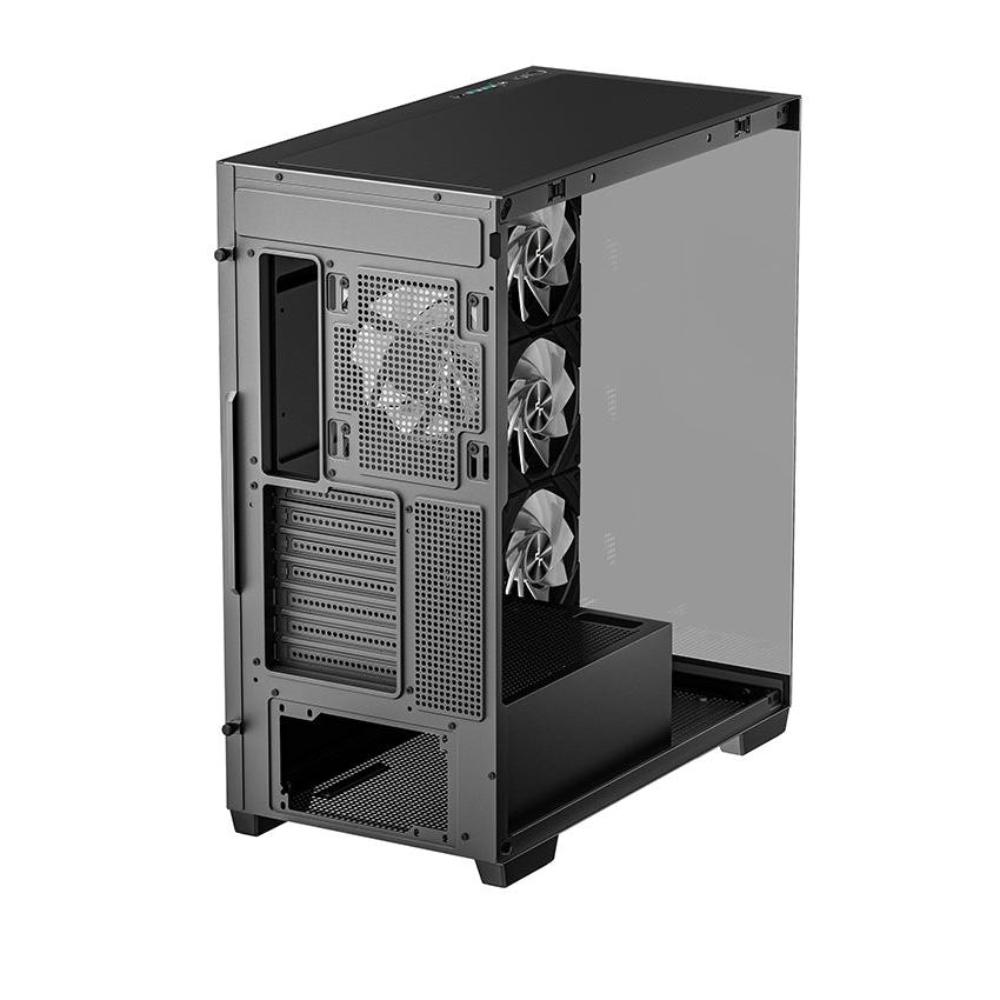

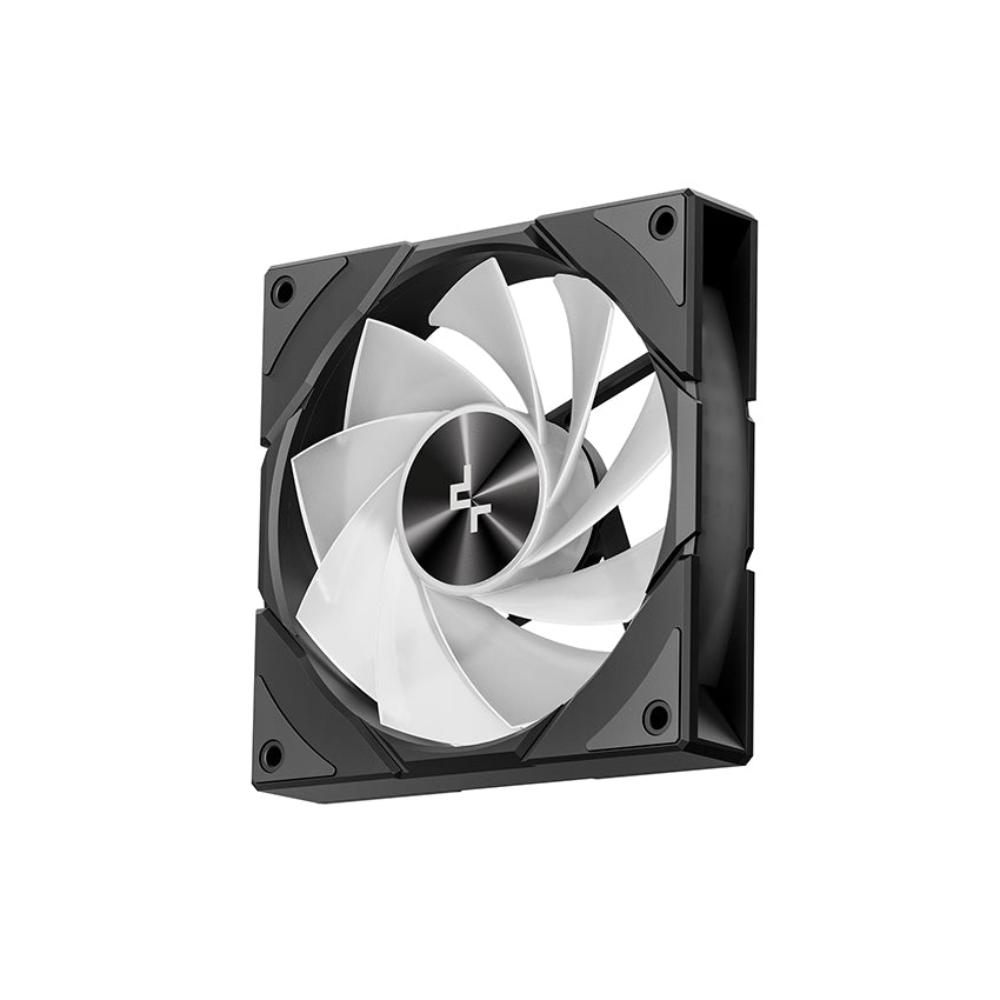

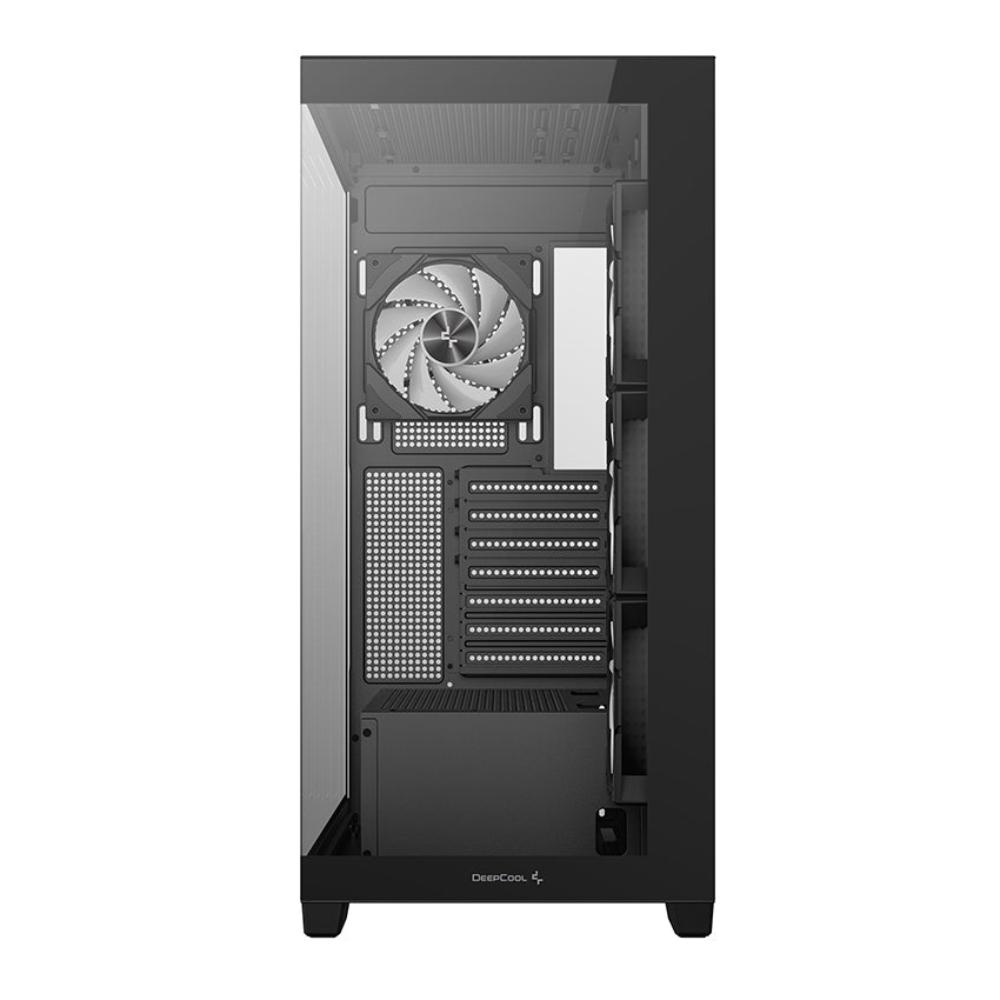

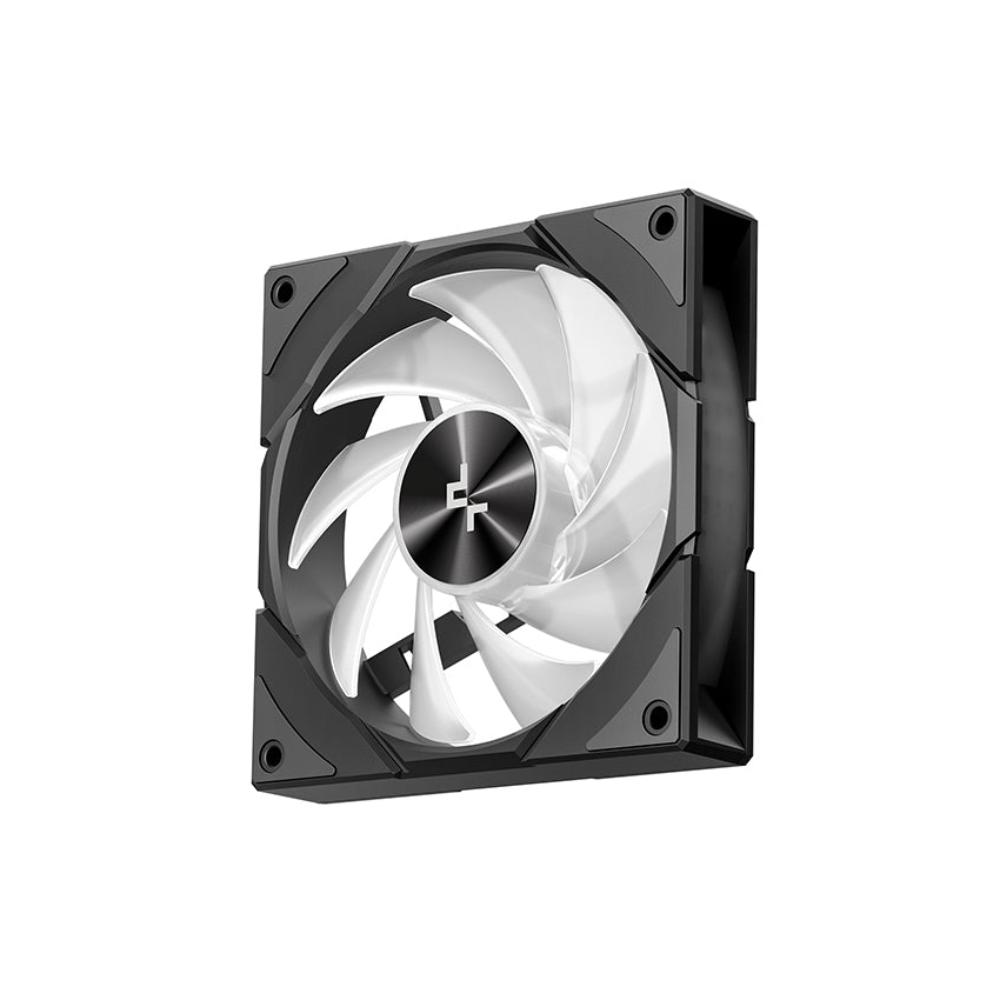

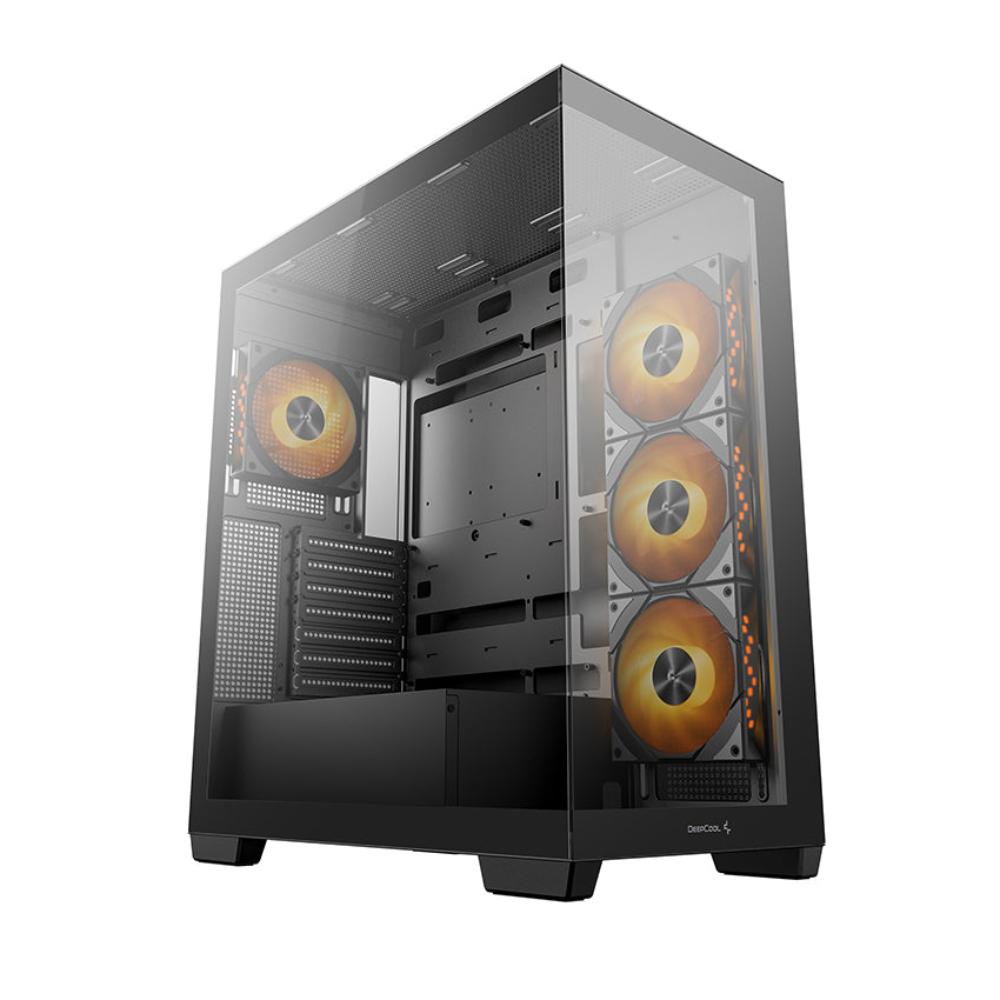

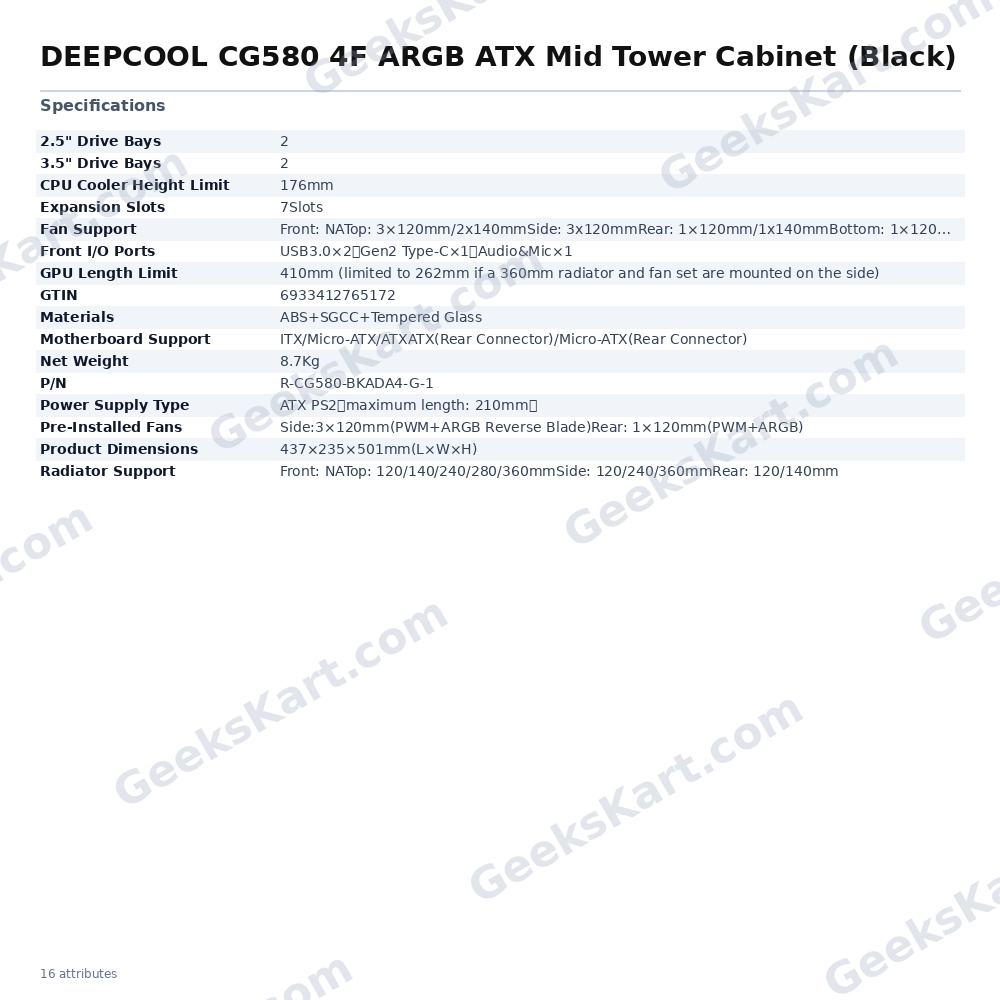

The Deepcool CG580 4F ARGB is an ATX mid tower cabinet built around a single-chamber design that puts your components on full display. Its defining visual feature is a no A-pillar construction that joins the front and side tempered glass panels into an unbroken 270° panoramic view, removing the central obstruction that typically divides the front and side glass on conventional cases. The cabinet measures 437 × 235 × 501 mm (L × W × H) and weighs 8.7 kg, constructed from a combination of ABS, SGCC steel, and tempered glass. Out of the box, the CG580 4F ships with four PWM ARGB fans: three 120 mm reverse-blade fans mounted on the side intake and one 120 mm fan at the rear exhaust. The reverse-blade side fans are positioned to draw air directly toward the motherboard and GPU, while the rear fan expels heated air from the chassis. All four fans support ARGB synchronisation with compatible motherboards, enabling lighting effects through your existing RGB software. The motherboard tray accepts ITX, Micro-ATX, and ATX form factors, as well as ATX and Micro-ATX boards with rear-connector designs from ASUS and MSI. Seven expansion slots provide room for multi-slot graphics cards up to 410 mm in length — or up to 262 mm if a 360 mm radiator with fans is installed on the side panel. CPU coolers up to 176 mm tall are supported, and the ATX PS2 power supply bay accommodates units up to 210 mm in length. Cooling flexibility is a strong point of this chassis. The top supports radiators from 120 mm up to 360 mm and fan configurations of 3 × 120 mm or 2 × 140 mm. The side supports radiators up to 360 mm with 3 × 120 mm fans. The rear accepts a 120 mm or 140 mm radiator with a single fan. The PSU shroud area fits 2 × 120 mm fans, and the bottom position offers a choice between a 3.5-inch hard drive bay or a single 120 mm fan. Storage options include two 3.5-inch drive bays and two 2.5-inch drive bays. The top I/O panel provides two USB 3.0 ports, one USB Gen 2 Type-C port, and a combined audio and microphone jack. A 33 mm cable management channel behind the motherboard tray keeps wiring tidy. Magnetic dust filters are fitted at the top, bottom, and side to reduce debris accumulation and simplify routine maintenance. Verified Specifications: – Dimensions: 437 × 235 × 501 mm (L × W × H) – Net Weight: 8.7 kg – Materials: ABS + SGCC + Tempered Glass – Motherboard Support: ITX / Micro-ATX / ATX; ATX & Micro-ATX Rear Connector variants – Pre-Installed Fans: 3 × 120 mm PWM ARGB Reverse Blade (side) + 1 × 120 mm PWM ARGB (rear) – Fan Support — Top: 3 × 120 mm / 2 × 140 mm; Side: 3 × 120 mm; Rear: 1 × 120 mm or 1 × 140 mm; PSU Shroud: 2 × 120 mm; Bottom: 1 × 120 mm or 3.5″ HDD (choose one) – Radiator Support — Top: up to 360 mm; Side: up to 360 mm; Rear: up to 140 mm – CPU Cooler Height Limit: 176 mm – GPU Length Limit: 410 mm (262 mm with side 360 mm radiator + fans installed) – PSU Type: ATX PS2, max 210 mm length – Drive Bays: 2 × 3.5″, 2 × 2.5″ – Expansion Slots: 7 – Front I/O: 2 × USB 3.0, 1 × USB Gen 2 Type-C, 1 × Audio & Mic – EAN: 6933412765172 | P/N: R-CG580-BKADA4-G-1
