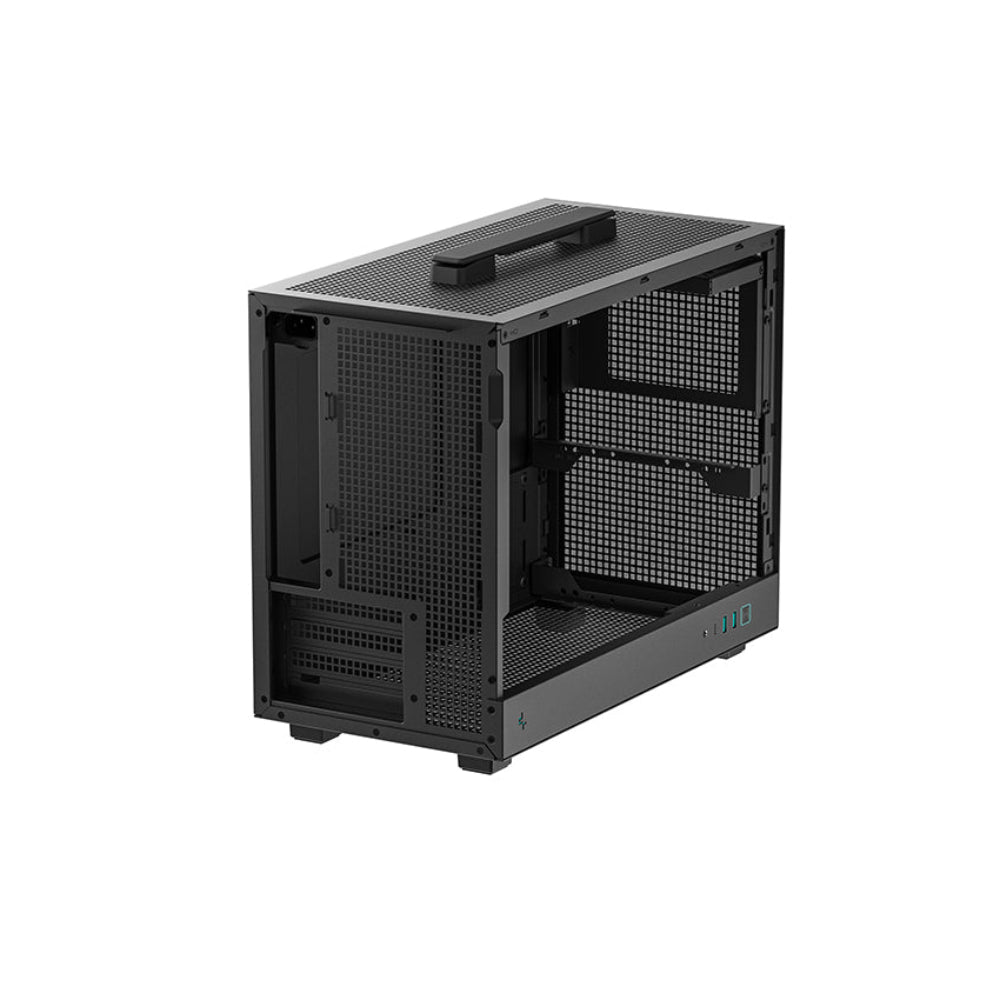

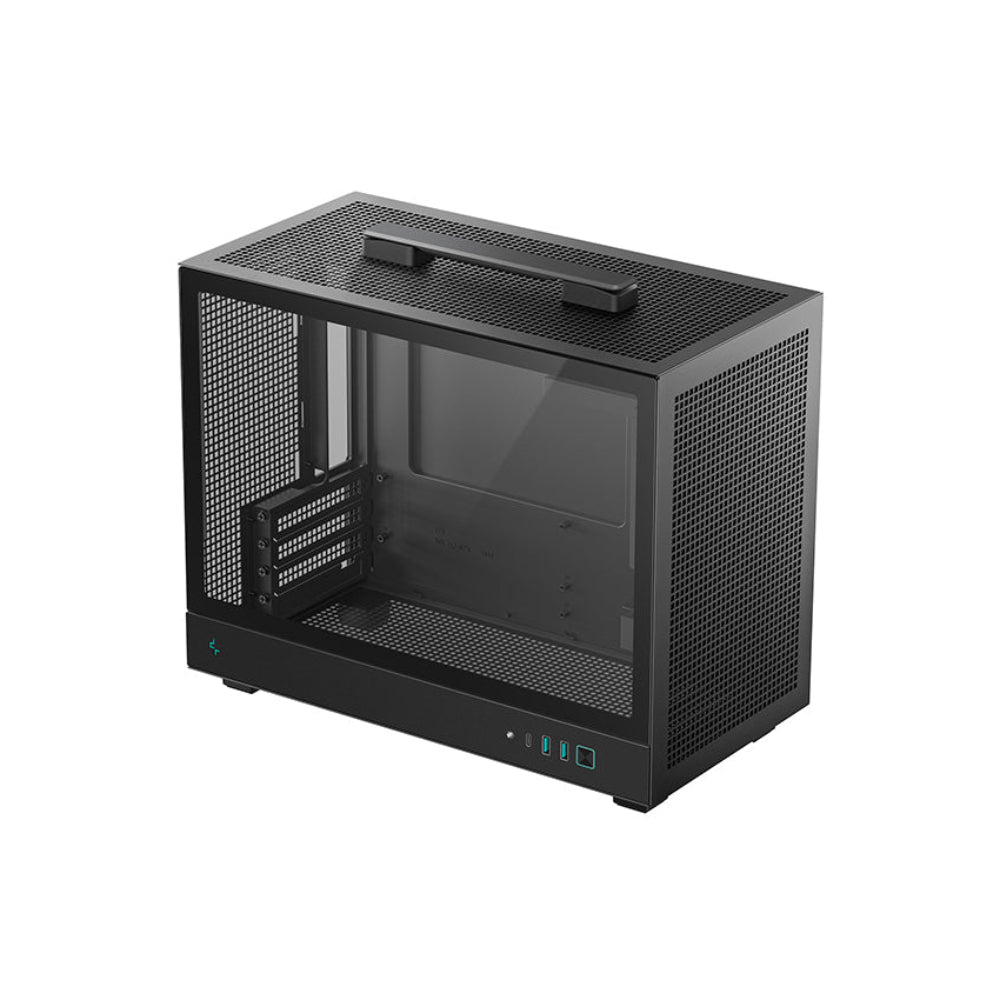

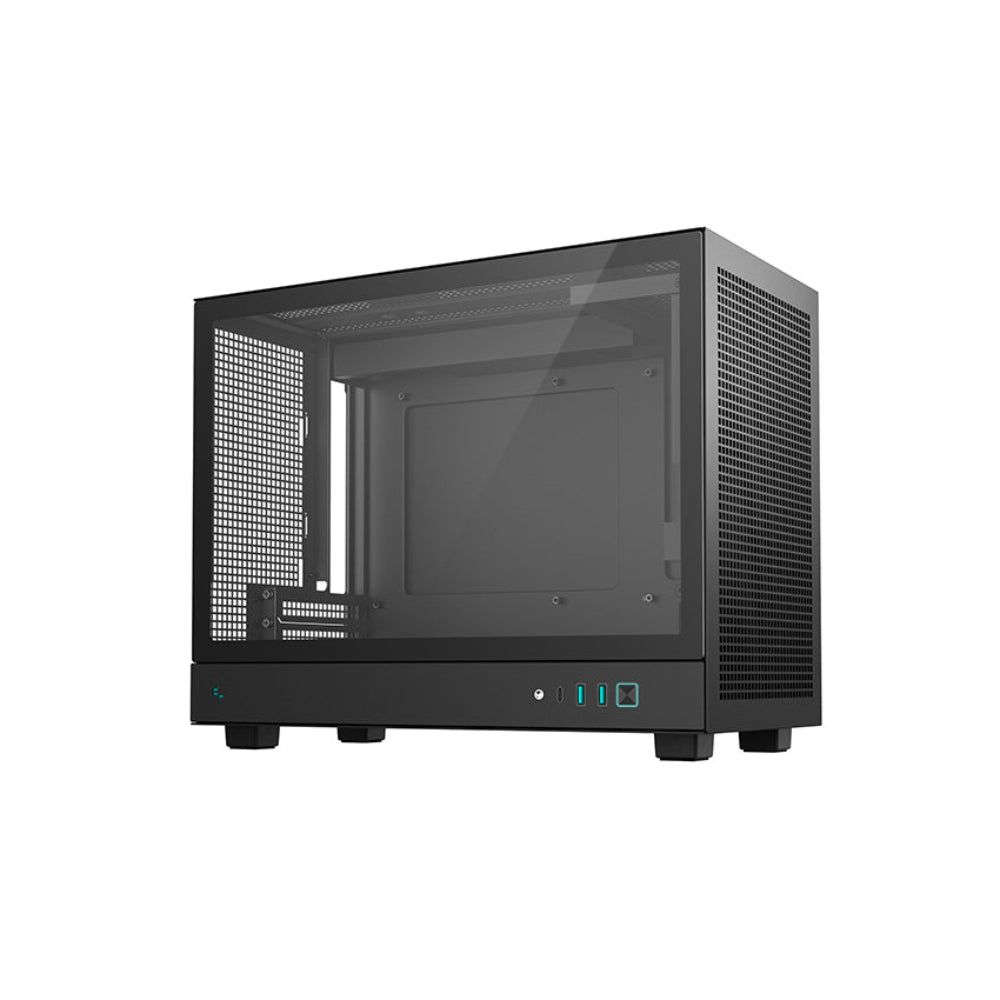

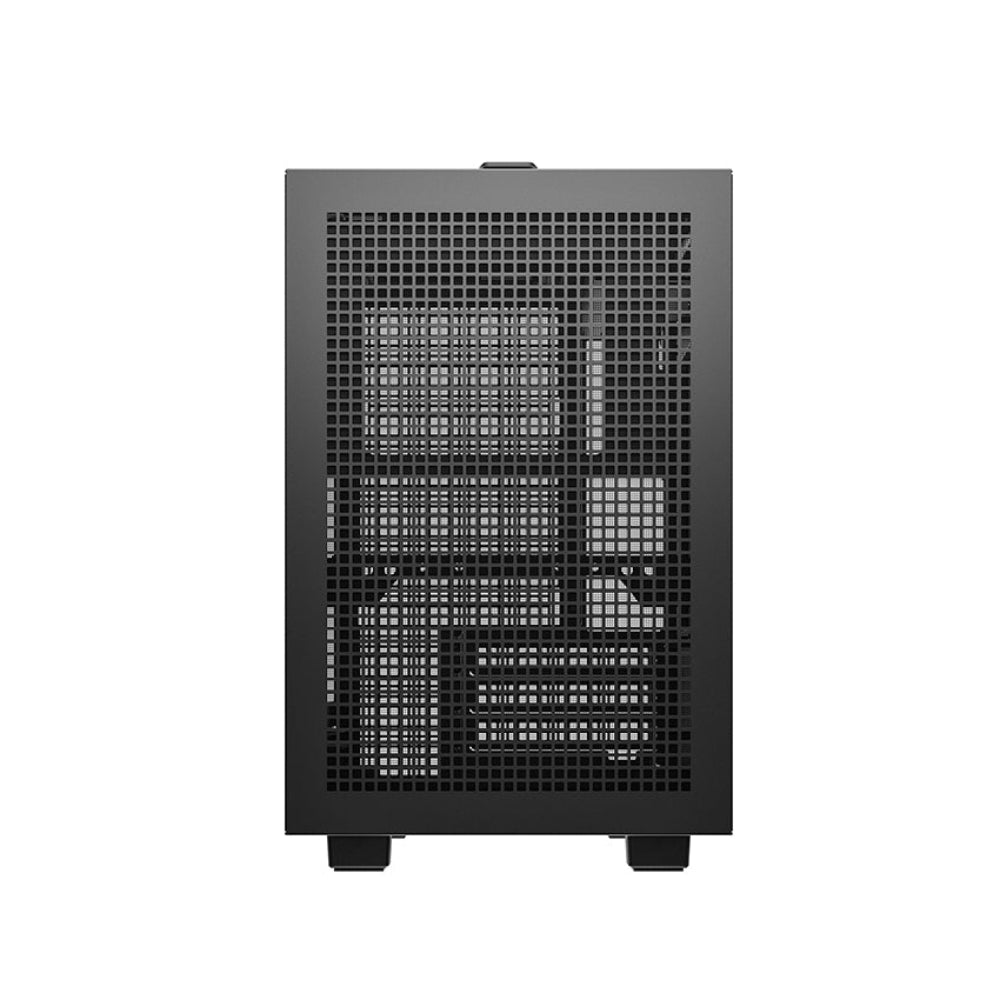

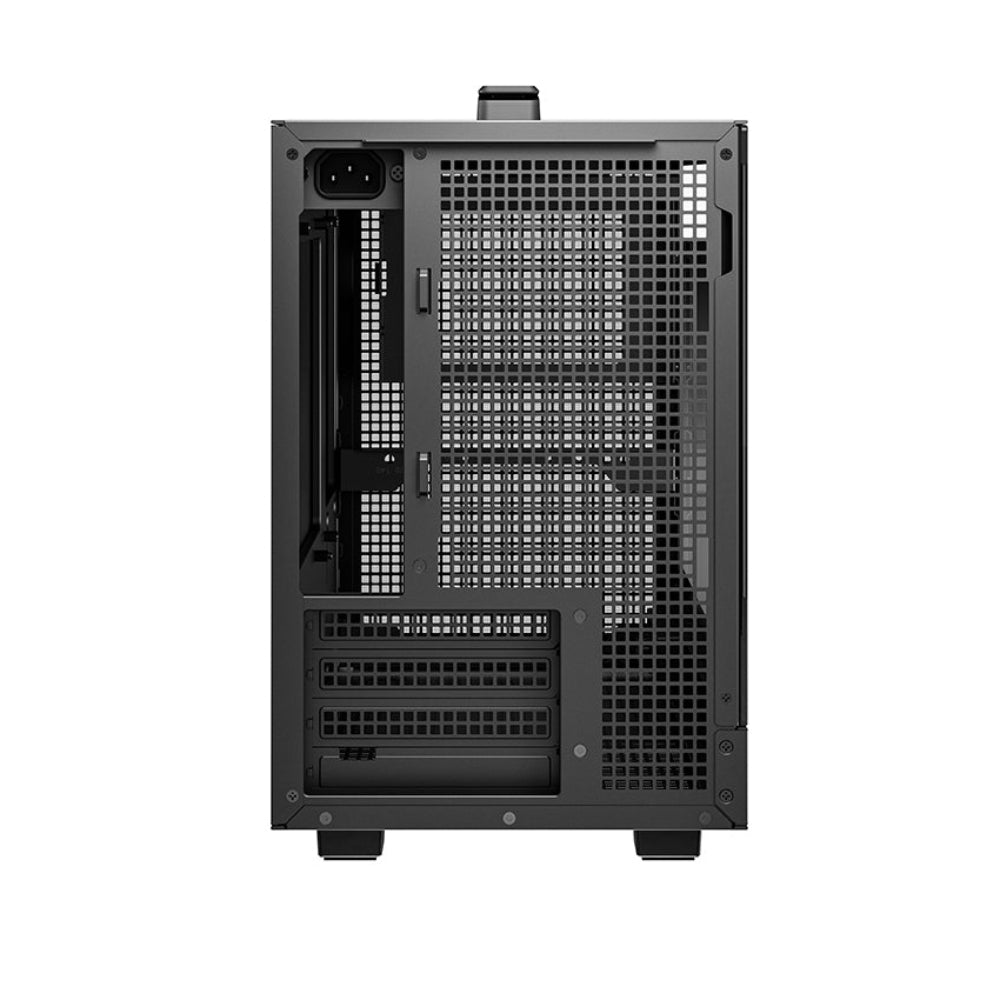

DEEPCOOL CH160 Plus MATX Mini Tower Cabinet ( Black )
MPN DEEPCOOL-CH160-PLUS-MATX-MINI-TOWER-CABINET-BLACK · Brand Deepcool
Features of DEEPCOOL CH160 Plus MATX Mini Tower Cabinet ( Black ) CH160 PLUS The CH160 PLUS retains the clean, compact aesthetic of the original CH160, while expanding support for Micro-ATX motherboards and 240mm liquid cooling. BUILT TO BREATH Mesh panels wrap the CH160 PLUS to boost airflow in a size-conscious design. The integrated top handle makes it easy to move and reposition whenever you need. NOW WITH LIQUID COOLING! Liquid cooling is now part of the experience, with support for up to a
Inclusive of GST · GST invoice available
Overview
Features of DEEPCOOL CH160 Plus MATX Mini Tower Cabinet ( Black )
CH160 PLUS
The CH160 PLUS retains the clean, compact aesthetic of the original CH160, while expanding support for Micro-ATX motherboards and 240mm liquid cooling.
BUILT TO BREATH
Mesh panels wrap the CH160 PLUS to boost airflow in a size-conscious design. The integrated top handle makes it easy to move and reposition whenever you need.
NOW WITH LIQUID COOLING!
Liquid cooling is now part of the experience, with support for up to a 240mm radiator on top.
BUILT TO FIT MORE
With minimal growth in size, it expands compatibility with support for Micro-ATX motherboards, GPUs up to 342mm (328mm with front fan installed), and full-sized ATX PSUs up to 140mm. A fourth expansion slot opens the door to more powerful builds.
CUSTOMIZE WITH PURPOSE
Personalize with DeepCool accessories like the HB-01 headset holder and PIXEL decorative bits to give your build a unique touch.
CONVENIENCE IN EVERY DETAIL
Everyday access is easy with two USB 3.0 ports, a Gen2 Type-C, and a hybrid audio jack all within reach. Dust filters on three sides keep maintenance simple and your build clean.
Specifications of DEEPCOOL CH160 Plus MATX Mini Tower Cabinet ( Black )
| P/N | R-CH160-BKNGM0-G |
| Product Dimensions | 375mm*195mm*323.5mm(L×W×H) |
| Net Weight | 4.2Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX |
| Front I/O Ports | USB3.0×2、Gen2 Type-C x1、Audio/Mic×1 |
| 3.5″ Drive Bays | 1 |
| 2.5″ Drive Bays | 1+1 |
| Expansion Slots | 4 Slots |
| Pre-Installed Fans | None |
| Fan Support | Front:1×120mm/1×140mm（With SFX PSU） Top:2×120mm Rear: 1×120mm |
| Radiator Support | Front: NA Top:120/240mm Bottom: NA Rear:120mm |
| CPU Cooler Height Limit | 164mm |
| GPU Length Limit | 342mm |
| Power Supply Type | ATX PS2（maximum length: 140mm)/SFX/SFX-L |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
Datasheet
| Warranty | 2 Years |
|---|---|
| P/N | R-CH160-BKNGM0-G |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Materials | ABS+SPCC+Tempered Glass |
| Net Weight | 4.2Kg |
| Fan Support | Front:1×120mm/1×140mm（With SFX PSU）Top:2×120mmRear: 1×120mm |
| Expansion Slots | 4 Slots |
| Front I/O Ports | USB3.0×2、Gen2 Type-C x1、Audio/Mic×1 |
| GPU Length Limit | 342mm |
| Radiator Support | Front: NATop:120/240mmBottom: NARear:120mm |
| 2.5″ Drive Bays | 1+1 |
| 3.5″ Drive Bays | 1 |
| Power Supply Type | ATX PS2（maximum length: 140mm)/SFX/SFX-L |
| Product Dimensions | 375mm*195mm*323.5mm(L×W×H) |
| Motherboard Support | Mini-ITX / Micro-ATX |
| CPU Cooler Height Limit | 164mm |
