DEEPCOOL CH170 Digital M-ITX Mini Tower Cabinet ( Black )

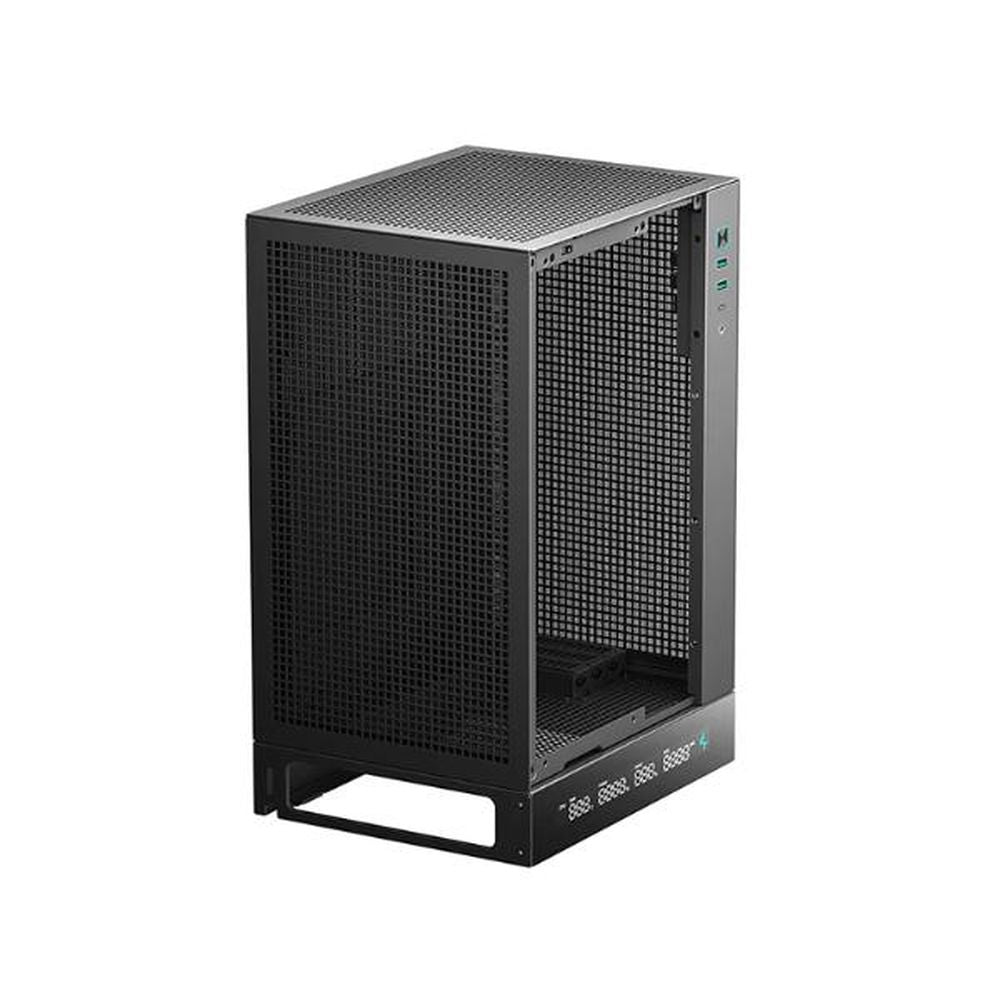

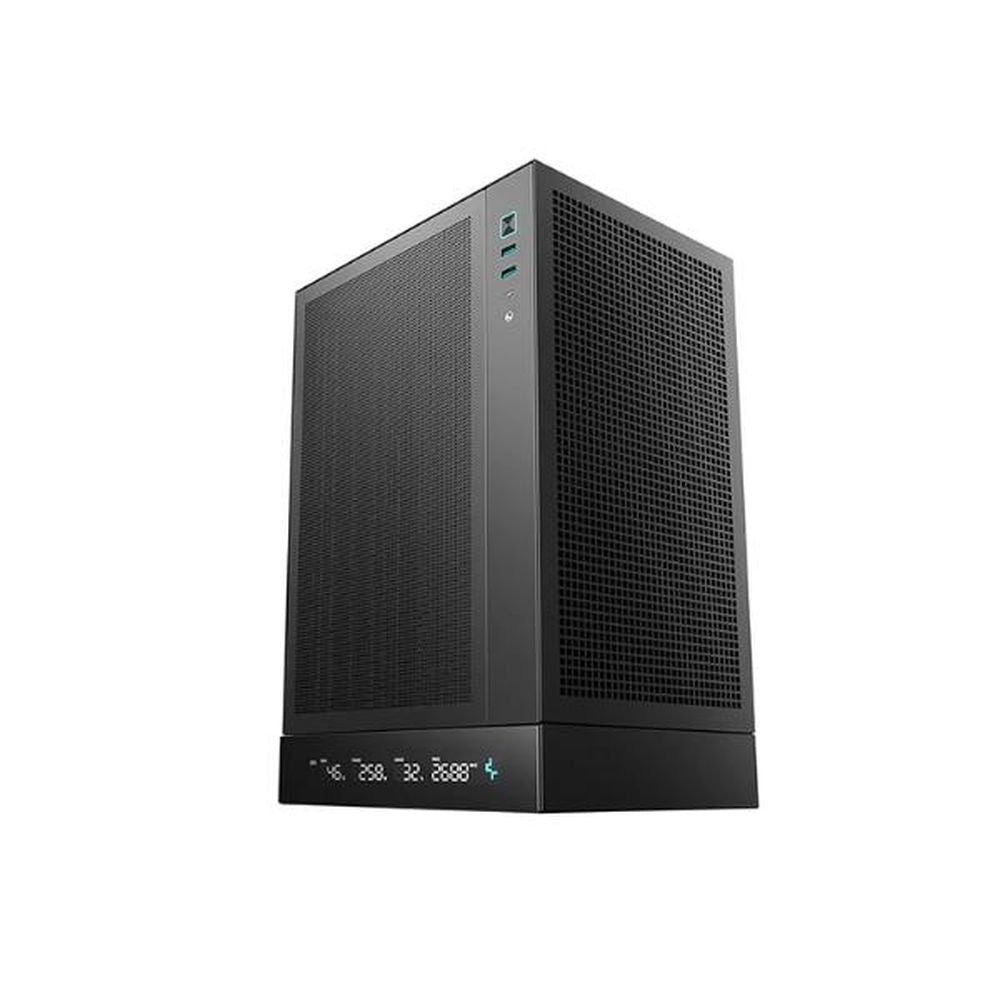

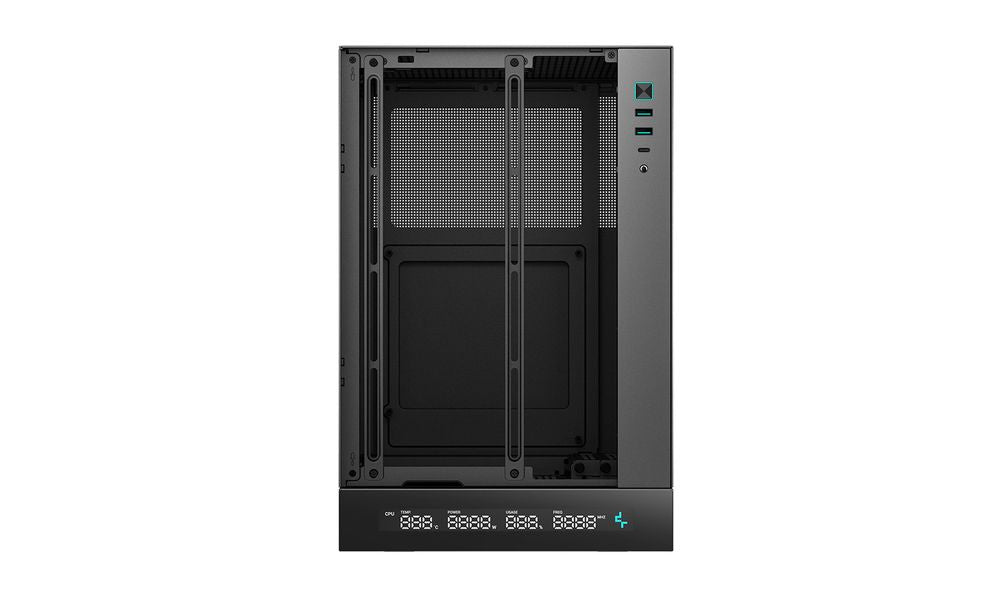

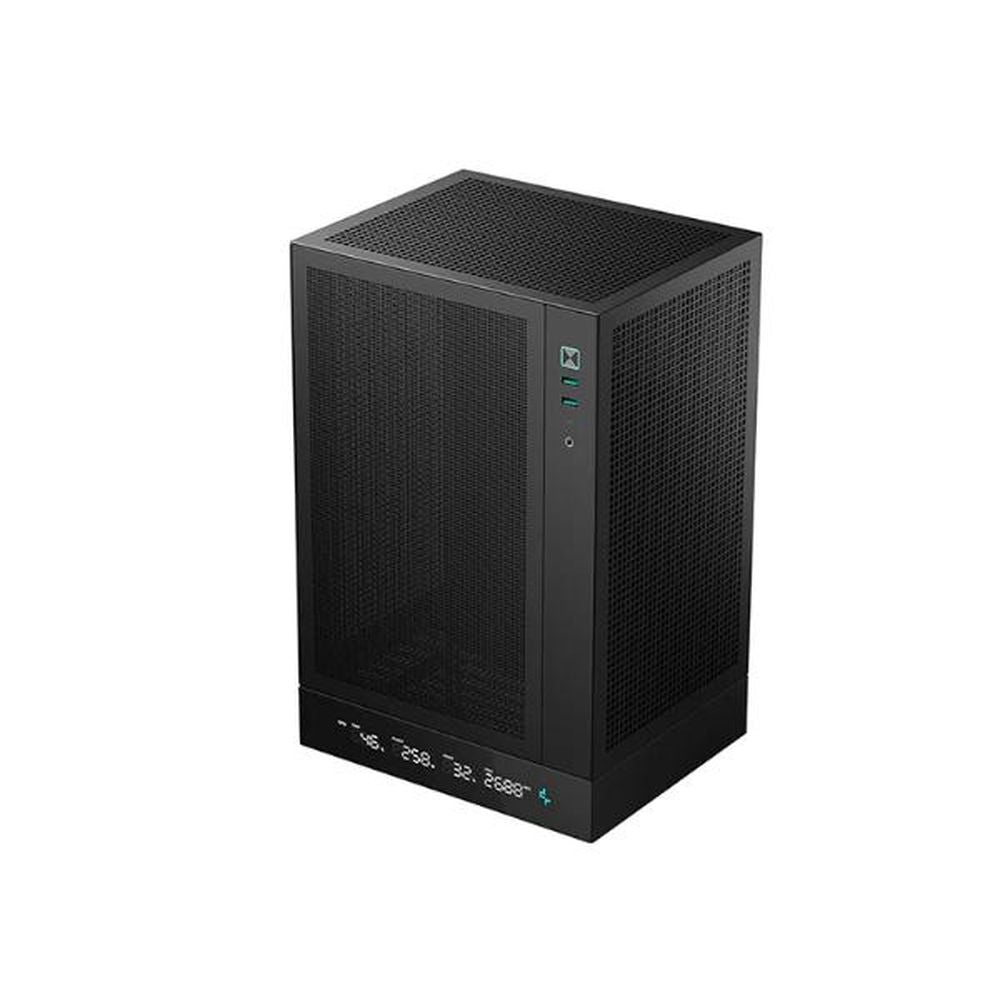

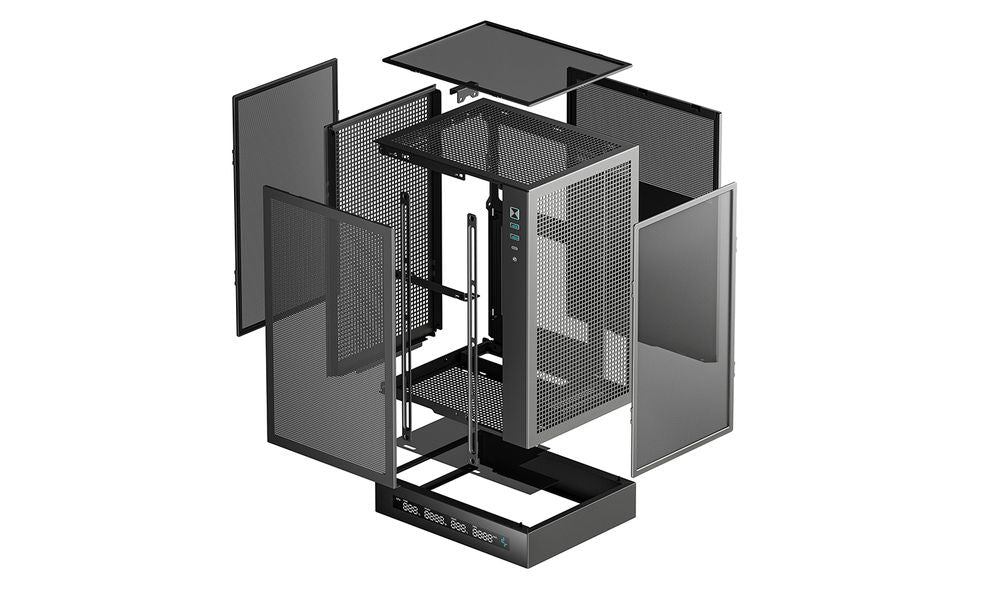

The Deepcool CH170 Digital is a compact Mini-ITX tower cabinet designed for builders who want a small-footprint system without sacrificing cooling performance or hardware compatibility. Its multi-panel mesh construction promotes strong airflow through all sides of the chassis, keeping components running efficiently even in a tight enclosure. One of the standout features is the integrated digital base display, which shows up to four system data points simultaneously — including CPU, GPU, and PSU metrics — and can cycle through readings at timed intervals. This gives you a-glance hardware monitoring without dedicated software. Despite its compact dimensions, the CH170 Digital accommodates tower air coolers up to 172mm tall, addressing a common limitation of small-form-factor cases. For liquid cooling enthusiasts, a dedicated bracket on the side panel supports a 240mm radiator, making AIO installations straightforward. Graphics cards can be installed directly into the motherboard’s PCIe slot — no riser cable required — as long as they fit within 305mm length (with SFX/SFX-L PSU) or 230mm (with ATX PSU), 138mm height, and 65mm (3-slot) width. Power supply flexibility is another strength: the case accepts ATX PS2 units up to 140mm in length, as well as SFX and SFX-L form factors. The front I/O panel includes two USB 3.0 ports, one USB Gen 2 Type-C port, and a hybrid audio jack. Storage is handled by a multi-purpose bracket that can hold a 2.5-inch SSD, a 3.5-inch HDD, or a 120mm fan — choose one configuration to suit your build. Three removable dust filters simplify maintenance, while fan positions across the top, rear, bottom, and side panels (up to six 120mm fans total) allow extensive airflow tuning. No fans are pre-installed, giving builders full choice over their cooling setup. Verified Specifications: – Model: CH170 DIGITAL BK | P/N: R-CH170-BKNPI0D-G-1 – Dimensions: 380 × 200 × 250 mm (L × W × H) – Net Weight: 3.5 kg – Materials: ABS + SPCC – Motherboard Support: Mini-ITX – CPU Cooler Height Limit: 172 mm – GPU Limit: 305 mm length (SFX/SFX-L) / 230 mm (ATX), 138 mm height, 65 mm width (3 slots) – Radiator Support: 240 mm (side) – Fan Support: Top 1×120 mm, Rear 2×120 mm, Bottom 1×120 mm, Side 2×120 mm – PSU Support: ATX PS2 (max 140 mm), SFX, SFX-L – Front I/O: 2× USB 3.0, 1× USB Gen 2 Type-C, 1× Audio – Expansion Slots: 3 – Pre-Installed Fans: None – Warranty: 1 Year
