DEEPCOOL CH170 Plus MATX Mid Tower Cabinet ( White )

Name: DEEPCOOL CH170 Plus MATX Mid Tower Cabinet ( White ) - Geek's Kart
Brand: Deepcool
SKU: DEEPCOOL-CH170-PLUS-MATX-MID-TOWER-WHITE
Price: 6075.00 INR
Availability: OutOfStock

MPN DEEPCOOL-CH170-PLUS-MATX-MID-TOWER-WHITE · Brand Deepcool

Features of DEEPCOOL CH170 Plus MATX Mid Tower Cabinet ( White ) The CH170 PLUS WH is a vertical mid-tower case with all the high-airflow features, offering flexibility for coolers and PSU options in a compact design. BUILT TO BREATH Mesh panels across multiple sides boost airflow to keep your system cool, while a tempered glass panel highlights your components. ROOM FOR BIGGER GPU No matter your PSU choice, the CH170 PLUS WH supports GPUs up to 342mm in length (328mm with top fan installed), wi

P/N R-CH170-WHNGM0-G Materials ABS+SPCC+Tempered Glass Net Weight 4.4Kg 2.5" Drive Bays 1+1

₹6,075.00

Inclusive of GST · GST invoice available

Out of stock

Warranty

As per brand

Dispatch

24–48 hrs

Returns

7-day

Overview

Features of DEEPCOOL CH170 Plus MATX Mid Tower Cabinet ( White )

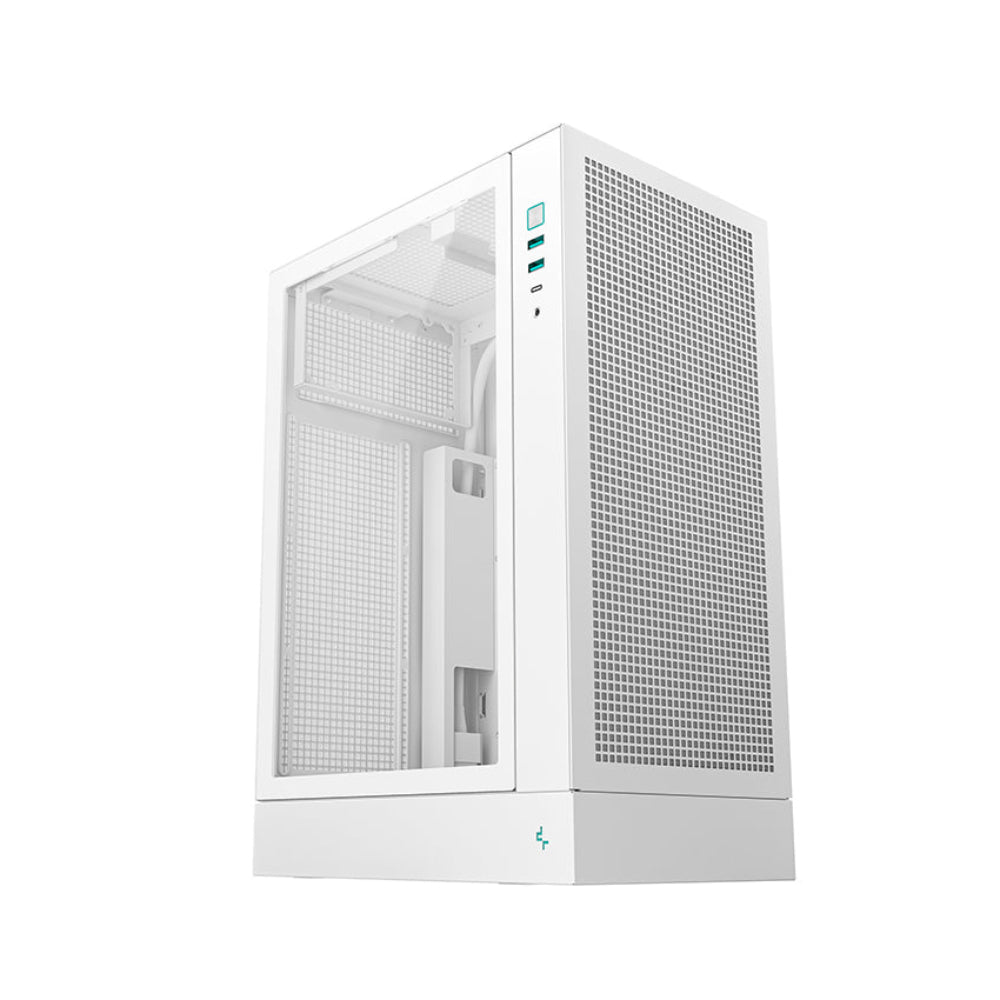

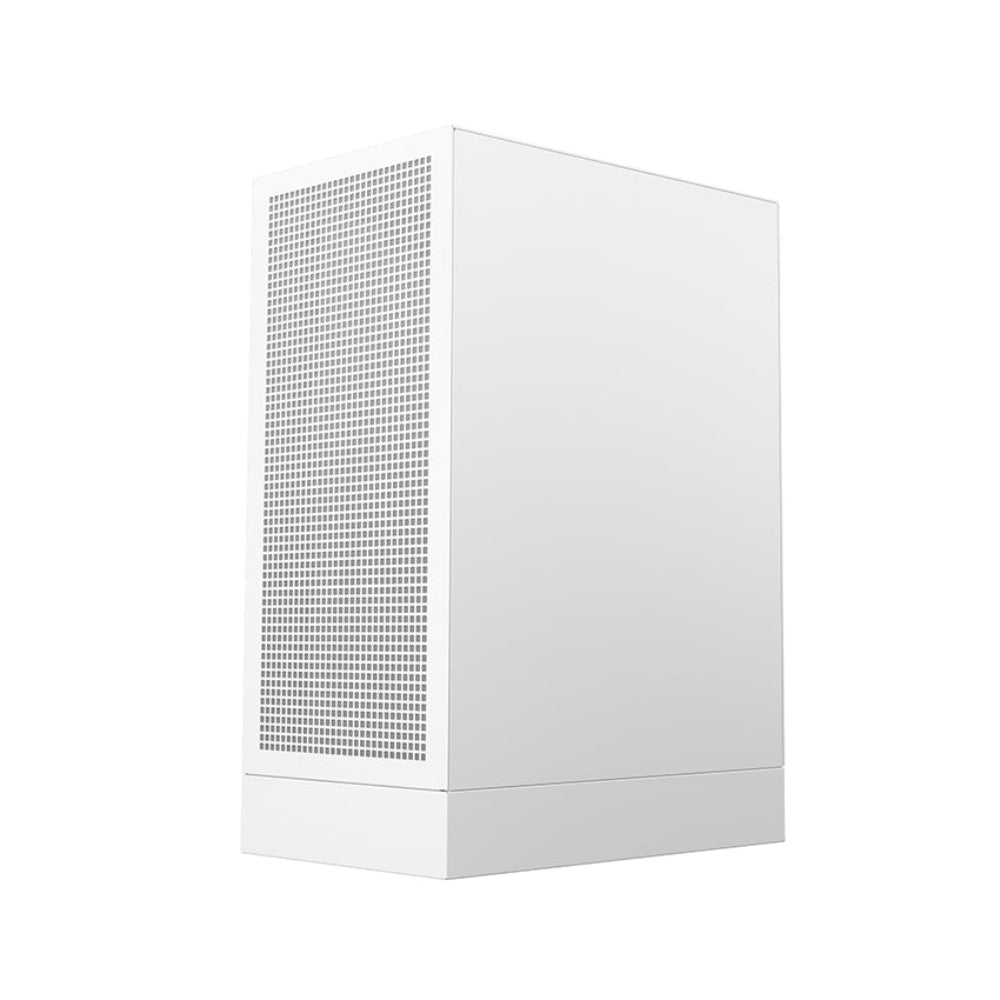

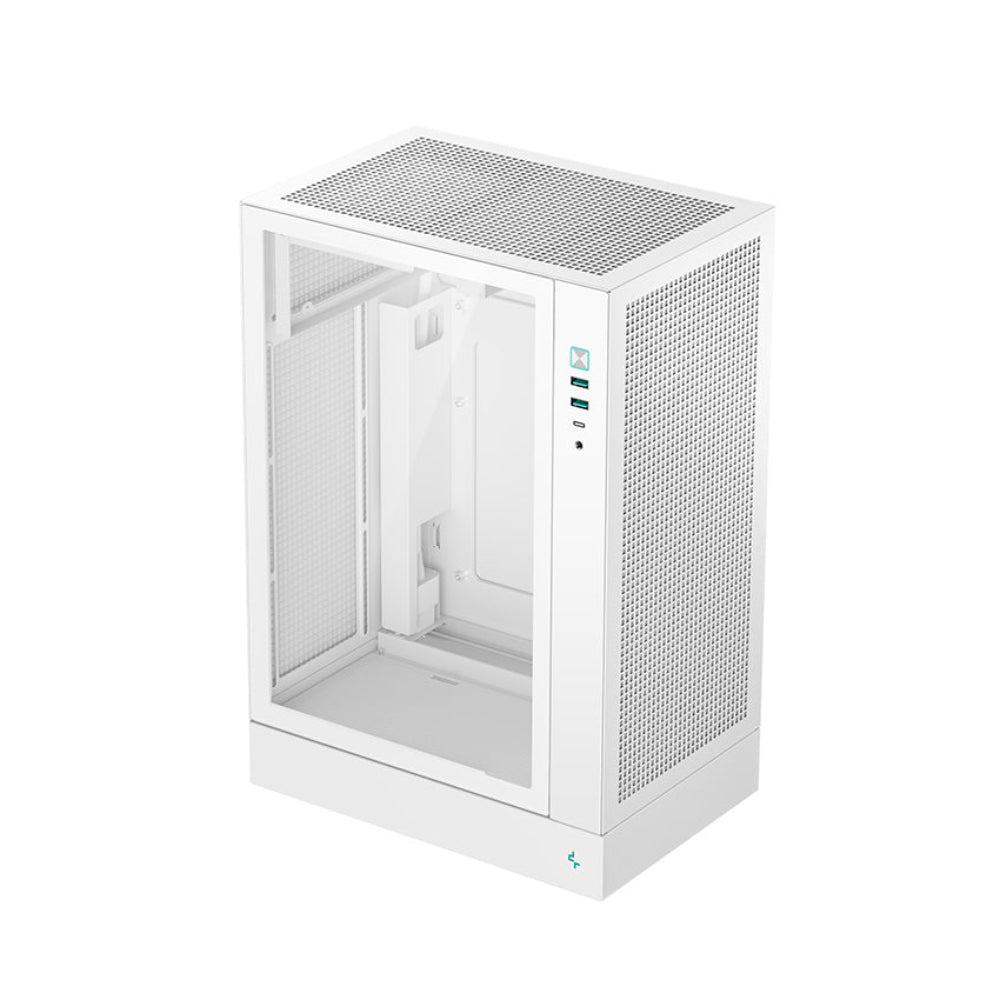

The CH170 PLUS WH is a vertical mid-tower case with all the high-airflow features, offering flexibility for coolers and PSU options in a compact design.

BUILT TO BREATH

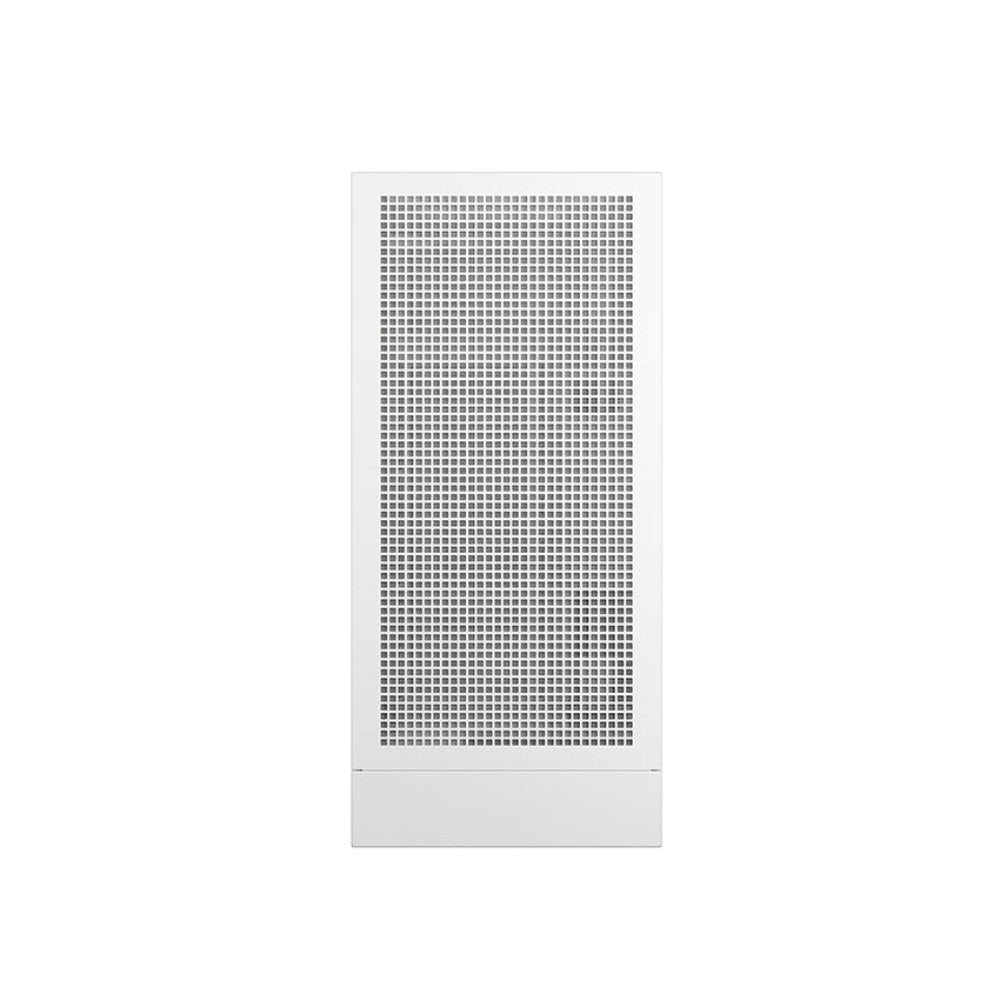

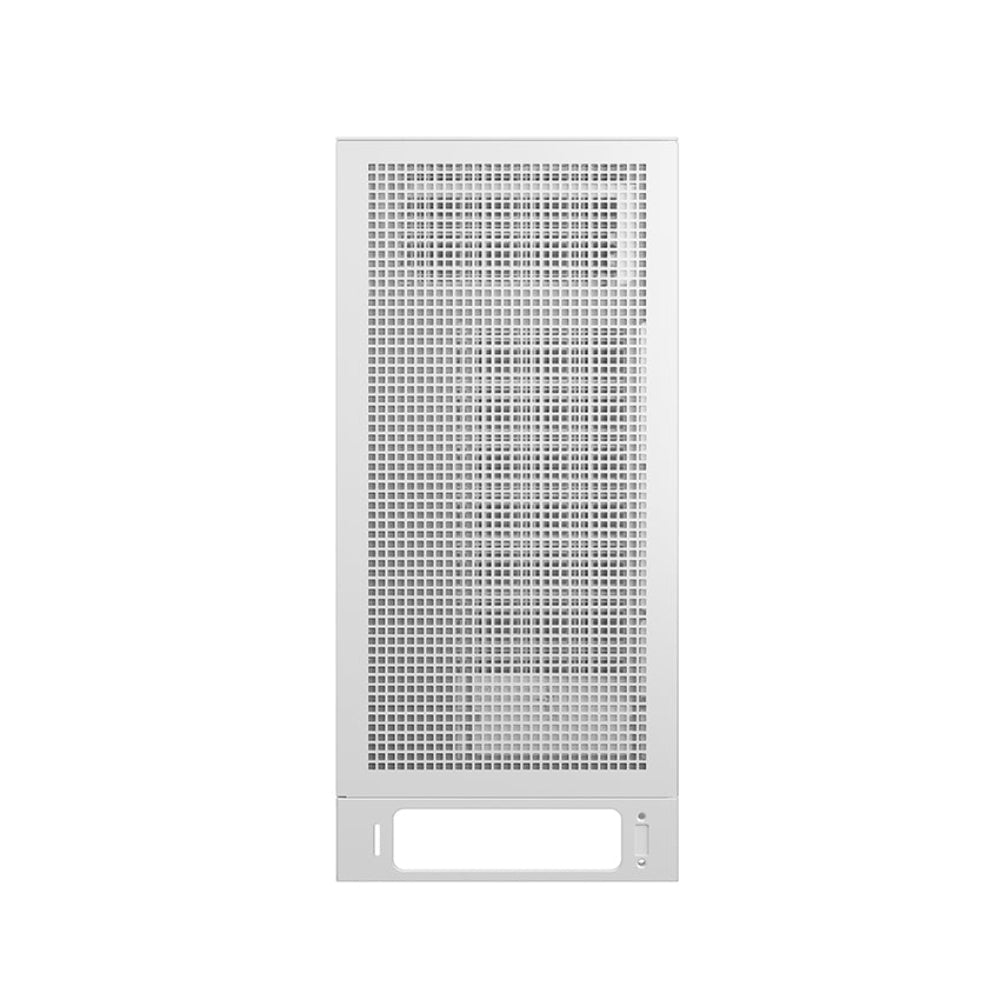

Mesh panels across multiple sides boost airflow to keep your system cool, while a tempered glass panel highlights your components.

ROOM FOR BIGGER GPU

No matter your PSU choice, the CH170 PLUS WH supports GPUs up to 342mm in length (328mm with top fan installed), with widths up to 138mm and thicknesses up to 75mm. Cards can be directly inserted into the motherboard.

FLEXIBLE POWER OPTIONS

Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 PLUS can support any of them up to 140mm.

CUSTOMIZE WITH PURPOSE

Personalize with DeepCool accessories like the HB-01 headset holder and PIXEL decorative bits to give your build a unique touch.

CONVENIENCE IN EVERY DETAIL

Everyday access is easy with two USB 3.0 ports, a Gen2 Type-C, and a hybrid audio jack all within reach. Dust filters on four sides keep maintenance simple and your build clean.

COOLING THAT ADAPTS

From liquid to air, the CH170 PLUS supports a 240mm side radiator or up to four 120mm fans, with room for air coolers up to 164mm tall.

Radiators:

Front: NA
Side: 120/240mm
Bottom: 120mm

Fans:

Top: 1×120mm / 1×140mm (with SFX PSU)
Side: 2×120mm
Bottom: 1×120mm

CPU Cooler:

164mm

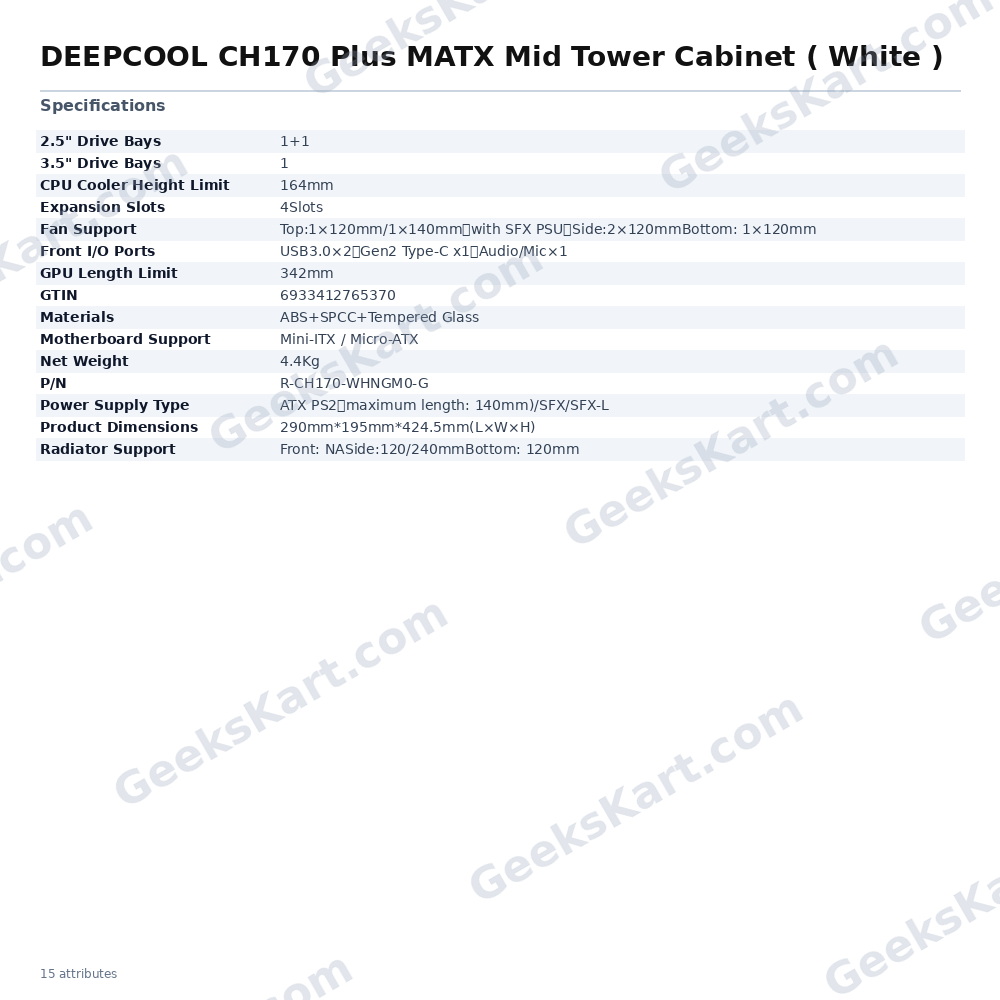

Specifications of DEEPCOOL CH170 Plus MATX Mid Tower Cabinet ( White )

P/N	R-CH170-WHNGM0-G
Product Dimensions	290mm195mm424.5mm(L×W×H)
Net Weight	4.4Kg
Materials	ABS+SPCC+Tempered Glass
Motherboard Support	Mini-ITX / Micro-ATX
Front I/O Ports	USB3.0×2、Gen2 Type-C x1、Audio/Mic×1
3.5" Drive Bays	1
2.5" Drive Bays	1+1
Expansion Slots	4Slots
Pre-Installed Fans	None
Fan Support	Top:1×120mm/1×140mm（with SFX PSU） Side:2×120mm Bottom: 1×120mm
Radiator Support	Front: NA Side:120/240mm Bottom: 120mm
CPU Cooler Height Limit	164mm
GPU Length Limit	342mm
Power Supply Type	ATX PS2（maximum length: 140mm)/SFX/SFX-L
EAN	6933412765370

Datasheet

P/N	R-CH170-WHNGM0-G
Materials	ABS+SPCC+Tempered Glass
Net Weight	4.4Kg
Fan Support	Top:1×120mm/1×140mm（with SFX PSU）Side:2×120mmBottom: 1×120mm
2.5" Drive Bays	1+1
3.5" Drive Bays	1
Expansion Slots	4Slots
Front I/O Ports	USB3.0×2、Gen2 Type-C x1、Audio/Mic×1
GPU Length Limit	342mm
Radiator Support	Front: NASide:120/240mmBottom: 120mm
Power Supply Type	ATX PS2（maximum length: 140mm)/SFX/SFX-L
Product Dimensions	290mm195mm424.5mm(L×W×H)
Motherboard Support	Mini-ITX / Micro-ATX
CPU Cooler Height Limit	164mm
