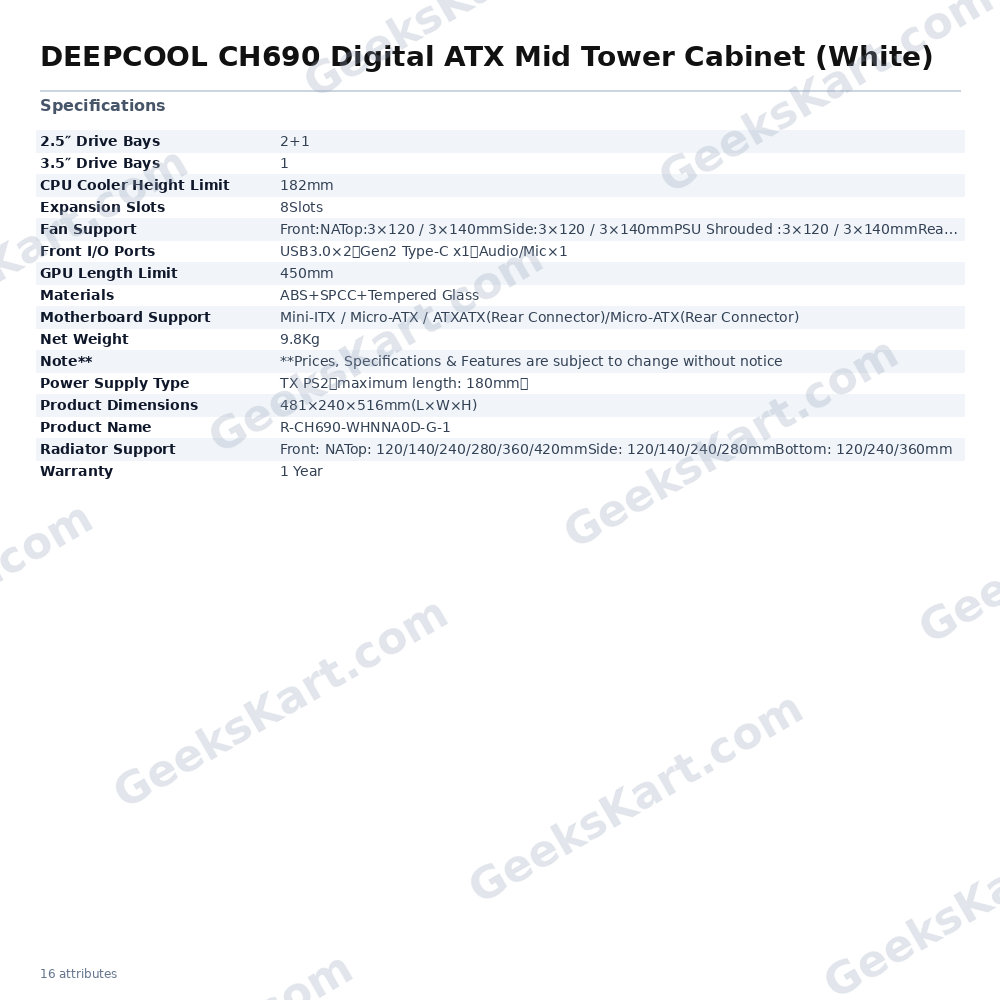

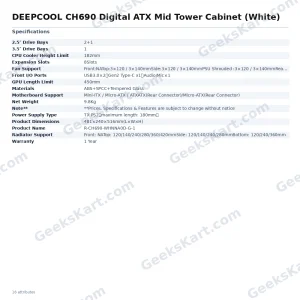

DEEPCOOL CH690 Digital ATX Mid Tower Cabinet (White)

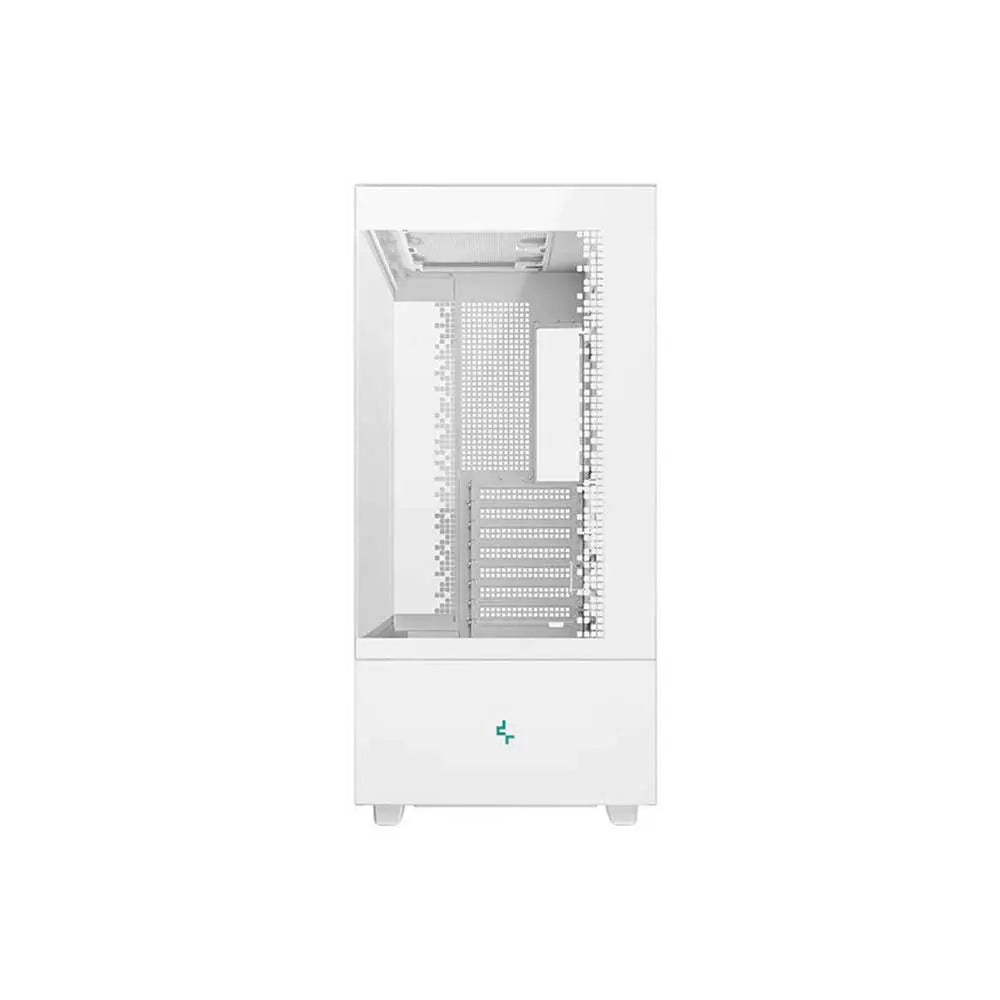

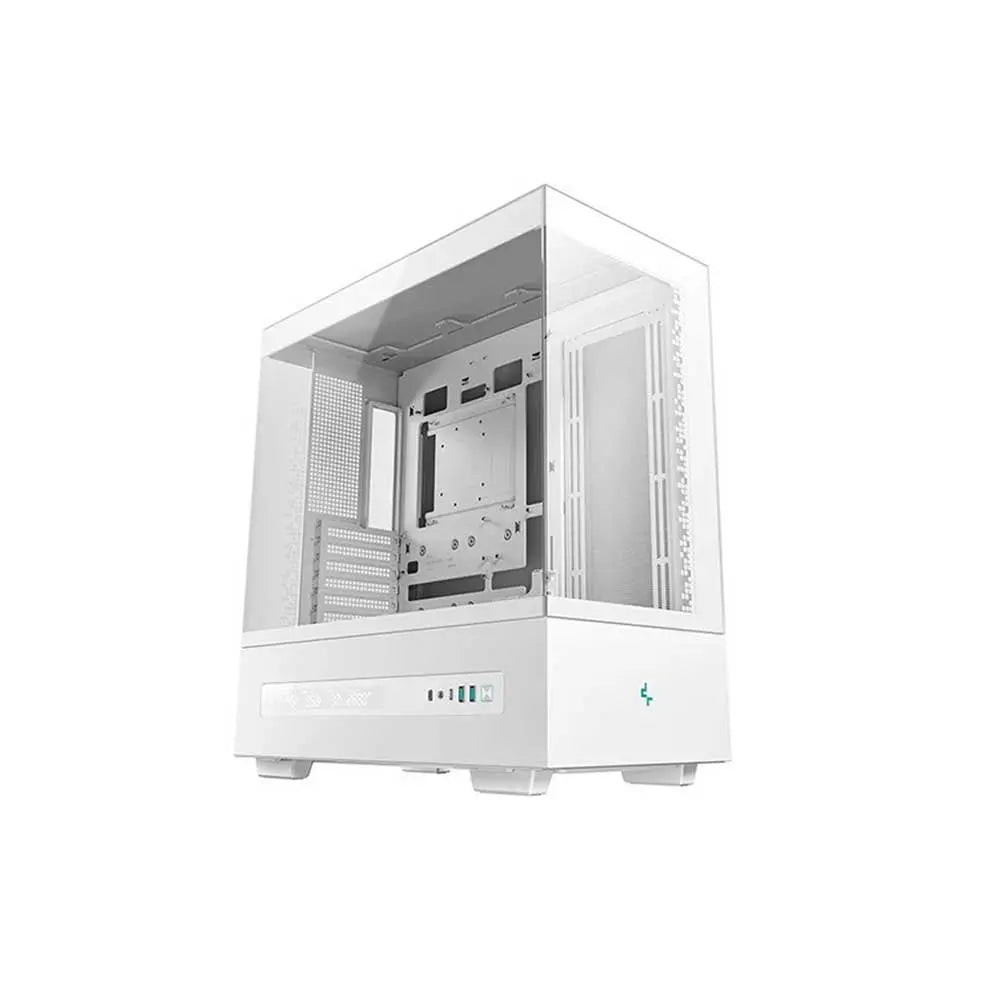

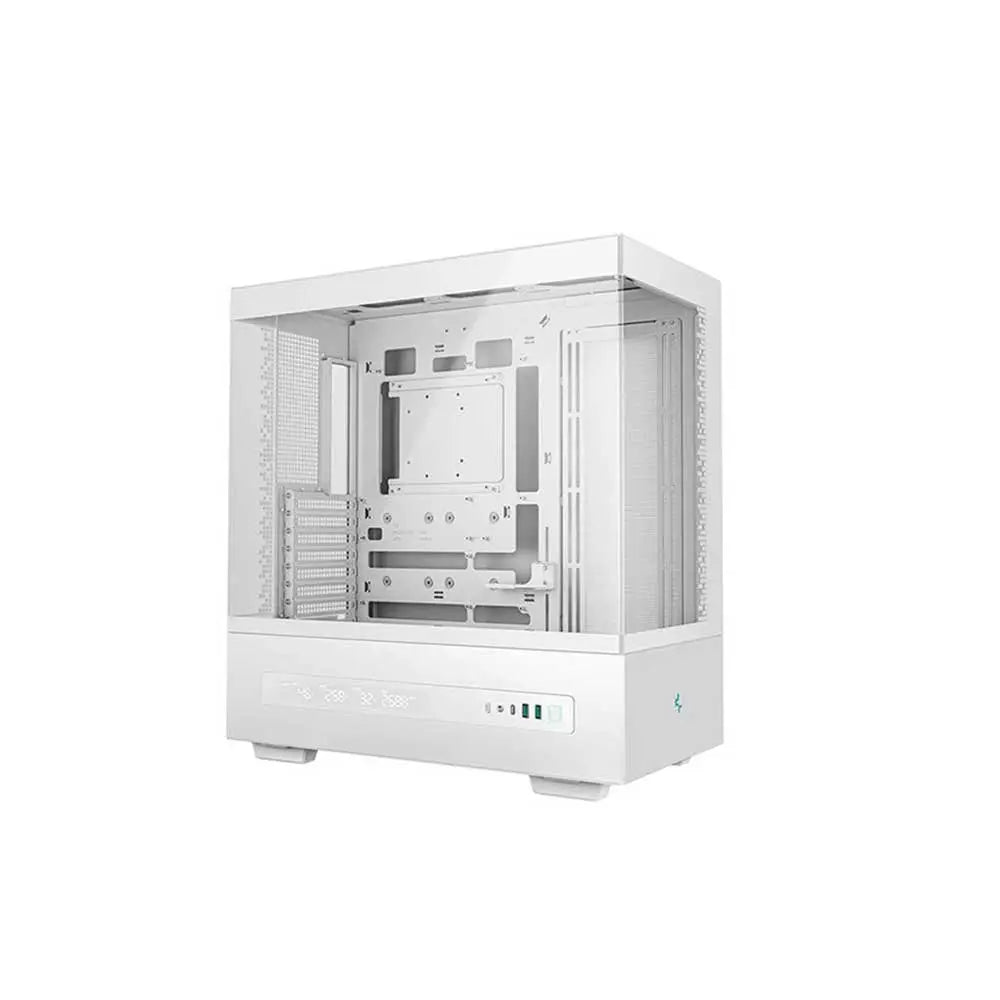

The Deepcool CH690 Digital is a full-featured ATX mid tower cabinet engineered for builders who want genuine insight into their system's performance without sacrificing aesthetics. At its heart is an integrated front-panel digital display capable of cycling through CPU, GPU, and PSU monitoring modes in real time, showing temperature (switchable between Celsius and Fahrenheit), power consumption, usage percentage, frequency, and fan speed—so your components' vital statistics are always visible at a glance. The side panel is constructed from tempered glass, giving a clear, unobstructed view of your installed hardware. For enthusiasts who prioritise airflow, the rear panel supports a DIY modification: the tempered glass panel can be swapped for an optional mesh panel with a fan bracket to enable horizontal airflow across the motherboard. An integrated light strip slot is also included, allowing compatible LED strips to be added for ambient lighting effects without additional brackets or adapters. Expansion flexibility is a key strength of the CH690 Digital. The chassis accommodates Mini-ITX, Micro-ATX, and ATX motherboards—including rear-connector ATX and Micro-ATX variants—and provides eight individually removable expansion slots for multi-GPU or high-card-count builds. An adjustable GPU holder is included to prevent GPU sag and reduce mechanical stress on the motherboard slot. Cooling capacity is generous throughout. The top position supports radiators up to 420mm and up to three 120mm or 140mm fans. The side position supports radiators up to 280mm and up to three 120mm or 140mm fans. The PSU shroud area (bottom) supports radiators up to 360mm and up to three 120mm or 140mm fans, with an innovative mesh-designed PSU shroud creating a dedicated vertical airflow channel. The rear accommodates a single 120mm or 140mm exhaust fan. CPU air cooler height clearance is 182mm, and GPU length clearance reaches 450mm. Note that no fans are pre-installed. Front I/O includes two USB 3.0 ports, one USB Gen 2 Type-C port, and a combined audio/microphone jack. Cable management is supported by a 36.5mm routing channel behind the motherboard tray. The bottom of the case features a magnetic dust filter for tool-free removal and cleaning. Storage options include one 3.5-inch drive bay and three 2.5-inch drive bays (2+1 configuration). Power supply support is ATX PS2 form factor with a maximum length of 180mm. Verified Specifications: - Dimensions: 481 × 240 × 516 mm (L × W × H) - Net Weight: 9.8 kg - Materials: ABS, SPCC steel, Tempered Glass - Motherboard Support: Mini-ITX / Micro-ATX / ATX (including rear-connector variants) - Front I/O: USB 3.0 ×2, USB Gen2 Type-C ×1, Audio/Mic ×1 - Expansion Slots: 8 (individually removable) - Drive Bays: 1 × 3.5-inch, 3 × 2.5-inch (2+1) - Fan Support — Top: 3×120mm / 3×140mm; Side: 3×120mm / 3×140mm; PSU Shroud: 3×120mm / 3×140mm; Rear: 1×120mm / 1×140mm - Radiator Support — Top: up to 420mm; Side: up to 280mm; Bottom: up to 360mm - CPU Cooler Height Limit: 182mm - GPU Length Limit: 450mm - PSU Form Factor: ATX PS2, max 180mm length - Pre-installed Fans: None - Warranty: 1 Year
