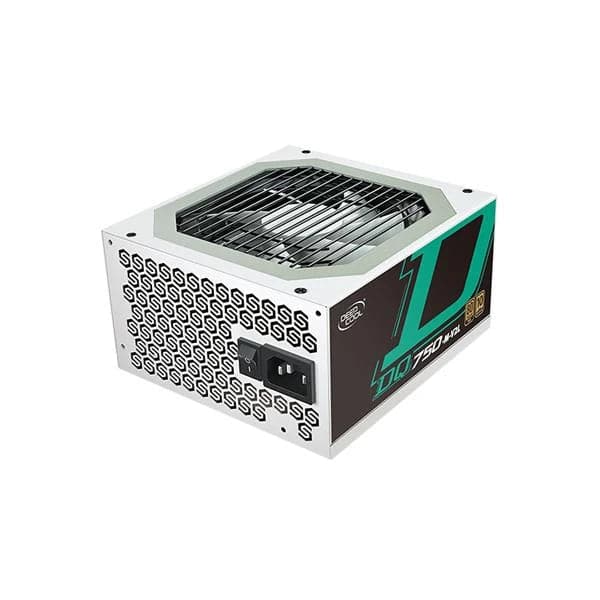

DEEPCOOL DQ750-M-V2L 80+ Gold Fully Modular Power Supply (750 W) (White)

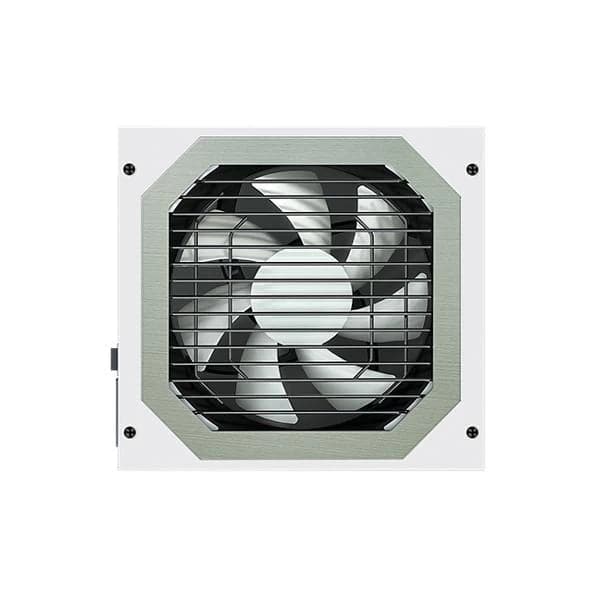

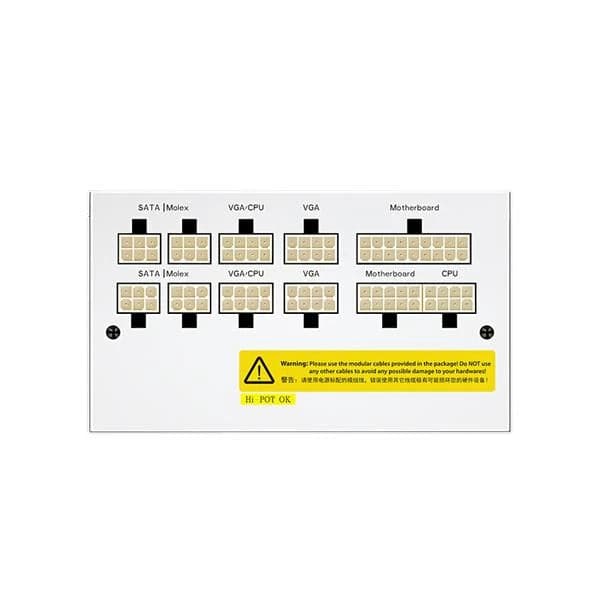

The Deepcool DQ750-M-V2L is a 750 W fully modular ATX power supply finished in white, designed to deliver stable, efficient power to mid-range and high-performance desktop builds. Its 80 PLUS Gold certification means the unit achieves greater than 90% efficiency under typical (50%) load, reducing waste heat and cutting electricity costs over long usage cycles. At the heart of the DQ750-M-V2L is an active PFC full-bridge LLC resonant converter paired with a synchronous rectification DC-DC module. This topology improves voltage regulation across all output rails, lowers power dissipation, and contributes to quieter thermal behaviour. All internal filtering relies on Japanese electrolytic capacitors, which are valued in the industry for their extended operational lifespan and superior ripple-suppression characteristics. The fully modular cable system means every connector, including the ATX 24-pin and all peripheral leads, can be removed when not in use. Paired with the included flat-ribbon cables, this makes routing cleaner and improves airflow inside the chassis. A 120 mm fan handles thermal management, spinning up proportionally with load. CircuitShield protection covers six key fault conditions: over-voltage (OVP), under-voltage (UVP), over-current (OCP), short-circuit (SCP), over-power (OPP), and over-temperature (OTP), safeguarding connected components during abnormal events. Deep compatibility with universal AC input (100–240 V, 47–63 Hz) means this unit works in markets worldwide without manual voltage switching. Verified Specifications: Model: DQ750-M-V2L WH | Form Factor: ATX 12V V2.31 | Output: 750 W | Efficiency: >90% at 50% load (80 PLUS Gold) | Peak Efficiency: up to 91.2% | Input: 100–240 V AC, 10 A, 47–63 Hz | Fan: 120 mm | PFC: Active | Hold-Up Time: >16 ms at 80% load | Power Good Signal: 100–500 ms | MTBF: 100,000 hours | Operating Temperature: 0–40 °C | Standby Efficiency: ErP Lot 3 2014 | Protection: OVP/UVP/OCP/SCP/OPP/OTP | Certifications: 80 PLUS Gold, CE, CB, CCC, EAC, FCC, KCC, RCM, RoHS | Dimensions: 150 × 160 × 86 mm (W × L × H) | Warranty: 10 Years | Colour: White
