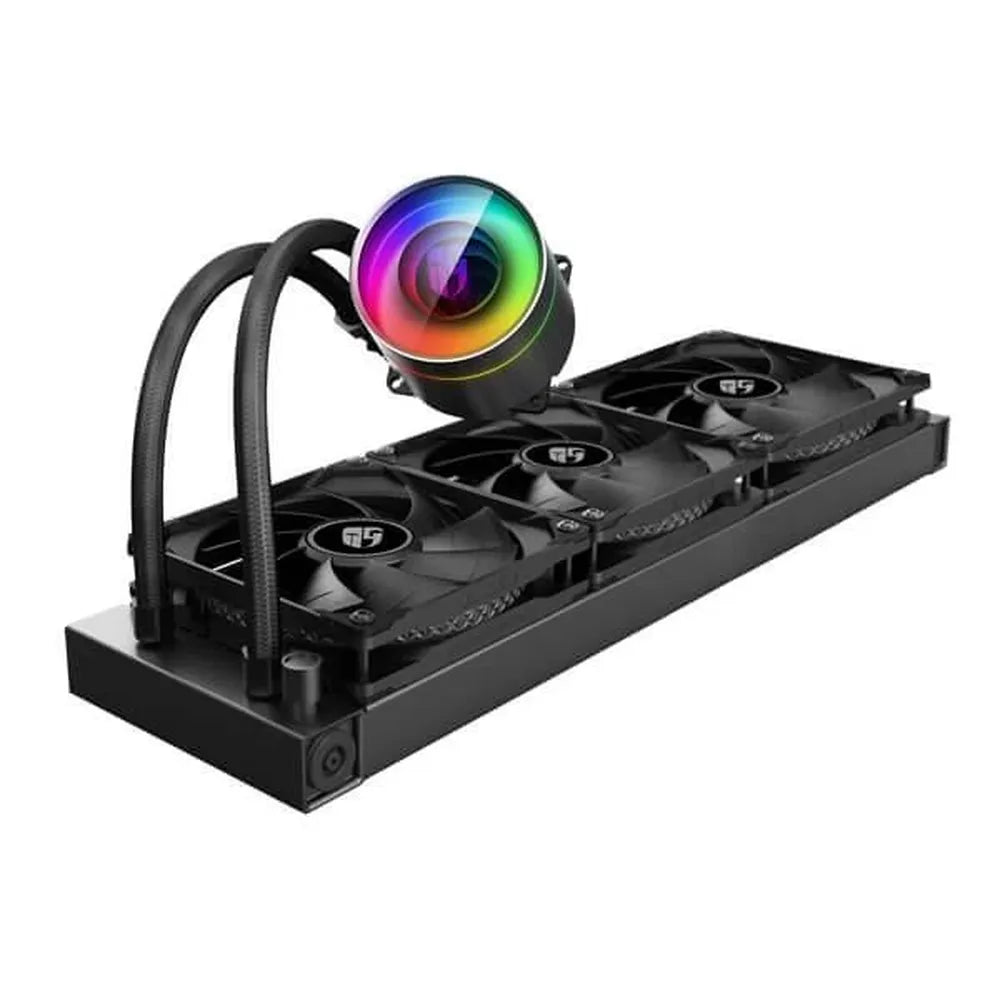

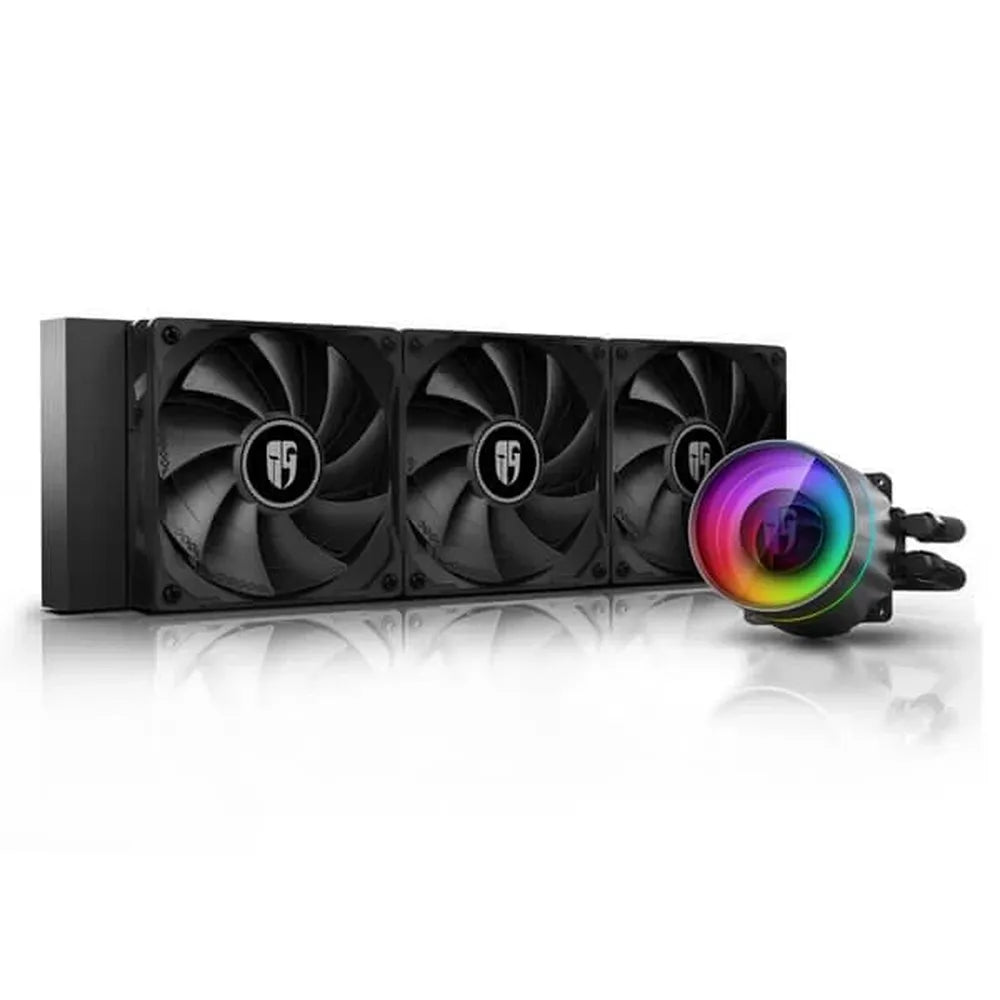

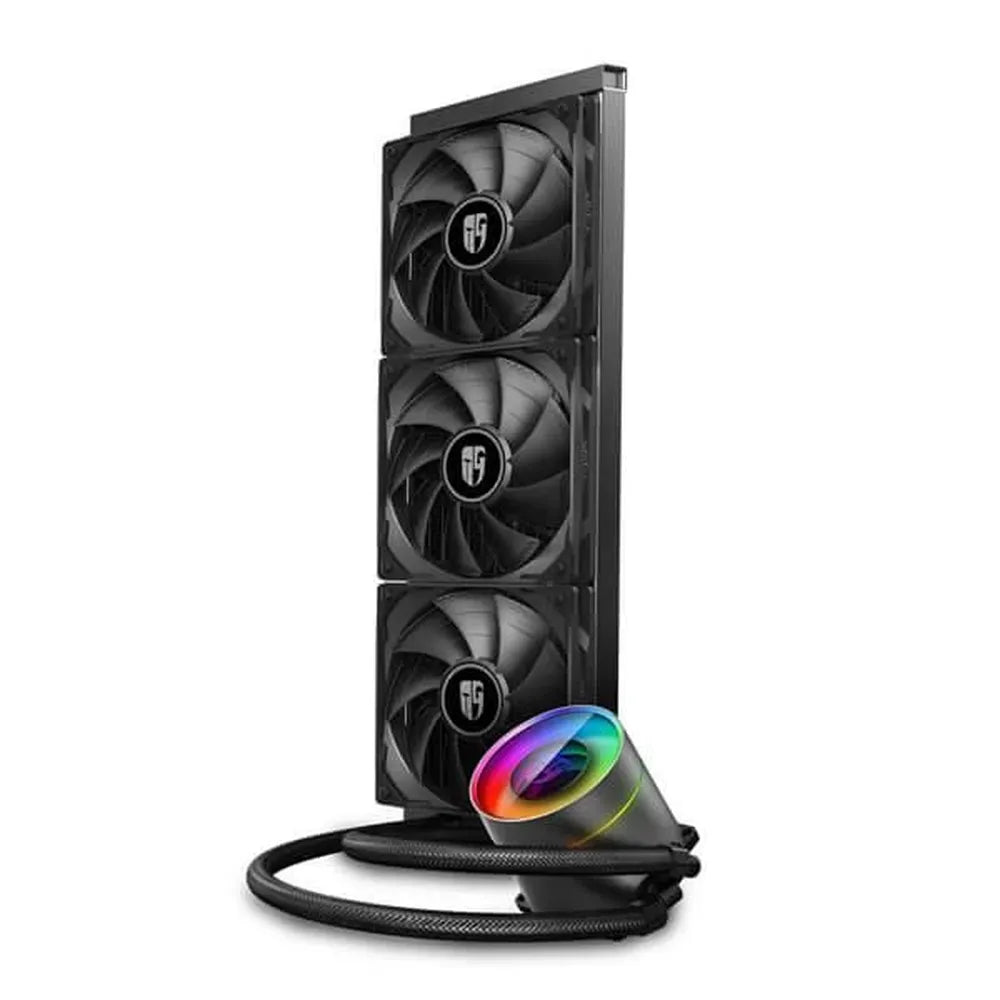

DEEPCOOL Gamerstorm Castle 360EX CPU Liquid Cooler (Black)
MPN DEEPCOOL-GAMERSTORM-CASTLE-360EX-ARGB · Brand Deepcool
Features of DEEPCOOL Gamerstorm Castle 360EX Anti-leak Tech Inside, exclusively safe. 25% more skived fins on the back side of the copper base, the heat absorption area extensively increased. Flow route optimized to reduce operation noise and energy loss. 3 specially tuned TF120 S fans are included (in matching the radiator's properties) Customizable Logo, exciting DIY experience. Ultra large copper base, extensive compatibility (including TR4). 5V Addressable RGB, adjustable through the motherb
Inclusive of GST · GST invoice available
Overview
Features of DEEPCOOL Gamerstorm Castle 360EX
- Anti-leak Tech Inside, exclusively safe.
- 25% more skived fins on the back side of the copper base, the heat absorption area extensively increased.
- Flow route optimized to reduce operation noise and energy loss.
- 3 specially tuned TF120 S fans are included (in matching the radiator's properties)
- Customizable Logo, exciting DIY experience.
- Ultra large copper base, extensive compatibility (including TR4).
- 5V Addressable RGB, adjustable through the motherboard, or included the controller.
EXCLUSIVELY SAFE
DEEPCOOL Gamerstorm CASTLE 360EX is equipped with Deepcool’s exclusive Anti-leak Technology. The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems. With this technology, Deepcool is setting a new standard for liquid cooling systems.
STRONGER MOTOR

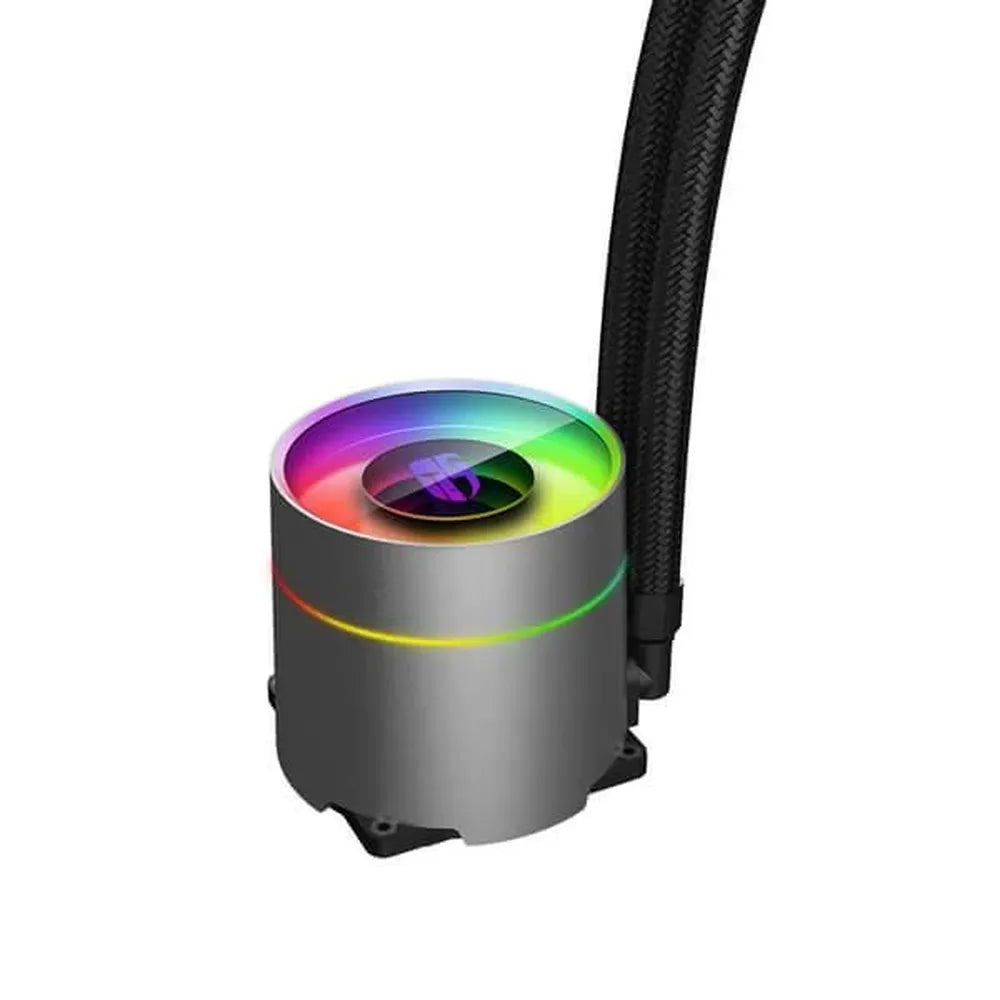

Driven by a 3-phase, x-life motor, and pressure charging impeller, CASTLE 360EX’s pump is more powerful yet quieter.
MORE EFFICIENT FLOW
With more rounded corners and optimized flow route, the upgraded double chamber design increases the heat exchange efficiency, and decreases the operation noise and energy loss. With 25% more skived fins on backside of the copper base, the heat absorption area is extensively increased.
BEST MATCHING FANS
3 specially tuned TF120 S fans are included (in matching the radiator’s properties). The fans are also equipped with patented two-layer fan blades and flow-amplifying & noise-cancelling frames.
Specifications of DEEPCOOL Gamerstorm Castle 360EX
| Model | DP-GS-H12-CSL360EX |
| Radiator Dimensions | 402×120×27 mm |
| Radiator Material | Aluminum |
| Net Weight | 1705 g |
| Tube length | 465 mm |
| Pump Dimensions | 86×75×71 mm |
| Pump Speed | 2550 RPM±10% |
| Pump Noise | 17.8 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.2 A |
| Pump Power Consumption | 2.4 W |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 500~1800 RPM±10% |
| Fan Airflow | 64.4 CFM |
| Fan Air Pressure | 2.33 mmAq |
| Fan Noise | ≤32.1 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.15 A |
| Fan Power Consumption | 1.8 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin( 5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.25 W（PUMP) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |

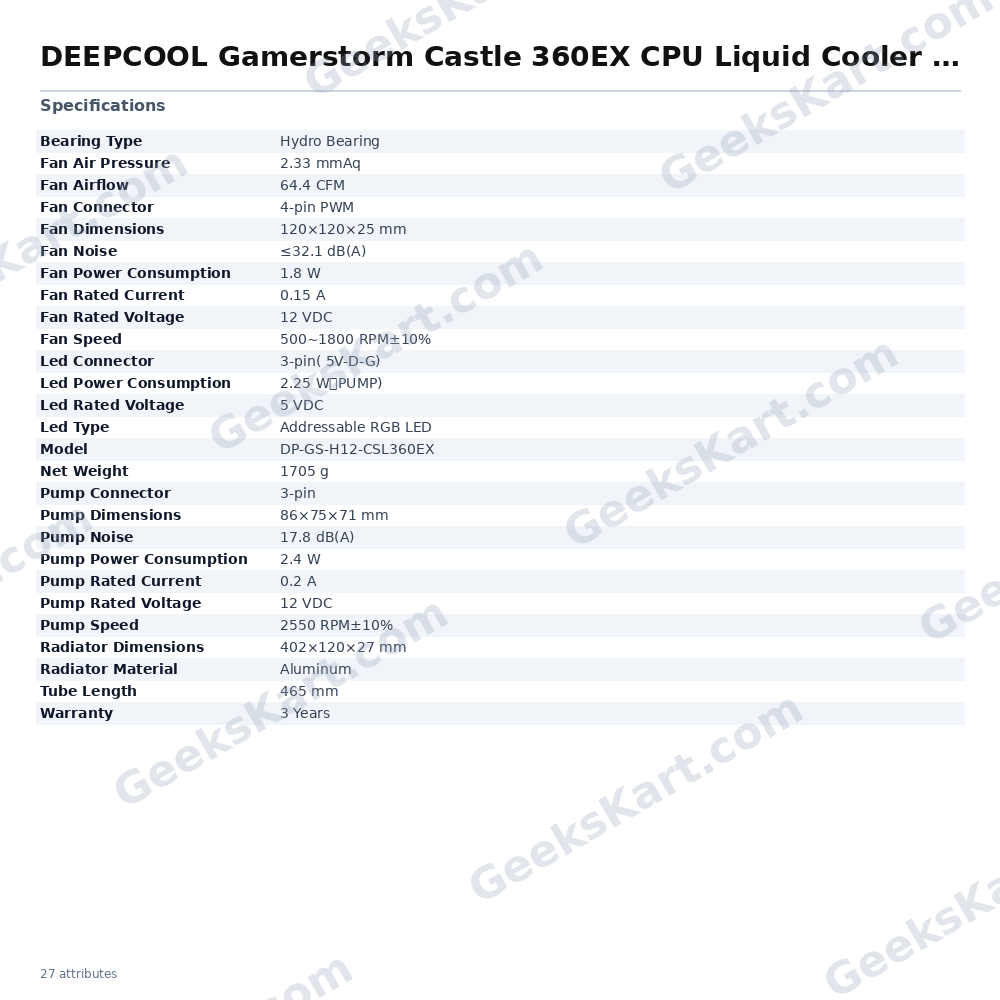

Datasheet
| Warranty | 3 Years |
|---|---|
| Model | DP-GS-H12-CSL360EX |
| Led Type | Addressable RGB LED |
| Fan Noise | ≤32.1 dB(A) |
| Fan Speed | 500~1800 RPM±10% |
| Net Weight | 1705 g |
| Pump Noise | 17.8 dB(A) |
| Pump Speed | 2550 RPM±10% |
| Fan Airflow | 64.4 CFM |
| Tube Length | 465 mm |
| Bearing Type | Hydro Bearing |
| Fan Connector | 4-pin PWM |
| Led Connector | 3-pin( 5V-D-G) |
| Fan Dimensions | 120×120×25 mm |
| Pump Connector | 3-pin |
| Pump Dimensions | 86×75×71 mm |
| Fan Air Pressure | 2.33 mmAq |
| Fan Rated Current | 0.15 A |
| Fan Rated Voltage | 12 VDC |
| Led Rated Voltage | 5 VDC |
| Radiator Material | Aluminum |
| Pump Rated Current | 0.2 A |
| Pump Rated Voltage | 12 VDC |
| Radiator Dimensions | 402×120×27 mm |
| Fan Power Consumption | 1.8 W |
| Led Power Consumption | 2.25 W（PUMP) |
| Pump Power Consumption | 2.4 W |
