DEEPCOOL Gammaxx L360 V2 RGB 360mm CPU Liquid Cooler (Black)
MPN DEEPCOOL-GAMMAXX-L360-V2-RGB · Brand Deepcool
Features of DEEPCOOL Gammaxx L360 V2 RGB 360mm CPU Liquid Cooler (Black) Anti-leak Tech Inside system equipped. Brand new water-block and fans built-in 12V RGB lighting system supports mainstream motherboards with synchronized lighting control. E-shaped micro water-channel design can effectively enhance the heat circulation efficiency and enlarge the thermal contact area. Coming with 6 ultra-bright RGB LED lights, three in-built RGB effects (constant light, breathing and meteor and PWM control w
Inclusive of GST · GST invoice available
Overview
Features of DEEPCOOL Gammaxx L360 V2 RGB 360mm CPU Liquid Cooler (Black)
- Anti-leak Tech Inside system equipped.
- Brand new water-block and fans built-in 12V RGB lighting system supports mainstream motherboards with synchronized lighting control.
- E-shaped micro water-channel design can effectively enhance the heat circulation efficiency and enlarge the thermal contact area.
- Coming with 6 ultra-bright RGB LED lights, three in-built RGB effects (constant light, breathing and meteor and PWM control with super silent performance)
- Ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size
- The ceramic axle bearings and axle cores guarantee an ultra-long service life.
- Support Mainstream Intel & AMD Socket.
About Anti-leak Tech Inside
After 3 years of R&D, DEEPCOOL launched the new standard of liquid cooling system - The Anti-leak Tech.
The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems. With this technology, Deepcool is setting a new standard for liquid
Optimized Micro Water-channel
E-shaped micro water-channel design can effectively enhance the heat circulation efficiency and enlarge the thermal contact area
RGB System Control
The brand new water block and fans built-in 12V RGB lighting system fulfill your aesthetic desires and supports synchronized lighting control by mainstream motherboards or included controller.
Support Mainstream Intel & AMD Socket
- Motor: High efficient induction motors deliver stronger liquid flow and pressure.
- Impeller: Closed impellers are designed to enhance liquid pressure.
- Axle: The ceramic axle bearings and axle cores guarantee an ultra-long service life.
- Copper Base: An ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPU of any size.
Specifications of DEEPCOOL Gammaxx L360 V2 RGB 360mm CPU Liquid Cooler (Black)
| Model | DP-H12RF-GL360V2C |
| Radiator Dimensions | 402×120×27 mm |
| Radiator Material | Aluminum |
| Tube Length | 465 mm |
| Pump Dimensions | 91×79×47 mm |
| Pump Speed | 2550 RPM±10% |
| Pump Noise | 17.8 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.21 A |
| Pump Power Consumption | 2.52 W |
| Fan Dimension | 120×120×25 mm |
| Fan Speed | 500-1800 RPM±10% |
| Fan Airflow | 69.34 CFM |
| Fan Air Pressure | 2.42 mmAq |
| Fan Noise | ≤30 dB(A) |
| Fan Connector | 4-pin |
| Bearing Type | Hydro Bearing |
| Fan Rated Current | 0.17 A |
| Fan Power Consumption | 2.04 W |
| LED Type | RGB LED |
| LED Connector | 4-pin( 12V-G-R-B) |
| LED Rated Voltage | 12 VDC |
| LED Power Consumption | 0.84 W（PUMP）/ 4.32 W (FAN×3) |
| Compatibility | Intel 165W LGA20XX/LGA1366/ LGA115X AMD 250W AM4/AM3 /AM3/AM2 / AM2/FM2 /FM2/FM1 |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |

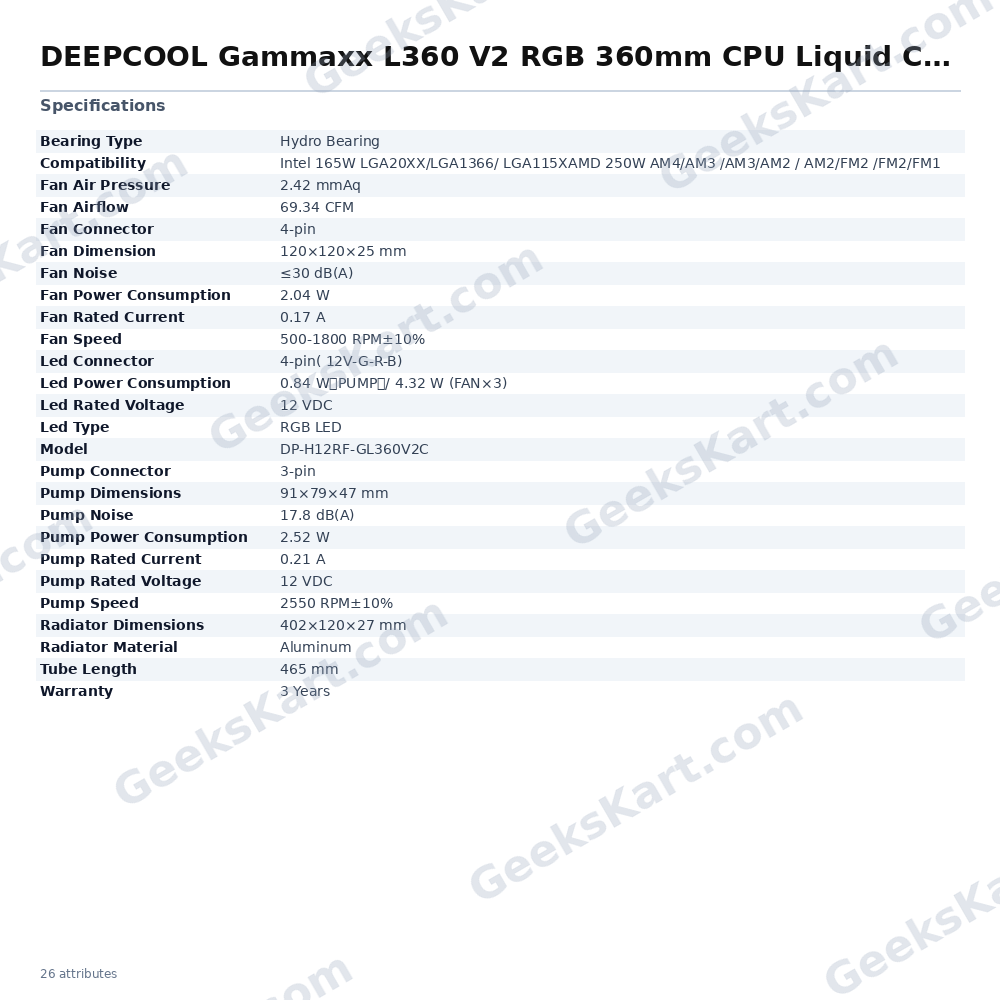

Datasheet
| Warranty | 3 Years |
|---|---|
| Model | DP-H12RF-GL360V2C |
| Led Type | RGB LED |
| Fan Noise | ≤30 dB(A) |
| Fan Speed | 500-1800 RPM±10% |
| Pump Noise | 17.8 dB(A) |
| Pump Speed | 2550 RPM±10% |
| Fan Airflow | 69.34 CFM |
| Tube Length | 465 mm |
| Bearing Type | Hydro Bearing |
| Compatibility | Intel 165W LGA20XX/LGA1366/ LGA115XAMD 250W AM4/AM3 /AM3/AM2 / AM2/FM2 /FM2/FM1 |
| Fan Connector | 4-pin |
| Fan Dimension | 120×120×25 mm |
| Led Connector | 4-pin( 12V-G-R-B) |
| Pump Connector | 3-pin |
| Pump Dimensions | 91×79×47 mm |
| Fan Air Pressure | 2.42 mmAq |
| Fan Rated Current | 0.17 A |
| Led Rated Voltage | 12 VDC |
| Radiator Material | Aluminum |
| Pump Rated Current | 0.21 A |
| Pump Rated Voltage | 12 VDC |
| Radiator Dimensions | 402×120×27 mm |
| Fan Power Consumption | 2.04 W |
| Led Power Consumption | 0.84 W（PUMP）/ 4.32 W (FAN×3) |
| Pump Power Consumption | 2.52 W |
