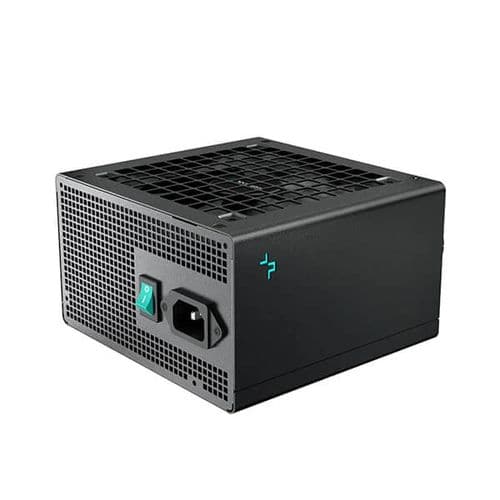

DEEPCOOL PK750D 750W 80+ Bronze Non Modular ATX 2.0 Power Supply
MPN DEEPCOOL-PK750D-750W-BRONZE-PSU · Brand Deepcool
Features of DEEPCOOL PK750D Bronze Non Modular Power Supply PK750D The DeepCool PK750D series 750W Power Supply offers reliable 80 PLUS Bronze efficiency to power computer system builds with stability and low noise performance. BEAUTIFUL IN BRONZE The PK-D series is certified 80 PLUS Bronze, delivering up to 85% efficiency under typical load minimizing excess heat waste and lowering energy costs. DC-DC CONVERSION A highly efficient DC-DC board designed for the +3.3V and +5V rails help achieve ti
Inclusive of GST · GST invoice available
Overview
Features of DEEPCOOL PK750D Bronze Non Modular Power Supply
PK750D
The DeepCool PK750D series 750W Power Supply offers reliable 80 PLUS Bronze efficiency to power computer system builds with stability and low noise performance.
BEAUTIFUL IN BRONZE
The PK-D series is certified 80 PLUS Bronze, delivering up to 85% efficiency under typical load minimizing excess heat waste and lowering energy costs.
DC-DC CONVERSION
A highly efficient DC-DC board designed for the +3.3V and +5V rails help achieve tighter voltage regulation and improve system compatibility for next-generation components.
TOUGH AND DURABLE
The Deepcool Power Supply Designed to operate effortlessly in high temperatures up to 40°C and high altitudes up to 5000m while providing continuous stable power output.
ERP LOT 6 COMPLIANT
Designed to be highly power efficient when in power standby mode to meet international ErP Lot 6 standards to lower overall energy consumption.
Technical Details
Brand: DeepCool
Model: PK750D
Technical Specs
Type: ATX12V V2.4
Product Dimensions: 150×140×86mm (W x L x H)
80PLUS Certifications: Bronze
Fan Size: 120mm
Fan Bearing: Hypro Bearing
Topology: Active PFC+DC to DC
Capacitors: Taiwan capacitor
Power Good Signal: 100-150ms
Hold Up Time: ≥16ms(80% Load)
Efficiency: ≥85% Under Typical Load(50% Loading)
Protection: SCP,OPP,OTP,OVP,OCP,UVP
Operation Temperature: 0 - 40 °C
Regulatory: CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BIS
Erp Regulation: ErP 2013
MTBF: 100,000 Hours
Get the best 80 Plus Bronze cpu power supply price from us today!

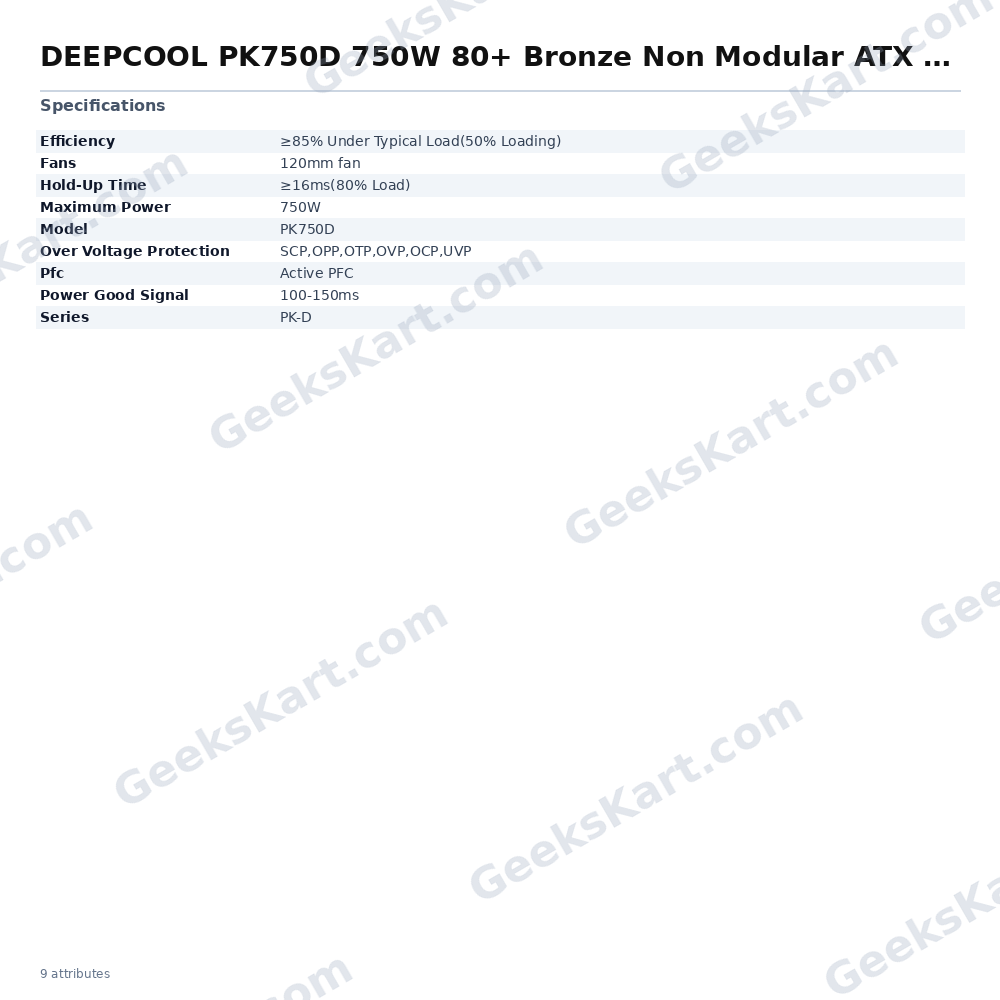

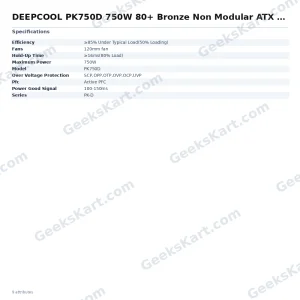

Specifications of DEEPCOOL PK750D 750W 80+ Bronze Non Modular Power Supply
| Model | |
| Brand | Deepcool |
| Model | PK750D |
| Series | PK-D |
| Spec | |
| Type | ATX 12V V2.4 |
| Maximum Power | 750W |
| Fans | 120mm fan |
| PFC | Active PFC |
| Power Good Signal | 100-150ms |
| Hold-up Time | ≥16ms(80% Load) |
| Efficiency | ≥85% Under Typical Load(50% Loading) |
| Over Voltage Protection | SCP,OPP,OTP,OVP,OCP,UVP |
Datasheet
| Pfc | Active PFC |
|---|---|
| Fans | 120mm fan |
| Model | PK750D |
| Series | PK-D |
| Efficiency | ≥85% Under Typical Load(50% Loading) |
| Hold-Up Time | ≥16ms(80% Load) |
| Maximum Power | 750W |
| Power Good Signal | 100-150ms |
| Over Voltage Protection | SCP,OPP,OTP,OVP,OCP,UVP |
