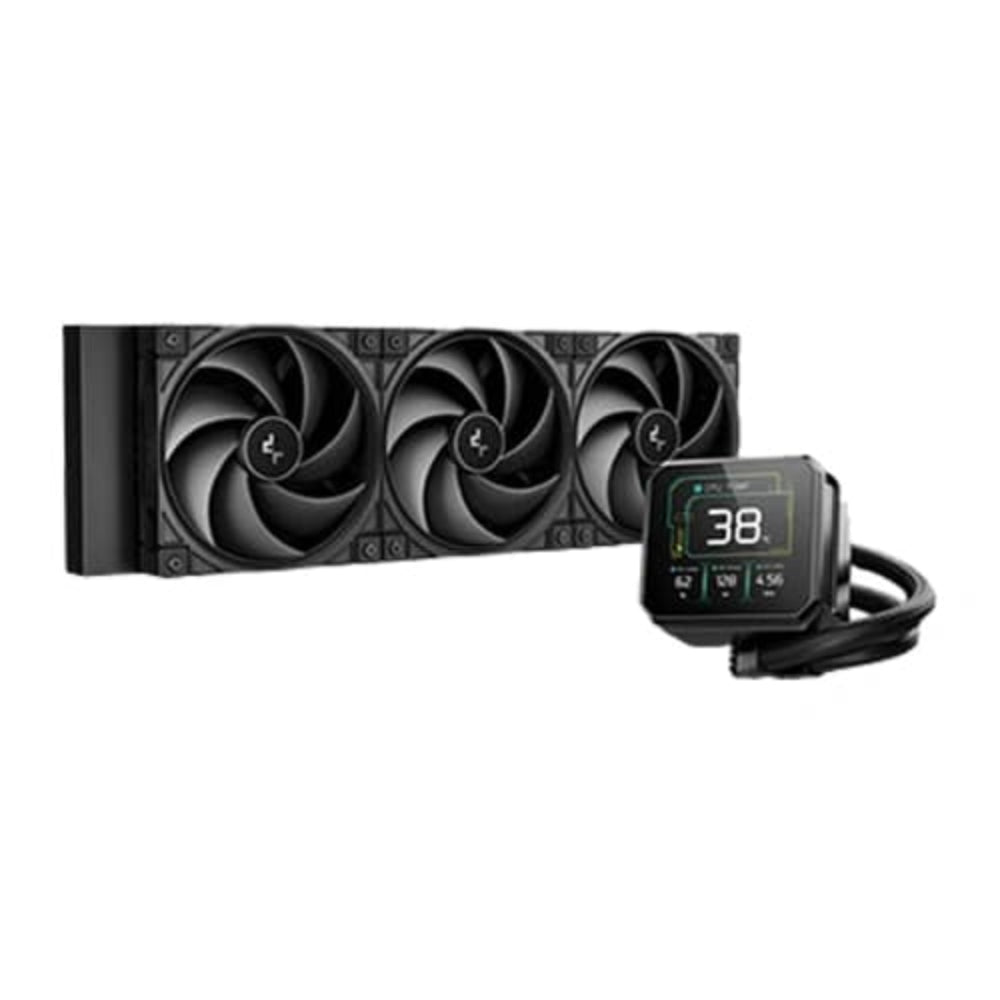

DEEPCOOL Spartacus 360mm CPU Liquid Cooler ( Black )

The DEEPCOOL Spartacus 360mm AIO CPU Liquid Cooler (Black) is a high-performance all-in-one liquid cooling solution designed for enthusiast desktop builds. At its centrepiece is a 3.4-inch IPS LCD display running at 480×480 resolution with support for 16.7 million colours, letting you monitor real-time system statistics and customise the visual layout using DEEPCOOL's DeepCreative software — all without touching BIOS settings. Powering the cooling loop is a 6th-generation pump featuring a 3-phase, 6-slot, 4-pole motor with FOC (Field-Oriented Control), operating across a PWM-adjustable range of 2,500 to 3,400 RPM (±10%). The expanded copper cold plate and refined microfin geometry are engineered to maximise thermal transfer, with the source specifying a heat dissipation capacity of up to 320 W. An offset bracket is included specifically for Intel LGA1851 24-core and 20-core platforms (such as Core Ultra 9 285K and Core Ultra 7 265K), aligning the cold plate with the CPU's primary hotspot. Three 120mm PWM fans (120×120×25 mm each) are mounted on the 402×120×27 mm aluminium radiator. Each fan spins between 500 and 2,500 RPM (±10%), with a near-silent 0 RPM stop mode activating below 5% PWM duty. Measured airflow reaches 79.89 CFM per fan at a static pressure of 3.30 mmAq, while acoustic output is rated at ≤32.23 dB(A). Hydro bearings ensure long-term durability. Fans and pump connect via 4-pin PWM headers; board Addressable RGB LEDs use a 3-pin (+5V-D-G) connector at 5 VDC. A single 10-pin connector integrates power and signal for both the pump and the LCD display, simplifying cable management. A centralised hub provides independent per-channel control of fan speeds and ARGB lighting, with magnetic and screw mounting options for the hub itself. The magnetic pump cap with pogo-pin contacts allows tool-free removal and a secure, stable connection. DEEPCOOL's patented Anti-Leak Technology uses an internal pressure-relief valve to regulate and release excess internal pressure, extending cooler longevity. Socket compatibility covers Intel LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, and LGA1155, as well as AMD AM5 and AM4, making it compatible with a wide range of current and previous-generation platforms. Verified Specifications: • Model: R-SPT360-BKDSMP-G-1 • Radiator: 402×120×27 mm, aluminium, 360 mm • Tube length: 410 mm • Pump: 99×91×65 mm | 2,500–3,400 RPM ±10% | 4-pin PWM | 12 VDC | 0.29 A | 3.48 W • Fans (×3): 120×120×25 mm | 500–2,500 RPM ±10% | 79.89 CFM | 3.30 mmAq | ≤32.23 dB(A) | Hydro bearing | 4-pin PWM | 12 VDC | 0.24 A | 2.88 W each • Display: 3.4-inch IPS TFT LCD, 480×480 px, 16.7 M colours • LED: ARGB, 3-pin (+5V-D-G), 5 VDC, 2.0 W (pump unit) • Socket: LGA1851/1700/1200/1151/1150/1155, AM5, AM4 • Warranty: 5 years
