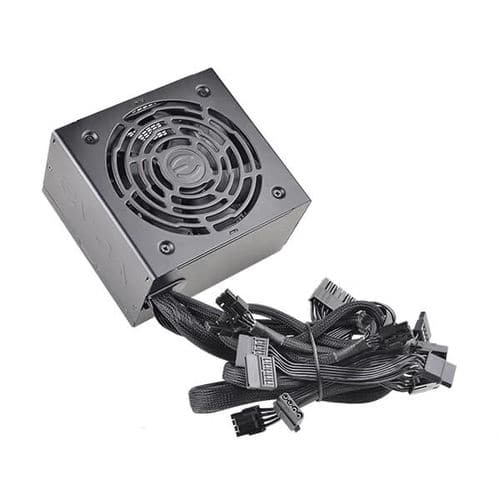

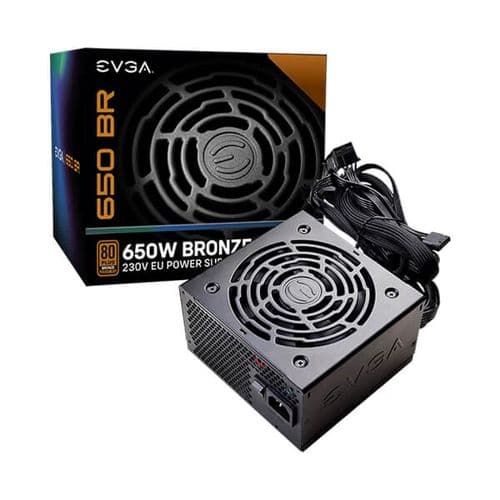

EVGA 650 BR 80+ Bronze Semi Modular Power Supply (650 W)

The EVGA 650 BR is a 650-watt ATX power supply designed for mid-range desktop builds that demand reliable, efficient power delivery without overspending. Certified to the 80 PLUS Bronze 230V EU standard, it achieves up to 88% typical efficiency, meaning less energy is wasted as heat during normal operation and your electricity costs stay in check over the long run. A single 12V rail topology simplifies power delivery to your CPU and graphics card, reducing the risk of voltage imbalance across heavy loads. Active Power Factor Correction (APFC) ensures the unit draws cleaner power from your wall outlet, which benefits both the PSU longevity and your home electrical circuit. A DC-to-DC converter on the secondary side improves the stability of the 3.3V and 5V rails, which is especially important for storage drives, USB controllers, and other sensitive components. The 650 BR includes a comprehensive suite of hardware protections: Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Current Protection (OCP), Over Power Protection (OPP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP). Together these safeguards help protect your components from electrical anomalies. A 120mm long-sleeve bearing fan operates automatically, adjusting speed based on thermal load for near-silent running under light workloads. Connectivity is well-suited for mainstream builds. Two PCIe 8-pin (6+2) connectors support a single mid-range GPU, while six SATA connectors and three 4-pin peripheral connectors accommodate multiple storage devices and accessories. The semi-modular design keeps the main ATX and EPS cables permanently attached, while peripheral cables can be removed when not in use to improve airflow and cable management. Verifiable Specifications: – Total Wattage: 650W – Efficiency: 88% typical (80 PLUS Bronze 230V EU certified) – Input Voltage: 200–240V AC, 4A, 50/60Hz – Form Factor: ATX – Dimensions: 86mm (H) × 150mm (W) × 140mm (L) – Net Weight: 4.4 lbs – Fan: 120mm Long Sleeve Bearing – MTBF: 100,000 hours – 24-pin ATX: 1× (20+4) – EPS CPU: 1× 8-pin (4+4) – PCIe: 2× 8-pin (6+2) – SATA: 6× – 4-Pin Peripheral: 3× – Floppy: 1× – Modular Cables: Semi-modular (peripheral cables detachable) – Japanese Capacitors: No – ECO Mode: No – Warranty: 3 Years – Approvals: TUV, CB, CE, RCM, RoHS; ErP Lot 3 2014 compliant – UPC: 843368074951 | EAN: 4250812445599
