EVGA 750 GQ 750W 80+ Gold Semi Modular ATX 3.1 Power Supply
MPN EVGA-750-GQ-TX-3-1 · Brand EVGA
Features of EVGA 750 GQ 750W 80+ Gold Semi Modular ATX 3.1 Power Supply 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads 5 Year Warranty and unparalleled EVGA Customer Support Modular Design to reduce clutter and improve airflow Active Clamp +DC to DC design for efficient operation Whisper Silent with 135mm Fluid Dynamic Bearing Fan NVIDIA SLI & AMD Crossfire Ready Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Un
Inclusive of GST · GST invoice available
Overview
Features of EVGA 750 GQ 750W 80+ Gold Semi Modular ATX 3.1 Power Supply
- 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
- 5 Year Warranty and unparalleled EVGA Customer Support

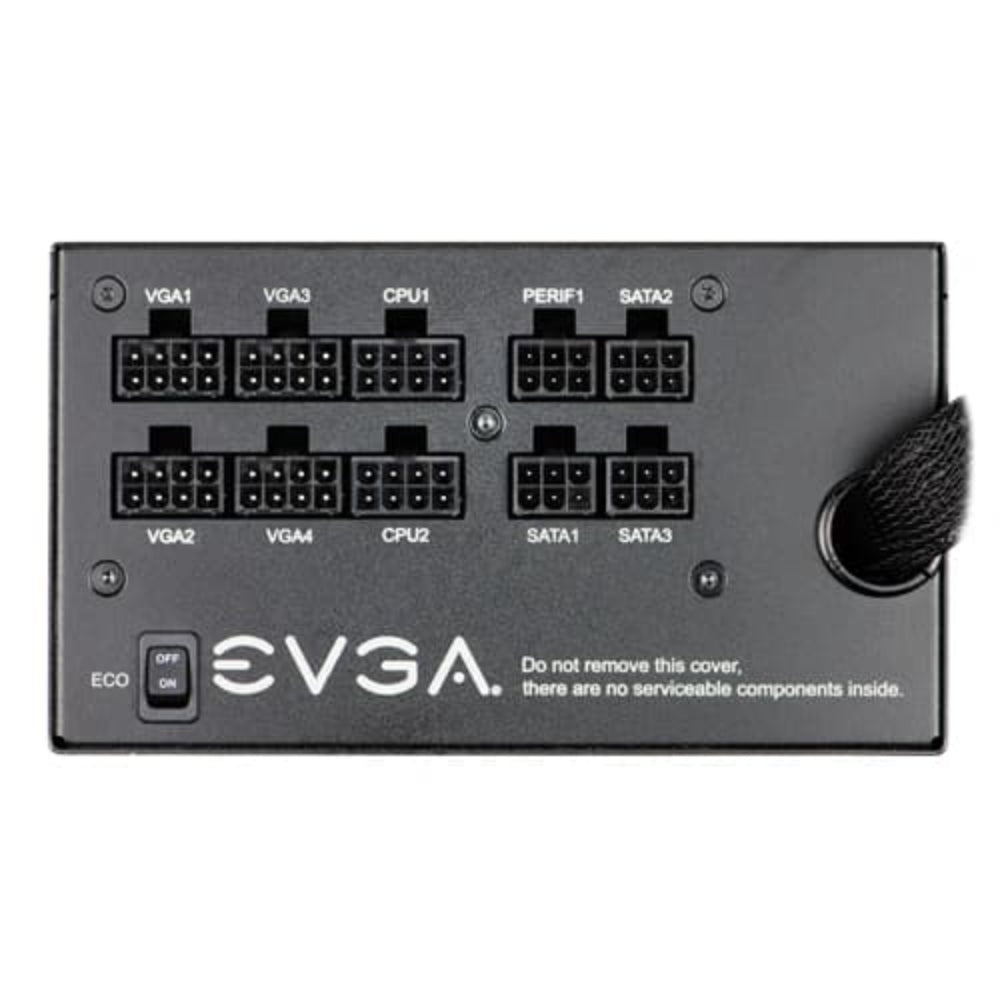

- Modular Design to reduce clutter and improve airflow
- Active Clamp +DC to DC design for efficient operation
- Whisper Silent with 135mm Fluid Dynamic Bearing Fan
- NVIDIA SLI & AMD Crossfire Ready
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- 100% Japanese Capacitors ensure long-term reliability
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- Active Power Factor Correction
Operating Temperature
0° to 50° C
Japanese Capacitors
100%
ECO Mode
Yes
Size
85mm (H) x 150mm (W) x 180mm (L)
Approvals
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Fan Size / Bearing
135mm Fluid Dynamic Bearing

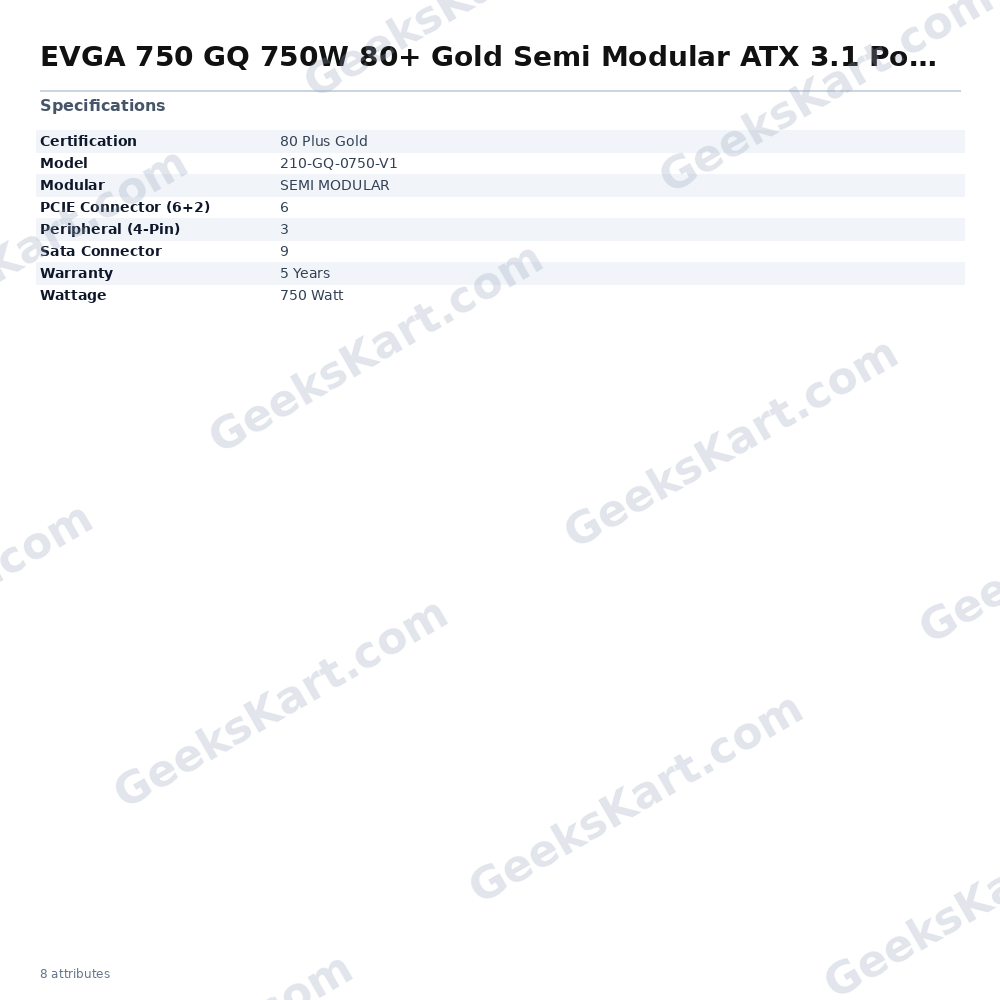

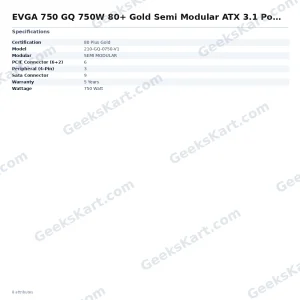

Specifications of EVGA 750 GQ 750W 80+ Gold Semi Modular ATX 3.1 Power Supply
| Model | 210-GQ-0750-V1 |
| Wattage | 750 Watt |
| Certification | 80 Plus Gold |
| Modular | SEMI MODULAR |
| PCIe Connector (6+2) | 6 |
| SATA Connector | 9 |
| Peripheral (4-Pin) | 3 |
| Warranty | 5 Years |
| Note*** | *** Features, Price, Specifications are subject to change without notice.Images use for Representation Purpose Only. |
Datasheet
| Warranty | 5 Years |
|---|---|
| Model | 210-GQ-0750-V1 |
| Modular | SEMI MODULAR |
| Wattage | 750 Watt |
| Certification | 80 Plus Gold |
| Sata Connector | 9 |
| Peripheral (4-Pin) | 3 |
| PCIE Connector (6+2) | 6 |
