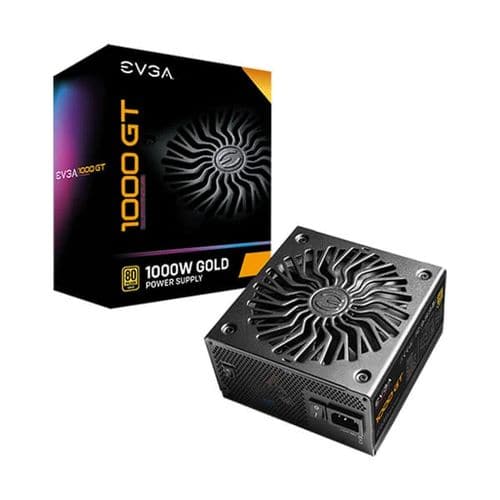

EVGA SuperNova 1000 GT 80+ Gold Fully Modular Power Supply (1000 W)

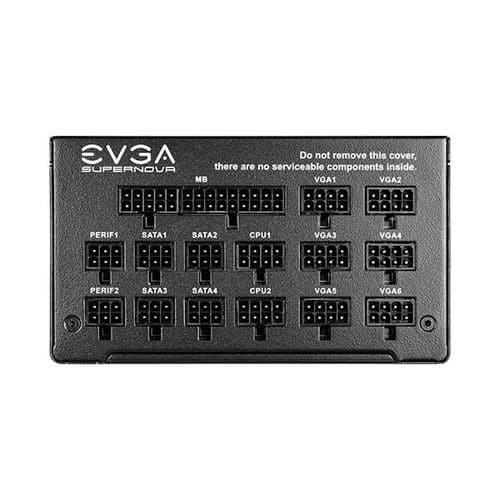

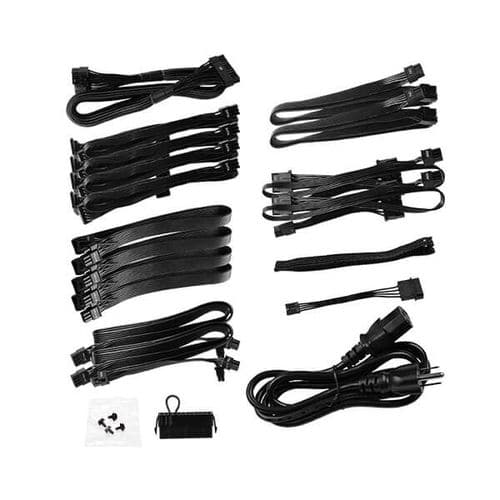

The EVGA SuperNova 1000 GT is a fully modular, high-efficiency desktop PC power supply rated at 1000 watts and certified 80 PLUS Gold. Its compact 150 mm depth makes it suitable for a wide range of mid-tower and full-tower ATX chassis without sacrificing connectivity or airflow. All capacitors inside the SuperNova 1000 GT are sourced from Japanese manufacturers, a design choice that supports long-term electrical stability and extended operational life. The unit carries a rated MTBF of 100,000 hours under standard conditions, and EVGA backs it with a 10-year warranty, one of the longer coverage periods available for consumer power supplies. Cooling is handled by a 135 mm fan with a Fluid Dynamic Bearing, chosen for its low-noise profile and resistance to wear over time. EVGA’s ECO Intelligent Thermal Control System allows the fan to remain stationary at low-to-medium loads, making the unit effectively silent during everyday computing and light gaming workloads. Under heavier loads the fan spins up as needed to maintain safe temperatures, with dual Over Temperature Protection sensors on both the primary and secondary PCBs providing an additional safety layer. The single +12V rail delivers up to 83.3 A (1000 W), providing clean, stable voltage distribution for modern CPUs and multi-GPU configurations. A comprehensive suite of hardware protections is built in: Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Current Protection (OCP), Over Power Protection (OPP), Short Circuit Protection (SCP), and dual Over Temperature Protection (OTP). Being fully modular, every cable — including the 24-pin ATX mainboard connector — detaches completely, allowing builders to route only the cables required and keep unused cables out of the case entirely. Verified Specifications: – Wattage: 1000 W total output – Efficiency: 80 PLUS Gold certified; 90% or higher at 115 VAC, 92% or higher at 220–240 VAC (typical loads) – Modular type: Fully modular – Dimensions: 86 mm (H) × 150 mm (W) × 150 mm (L) – Fan: 135 mm Fluid Dynamic Bearing – +12V rail: 83.3 A max / 1000 W – +3.3V & +5V combined: 25 A max / 130 W – +5Vsb: 3 A / 15 W; −12V: 0.5 A / 3.6 W – Input voltage: 100–240 V~ (universal) – Input frequency: 50/60 Hz – Operating temperature: 0 °C to 50 °C – MTBF: 100,000 hours – Connectors: 1× 24-pin ATX, 2× 8-pin EPS (4+4), 8× 8-pin PCIe (6+2), 12× SATA, 4× 4-pin peripheral, 1× floppy – Capacitors: 100% Japanese – Warranty: 10 years – Certifications: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS; ErP Lot 3 2014 compliant – Gross weight: 8.80 lbs
