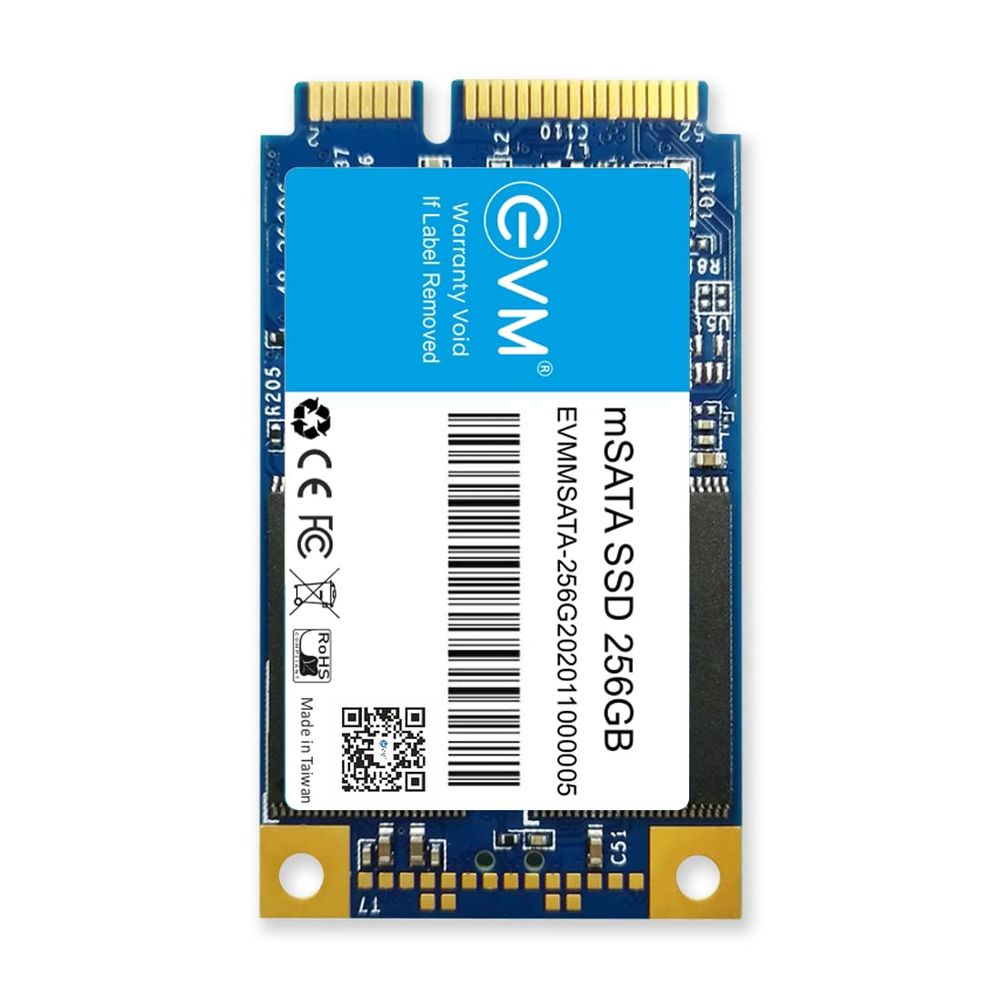

EVM 256GB mSATA Internal Solid State Drive ( SSD )
MPN EVM-256GB-MSATA-EVM · Brand EVM
The EVM 256GB mSATA Internal SSD uses a SATA 6 Gbps interface and 3D TLC NAND to deliver sequential reads up to 520 MB/s and writes up to 500 MB/s, backed by a 5-year warranty and 100 TB TBW endurance rating
Inclusive of GST · GST invoice available
Overview
The EVM 256GB mSATA Internal Solid State Drive brings solid-state speed and reliability to compact computing platforms that use the mSATA form factor. Running on a SATA 6.0 Gbps interface, it delivers sequential read speeds of up to 520 MB/s and sequential write speeds of up to 500 MB/s, giving everyday tasks such as OS boot, application launch, and file transfers a meaningful performance boost over traditional spinning hard drives. Built with 3D TLC NAND flash memory, the drive balances capacity and endurance for consumer workloads. Random 4K read performance reaches up to 79,000 IOPS, while random 4K write performance reaches up to 25,000 IOPS, supporting smooth multitasking and responsive system behaviour. Power efficiency is another advantage of this drive. Idle consumption sits at just 0.195 W, with an average active draw of 0.5 W and peaks of 1.17 W during reads and 2.32 W during writes — figures that help preserve battery life in supported mini-PCs and older ultrabook platforms. The drive is rated for an operating temperature range of 0 °C to 70 °C and a storage temperature range of −40 °C to 85 °C, suiting a variety of indoor deployment environments. Vibration tolerance is specified at 2.17 G peak (7–800 Hz) during operation and 20 G peak (10–2000 Hz) when non-operating, offering resilience against incidental shock. At 50.8 mm × 29.85 mm × 4.85 mm and weighing only 6.7 g, it slots cleanly into mSATA slots without any bracket or cable requirement. Total Bytes Written (TBW) endurance is rated at 100 TB for the 256 GB capacity, and EVM backs the drive with a 5-year manufacturer warranty. Verified Specifications: - Form Factor: mSATA - Capacity: 256 GB - Interface: SATA 6.0 Gbps - NAND Type: 3D TLC - Sequential Read: up to 520 MB/s - Sequential Write: up to 500 MB/s - Random 4K Read: up to 79,000 IOPS - Random 4K Write: up to 25,000 IOPS - TBW: 100 TB - Power (Idle / Avg / Max Read / Max Write): 0.195 W / 0.5 W / 1.17 W / 2.32 W - Operating Temperature: 0 °C to 70 °C - Storage Temperature: −40 °C to 85 °C - Dimensions: 50.8 mm × 29.85 mm × 4.85 mm - Weight: 6.7 g - Warranty: 5 Years

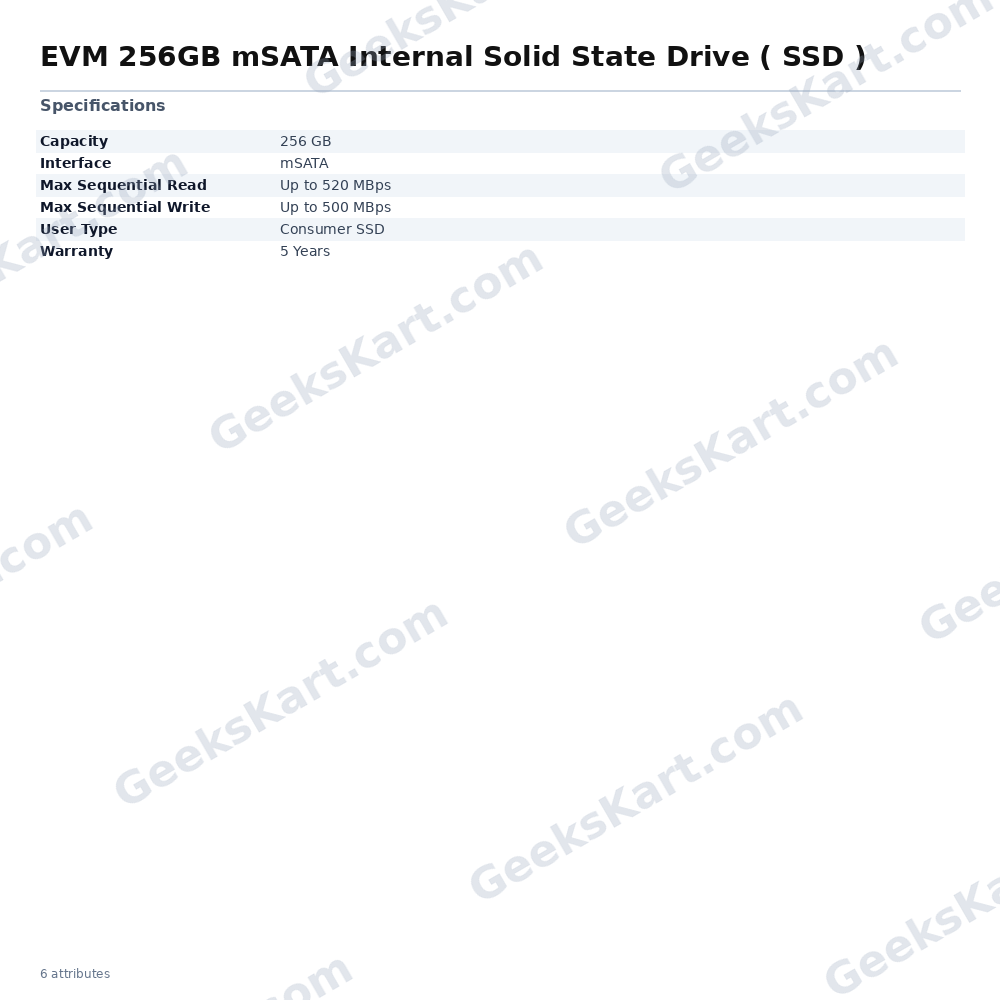

Datasheet
| Warranty | 5 Years |
|---|---|
| Capacity | 256GB |
| Interface | mSATA |
| User Type | Consumer SSD |
| Max Sequential Read | Up to 520 MBps |
| Max Sequential Write | Up to 500 MBps |
