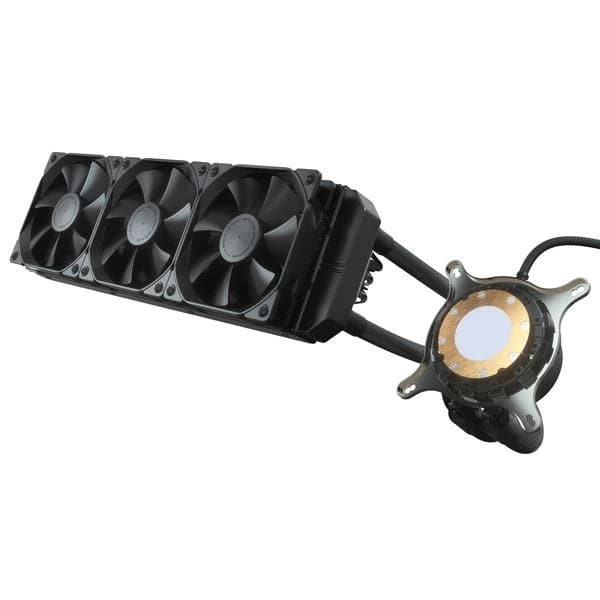

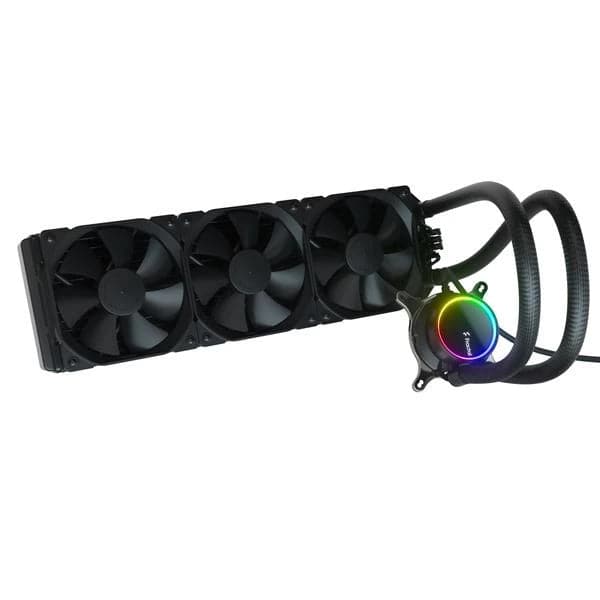

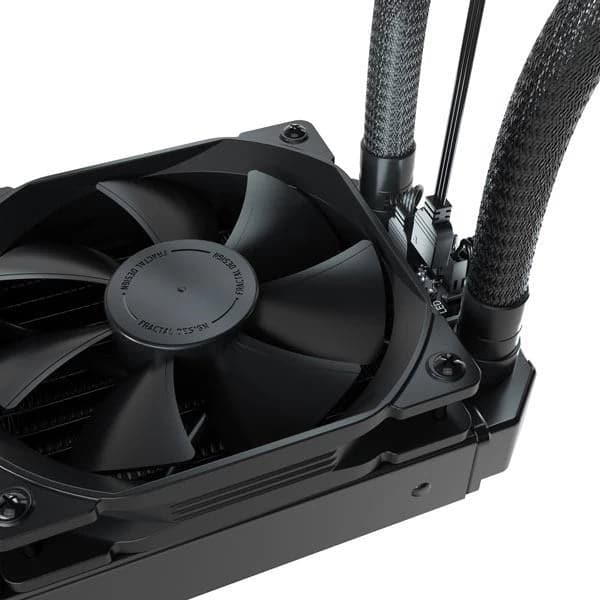

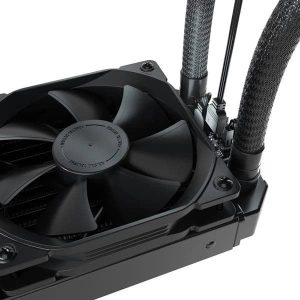

FRACTAL DESIGN Celsius + S28 Prisma ARGB 280mm CPU Liquid Cooler (Black)
MPN FRACTAL-DESIGN-CELSIUS-S36 · Brand Fractal Design
Features of FRACTAL DESIGN Celsius + S28 Prisma ARGB 280mm CPU Liquid Cooler (Black) Tinted glass pump face with backlit logo and ARGB LED effects Articulating elbow fittings make tubes easier to route and reduces tension on the pump Backed by a 5-year warranty for extended peace of mind Specifications of FRACTAL DESIGN Celsius + S28 Prisma ARGB 280mm CPU Liquid Cooler (Black) Product code FD-W-2-S3601 Sockets supported (Intel) 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066 Sockets suppo
Inclusive of GST · GST invoice available
Overview
Features of FRACTAL DESIGN Celsius + S28 Prisma ARGB 280mm CPU Liquid Cooler (Black)

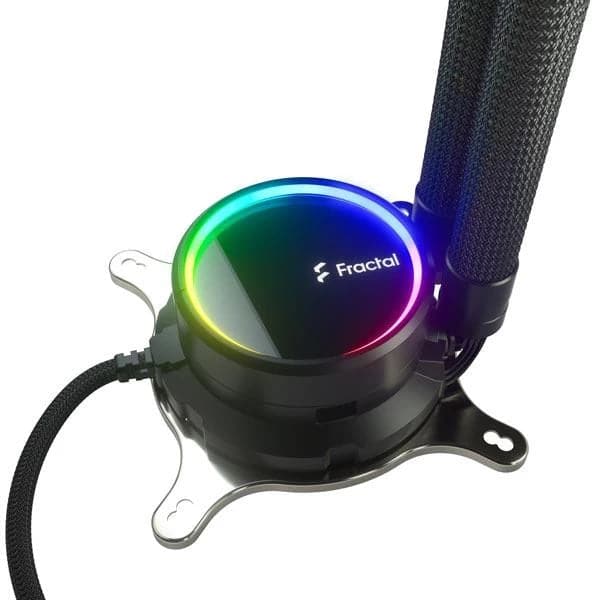

- Tinted glass pump face with backlit logo and ARGB LED effects
- Articulating elbow fittings make tubes easier to route and reduces tension on the pump
- Backed by a 5-year warranty for extended peace of mind
Specifications of FRACTAL DESIGN Celsius + S28 Prisma ARGB 280mm CPU Liquid Cooler (Black)
| Product code | FD-W-2-S3601 |
| Sockets supported (Intel) |
1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066 |
| Sockets supported (AMD) |
AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box) |
| Coldplate material | Copper |
| Thermal paste | Pre-applied |
| Tube length | 400 mm |
| Tube material | Low-permeability rubber with braided nylon sleeve |
| Fittings, block side | Articulating 90-degree elbow |
| Fittings, radiator side | Straight rotary |
| Fan control | Dual mode (Auto/PWM) Note:-The Celsius+ is NOT compatible with the Adjust R1 |
| Fan specifications | |
| Fan type | Dynamic X2 GP-12 PWM |
| Rotational speed | 500 – 2000 RPM |
| Bearing | LLS |
| PWM control | Yes |
| Acoustical noise (full speed) |
32.2 dBA |
| Maximum air flow | 87.6 CFM |
| Maximum static pressure |
2.3 mm H2O |
| nput voltage | 12V DC |
| Maximum input current | 0.2A |
| MTBF | 100,000 hours |
| Pump specifications | |
| Rotational speed | 800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C |
| Bearing type | Ceramic bearing and shaft |
| PWM control | Yes |
| Acoustical noise (full speed) | 20 dBA |
| Maximum pressure | 14.4 kPa / 1.46 mm H2O /2.0 PSI |
| Input voltage | 12V DC |
| Input current (without fans) | 0.36A |
| MTTF | 50,000 hours |
| Block height | 45 mm |
| Block measurements (with fittings) | 86 x 75 mm |
| Block diameter (main block body) | 62 mm |
| Radiator specifications | |
| Dimensions | 123 x 30 x 403 mm |
| Housing material | Aluminum |
| Fin material | Aluminum |
| Fan screw threads | 6-32 |
| Other | |
| Package Dimensions | 470 x 180 x 145 mm |
| Warranty | 5 Years |
| Note | ***Features, Price, Specifications are subject to change without notice. |

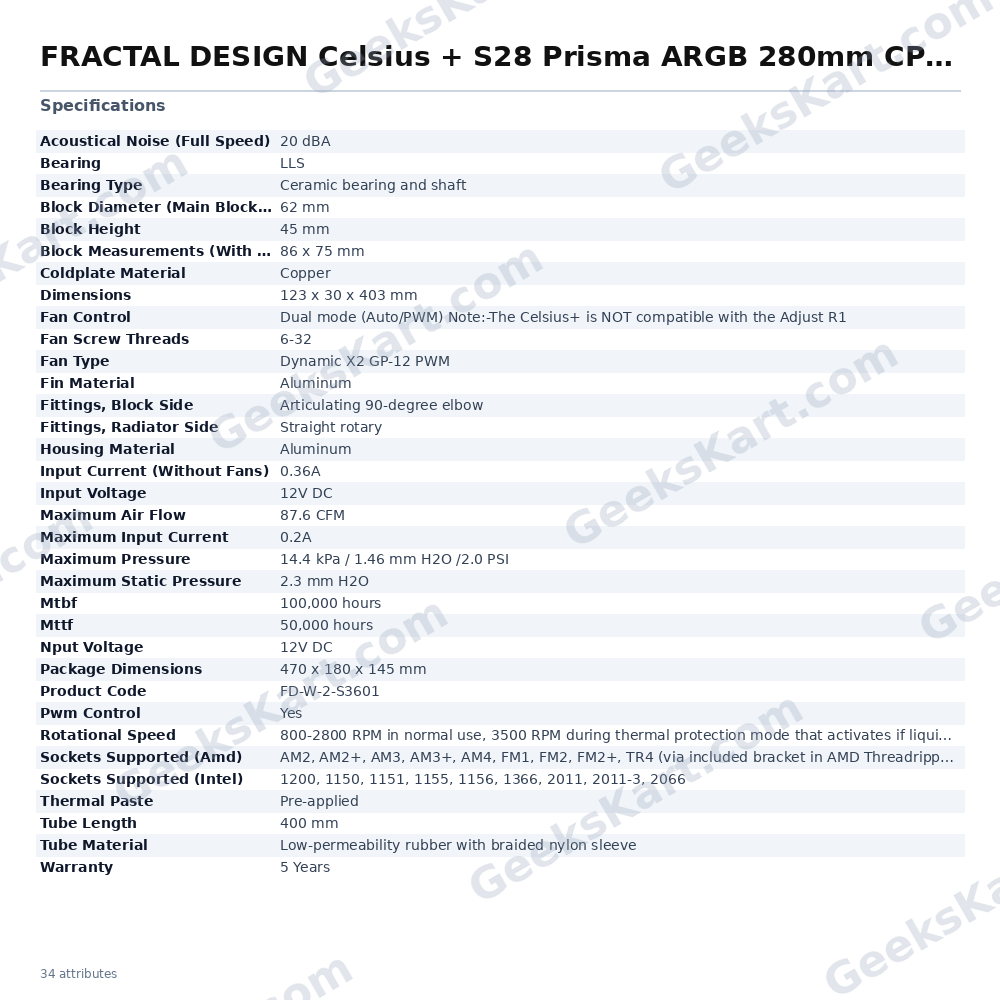

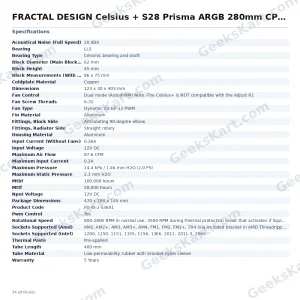

Datasheet
| Warranty | 5 Years |
|---|---|
| Mtbf | 100,000 hours |
| Mttf | 50,000 hours |
| Bearing | LLS |
| Fan Type | Dynamic X2 GP-12 PWM |
| Dimensions | 123 x 30 x 403 mm |
| Fan Control | Dual mode (Auto/PWM) Note:-The Celsius+ is NOT compatible with the Adjust R1 |
| Pwm Control | Yes |
| Tube Length | 400 mm |
| Bearing Type | Ceramic bearing and shaft |
| Block Height | 45 mm |
| Fin Material | Aluminum |
| Product Code | FD-W-2-S3601 |
| Nput Voltage | 12V DC |
| Input Voltage | 12V DC |
| Thermal Paste | Pre-applied |
| Tube Material | Low-permeability rubber with braided nylon sleeve |
| Housing Material | Aluminum |
| Maximum Air Flow | 87.6 CFM |
| Maximum Pressure | 14.4 kPa / 1.46 mm H2O /2.0 PSI |
| Rotational Speed | 800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C |
| Fan Screw Threads | 6-32 |
| Coldplate Material | Copper |
| Package Dimensions | 470 x 180 x 145 mm |
| Fittings, Block Side | Articulating 90-degree elbow |
| Maximum Input Current | 0.2A |
| Fittings, Radiator Side | Straight rotary |
| Maximum Static Pressure | 2.3 mm H2O |
| Sockets Supported (Amd) | AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box) |
| Sockets Supported (Intel) | 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066 |
| Input Current (Without Fans) | 0.36A |
| Acoustical Noise (Full Speed) | 20 dBA |
| Block Diameter (Main Block Body) | 62 mm |
| Block Measurements (With Fittings) | 86 x 75 mm |
