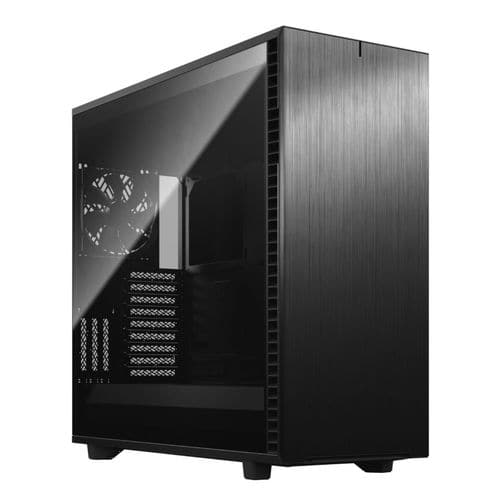

Features of FRACTAL DESIGN Define 7 XL Dark Tint EATX Full Tower Cabinet
The Fractal Design cabinet sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use.
- Plenty of room for massive builds
- Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
- Spacious, extensively adaptable dual-layout interior of EATX Cabinet easily accommodates large motherboards up to E-ATX and SSI-EEB
- Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
- Ventilated PSU shroud with two-part removable cover
- Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
- Superlative storage possibilities
- Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 Multibrackets included)
- Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board
- Sturdy new HDD cage design with vibration damped trays
- 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size
- Airflow and cooling
- Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
- Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
- The two 5.25″ ODD bays can be converted to an additional front fan mount with filtered louver covering
Plenty of room for massive builds
-
Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
-
Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
-
Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
-
Ventilated PSU shroud with two-part removable cover
-
Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
Superlative storage possibilities
-
Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 Multibrackets included)
-
Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board
-
Sturdy new HDD cage design with vibration damped trays
-
13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size
Airflow and cooling
-
Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
-
Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
-
The two 5.25″ ODD bays can be converted to an additional front fan mount with filtered louver covering
Exceptionally silent
Silence-optimized construction with industrial sound-damped front, top, and side panels
USB Type-C
USB 3.1 Gen 2 Type-C with speeds up to 10 Gbps
SSI-EEB
Easily holds your SSI-EEB motherboard
Moduvent
Top panel effortlessly swaps from sound damped solid steel to filtered ventilation
Versatile new Multibracket

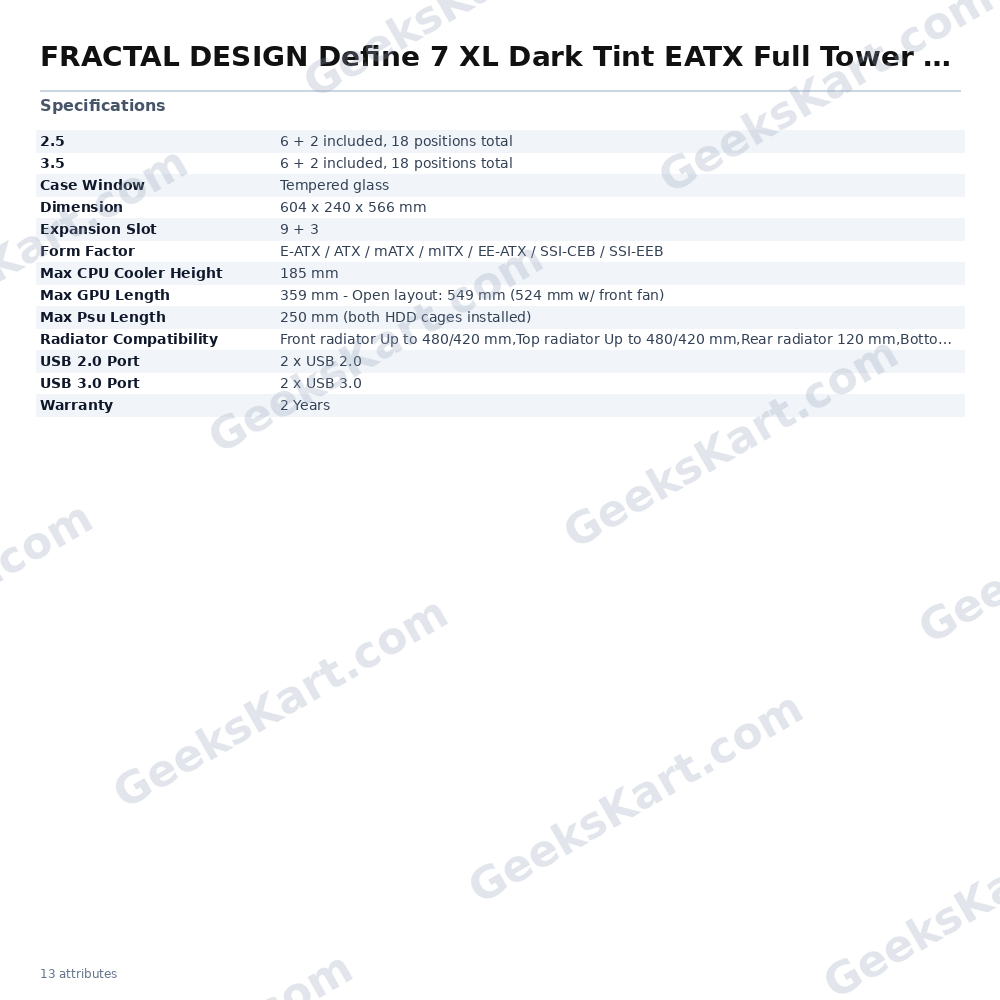

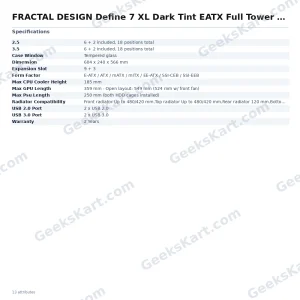

Specifications of FRACTAL DESIGN Define 7 XL Dark Tint EATX Full Tower Cabinet
| Dimension: | 604 x 240 x 566 mm |
| Max GPU Length: | 359 mm – Open layout: 549 mm (524 mm w/ front fan) |
| Max PSU Length: | 250 mm (both HDD cages installed) |
| Max CPU Cooler Height: | 185 mm |
| Expansion Slot: | 9 + 3 |
| DVD Drive Bay: | NA |
| 3.5: | 6 + 2 included, 18 positions total |
| 2.5: | 6 + 2 included, 18 positions total |
| USB 2.0 Port: | 2 x USB 2.0 |
| USB 3.0 Port: | 2 x USB 3.0 |
| Case Window: | Tempered glass |
| Form Factor: | E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB |
| Radiator Compatibility: | Front radiator Up to 480/420 mm,Top radiator Up to 480/420 mm,Rear radiator 120 mm,Bottom radiator Up to 240/280 mm |
| Warranty: | 2 Years |
