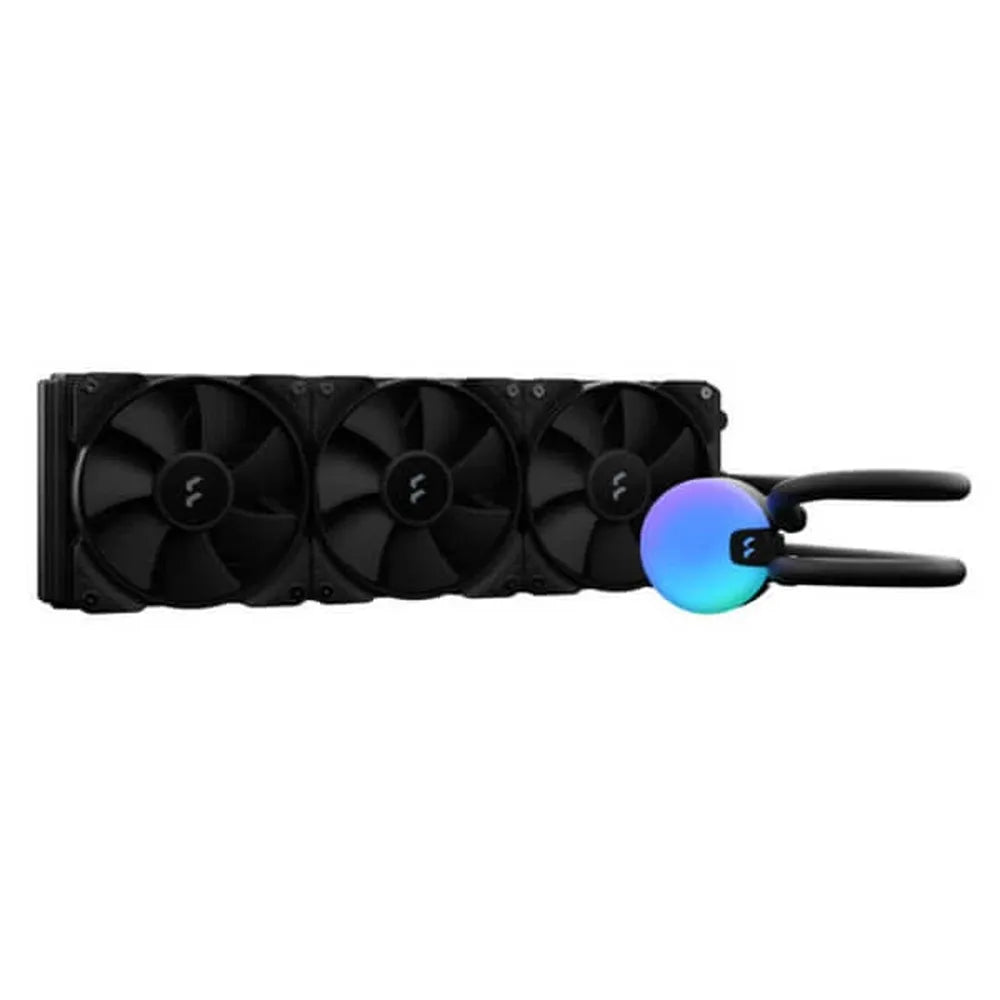

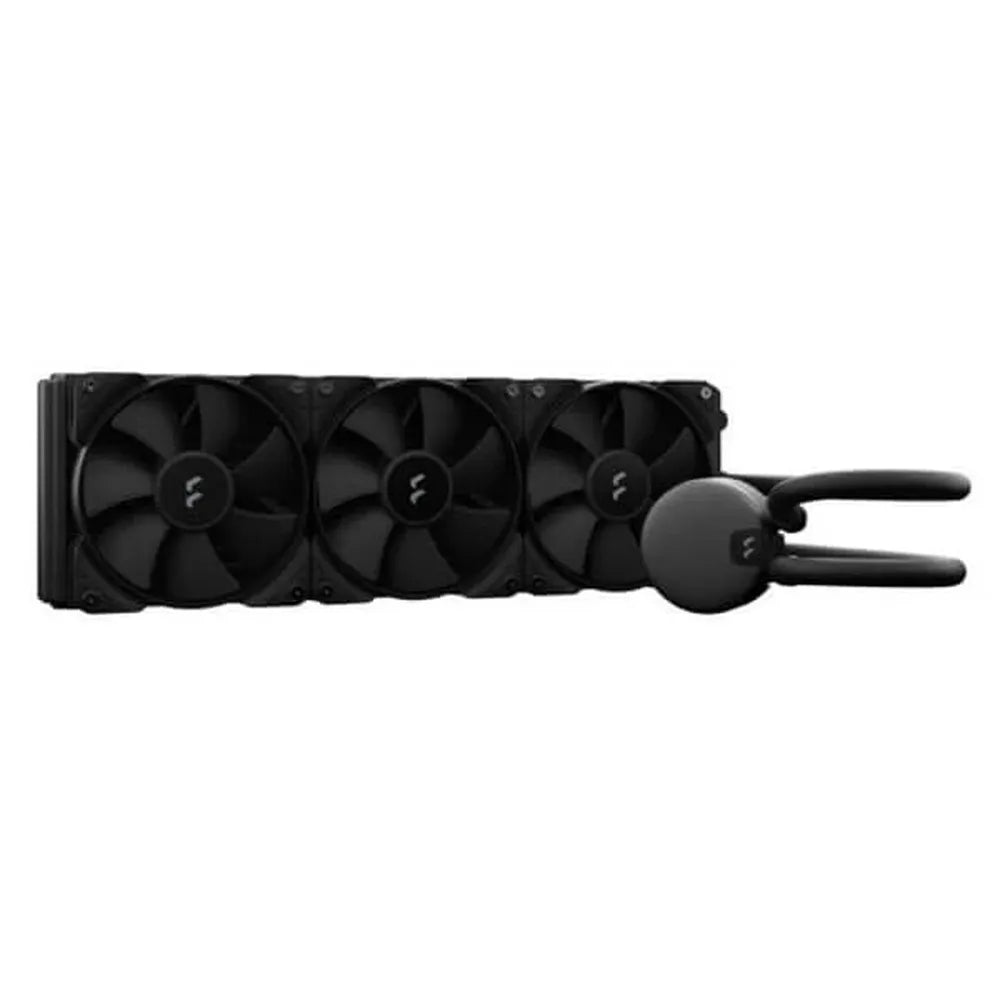

FRACTAL DESIGN Lumen S36 V2 360mm CPU Liquid Cooler (Black)

The Fractal Design Lumen S36 V2 is a 360mm all-in-one CPU liquid cooler designed for builders who want both capable thermal management and clean ARGB aesthetics. At the heart of the cooler sits a copper cold plate that draws heat away from the processor efficiently, feeding it through 400mm low-permeability rubber tubes wrapped in braided nylon sleeves to the aluminum radiator. The radiator itself measures 392 x 120 x 27 mm, providing ample surface area for heat dissipation, and is secured with industry-standard 6-32 fan screw threads. The pump runs at 4,000 RPM (±10%) on a ceramic bearing and operates at 22 dBA at full speed, drawing only 0.34 A at 12 V DC. Its rated mean time to failure (MTTF) is 50,000 hours. Articulating 90-degree elbow fittings on the block side allow flexible tube routing and reduce mechanical stress on the cold plate housing — a practical detail that makes installation tidier. Thermal paste comes pre-applied to the cold plate, so you can mount and go. Three bundled Aspect 12 PWM fans (120 mm each) spin between 500 and 2,000 RPM under PWM control, delivering 13–56 CFM of airflow and up to 2.34 mm H₂O of static pressure, with noise ranging from under 10 dBA at minimum speed to 33.2 dBA at full tilt. Each fan uses a rifle bearing and carries an MTTF rating of 90,000 hours. On the aesthetics side, the pump head features six addressable RGB (ARGB) LEDs controllable via any 5 V ARGB-compatible motherboard header or external controller. A removable top panel can be rotated in 90-degree increments, keeping the Fractal Design logotype correctly oriented regardless of mounting direction. Socket compatibility is broad: Intel LGA1700, 1200, 1150/1151/1155/1156, 1366, 2011, 2011-3, and 2066, plus AMD AM5, AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, and AM2. The package includes the cooler assembly, three Aspect 12 PWM fans, a 5 V ARGB cable, and both Intel and AMD mounting kits. Verified Specifications: - Model: FD-W-L1-S3611 - Radiator: 392 × 120 × 27 mm, aluminum fins and housing - Cold plate: Copper - Tubes: 400 mm, low-permeability rubber with braided nylon sleeve - Block fittings: Articulating 90° elbow (block side), barbed (radiator side) - Block dimensions (with fittings): 79 × 67 mm; block height: 43 mm - Pump speed: 4,000 ±10% RPM | Bearing: Ceramic | Noise: 22 dBA | MTTF: 50,000 hrs - Fans: 3× Aspect 12 PWM | 500–2,000 RPM | <10–33.2 dBA | 13–56 CFM | 0.230–2.34 mm H₂O | Rifle bearing | MTTF: 90,000 hrs - ARGB: 6 LEDs, 5 V header - Warranty: 5 years
