GALAX A320M DDR4 AMD Motherboard

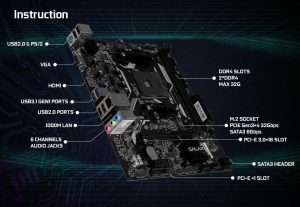

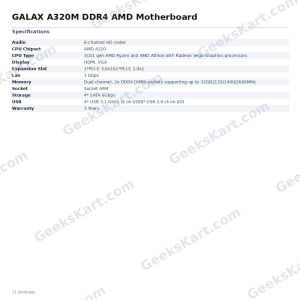

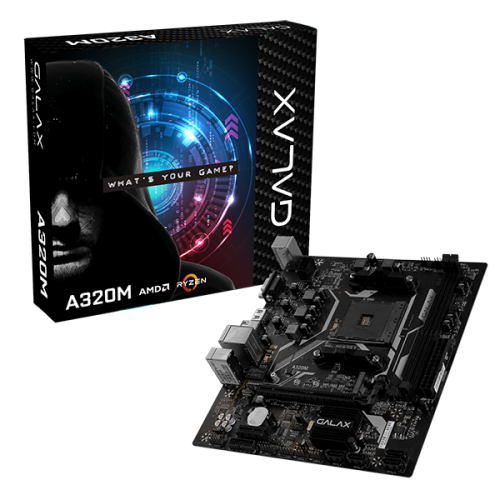

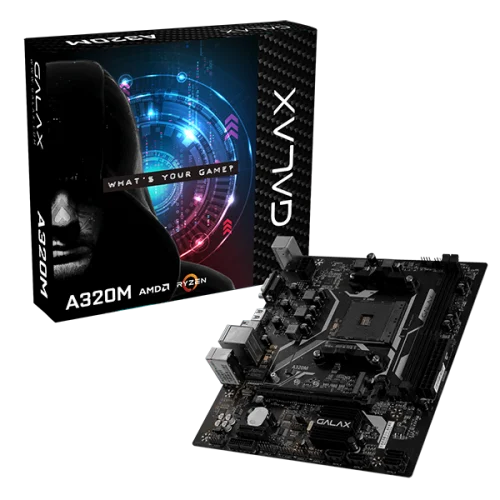

The GALAX A320M DDR4 is a Micro-ATX motherboard built on the AMD A320 chipset, designed for the AM4 socket platform. It supports first, second, and third-generation AMD Ryzen processors as well as AMD Athlon processors with Radeon Vega Graphics, making it a practical foundation for budget-friendly and entry-level AMD desktop builds. Memory capacity is handled by two DDR4 DIMM slots in a dual-channel configuration, supporting up to 32 GB at speeds of 2133, 2400, or 2666 MHz. For storage, the board includes four SATA 6 Gbps ports alongside a high-speed M.2 slot operating via PCIe 3.0 x4, which delivers significantly greater throughput compared to conventional SATA-based solid-state drives. Expansion is provided by one PCIe 3.0 x16 slot — suited for a discrete graphics card — and one PCIe 2.0 x1 slot for additional peripherals. Display output is available through both HDMI and VGA rear-panel connectors, catering to a range of monitors. Connectivity is further supported by four USB 3.1 Gen 1 ports (two on the rear I/O panel) and eight USB 2.0 ports (four on the rear I/O panel). Networking is handled by a Realtek RTL8111H Gigabit Ethernet controller providing 1 Gbps wired connectivity. The audio subsystem features a 6-channel HD codec with an electrically isolated audio PCB area intended to reduce interference and improve signal clarity. GALAX backs this board with a 3-year warranty. Key Specifications: - Socket: AM4 - Chipset: AMD A320 - CPU Support: 1st / 2nd / 3rd Gen AMD Ryzen; AMD Athlon with Radeon Vega Graphics - Memory: 2x DDR4 DIMM, dual-channel, up to 32 GB, 2133 / 2400 / 2666 MHz - Storage: 4x SATA 6 Gbps; 1x M.2 (PCIe 3.0 x4) - Expansion: 1x PCIe 3.0 x16; 1x PCIe 2.0 x1 - Display Output: HDMI, VGA - USB: 4x USB 3.1 Gen 1 (2 rear), 8x USB 2.0 (4 rear) - LAN: Realtek RTL8111H, 1 Gbps - Audio: 6-channel HD codec - Warranty: 3 Years
