GALAX Revolution 02 EATX Mid Tower Cabinet (Black)
MPN GALAX-REVOLUTION-2 · Brand GALAX · EATX(282*305mm)、ATX、M-ATX、ITX
The GALAX Revolution 02 EATX mid-tower cabinet supports EATX through Mini-ITX motherboards, ships with an ARGB Rainbow+PWM V2.0 controller, a tempered glass left panel, and accommodates GPUs up to 360 mm and CPU coolers up to 170 mm
Inclusive of GST · GST invoice available
Overview
The GALAX Revolution 02 (REV-02) is a mid-tower PC cabinet finished in black, built around a steel SPCC chassis with tempered glass on the left side panel for a clear view of your components. The front panel uses an ABS mesh design to aid airflow, while the top and right panels are metal. A bottom-mounted ATX PSU shroud keeps the power supply tucked away, and the layout is designed to accommodate EATX (up to 282 x 305 mm), ATX, Micro-ATX, and Mini-ITX motherboards, giving builders broad compatibility across platform choices. RGB lighting is handled by an included Rainbow+PWM V2.0 ARGB controller that can drive up to five fans and two LED strips simultaneously, letting you coordinate your lighting theme without a separate hub. The case ships with four pre-installed ARGB fans, and the controller's fan headers can handle up to five units total across front and rear positions. Storage and connectivity are straightforward: two 3.5-inch HDD bays and two 2.5-inch SSD mounts handle drives, while the front I/O panel provides two USB 3.0 ports and two USB 2.0 ports alongside HD Audio. No card reader or optical drive bay is included. Cooling flexibility is a highlight. The front mounts support up to two 120 mm or two 140 mm fans, and radiators up to 280 mm. The top panel accepts the same fan and radiator sizes. A single 120 mm fan or radiator fits at the rear exhaust position. Dust filters are present at both the bottom and top to reduce maintenance intervals. Cable management is assisted by a 37.5 mm depth channel behind the motherboard tray. Verified Specifications: - Form Factor: Mid Tower - Motherboard Support: EATX (282×305 mm), ATX, Micro-ATX, Mini-ITX - Chassis Material: SPCC steel (rear 0.8 mm; left/right/top/front 0.6 mm; other panels 0.5 mm) - Left Side Panel: Tempered Glass - Front Panel: ABS Mesh - Dimensions (chassis): 390 mm (L) × 210 mm (W) × 445 mm (H) - Dimensions (full case incl. fascia): 438 mm (L) × 210 mm (W) × 468 mm (H) - Max GPU Length: 360 mm - Max CPU Cooler Height: 170 mm - Expansion Slots: 7 - Drive Bays: 2× 3.5-inch HDD, 2× 2.5-inch SSD - Fan Support — Front: 2× 120 mm or 2× 140 mm; Top: 2× 120 mm or 2× 140 mm; Rear: 1× 120 mm - Radiator Support — Front: 120/140/240/280 mm; Top: 120/140/240/280 mm; Rear: 120 mm - ARGB Controller: Rainbow+PWM V2.0 (max 5 fans, max 2 LED strips) - Front I/O: 2× USB 3.0, 2× USB 2.0, 1× HD Audio - Dust Filters: Bottom and top - Cable Management Depth: 37.5 mm - PSU Form Factor: Bottom-mount ATX

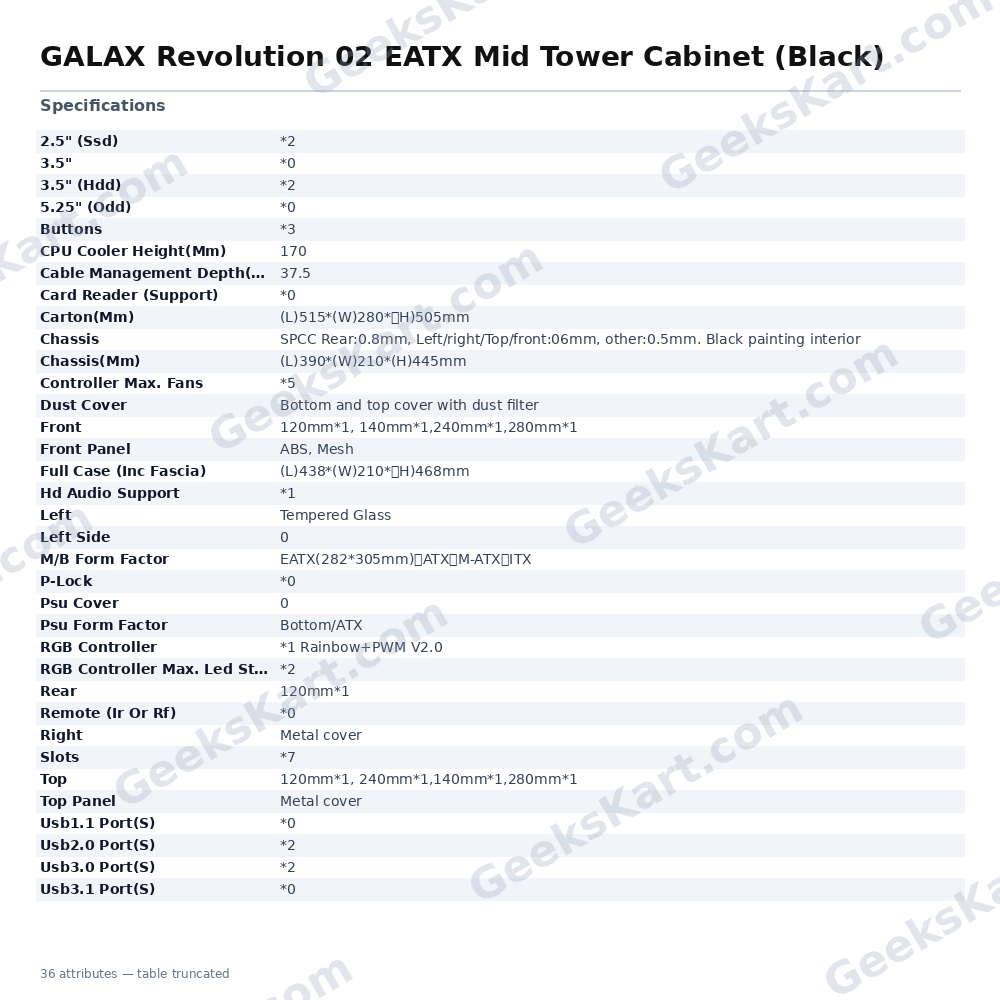

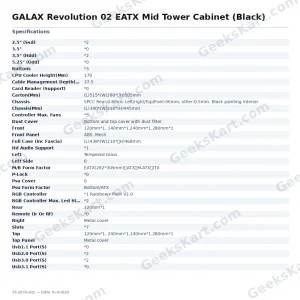

Datasheet
| Top | 120mm*1, 240mm*1,140mm*1,280mm*1 |
|---|---|
| 3.5" | *0 |
| Left | Tempered Glass |
| Rear | 120mm*1 |
| Front | 120mm*1, 140mm*1,240mm*1,280mm*1 |
| Right | Metal cover |
| Slots | *7 |
| P-Lock | *0 |
| Buttons | *3 |
| Chassis | SPCC Rear:0.8mm, Left/right/Top/front:06mm, other:0.5mm. Black painting interior |
| Left Side | 0 |
| Psu Cover | 0 |
| Top Panel | Metal cover |
| 2.5" (Ssd) | *2 |
| 3.5" (Hdd) | *2 |
| Carton(Mm) | (L)515*(W)280*（H)505mm |
| Dust Cover | Bottom and top cover with dust filter |
| 5.25" (Odd) | *0 |
| Chassis(Mm) | (L)390*(W)210*(H)445mm |
| Front Panel | ABS, Mesh |
| RGB Controller | *1 Rainbow+PWM V2.0 |
| Usb1.1 Port(S) | *0 |
| Usb2.0 Port(S) | *2 |
| Usb3.0 Port(S) | *2 |
| Usb3.1 Port(S) | *0 |
| M/B Form Factor | EATX(282*305mm)、ATX、M-ATX、ITX |
| Psu Form Factor | Bottom/ATX |
| Hd Audio Support | *1 |
| Remote (Ir Or Rf) | *0 |
| Vga Card Length(Mm) | up to 360 |
| Controller Max. Fans | *5 |
| CPU Cooler Height(Mm) | 170 |
| Card Reader (Support) | *0 |
| Full Case (Inc Fascia) | (L)438*(W)210*（H)468mm |
| Cable Management Depth(Mm) | 37.5 |
| RGB Controller Max. Led Strips | *2 |
