GALAX Revolution-06 Mesh ARGB ATX Mid Tower Cabinet (White)
MPN GALAX-REVOLUTION-06-MESH-ARGB-WHITE · Brand GALAX · ATX, M-ATX, ITX
The GALAX Revolution-06 Mesh ARGB Mid Tower Cabinet (White) features a mesh front panel, tempered glass side panel, and 4 pre-installed ARGB fans, with support for ATX, M-ATX, and ITX motherboards plus radiators up to 360mm
Inclusive of GST · GST invoice available
Overview

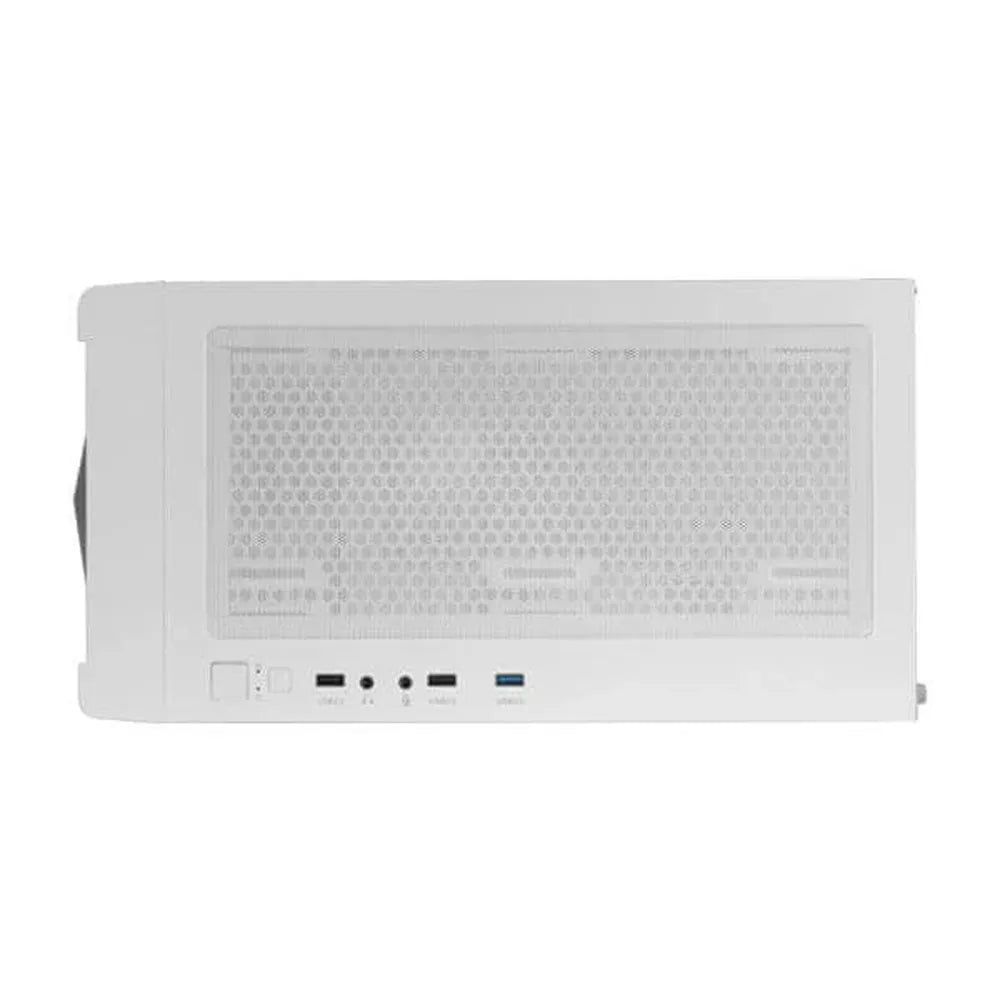

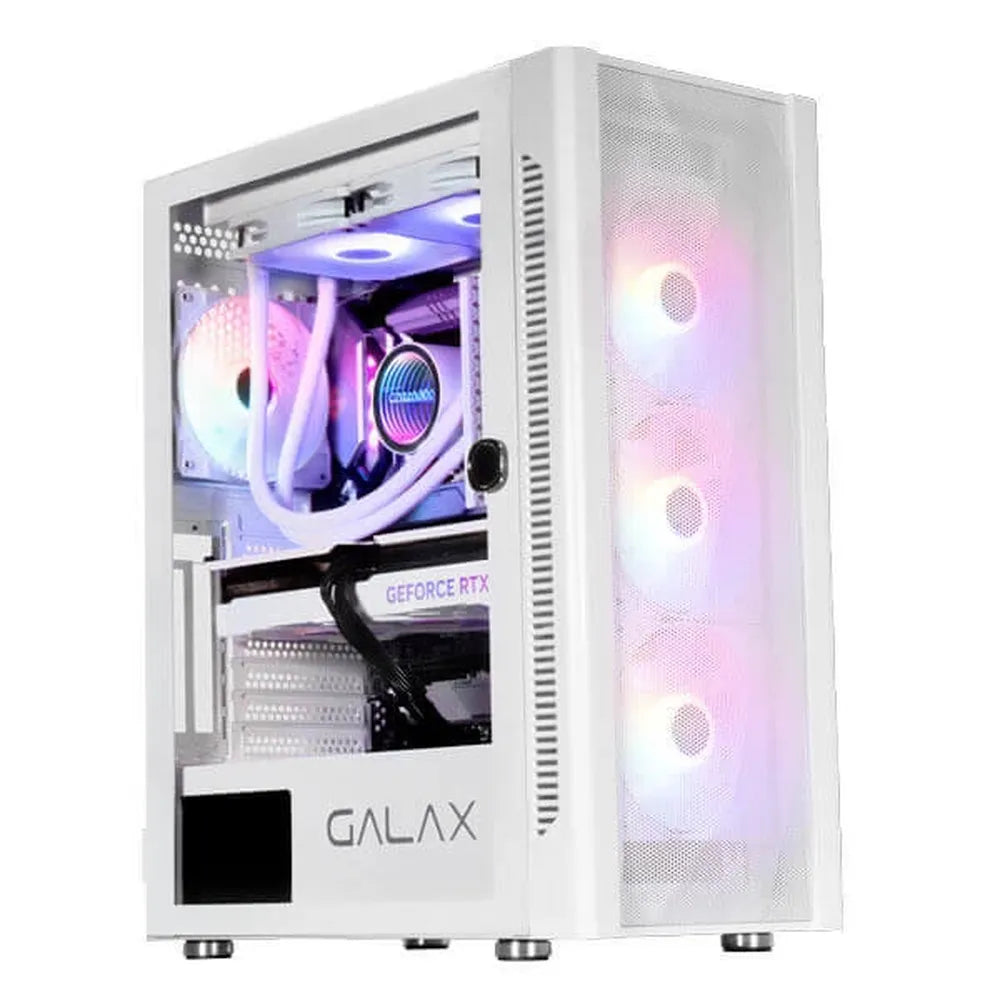

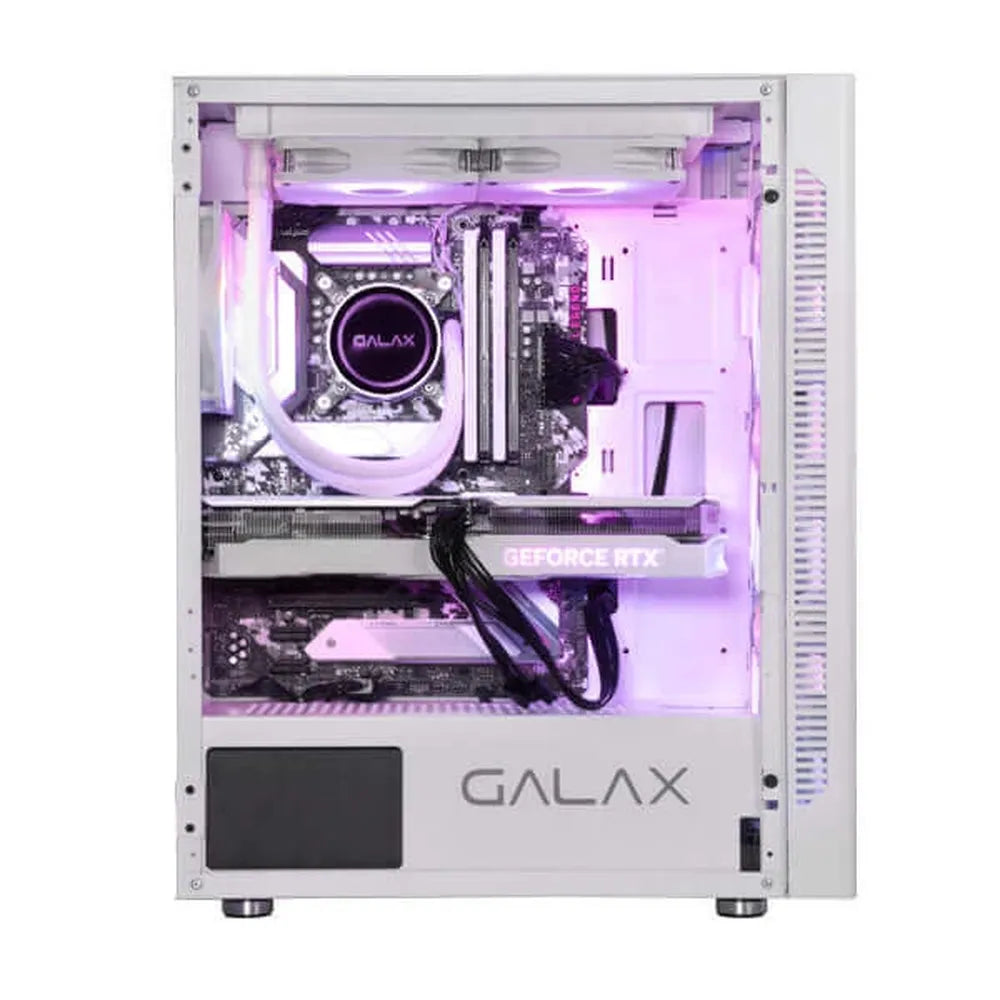

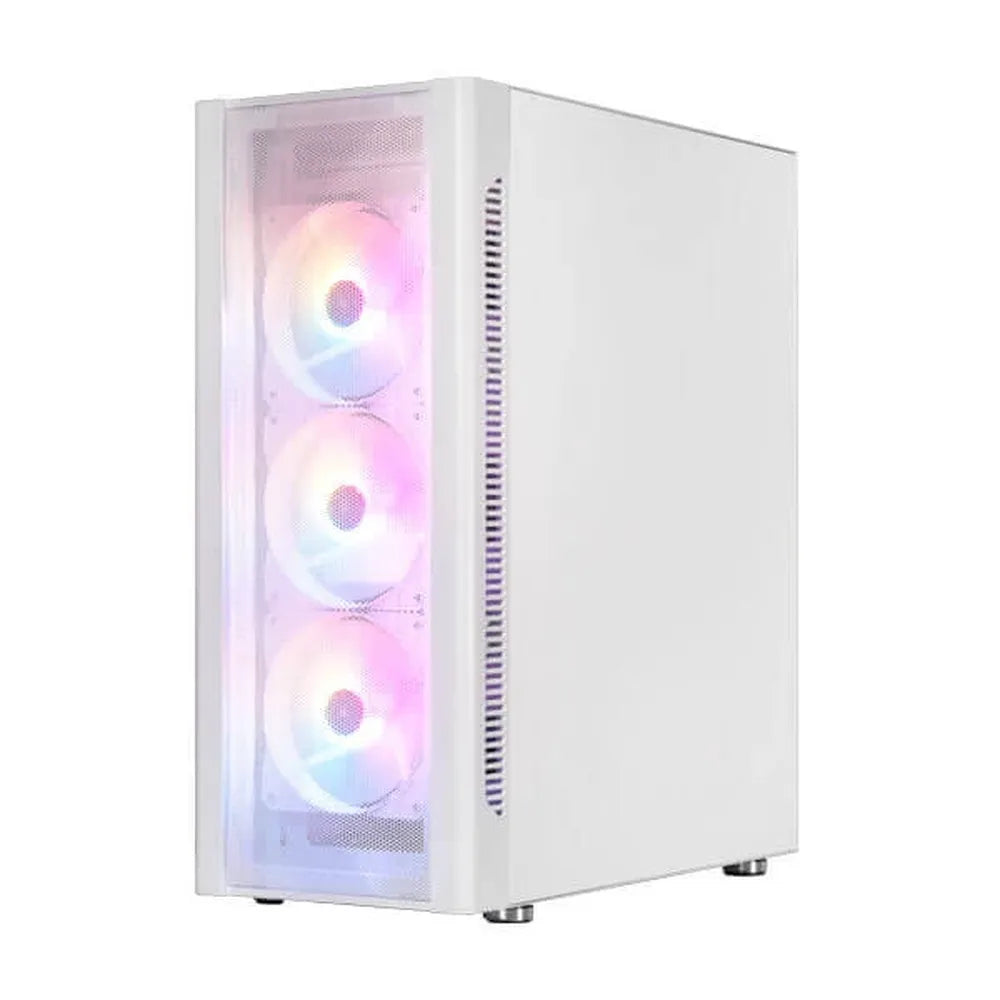

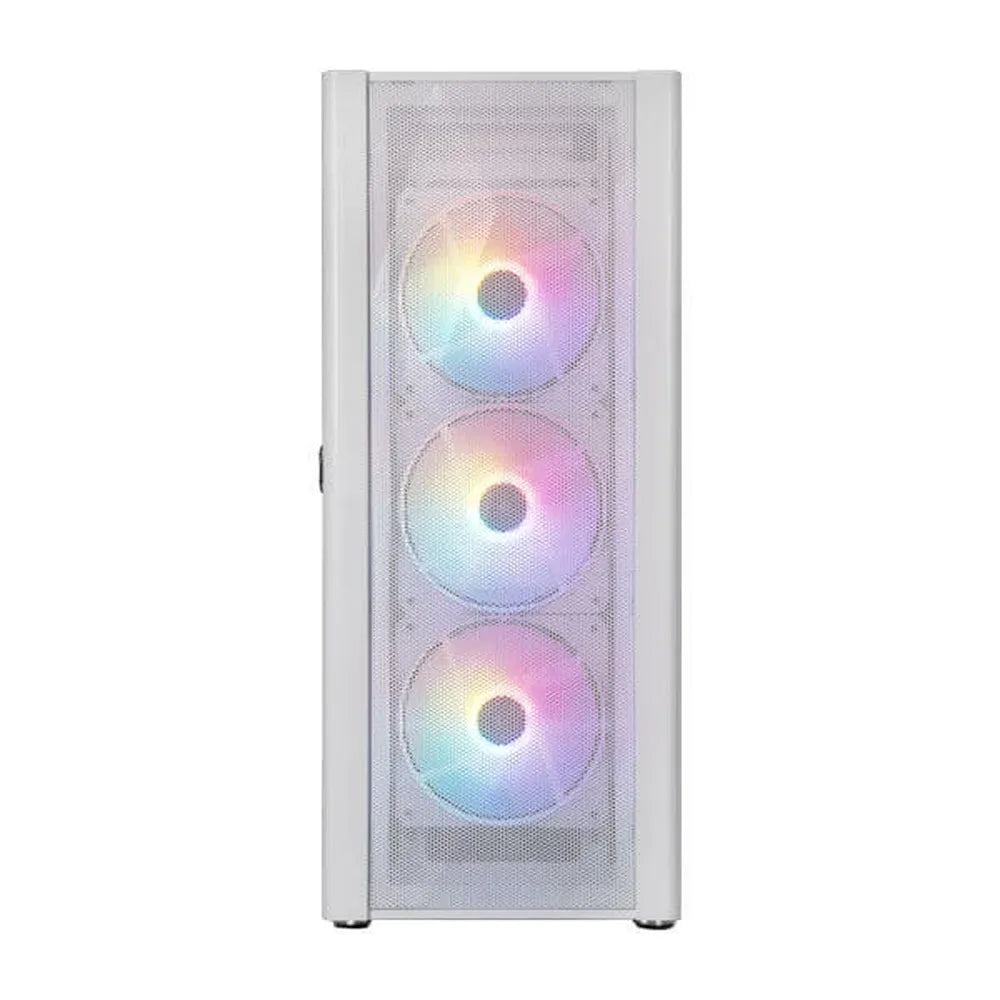

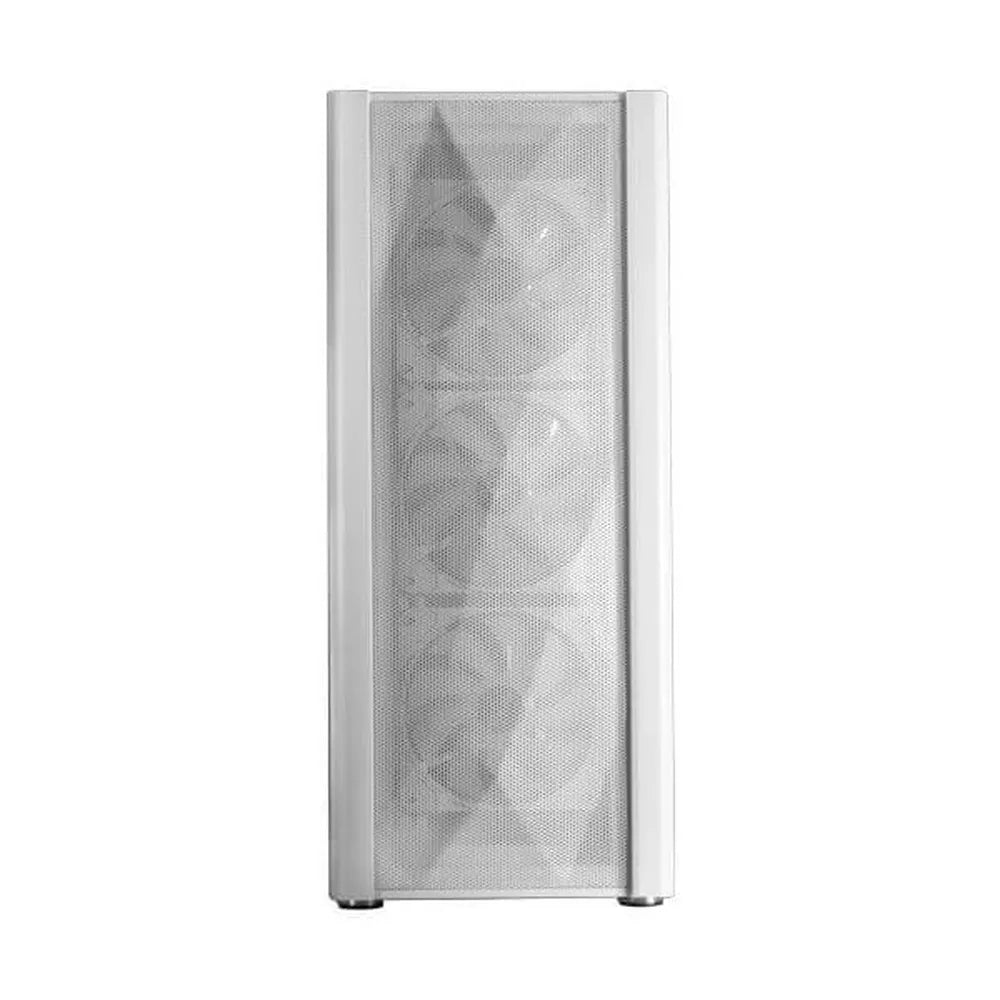

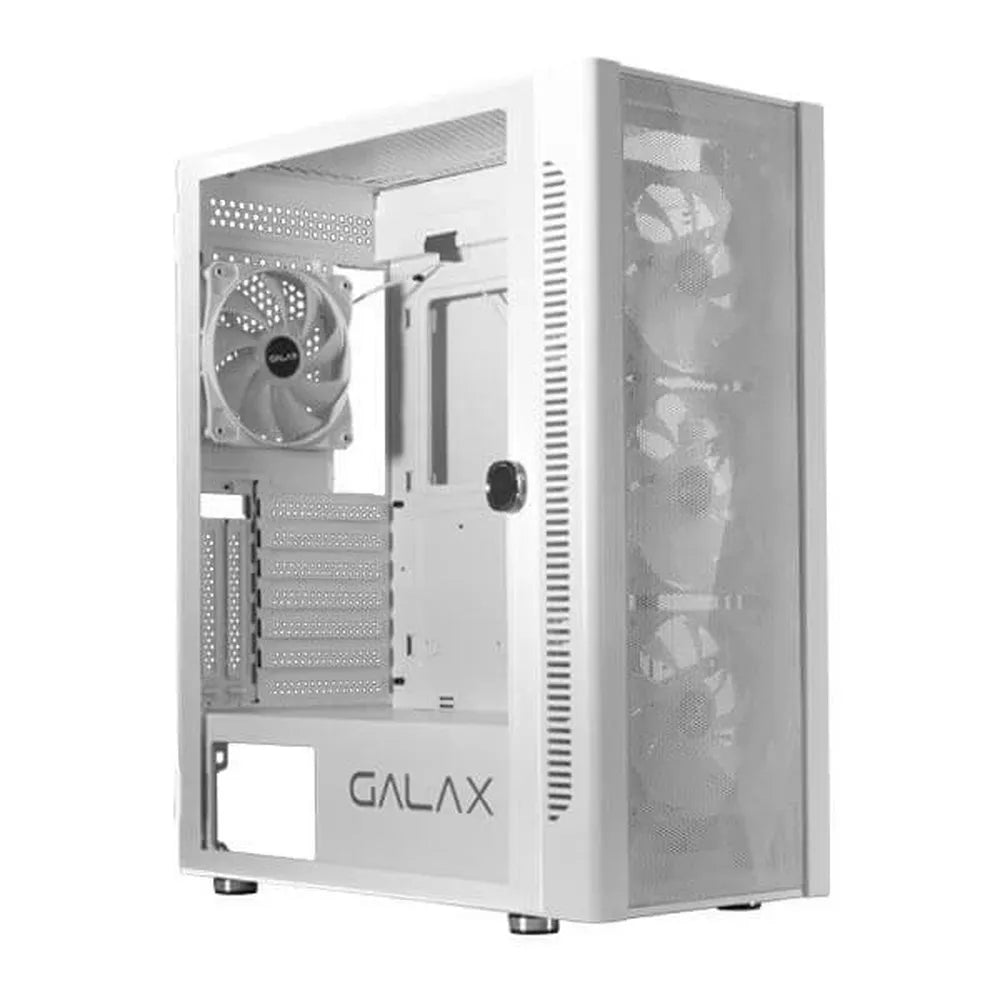

The GALAX Revolution-06 Mesh ARGB ATX Mid Tower Cabinet in White is a stylish and well-ventilated PC enclosure designed for builders who want strong airflow, versatile cooling options, and vivid ARGB lighting right out of the box. The front panel features an ABS mesh cover that promotes unrestricted airflow into the system, while the left side panel is constructed from tempered glass, allowing a clear view of the interior components. The right side panel and top panel are finished in metal, contributing to structural rigidity across the chassis. Four ARGB fans are included in the package, giving your build an immediate visual impact without the need for additional purchases. The white colour scheme makes this case a natural companion for white-themed builds, and it pairs well with other GALAX white-finish components. In terms of storage, the case accommodates up to two 3.5-inch hard drives and three 2.5-inch solid-state drives, providing enough room for a typical gaming or productivity setup. The front I/O panel offers two USB 2.0 ports, one USB 3.0 port, one HD audio jack, and two buttons, keeping essential connectivity at your fingertips. Cooling flexibility is a key strength of this chassis. The front supports up to three 120mm fans or radiators up to 360mm, the top supports fans up to 120mm or 140mm with radiator support up to 280mm, and the rear fits one 120mm fan or a 120mm radiator. Cable management is aided by an 18mm routing depth behind the motherboard tray. GPU cards up to 330mm in length and CPU coolers up to 160mm in height can be accommodated. Verified Specifications: - Model Number: CGG6AGWA4B0 - Motherboard Support: ATX, M-ATX, ITX - Chassis Material: SPCC + Tempered Glass - Front Panel: ABS, Mesh cover - Side Panel (Left): Tempered Glass | Side Panel (Right): Metal - Top Panel: Metal cover - Drive Bays: 2x 3.5-inch (HDD), 3x 2.5-inch (SSD) - I/O: 2x USB 2.0, 1x USB 3.0, 1x HD Audio, 2x Buttons - Front Fan/Radiator Support: 3x120mm / 240mm, 280mm, 360mm radiator - Top Fan/Radiator Support: 2x120mm or 2x140mm / 240mm or 280mm radiator - Rear Fan/Radiator Support: 1x120mm / 120mm radiator - PSU Form Factor: ATX (≤160mm length; ≤140×150×86mm) - Max GPU Length: 330mm - Max CPU Cooler Height: 160mm - Cable Management Depth: 18mm - Chassis Dimensions: 350(L) × 205(W) × 470(H) mm - Full Case Dimensions (inc. fascia): 400.6(L) × 205(W) × 481.5(H) mm - Net Weight: 4.3 kg | Gross Weight: 4.95 kg - Included ARGB Fans: 4 - Warranty: 1 Year

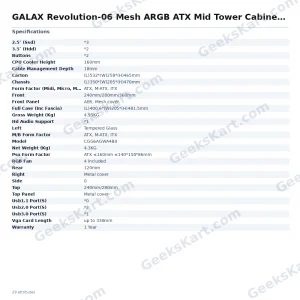

Datasheet
| Warranty | 1 Year |
|---|---|
| Top | 240mm/280mm |
| Left | Tempered Glass |
| Rear | 120mm |
| Side | 0 |
| Front | 240mm/280mm/360mm |
| Right | Metal cover |
| Carton | (L)532*(W)258*(H)465mm |
| Buttons | *2 |
| Chassis | (L)350*(W)205*(H)470mm |
| RGB Fan | 4 included |
| Top Panel | Metal cover |
| Front Panel | ABS, Mesh cover |
| 2.5″ (Ssd) | *3 |
| 3.5″ (Hdd) | *2 |
| Model | CGG6AGWA4B0 |
| Usb1.1 Port(S) | *0 |
| Usb2.0 Port(S) | *2 |
| Usb3.0 Port(S) | *1 |
| M/B Form Factor | ATX, M-ATX, ITX |
| Net Weight (Kg) | 4.3KG |
| Psu Form Factor | ATX ≤160mm ≤140*150*86mm |
| Vga Card Length | up to 330mm |
| Hd Audio Support | *1 |
| CPU Cooler Height | 160mm |
| Gross Weight (Kg) | 4.95KG |
| Cable Management Depth | 18mm |
| Full Case (Inc Fascia) | (L)400.6*(W)205*(H)481.5mm |
| Form Factor (Midi, Micro, Mini Itx, Full) | ATX, M-ATX, ITX |
