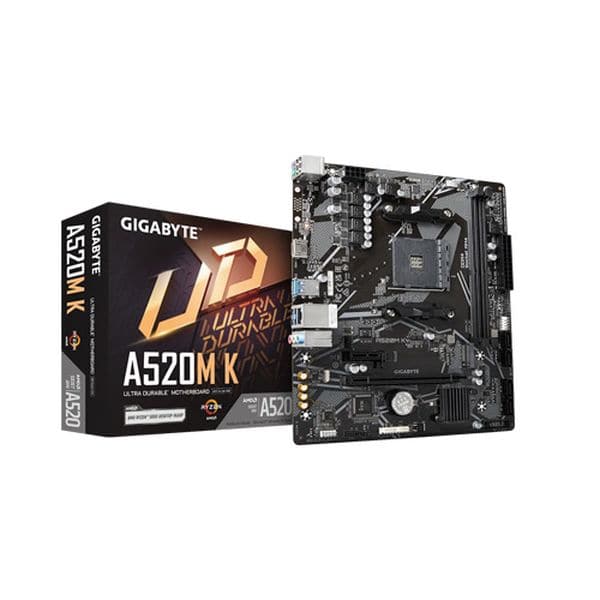

GIGABYTE A520M - K DDR4 AMD Motherboard
MPN A520M-K · Brand Gigabyte · mATX
The Gigabyte A520M-K is an AMD A520 Micro ATX motherboard for AM4 processors (Ryzen 3000–5000 series), featuring PCIe 3.0 x4 M.2, dual-channel DDR4 up to 64 GB, HDMI 2.1, and Gigabit LAN in a compact 23.3 cm × 19.8 cm form factor
Inclusive of GST · GST invoice available
Overview
The Gigabyte A520M-K is a Micro ATX motherboard built on the AMD A520 chipset, designed for AMD Socket AM4 processors. It supports AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, and Ryzen 3000 Series CPUs, making it a practical platform for building or upgrading an AMD-based desktop PC. Memory support is handled by two DDR4 DIMM slots capable of holding up to 64 GB of system memory (32 GB per slot), with native speeds starting at DDR4-2133 and extending up to DDR4-3200 out of the box. Higher frequencies up to DDR4-5100 are achievable via overclocking (O.C.) and XMP profiles. The board also supports ECC Un-buffered modules operating in non-ECC mode. Storage connectivity is well-rounded for a budget Micro ATX platform. One M.2 Socket 3 connector (M key, type 2280) supports both PCIe 3.0 x4 NVMe and SATA drives. Four SATA 6 Gb/s ports are available from the chipset, with support for RAID 0, RAID 1, and RAID 10 configurations. For display output, an integrated HDMI 2.1 port supports resolutions up to 4096×2160 at 60 Hz with HDCP 2.3 and HDR — useful when pairing the board with an APU. Connectivity on the rear I/O includes four USB 3.2 Gen 1 ports, two USB 2.0 ports, a Gigabit Ethernet (Realtek GbE) port, three audio jacks, and a legacy PS/2 port. Audio is handled by a Realtek HD Audio CODEC supporting up to 7.1-channel output. Gigabyte's Smart Fan 5 technology provides multi-sensor thermal monitoring across CPU and system fan headers, with support for both PWM and voltage-mode fans. The AMI UEFI BIOS supports Q-Flash for BIOS updates and EasyTune for system tuning via Gigabyte's APP Center software suite. The board carries Anti-Sulfur Resistor protection for improved component longevity. It ships with a 3-year warranty and supports both Windows 10 and Windows 11 (64-bit). Verifiable Specifications: - Chipset: AMD A520 - Socket: AM4 - Form Factor: Micro ATX, 23.3 cm × 19.8 cm - Memory: 2× DDR4 DIMM, max 64 GB, DDR4-2133 to DDR4-3200 (up to DDR4-5100 O.C.) - M.2: 1× PCIe 3.0 x4 / SATA, type 2280 - SATA: 4× 6 Gb/s (RAID 0/1/10) - PCIe: 1× x16 (PCIe 3.0), 1× x1 (PCIe 3.0) - USB (rear): 4× USB 3.2 Gen 1, 2× USB 2.0 - Display: 1× HDMI 2.1 (4K@60 Hz, HDR, HDCP 2.3) - LAN: Realtek GbE (1 Gbps) - Audio: Realtek HD, up to 7.1-channel - BIOS: AMI UEFI, Q-Flash supported - Warranty: 3 Years

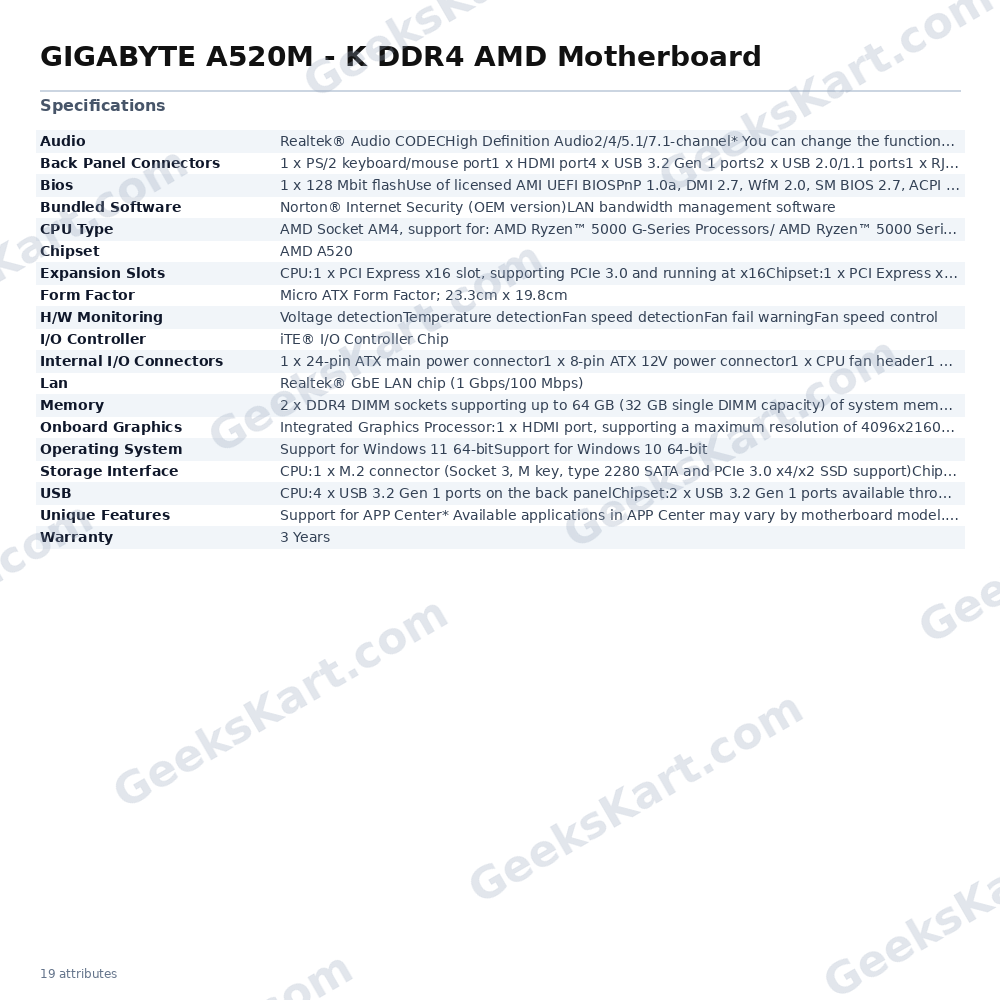

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | AMD A520 |
| CPU Type | AMD Socket AM4, support for: AMD RyzenTM 5000 G-Series Processors/ AMD RyzenTM 5000 Series Processors/ AMD RyzenTM 4000 G-Series Processors/ AMD RyzenTM 3000 Series Processors(Please refer "CPU Support List" for more information.) |
| Lan | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| USB | CPU:4 x USB 3.2 Gen 1 ports on the back panelChipset:2 x USB 3.2 Gen 1 ports available through the internal USB header6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings |
| Memory | 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memorySupport for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modulesDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionFan fail warningFan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16Chipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneSmart BackupSystem Information ViewerSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor:1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Maximum shared memory of 16 GB |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)Chipset:4 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, and RAID 10 |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port1 x HDMI port4 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x system fan header1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x speaker header1 x Clear CMOS jumper1 x chassis intrusion header |
