GIGABYTE AMD WRX80 DDR4 AMD Motherboard
MPN GIGABYTE-WRX80 · Brand Gigabyte

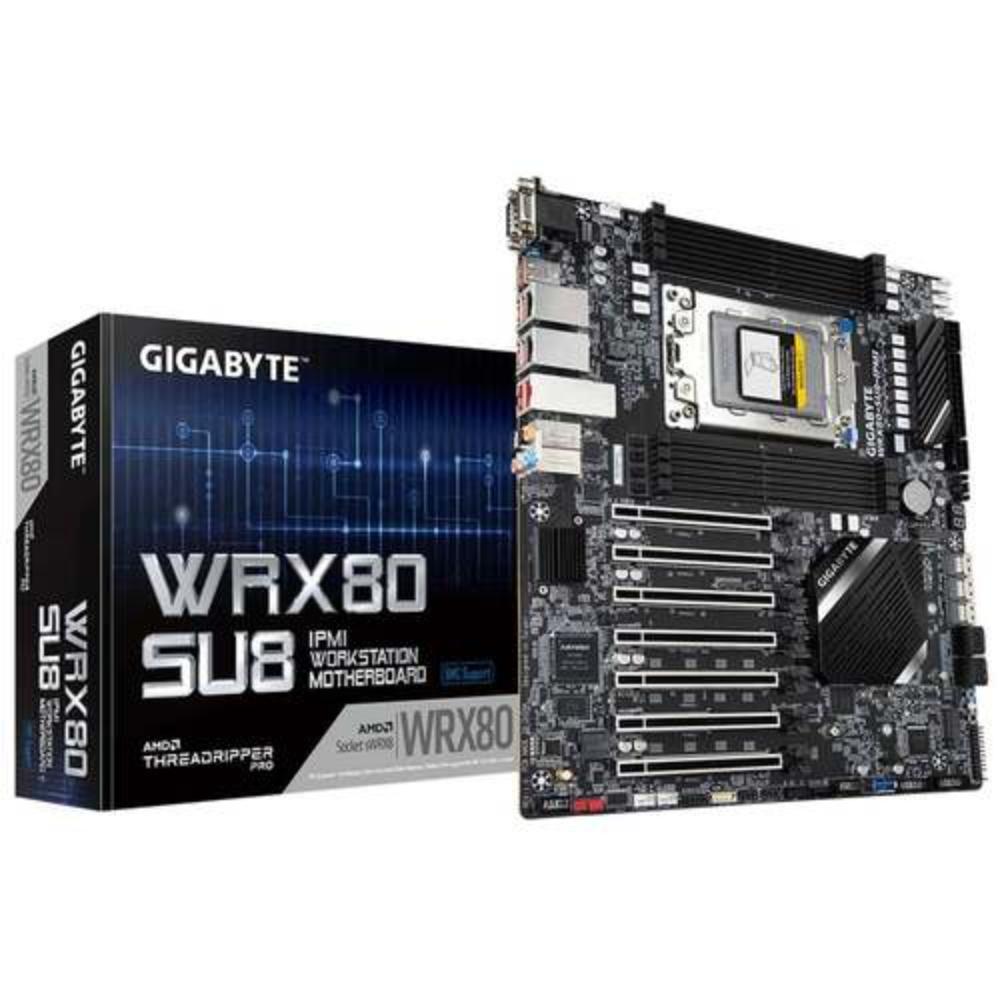

The Gigabyte WRX80-SU8-IPMI is an AMD WRX80 CEB workstation motherboard for Threadripper PRO 3000WX processors, featuring 8-channel DDR4 up to 1024 GB, 7x PCIe 4.0 slots, dual 10GbE, and ASPEED AST2500 IPMI 2.0 remote management
Inclusive of GST · GST invoice available
Overview
The Gigabyte WRX80-SU8-IPMI is a CEB-form-factor workstation motherboard built around the AMD WRX80 chipset and the sWRX8 socket, designed to pair with AMD Ryzen Threadripper PRO 3000WX series processors supporting up to 64 cores. It features eight DDR4 DIMM slots arranged in an 8-channel memory architecture, supporting UDIMM (ECC), RDIMM, 3DS RDIMM and LRDIMM modules at speeds up to DDR4 3200 MHz, with a maximum system memory capacity of 1024 GB — making it suitable for memory-intensive workloads such as 3D rendering, data science and virtualization. Expansion is handled by seven PCIe 4.0 slots: six running at x16 electrical bandwidth and one at x8, enabling flexible multi-GPU or compute-accelerator configurations. Gigabyte has engineered the PCB, PCIe slots, M.2 connectors, re-drivers and switches specifically for PCIe 4.0 signal integrity across all interfaces. Storage options include four SATA 6 Gb/s connectors with software RAID 0/1/5/10 support, two M.2 connectors (PCIe Gen4 x4 or SATA, form factors 2242/2280), and three SlimSAS connectors offering further NVMe or SATA expansion. Networking is handled by dual Intel X550 10GbE controllers and dual Intel i210AT Gigabit controllers, with the GbE ports shared with IPMI management via NCSI. The onboard ASPEED AST2500 BMC provides IPMI 2.0-compliant out-of-band remote management via a dedicated web interface, ideal for enterprise and professional workstation deployments. Rear I/O includes one USB 3.2 Gen 2 Type-C port, five USB 3.2 Gen 2 Type-A ports, two 10GbE RJ-45 ports, two GbE RJ-45 ports, DisplayPort 1.2, HDMI 2.1 (4K@60Hz) and five audio jacks. Audio is provided by a Realtek ALC1220-VB codec supporting up to 7.1-channel output and S/PDIF out. Q-Flash Plus allows BIOS updates without installing a CPU, memory or GPU. Key Specifications: - Model: GIGABYTE WRX80-SU8-IPMI - Chipset: AMD WRX80 - Socket: sWRX8 (4094-pin) - CPU Support: AMD Ryzen Threadripper PRO 3000WX series (up to 64 cores) - Memory: 8x DDR4 DIMM, 8-channel, up to DDR4-3200, max 1024 GB; UDIMM ECC / RDIMM / 3DS RDIMM / LRDIMM - Expansion: 7x PCIe 4.0 slots (6x x16 + 1x x8 electrical) - Storage: 4x SATA 6 Gb/s, 2x M.2 (PCIe4 x4 / SATA), 3x SlimSAS - LAN: 2x Intel X550 10GbE + 2x Intel i210AT GbE - BMC: ASPEED AST2500, IPMI 2.0 - Audio: Realtek ALC1220-VB, 7.1-channel, S/PDIF out - USB (rear): 1x USB 3.2 Gen 2 Type-C, 5x USB 3.2 Gen 2 Type-A - Display: 1x DisplayPort 1.2, 1x HDMI 2.1 - Form Factor: CEB (30.5 cm x 26.7 cm) - Warranty: 3 years (brand warranty)

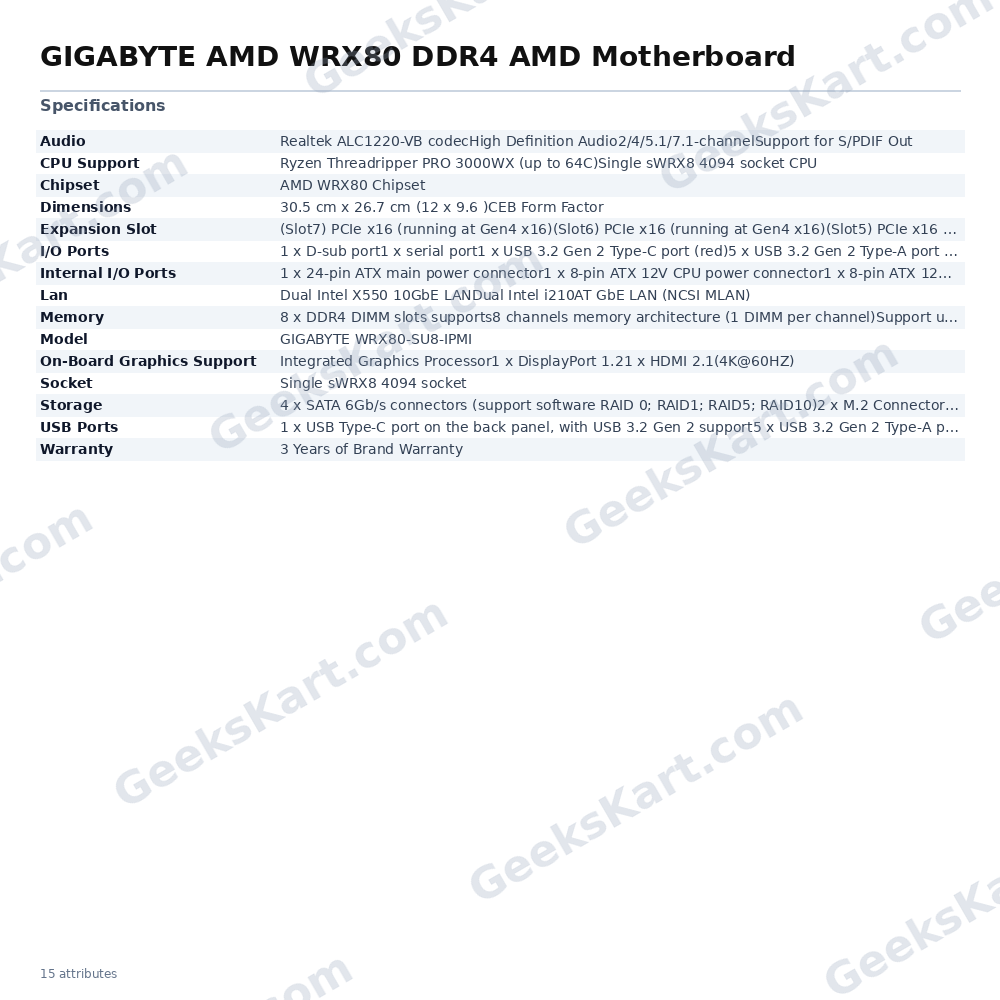

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | AMD WRX80 Chipset |
| Lan | Dual Intel X550 10GbE LANDual Intel i210AT GbE LAN (NCSI MLAN) |
| Audio | Realtek ALC1220-VB codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Model | GIGABYTE WRX80-SU8-IPMI |
| Memory | 8 x DDR4 DIMM slots supports8 channels memory architecture (1 DIMM per channel)Support up to DDR4 3200/2933/2600 MHzSupport for UDIMM (ECC), RDIMM, 3DS RDIMM and LRDIMM memory modulesSupport system memory capacity up to 1024GB |
| Storage | 4 x SATA 6Gb/s connectors (support software RAID 0; RAID1; RAID5; RAID10)2 x M.2 Connectors (Socket 3; M key; Form Factor 2242/2280 ; Supports PCIe gen4 x4 or SATA mode)2 x slimSAS (PCIe gen4 x4 or 4x SATAIII) + 1 x slimSAS (PCIe gen4 x4) connectors |
| I/O Ports | 1 x D-sub port1 x serial port1 x USB 3.2 Gen 2 Type-C port (red)5 x USB 3.2 Gen 2 Type-A port (red)2 x GbE RJ-45 ports2 x 10GbE RJ-45 ports1 x optical S/PDIF Out connector5 x audio jacks |
| USB Ports | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel1 x USB Type-C header onboard, with USB3.2 Gen2 support2 x USB 3.2 Gen 1 header onboard1 x USB 3.2 Gen 1 vertical connector onboard1 x USB 2.0 header on board |
| Dimensions | 30.5 cm x 26.7 cm (12 x 9.6 )CEB Form Factor |
| CPU Support | Ryzen Threadripper PRO 3000WX (up to 64C)Single sWRX8 4094 socket CPU |
| Expansion Slot | (Slot7) PCIe x16 (running at Gen4 x16)(Slot6) PCIe x16 (running at Gen4 x16)(Slot5) PCIe x16 (running at Gen4 x16)(Slot4) PCIe x16 (running at Gen4 x16)(Slot3) PCIe x16 (running at Gen4 x16)(Slot2) PCIe x16 (running at Gen4 x8)(Slot1) PCIe x16 (running at Gen4 x16) |
| Internal I/O Ports | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V CPU power connector1 x 8-pin ATX 12V GPU power connector1 x CPU fan header6 x system fan headers4 x SATA 6Gb/s connectors2 x M.2 Socket 3 connectors3 x slimSAS connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 vertical connector2 x USB 3.2 Gen 1 header1 x USB 2.0 header1 x Thunderbolt™ add-in card connector1 x Trusted Platform Module(TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x chassis intrusion header1 x Clear CMOS jumper2 x SATA SGPIO headers1 x BMC_VGA jumper1 x BMC_WATCHD jumper1 x SMB_IPMB connector1 x PMBUS header1 x Speaker |
| On-Board Graphics Support | Integrated Graphics Processor1 x DisplayPort 1.21 x HDMI 2.1(4K@60HZ) |
| Socket | Single sWRX8 4094 socket |
