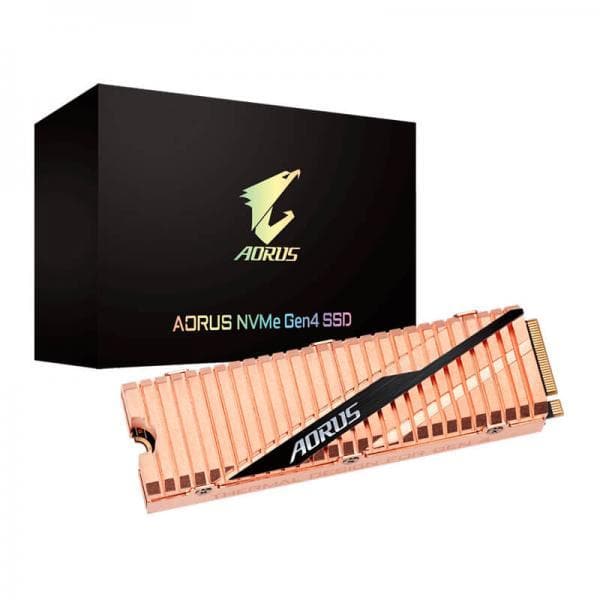

GIGABYTE Aorus 500GB M.2 NVME Gen4 Solid State Drive ( SSD )
MPN GIGABYTE-AORUS-500GB-M.2 · Brand Gigabyte · M.2 2280
Features Of GIGABYTE Aorus 500GB M.2 NVME Gen4 Solid State Drive ( SSD ) Form Factor: M.2 2280 internal ssd Interface: PCI-Express 4.0 x4, NVMe 1.3 Total Capacity: 500GB Sequential Read Speed: up to 5000 MB/s Sequential Write Speed: up to 2500 MB/s Wear Leveling, Over-Provision technologies TRIM & S.M.A.R.T supported Fully Body Copper Heat Spreader Warranty: Limited 5-years Specifications Of GIGABYTE Aorus 500GB M.2 NVME Gen4 Solid State Drive ( SSD ) Model GP-ASM2NE6500GTTD Interface PCI-Ex
Inclusive of GST · GST invoice available
Overview
Features Of GIGABYTE Aorus 500GB M.2 NVME Gen4 Solid State Drive ( SSD )
- Form Factor: M.2 2280 internal ssd
- Interface: PCI-Express 4.0 x4, NVMe 1.3
- Total Capacity: 500GB
- Sequential Read Speed: up to 5000 MB/s
- Sequential Write Speed: up to 2500 MB/s
- Wear Leveling, Over-Provision technologies
- TRIM & S.M.A.R.T supported
- Fully Body Copper Heat Spreader
- Warranty: Limited 5-years
Specifications Of GIGABYTE Aorus 500GB M.2 NVME Gen4 Solid State Drive ( SSD )
| Model | GP-ASM2NE6500GTTD |
| Interface | PCI-Express 4.0x4, NVMe 1.3 |
| Form Factor | M.2 2280 |
| Total Capacity | 500GB |
| NAND | 3D TLC Toshiba BiCS4 |
| External DDR Cache | DDR4 512MB |
| Sequential Read speed | Up to 5000 MB/s |
| Sequential Write speed | Up to 2500 MB/s |
| Random Read IOPS | up to 400k |
| Random Write IOPS | up to 550k |
| Dimension (W x H x L) | 80.5 x 11.4 x 23.5 mm |
| Mean Time Between Failure (MTBF) | 1.77 million hours |
| Power Consumption (Active) | Average: R: 5.9W; W: 4.5W |
| Power Consumption (Idle) | 13.21mW |
| Temperature (Operating) | 0°C to 70°C |
| Temperature (Storage) | -40°C to 85°C |
| Warranty | 5 Years |
| Note | ***Features, Price and Specifications are subject to change without notice |
Datasheet
| Warranty | 5 Years |
|---|---|
| Form Factor | M.2 2280 |
| Interface | PCI-Express 4.0×4, NVMe 1.3 |
| Nand | 3D TLC Toshiba BiCS4 |
| Model | GP-ASM2NE6500GTTD |
| Total Capacity | 500GB |
| Random Read Iops | up to 400k |
| Random Write Iops | up to 550k |
| External Ddr Cache | DDR4 512MB |
| Dimension (W X H X L) | 80.5 x 11.4 x 23.5 mm |
| Sequential Read Speed | Up to 5000 MB/s |
| Temperature (Storage) | -40°C to 85°C |
| Sequential Write Speed | Up to 2500 MB/s |
| Temperature (Operating) | 0°C to 70°C |
| Power Consumption (Idle) | 13.21mW |
| Power Consumption (Active) | Average: R : 5.9W; W : 4.5W |
| Mean Time Between Failure (Mtbf) | 1.77 million hours |
