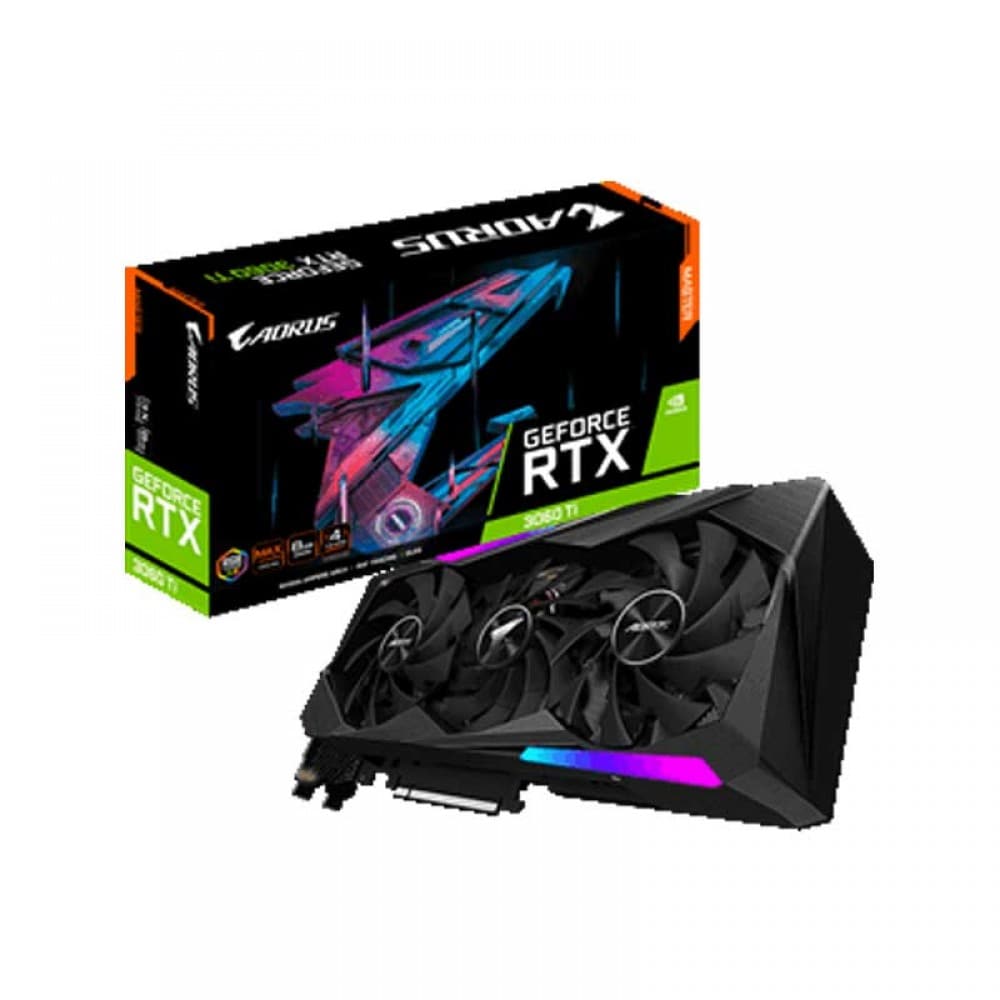

Features of GIGABYTE Aorus GeForce RTX 3060 Ti Master 8GB Nvidia Graphic Card
KEY FEATURE
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GIGABYTE Aorus GeForce RTX 3060 Ti Master 8GB Nvidia graphics card for pc
Integrated with 8GB GDDR6 256-bit memory interface
MAX-Covered cooling
LCD Edge View
RGB Fusion 2.0
6 video outputs
Protection metal back plate
4 years warranty (Online registration required)
DESIGN CONCEPT
In the AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style.
Welcome to the Digital Code Era.
MAX-COVERED COOLING
The Max-Covered cooling features 3x 100mm unique blade stack fans with wind claw design and alternate spinning, so the air pressure can completely cover the heatsink.
LCD EDGE VIEW
The LCD monitor not only display graphics card information, but also various favorite texts, pictures and GIFs. You can also adjust lighting effects via RGB FUSION 2.0 software.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PERFORMANCE
GeForce RTX™ 3060 Ti with 8G memory and 448 GB/s memory bandwidth has 4864 CUDA® Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.
EXCELLENCE
Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.
EXTREME OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET.
ULTRA DURABILITY
The Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
PCB COATING
Dust resistant – shields from dust, insects, dropped screws, drill shavings, and abrasion.
Moisture resistant – prevents unwanted conduction paths and board damage.
Corrosion resistant – protects from salt spray, humidity, and corrosion.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build
INTUITIVE AORUS ENGINE
Clock speeds, voltage, fan excellence, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.
WARRANTY 4 YEARS
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.
Core Clock
1800 MHz (Reference Card: 1665 MHz)

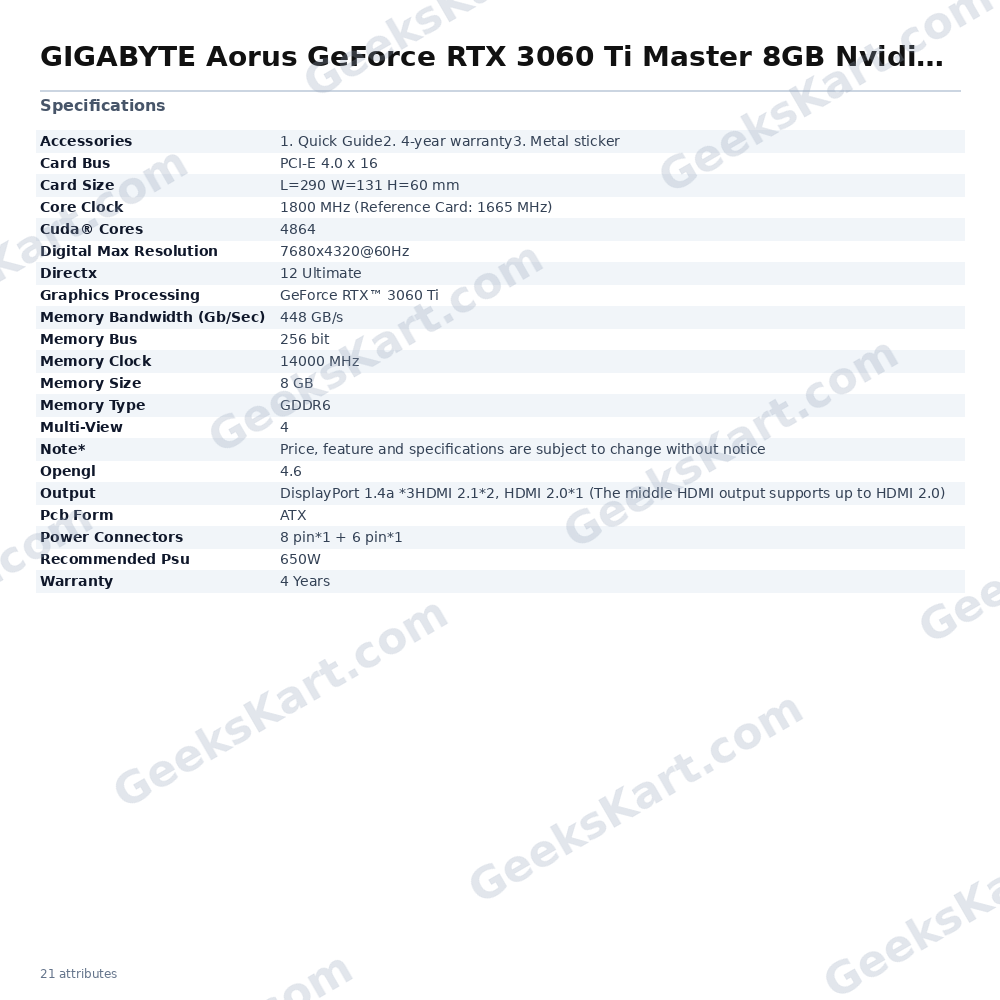

Specifications of GIGABYTE Aorus GeForce RTX 3060 Ti Master 8GB Nvidia Graphic Card
| Graphics Processing | GeForce RTX™ 3060 Ti |
| Core Clock | 1800 MHz (Reference Card: 1665 MHz) |
| CUDA® Cores | 4864 |
| Memory Clock | 14000 MHz |
| Memory Size | 8 GB |
| Memory Type | GDDR6 |
| Memory Bus | 256 bit |
| Memory Bandwidth (GB/sec) | 448 GB/s |
| Card Bus | PCI-E 4.0 x 16 |
| Digital max resolution | 7680×4320@60Hz |
| Multi-view | 4 |
| Card size | L=290 W=131 H=60 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 650W |
| Power Connectors | 8 pin*1 + 6 pin*1 |
| Output | DisplayPort 1.4a *3 HDMI 2.1*2, HDMI 2.0*1 (The middle HDMI output supports up to HDMI 2.0) |
| SLI Support | N/A |
| Accessories | 1. Quick Guide 2. 4-year warranty 3. Metal sticker |
| Warranty | 4 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
