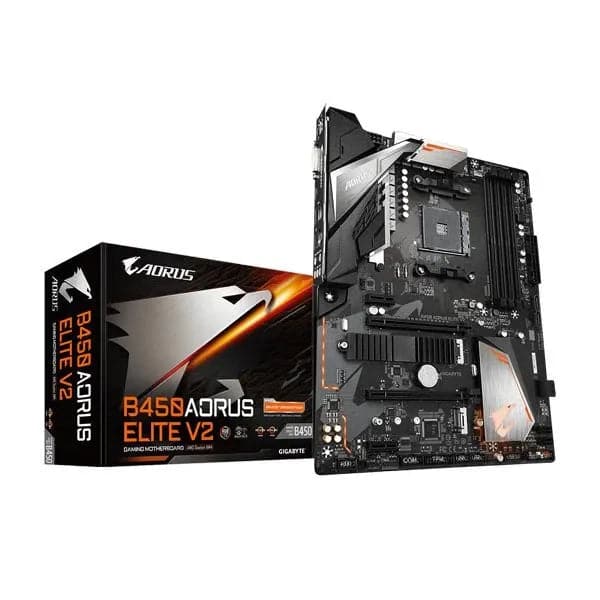

GIGABYTE B450 Aorus Elite V2 DDR4 AMD Motherboard
MPN GIGABYTE-B450-AORUS-ELITE-V2 · Brand Gigabyte · ATX
The GIGABYTE B450 Aorus Elite V2 is an ATX motherboard for AMD AM4 processors—supporting Ryzen 5000 through 1st Gen Ryzen—with dual M.2 slots, 128 GB DDR4 support, PCIe 3.0 x16, and RGB Fusion 2.0
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B450 Aorus Elite V2 is a full-size ATX motherboard built around AMD's B450 chipset, designed for the AM4 socket platform. It is compatible with AMD Ryzen 5000 series processors as well as 4th, 3rd, 2nd, and 1st Gen Ryzen CPUs, including Athlon processors with Radeon Vega graphics, making it a versatile foundation for a wide range of AMD-powered builds. Power delivery is handled by an 8+2 phase Digital Twin Power Design using low RDS MOSFETs, connected through a standard 24-pin ATX and 8-pin ATX 12V connector arrangement. This design supports stable power delivery for demanding CPU workloads. Memory support spans four DDR4 DIMM slots in a dual-channel configuration, accommodating up to 128 GB of system memory (32 GB per DIMM). The board accepts DDR4 speeds from 2133 MHz up to 3600 MHz (the latter via XMP/O.C. profile), with support for ECC unbuffered and non-ECC unbuffered modules. Storage options include two M.2 Socket 3 (M key) connectors—one supporting both SATA and PCIe 3.0 x4 NVMe drives up to 22110 length, and a second supporting PCIe 3.0 x2 NVMe up to 2280 length—alongside six SATA 6 Gb/s ports. RAID 0, RAID 1, and RAID 10 configurations are supported across SATA devices. The primary M.2 slot includes an AORUS M.2 Thermal Guard heatsink to manage drive temperatures. Expansion is provided by one PCIe 3.0 x16 slot for the primary GPU, one PCIe 2.0 x16 slot running at x4 (bandwidth-shared), and two PCIe 2.0 x1 slots. AMD Quad-GPU and 2-Way CrossFire multi-GPU configurations are supported. Back-panel connectivity includes four USB 3.1 Gen 1 ports, four USB 2.0 ports, DVI-D (up to 1920×1200@60 Hz), HDMI 2.0 (up to 4096×2160@60 Hz, CPU-dependent), Realtek Gigabit Ethernet (10/100/1000 Mbit), six audio jacks via Realtek ALC892 HD Audio codec (2/4/5.1/7.1-channel with S/PDIF out), and a PS/2 keyboard/mouse port. RGB Fusion 2.0 is integrated, with one RGBW LED strip header and two addressable digital LED strip headers, enabling per-zone lighting customisation. The onboard fan control subsystem provides one CPU fan header and three system fan headers with speed monitoring and overheating warnings via an iTE I/O controller. The UEFI BIOS is AMI-licensed with 128 Mbit flash and supports Q-Flash for easy firmware updates. Bundled software includes Gigabyte APP Center utilities (EasyTune, Game Boost, RGB Fusion, Smart Backup, @BIOS, Fast Boot) and a Realtek 8118 Gaming LAN Bandwidth Control Utility. Key Specifications: - Form Factor: ATX, 30.5 cm × 23.5 cm - Socket: AMD AM4 - Chipset: AMD B450 - Memory: 4× DDR4 DIMM, up to 128 GB, DDR4-2133 to DDR4-3600 (O.C.), dual-channel, XMP support - Storage: 2× M.2 (PCIe 3.0; primary also supports SATA), 6× SATA 6 Gb/s, RAID 0/1/10 - USB: 4× USB 3.1 Gen 1 + 4× USB 2.0 on rear panel; additional internal headers - Display: 1× DVI-D (1920×1200@60 Hz), 1× HDMI 2.0 (4096×2160@60 Hz, CPU-dependent) - Audio: Realtek ALC892, 7.1-channel HD Audio, S/PDIF out - LAN: Realtek GbE (10/100/1000 Mbit) - Power: 24-pin ATX + 8-pin ATX 12V - BIOS: AMI UEFI, 128 Mbit flash - Warranty: 3 Years

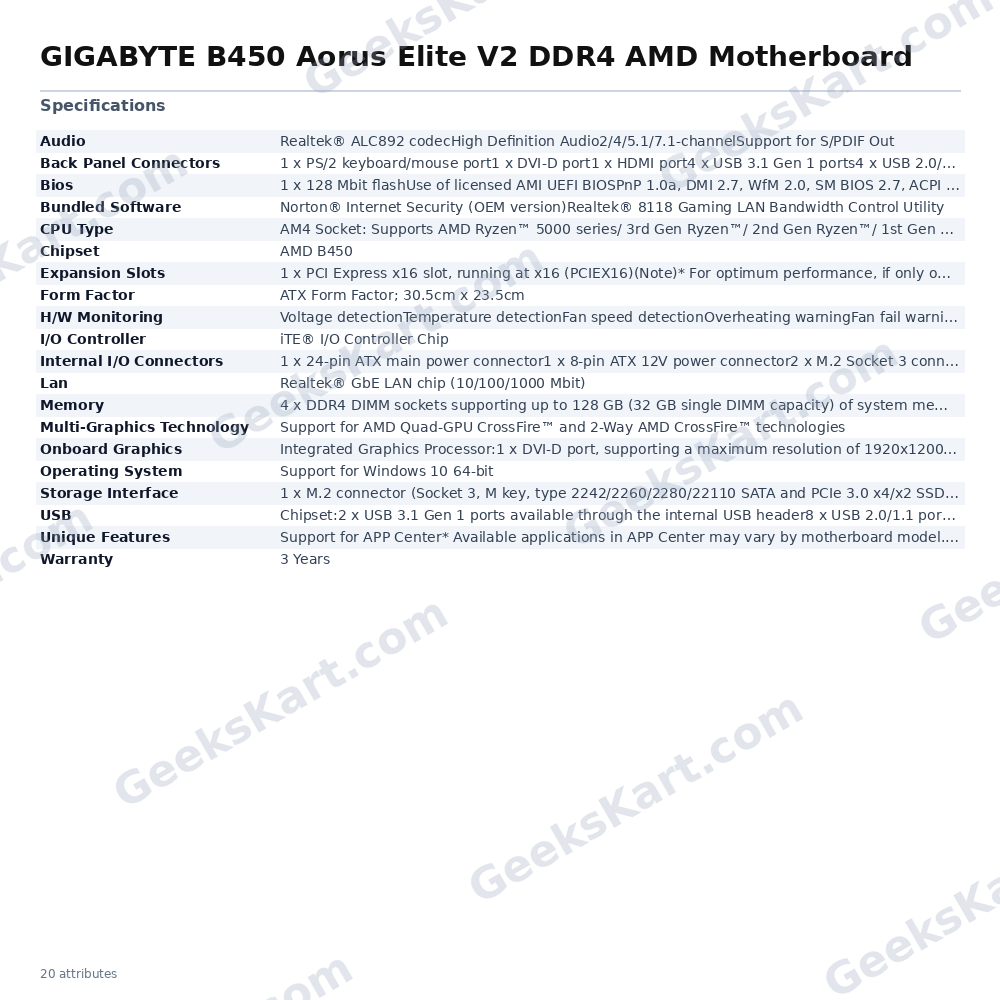

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | AMD B450 |
| CPU Type | |
| Lan | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| USB | Chipset:2 x USB 3.1 Gen 1 ports available through the internal USB header8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)Integrated in the APU:4 x USB 3.1 Gen 1 ports on the back panel |
| Bios | 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC892 codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 3.0 standard.)1 x PCI Express x16 slot, running at x4 (PCIEX4)* The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when the PCIEX1_2 is empty.2 x PCI Express x1 slots(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| Onboard Graphics | Integrated Graphics Processor:1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096×2160@60(Note) Hz(Note)* Support for HDMI 2.0 version and HDCP 2.2.(Note)Maximum shared memory of 16 GB(Note) Actual support may vary by CPU |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, and RAID 10* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port1 x DVI-D port1 x HDMI port4 x USB 3.1 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port6 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector2 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x CPU fan header3 x system fan headers1 x CPU cooler LED strip/RGB LED strip extension cable header1 x RGB (RGBW) LED strip header2 x digital LED strip headers2 x digital LED strip power select jumpers1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only)1 x serial port header1 x Clear CMOS jumper |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
