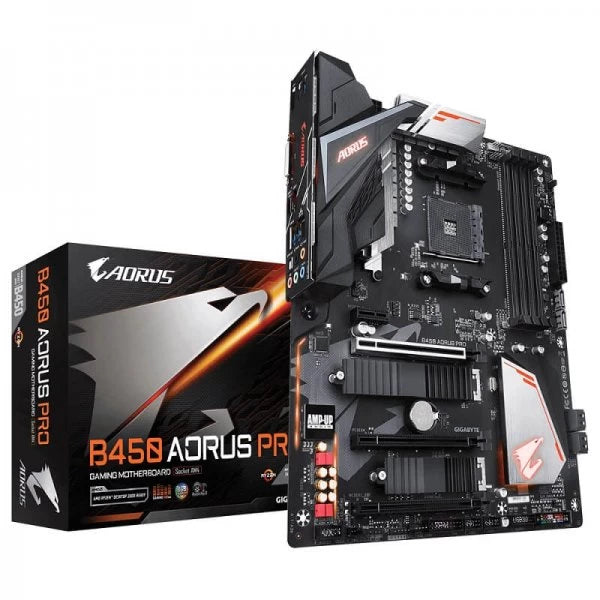

GIGABYTE B450 Aorus Pro DDR4 AMD Motherboard
MPN GIGABYTE-B450-AORUS-PRO · Brand Gigabyte · ATX
The GIGABYTE B450 Aorus Pro is a full-size ATX motherboard for AMD Ryzen AM4 processors, featuring dual M.2 slots, 64 GB DDR4 support, HDMI 2.0, Realtek 7.1 HD Audio, and GIGABYTE RGB Fusion
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B450 Aorus Pro is a full-size ATX motherboard built around the AMD B450 chipset, designed to pair with AMD Ryzen 1st and 2nd Generation processors as well as Ryzen APUs with Radeon Vega graphics via the AM4 socket. Measuring 30.5 cm x 23.5 cm, it fits standard ATX enclosures and offers a well-rounded feature set for mid-range AMD desktop builds. Memory support spans four DDR4 DIMM slots capable of holding up to 64 GB in dual-channel configuration. Supported speeds include DDR4 2133, 2400, 2667, 2933, and 3200 MHz (the last via overclocking), with compatibility for XMP profiles and ECC un-buffered DIMMs operating in non-ECC mode. Storage connectivity is handled by two M.2 Socket 3 connectors alongside six SATA 6 Gb/s ports, with support for RAID 0, RAID 1, and RAID 10 arrays. The primary M.2 slot (M2A) accommodates 2242, 2260, 2280, and 22110 form factors over both SATA and PCIe 3.0 x4/x2, while the secondary slot (M2B) supports 2242, 2260, and 2280 modules at PCIe 3.0 x2. A dedicated M.2 Thermal Guard helps manage heat dissipation from installed NVMe drives. AMD StoreMI technology is also supported, allowing users to combine an SSD and HDD into a single accelerated logical volume to improve storage responsiveness. Onboard audio uses the Realtek ALC1200-VB codec with High Definition Audio and 2/4/5.1/7.1-channel output, complemented by WIMA FKP2 and Chemicon audio capacitors as part of the AORUS AMP-UP Audio implementation. Networking is provided by a Realtek Gigabit Ethernet controller (10/100/1000 Mbit). Rear I/O includes one HDMI 2.0 port (up to 4096x2160 @ 60 Hz, CPU-dependent), one DVI-D port (up to 1920x1200 @ 60 Hz), four USB 3.1 Gen 1 ports, four USB 2.0/1.1 ports, one PS/2 port, and six audio jacks. Additional internal headers support further USB 2.0 and USB 3.1 Gen 1 expansion. Expansion slots comprise one PCIe 3.0 x16 slot for the primary graphics card, one PCIe 2.0 x16 physical slot running at up to x4, and two PCIe 2.0 x1 slots, with support for AMD CrossFire multi-GPU configurations. RGB customisation is available through one RGB (RGBW) header and two digital LED strip headers, all manageable via GIGABYTE RGB Fusion software. The BIOS uses a licensed AMI UEFI implementation stored on a 128 Mbit flash chip, with Q-Flash support for convenient firmware updates. A 3-year manufacturer warranty applies. Key Specifications: - Socket: AM4 | Chipset: AMD B450 - Form Factor: ATX, 30.5 cm x 23.5 cm - Memory: 4 x DDR4 DIMM, up to 64 GB, dual-channel; DDR4 3200(O.C.)/2933/2667/2400/2133 MHz; XMP support - Storage: 2 x M.2 (PCIe 3.0 x4/x2 + SATA; PCIe 3.0 x2), 6 x SATA 6 Gb/s, RAID 0/1/10 - Audio: Realtek ALC1200-VB, 7.1-channel HD Audio, S/PDIF Out - LAN: Realtek Gigabit Ethernet (10/100/1000 Mbit) - Display: 1 x HDMI 2.0 (4K @ 60 Hz*), 1 x DVI-D (1920x1200 @ 60 Hz) [*CPU-dependent] - USB (rear): 4 x USB 3.1 Gen 1, 4 x USB 2.0/1.1 - Expansion: 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16 (x4 mode), 2 x PCIe 2.0 x1 - BIOS: AMI UEFI, 128 Mbit flash, Q-Flash - Warranty: 3 Years

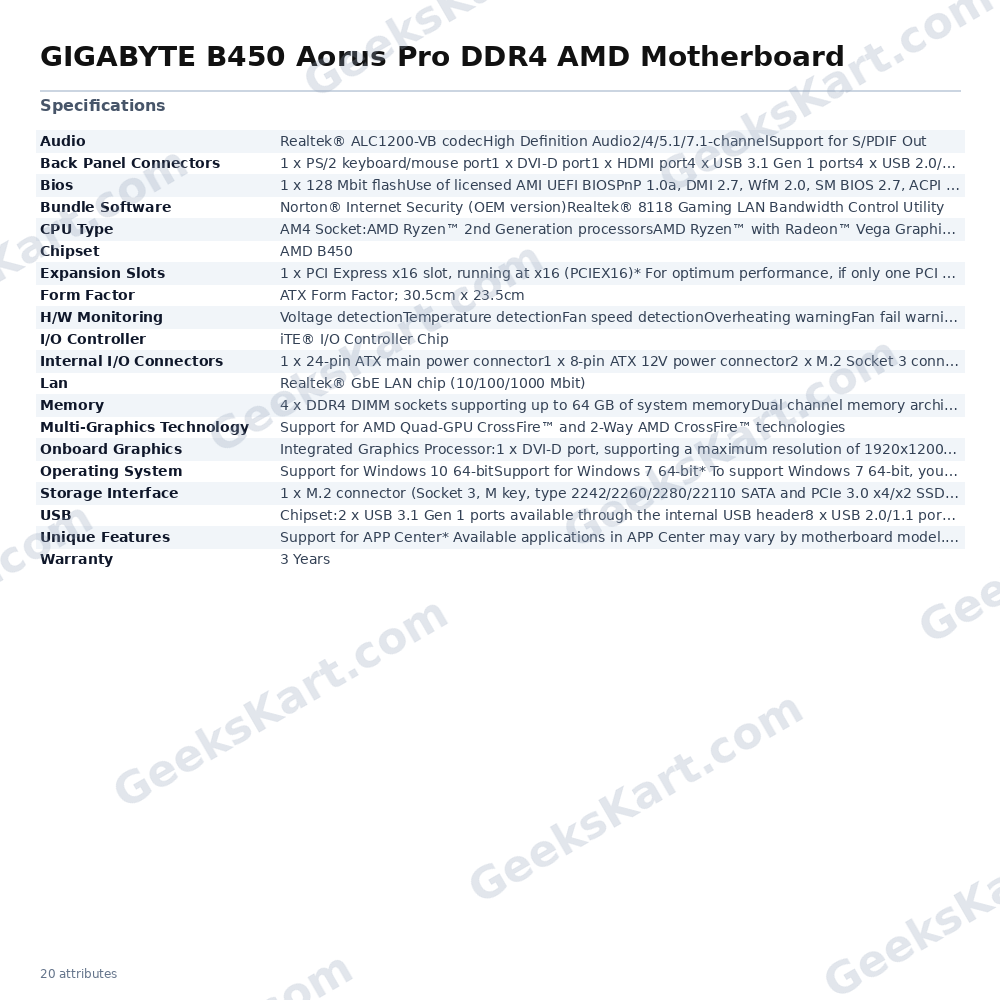

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | AMD B450 |
| CPU Type | AM4 Socket:AMD RyzenTM 2nd Generation processorsAMD RyzenTM with RadeonTM Vega Graphics processorsAMD RyzenTM 1st Generation processors(Please refer "CPU Support List" for more information.) |
| Lan | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| USB | Chipset:2 x USB 3.1 Gen 1 ports available through the internal USB header8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)Integrated in the APU:4 x USB 3.1 Gen 1 ports on the back panel |
| Bios | 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1200-VB codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | 4 x DDR4 DIMM sockets supporting up to 64 GB of system memoryDual channel memory architectureSupport for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install |
| I/O Controller | iTE® I/O Controller Chip |
| Bundle Software | Norton® Internet Security (OEM version)Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 3.0 standard.)1 x PCI Express x16 slot, running at x4 (PCIEX4)* The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when the PCIEX1_2 is empty.2 x PCI Express x1 slots(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.3D OSD@BIOSAutoGreenCloud StationEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSmart KeyboardSmart TimeLockSmart HUDSmart SurveySystem Information ViewerUSB BlockerV-TunerSupport for Q-FlashSupport for Xpress Install |
| Onboard Graphics | Integrated Graphics Processor:1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096×2160@60(Note) Hz* Support for HDMI 2.0 version and HDCP 2.2.(Note)Maximum shared memory of 16 GB(Note) Actual support may vary by CPU |
| Operating System | Support for Windows 10 64-bitSupport for Windows 7 64-bit* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7 |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, and RAID 10* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port1 x DVI-D port1 x HDMI port4 x USB 3.1 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port6 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector2 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x CPU fan header3 x system fan headers1 x CPU cooler LED strip/RGB LED strip extension cable header1 x RGB (RGBW) LED strip header2 x digital LED strip headers2 x digital LED strip power select jumpers1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only)1 x serial port header1 x Clear CMOS jumper |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
